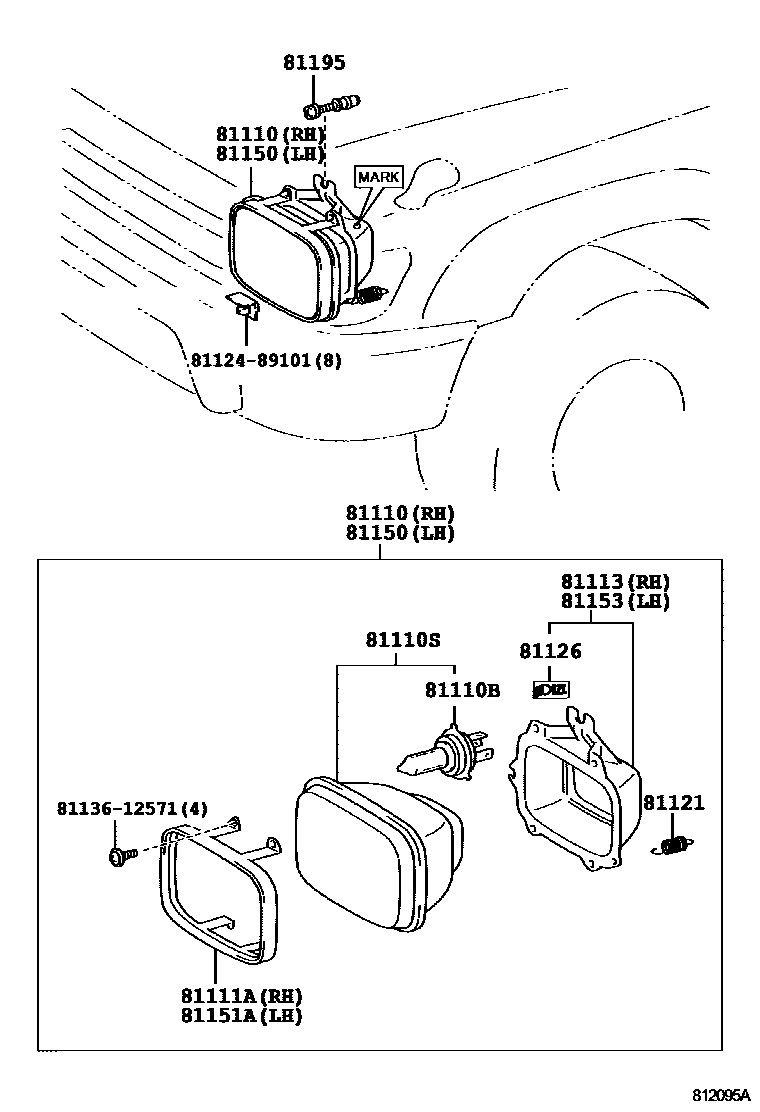

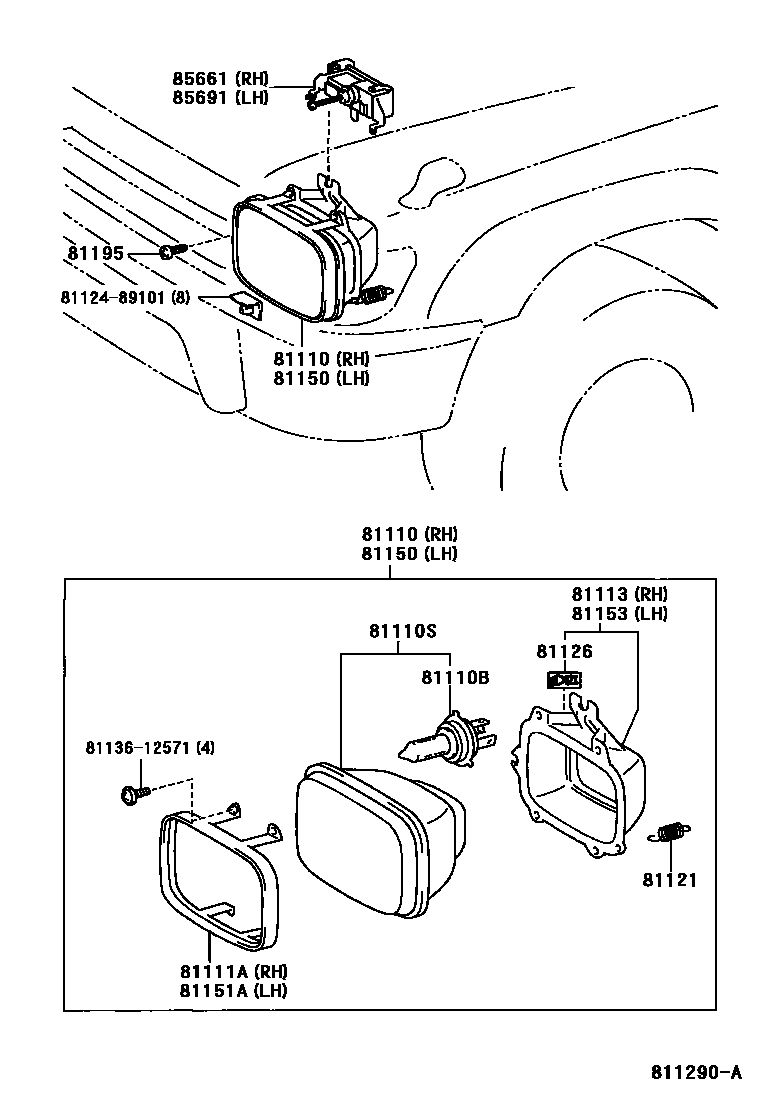

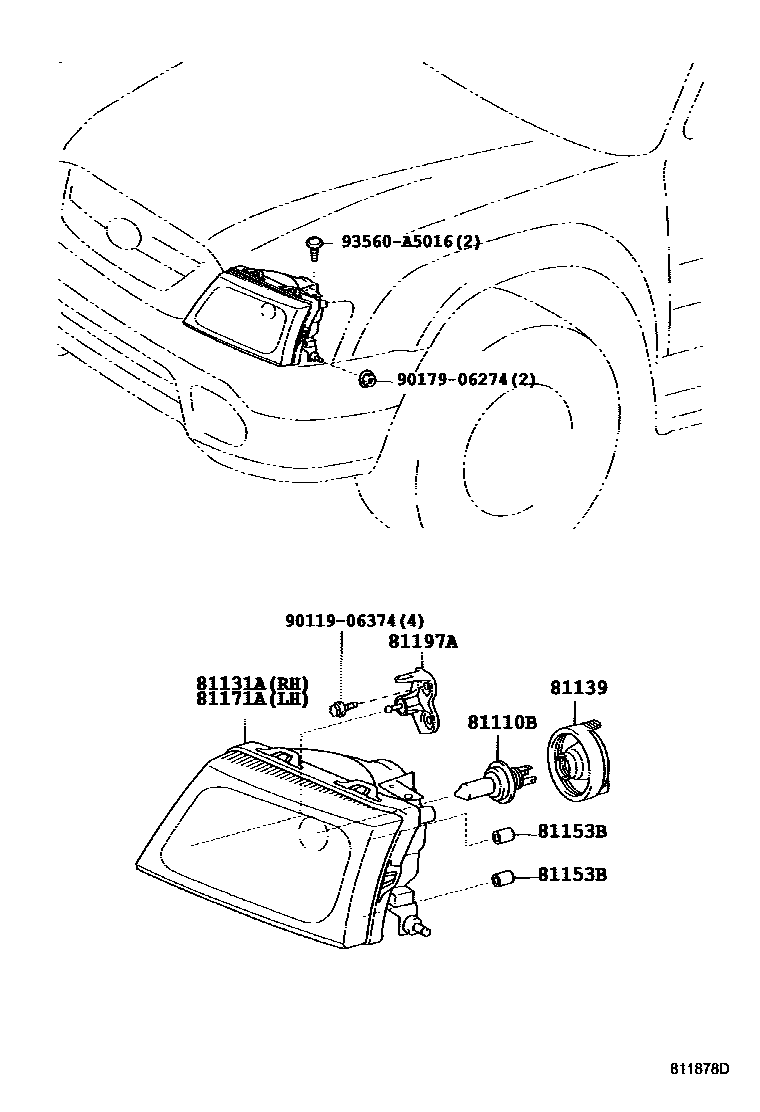

Toyota HILUX Headlamp — Figure 8101
Toyota HILUX EPC diagram 8101, Headlamp, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-35250 · 81110-35260 · 81110-35270 · 81110-35280 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13058 |
| 81110S | No. 1 enclosed lamp assembly | 90981-04008 · 90981-04011 |
| 81111A | No. 1 closed car light fixing ring on the right | 81111-16020 |
| 81113 | Right No. 1 closed lamp seat | 81113-35180 · 81113-89149 |
| 81121 | headlight spring | 81121-14670 · 81121-17010 |
| 81126 | headlight panel | 81126-1B140 |
| 81131A | Right headlight assembly assembly | 81130-35340 · 81130-35360 · 81130-35380 |
| 81139 | Headlight lamp holder cover | 81139-16770 |
| 81150 | Left headlight assembly | 81150-35230 · 81150-35240 · 81150-35250 · 81150-35260 |
| 81151A | No. 1 closed headlight fixing ring on the left | 81111-16020 |
| 81153 | No. 1 closed lamp seat on the left | 81153-35160 · 81153-89149 |
| 81153B | headlight support | 81128-22630 |
| 81171A | Left headlight assembly assembly | 81170-35320 · 81170-35340 · 81170-35360 |
| 81195 | headlight screw | 81195-35010 |
| 81197A | ENGRENAGE, REGLAGE FAISCEAUX PHARES | 81197-35020 |
| 85661 | Right headlight beam height adjustment motor | 85661-35010 · 85661-35020 |
| 85691 | Left headlight beam height adjustment motor | 85691-35010 · 85691-35020 |
