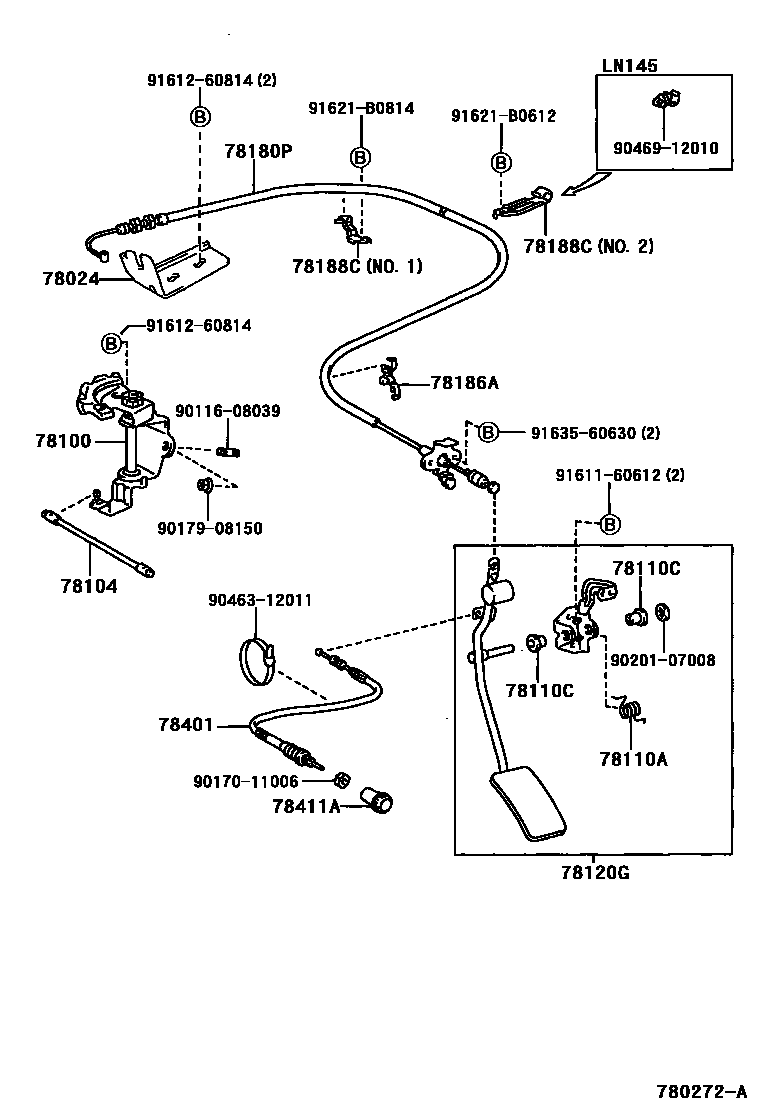

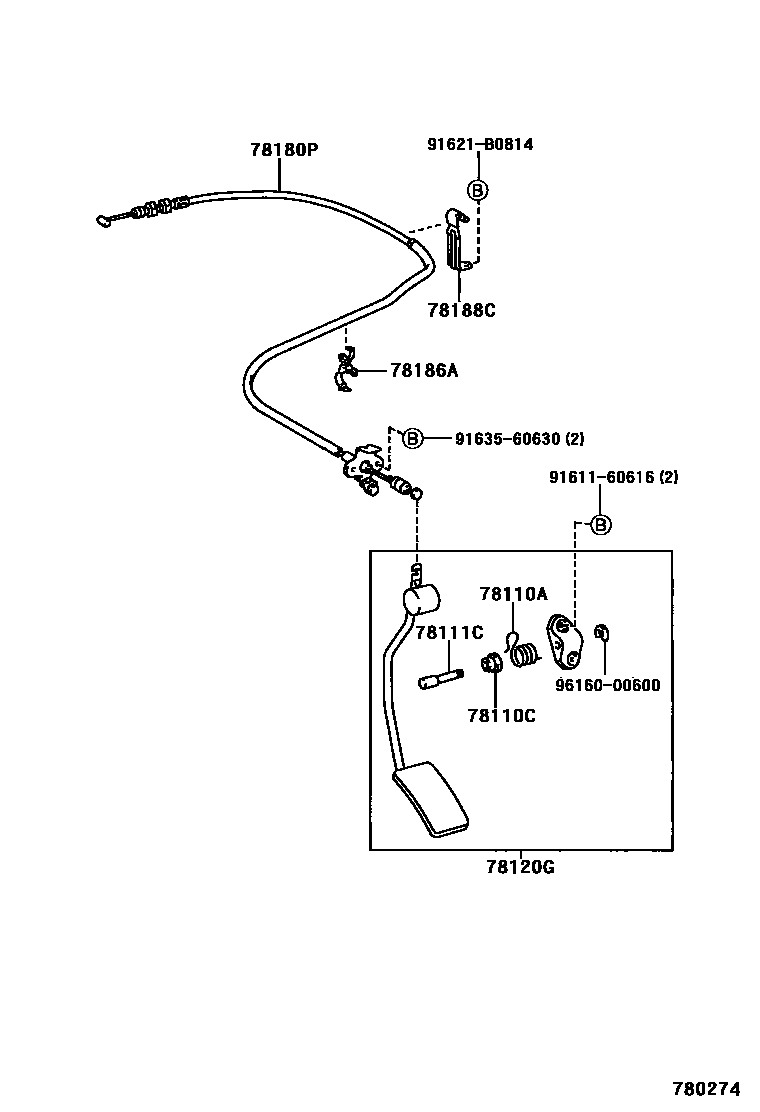

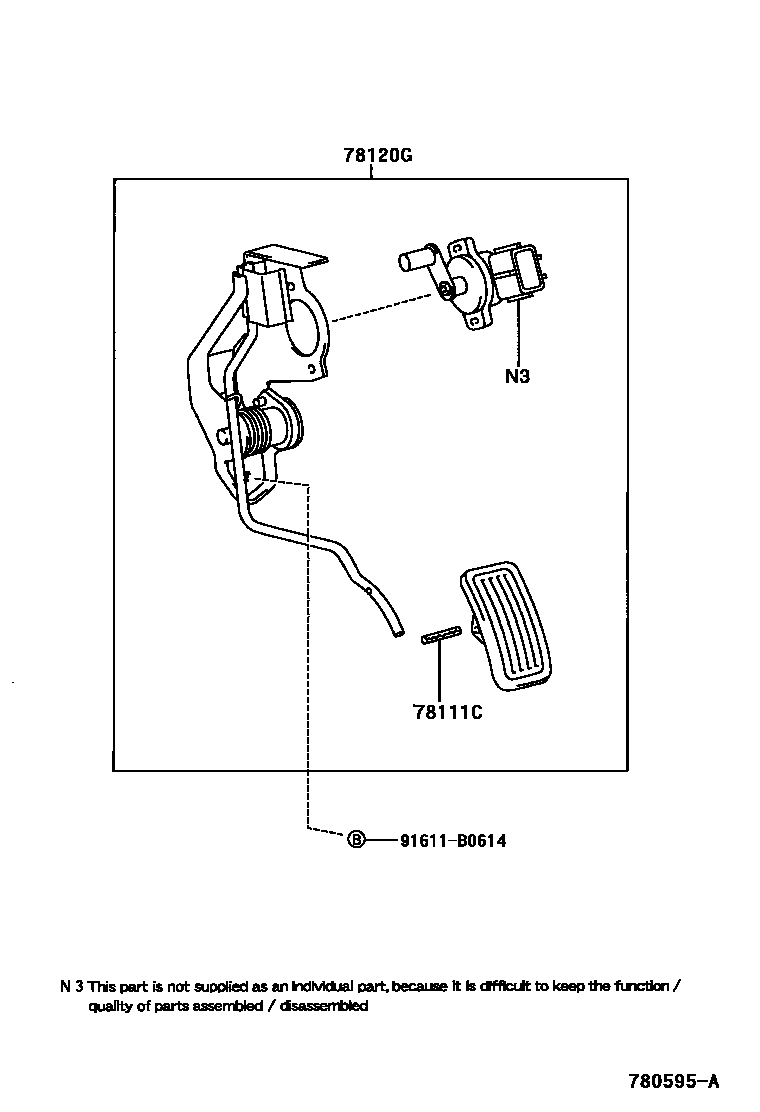

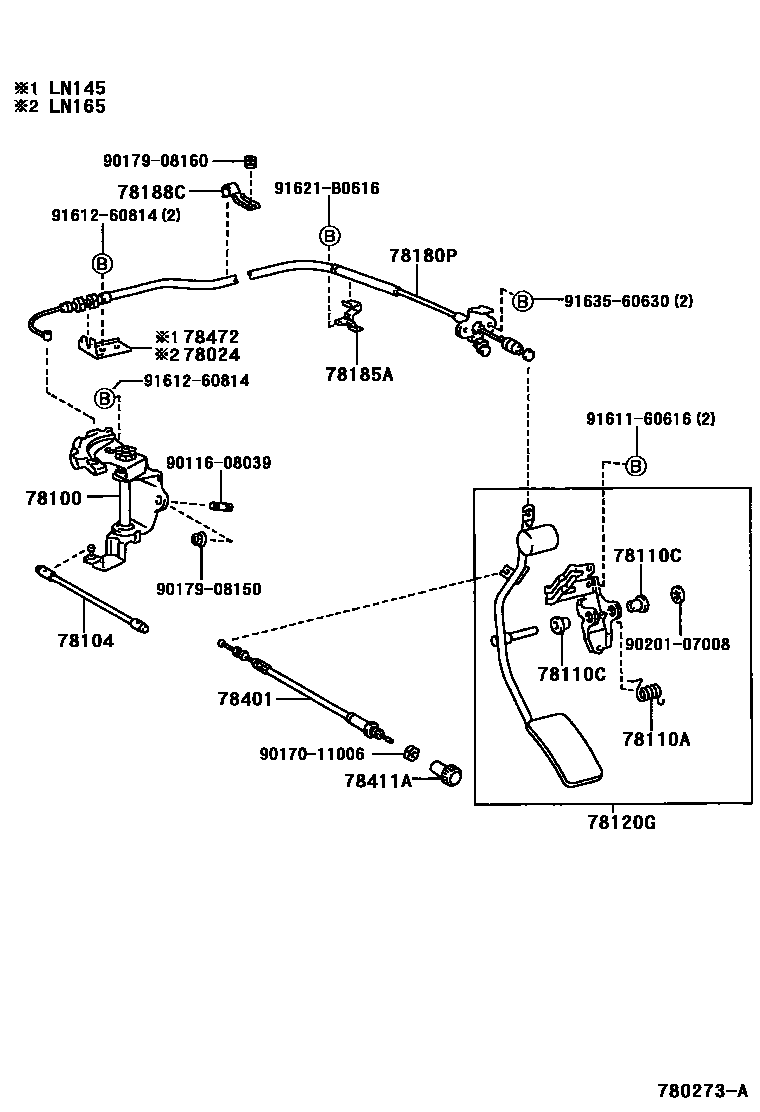

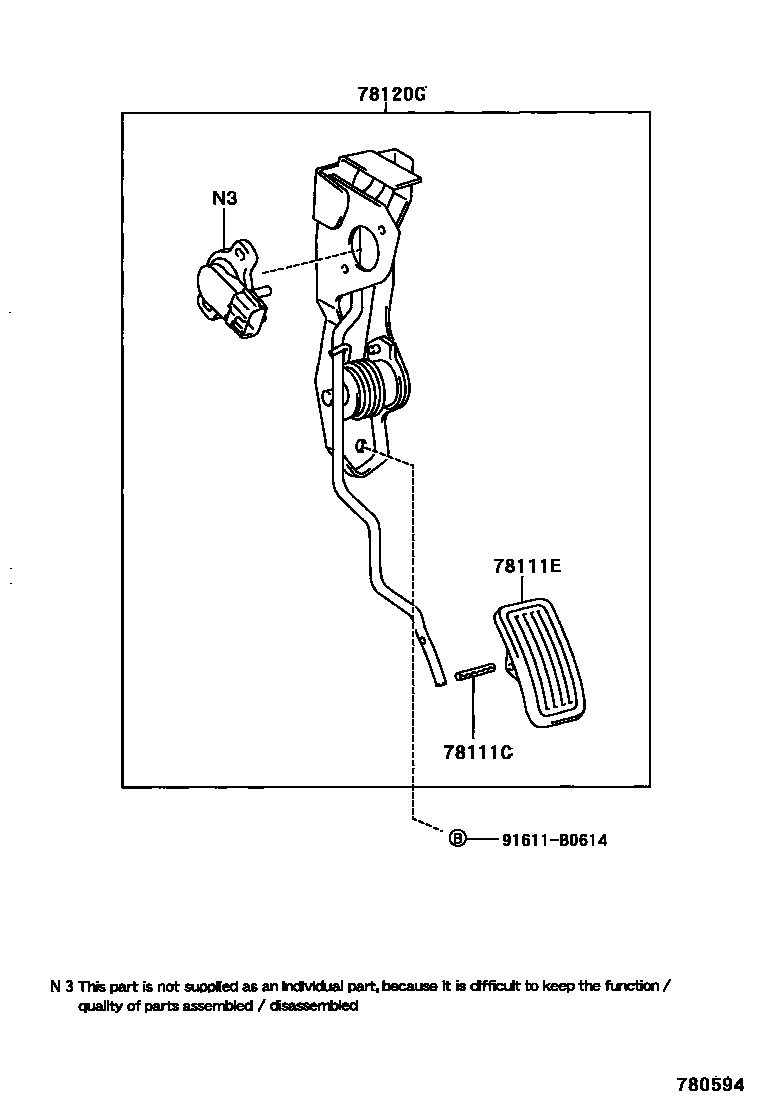

Toyota HILUX accelerator pedal connecting rod — Figure 7851
Toyota HILUX EPC diagram 7851, accelerator pedal connecting rod, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78024 | Accelerator pedal control cable bracket sub-assembly | 78024-22100 |
| 78100 | Accelerator pedal connecting rod assembly | 78100-35071 |
| 78104 | No. 2 accelerator pedal connecting rod sub-assembly | 78104-22140 |
| 78110A | Spring (for accelerator pedal lever) | 90508-23075 · 90959-03051 · 90959-03088 · 90959-03089 |
| 78110C | Bushing (for accelerator pedal lever) | 90386-08063 · 90386-12022 |
| 78111C | pin (for gas pedal) | 90249-08066 · 90254-04019 |
| 78111E | accelerator pedal pad | 78111-35030 |
| 78120G | Accelerator pedal lever assembly | 78010-35030 · 78010-35060 · 78120-35080 · 78120-35160 · 78120-35180 · 78120-35210 · 78120-35360 |
| 78180P | Accelerator pedal control cable assembly | 78180-35290 · 78180-35320 · 78180-35340 · 78180-35350 · 78180-35390 · 78180-35440 |
| 78185A | No. 2 accelerator pedal control cable clip | 78185-35090 · 78185-35100 |
| 78186A | No. 3 accelerator pedal control cable clip | 78186-35100 · 78186-35110 · 87124-35010 |
| 78188C | No. 5 accelerator pedal control cable clip | 78188-35010 · 78188-35100 · 78188-35110 · 78188-35140 · 90959-01372 |
| 78401 | Throttle valve control cable sub-assembly | 78401-35060 · 78401-35080 |
| 78411A | Throttle control cable button | 78411-35020 · 78411-89105 |
| 78472 | Throttle control cable bracket | 78472-35010 |
