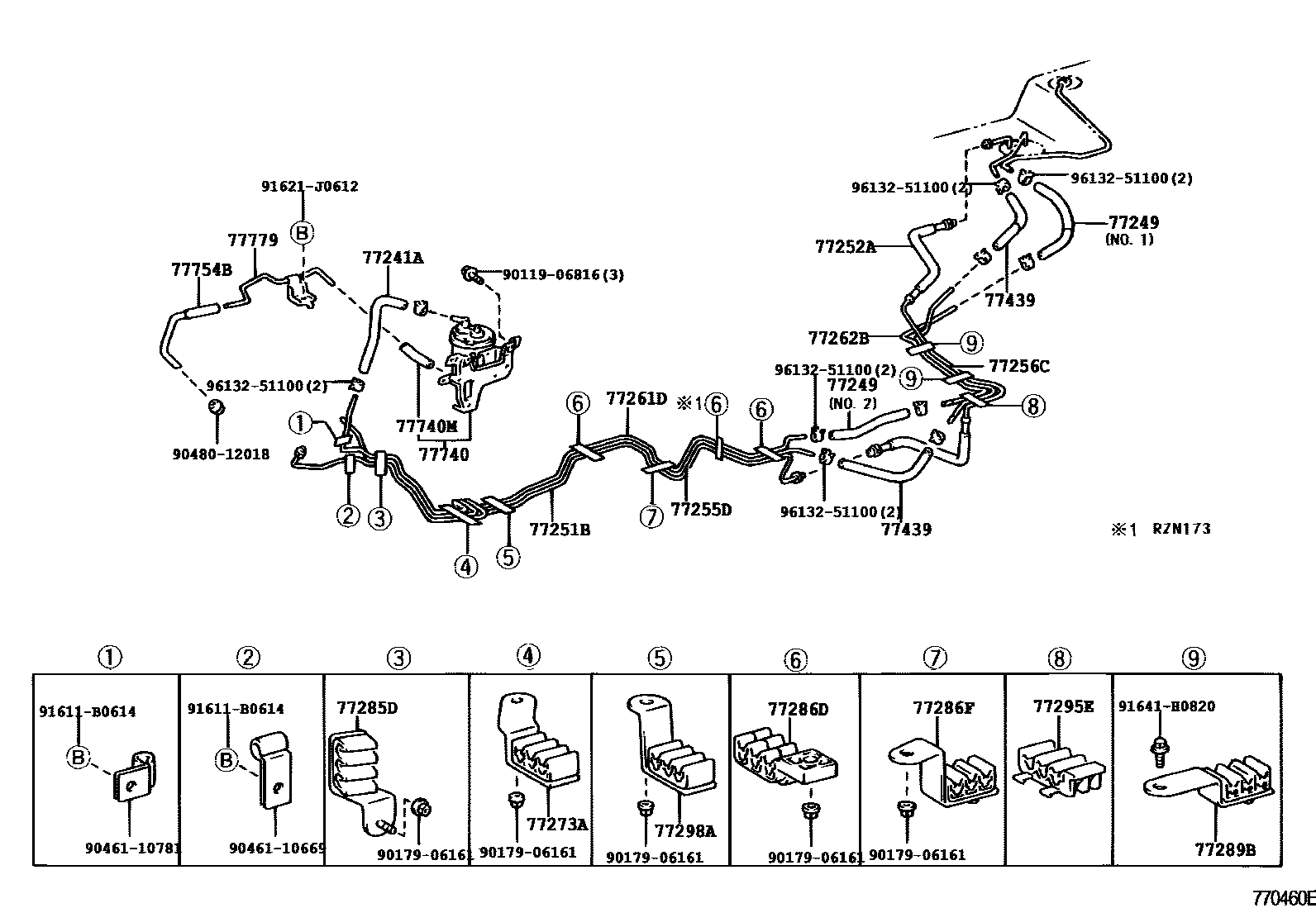

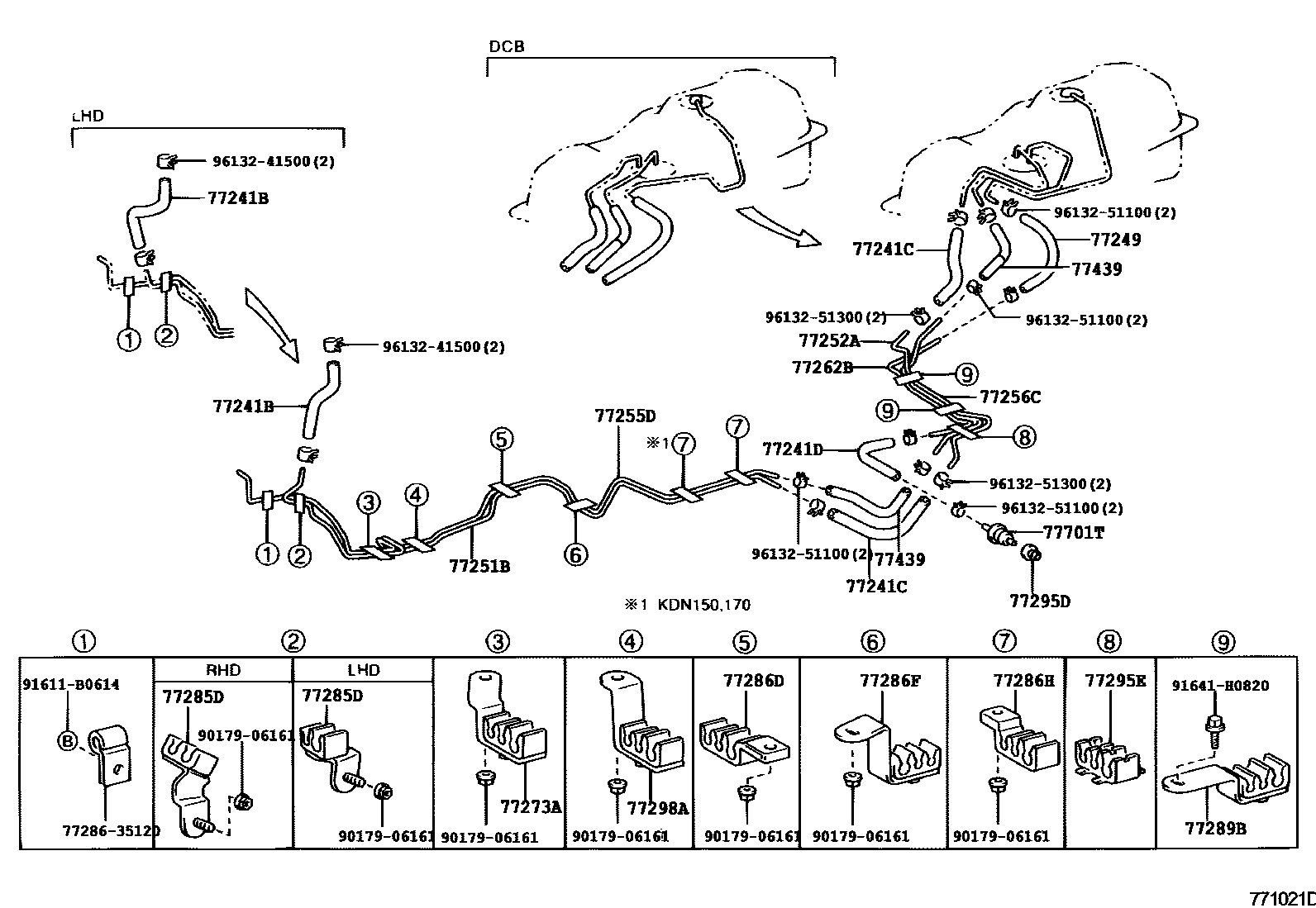

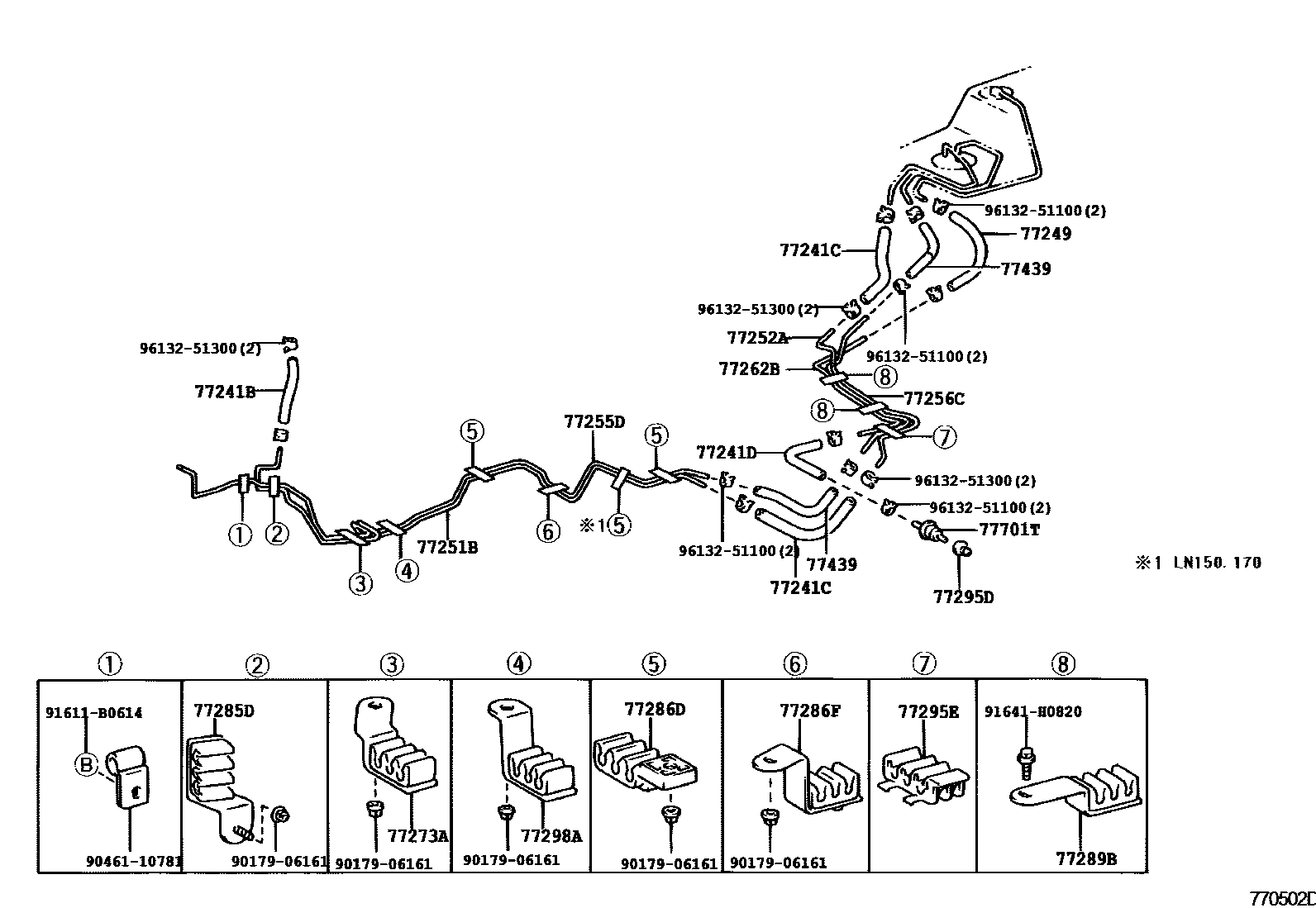

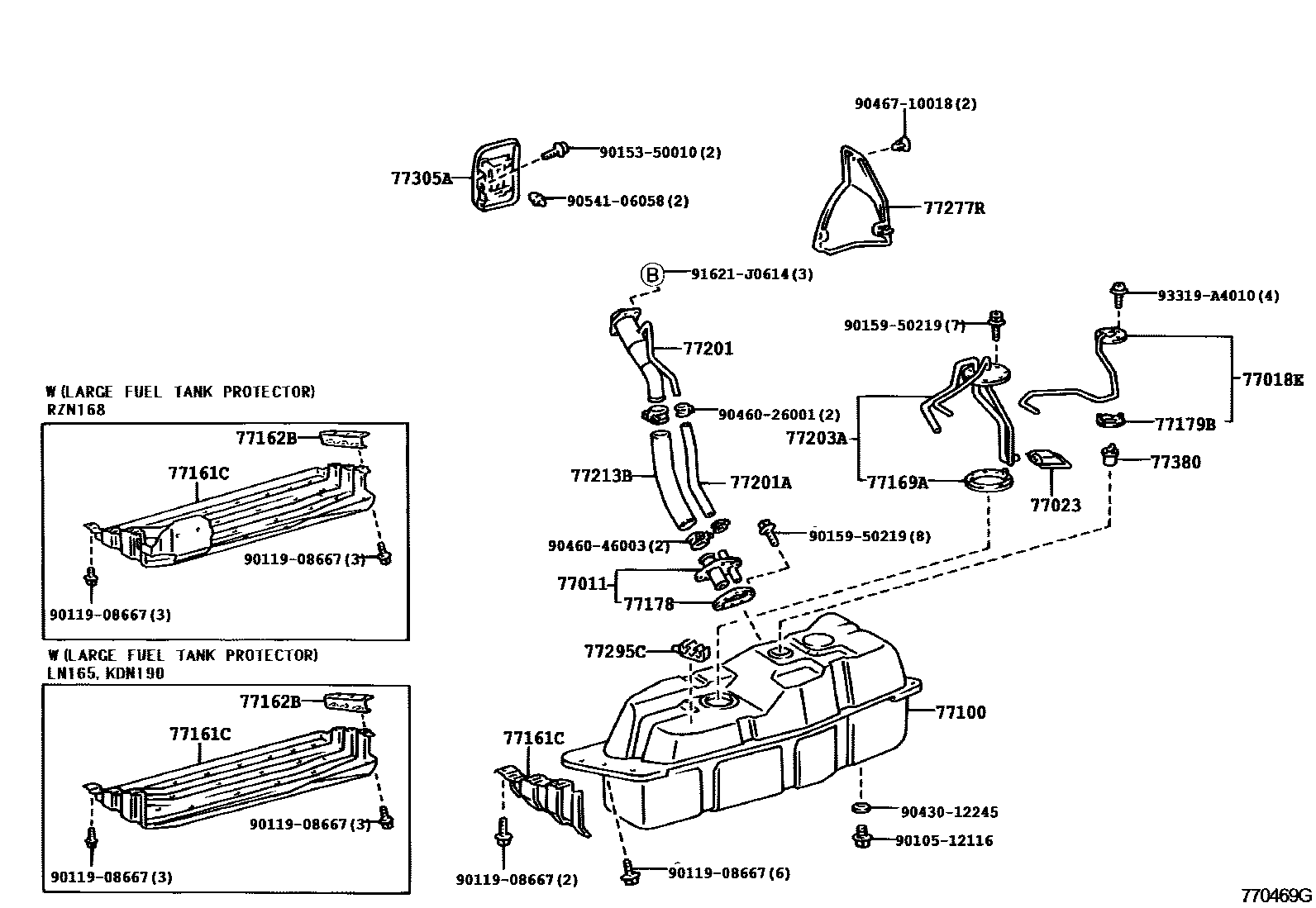

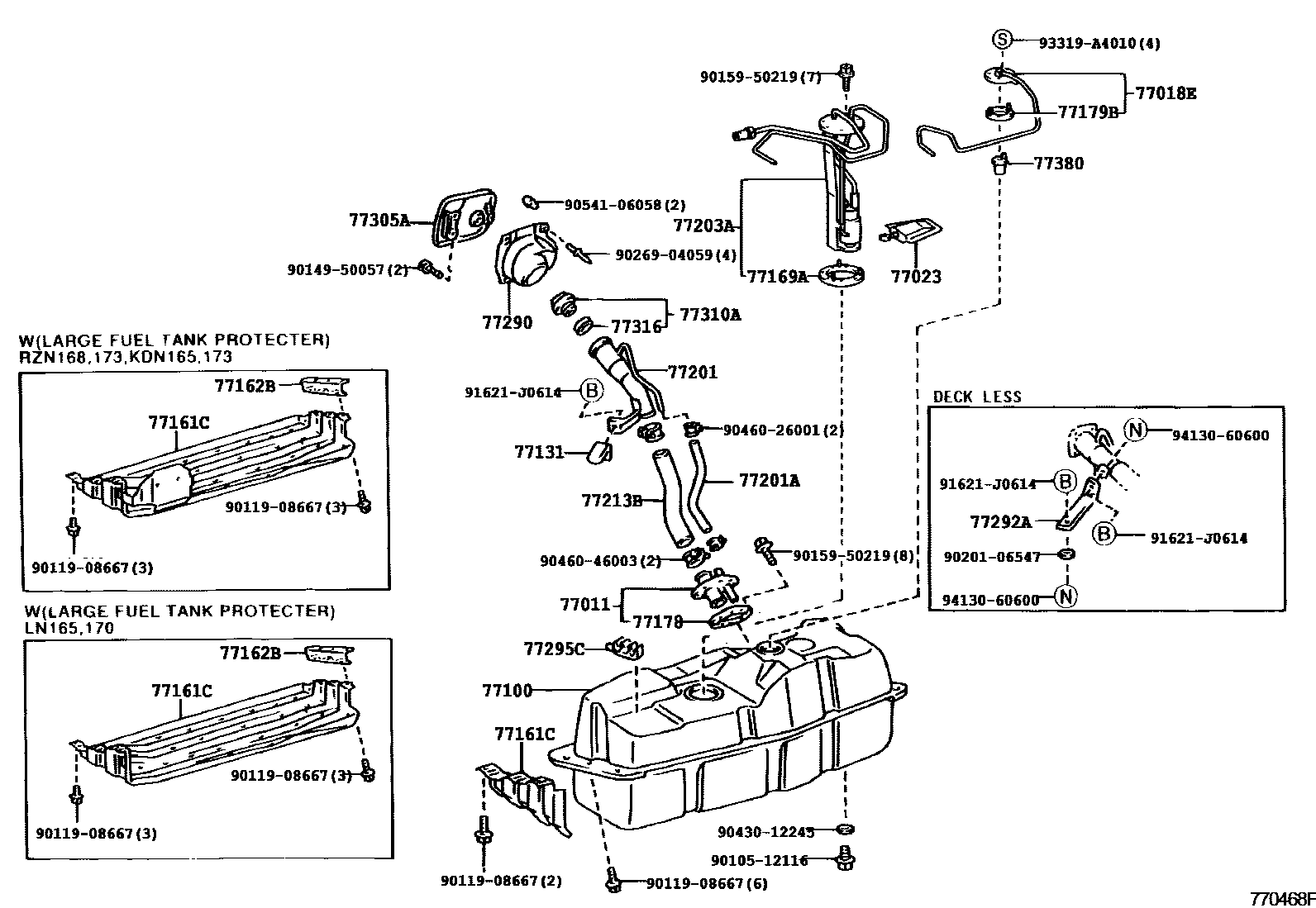

Toyota HILUX 燃油箱和燃油管 — Figure 7751
Toyota HILUX EPC diagram 7751, 燃油箱和燃油管, with 5 images and 46 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77011 | Filling pipe sub-assembly under fuel tank | 77011-35220 |
| 77018E | Fuel tank evaporation vent pipe sub-assembly | 77018-35070 · 77018-35090 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77100 | fuel tank assembly | 77001-3D915 · 77001-3D916 · 77001-3D917 · 77001-3D918 · 77001-3D919 · 77001-3D922 · 77001-3D923 · 77001-3D924 |
| 77131 | Fuel tank filler pipe bracket | 77131-35060 |
| 77161C | Fuel tank lower protective shell | 77161-04010 · 77161-04020 · 77161-35160 · 77161-35180 · 77161-35200 · 77606-35030 |
| 77162B | Fuel tank rear protective shell bracket | 77162-35020 |
| 77169A | Fuel suction pipe fixed gasket | 77169-14010 |
| 77178 | Fuel tank filler pipe lower gasket | 77178-34010 |
| 77179B | Fuel tank evaporative vent pipe gasket | 77179-26010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-35520 · 77201-35590 · 77201-35600 · 77201-35620 · 77201-35660 · 77201-35680 · 77201-35760 · 77201-35770 |
| 77201A | No. 1 fuel hose (for fuel tank inlet pipe) | 77269-35010 · 77269-35020 · 95313-13022 · 95313-13026 |
| 77203A | Fuel suction pipe sub-assembly | 77203-35520 · 77203-35530 · 77203-35531 · 77203-35610 · 77203-35620 · 77203-35650 |
| 77213B | Fuel tank to filler pipe hose | 77213-35310 · 77213-35320 · 77213-35330 · 77213-35350 |
| 77241B | No. 2 fuel hose (for No. 1 main fuel line) | 77279-35060 · 77279-35100 |
| 77241C | No. 3 fuel hose (for No. 1 main fuel pipe) | 95332-10020 |
| 77249 | fuel drain hose | 77249-35120 · 95333-06020 |
| 77251B | main fuel pipe | 77251-3D190 · 77251-3D210 · 77251-3D240 · 77251-3D250 · 77251-3D270 · 77251-3D290 · 77251-3D310 · 77251-3D320 · 77251-3D360 · 77251-3D371 · 77251-3D380 · 77251-3D391 · 77251-3D400 · 77251-3D411 |
| 77252A | No. 2 main fuel pipe | 77209-35350 · 77209-35360 · 77252-35360 · 77252-35390 |
| 77255D | fuel return pipe | 77255-35770 · 77255-35780 · 77255-35790 · 77255-35800 · 77255-35810 · 77255-35820 · 77255-35871 · 77255-35881 · 77255-35891 · 77255-3D010 · 77255-3D020 · 77255-3D030 |
| 77256C | No. 2 fuel return pipe | 77256-35050 · 77256-35060 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-35530 · 77261-35540 · 77261-35550 |
| 77262B | No. 2 fuel tank to carbon canister pipe | 77262-35060 · 77262-35090 |
| 77273A | No. 6 fuel pipe clamp with retaining ring | 77273-35020 · 77273-35030 |
| 77277R | Fuel tank filler pipe protection device | 77277-35020 |
| 77285D | No. 1 fuel pipe clamp | 77285-35320 · 77285-35461 · 77285-35590 |
| 77286D | No. 2 fuel pipe clamp | 77286-35020 · 77286-35090 |
| 77286F | No. 2 fuel pipe clamp | 77286-35040 · 77286-35100 |
| 77286H | No. 3 fuel pipe clamp | 77286-35110 |
| 77289B | No. 3 fuel pipe clamp | 77289-35020 · 77289-35030 |
| 77290 | Fuel tank filler pipe cover assembly | 77290-35030 · 77290-35050 |
| 77292A | Fuel tank filler pipe upper bracket | 77292-35200 |
| 77295C | Fuel pipe retaining ring | 77295-35140 |
| 77295D | Fuel pipe retaining ring | 77295-35170 |
| 77295E | Fuel pipe retaining ring | 77295-35160 · 77295-35290 |
| 77298A | No. 4 fuel pipe clamp | 77298-35010 · 77298-35020 |
| 77305A | Fuel filler cap sub-assembly | 77305-35020 · 77305-35041 · 77305-35061 |
| 77310A | Fuel tank cap assembly | 77300-35010 · 77310-12150 · 77310-35080 · 77310-35110 · 77310-48010 · 77310-48020 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77380 | Fuel shut-off valve assembly | 77380-26010 |
| 77439 | fuel return hose | 77439-35020 · 77439-35030 |
| 77701T | Check valve (for main fuel tank) | 90917-10067 · 90917-10090 |
| 77740 | Carbon canister assembly | 77740-35450 |
| 77740M | Carbon canister hose | 90445-12284 |
| 77754B | Carbon canister outlet hose | 77754-35360 |
| 77779 | Carbon canister outlet pipe | 77779-35040 |
