Toyota HILUX 防护条 — Figure 7552

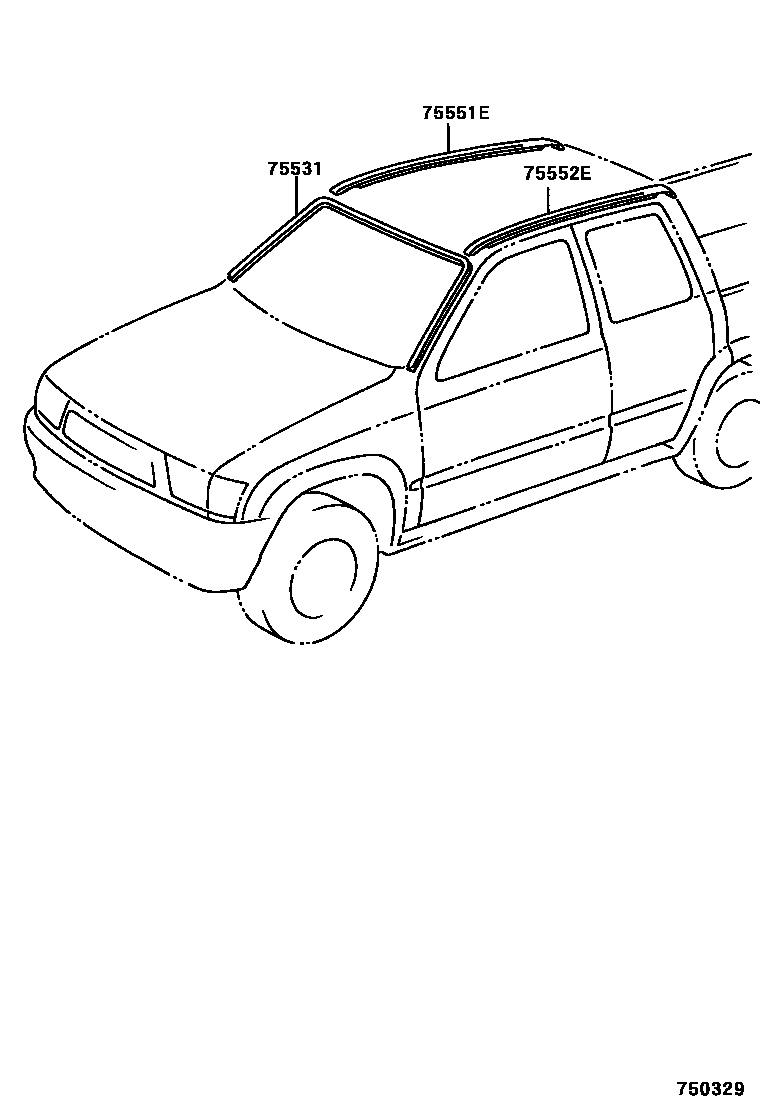

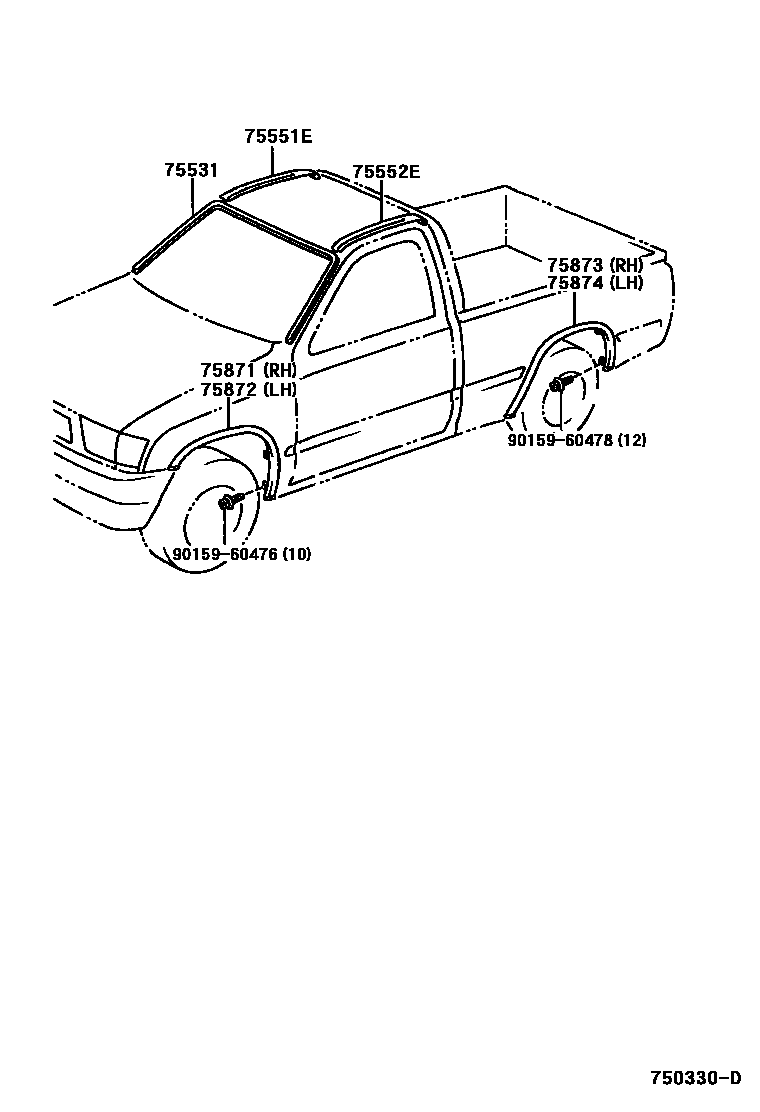

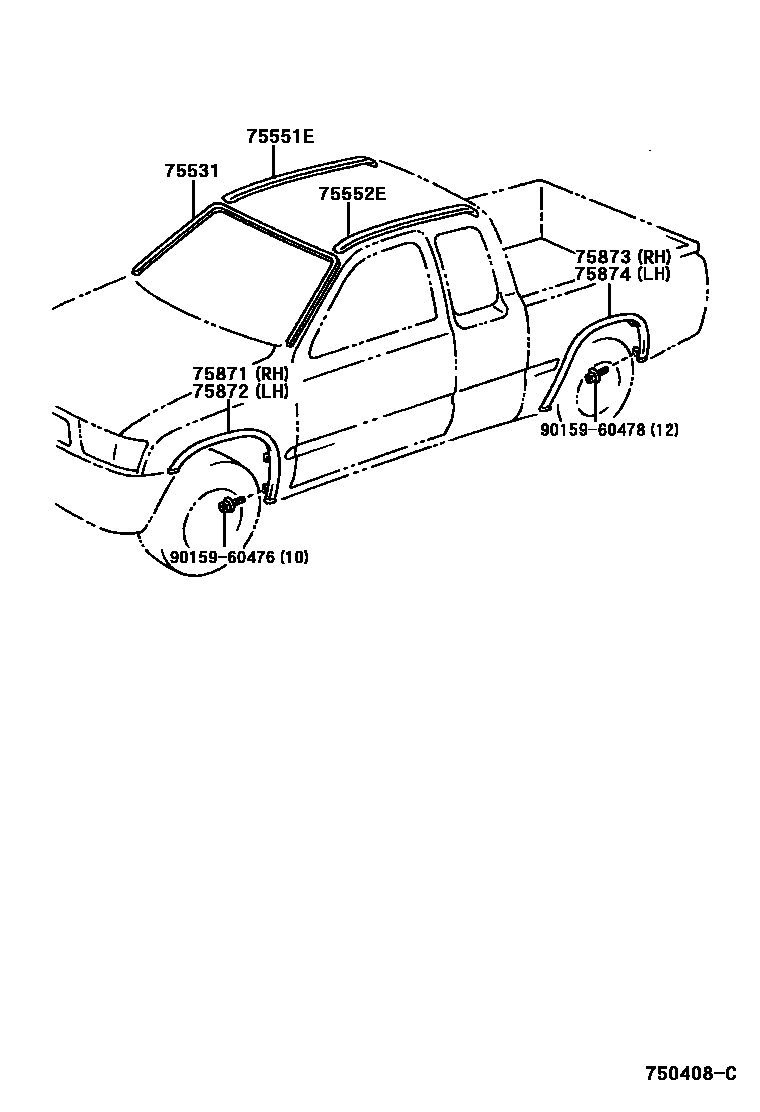

Toyota HILUX EPC diagram 7552, 防护条, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75531 | Windshield outer protective strip | 75531-35120 · 75531-35130 · 75531-35140 · 75531-35150 · 75531-35160 · 75531-35170 |
| 75551E | Drainage groove side decorative strip on the right side of the roof | 75551-35040 · 75551-35050 · 75551-35060 |
| 75552E | Drainage groove side decorative strip on the left side of the roof | 75552-35040 · 75552-35050 · 75552-35060 |
| 75871 | Right front fender wheel well protection strip | 75085-35030 · 75085-35040 |
| 75872 | Left front fender wheel well protection strip | 75086-35030 · 75086-35040 |
| 75873 | Right side panel wheel mouth protection strip | 75087-35030 |
| 75874 | Left side panel wheel mouth protection strip | 75088-35030 |
