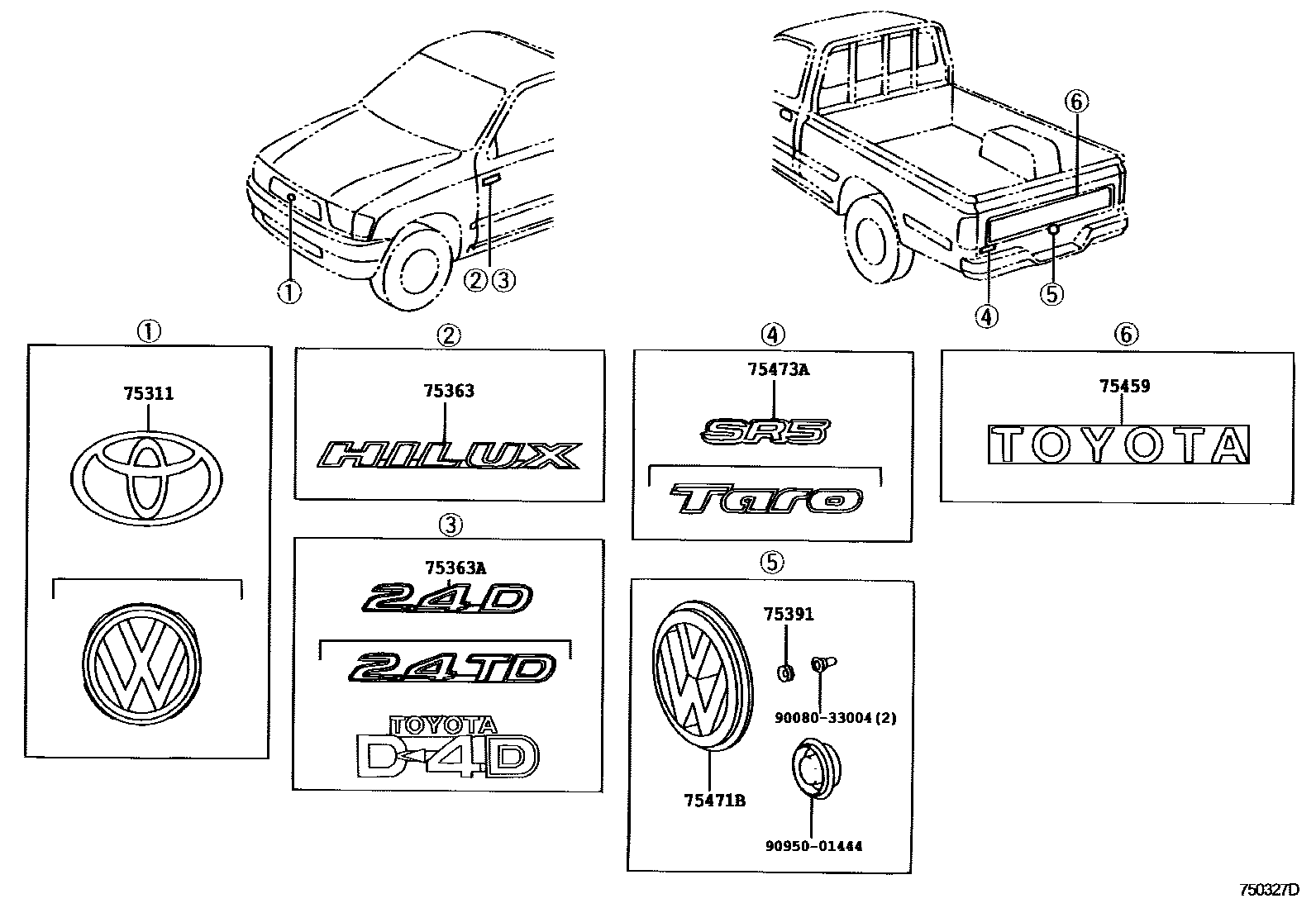

Toyota HILUX 徽标和铭牌 — Figure 7551
Toyota HILUX EPC diagram 7551, 徽标和铭牌, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 75311 | Radiator grille (or front panel) plate | 75311-35090 · 75311-35160 · 75311-35200 |
| 75363 | door nameplate | 75361-35010 |
| 75363A | Door name plate No. 2 | 75362-35010 · 75362-35040 · 75362-35090 |
| 75391 | Nameplate fixings | 75391-04010 |
| 75471B | No. 1 nameplate on rear body | 75471-04010 |
| 75473A | No. 2 nameplate on rear body | 75472-35011 · 75472-35070 |
