Toyota HILUX 烟灰盒 — Figure 7456

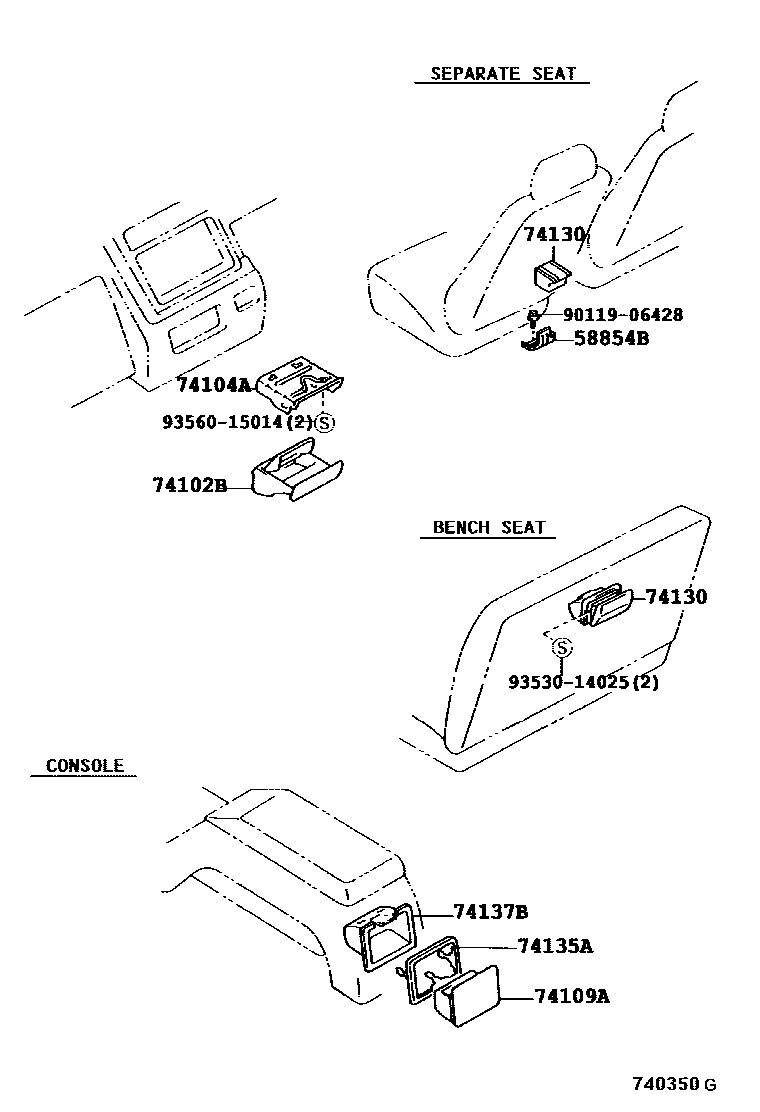

Toyota HILUX EPC diagram 7456, 烟灰盒, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58854B | Rear ashtray mounting bracket | 58854-35010 |
| 74102B | Front ashtray sub-assembly | 74102-89108 |
| 74104A | Front ashtray fixing part sub-assembly | 74104-89107 · 74104-89108 |
| 74130 | Rear ashtray assembly | 74130-35010 |
| 74135A | Rear ashtray No. 1 fixing piece | 74135-12020 |
| 74137B | Rear ashtray inner fixing part | 74137-12010 |
