Toyota HILUX warning nameplate — Figure 7455

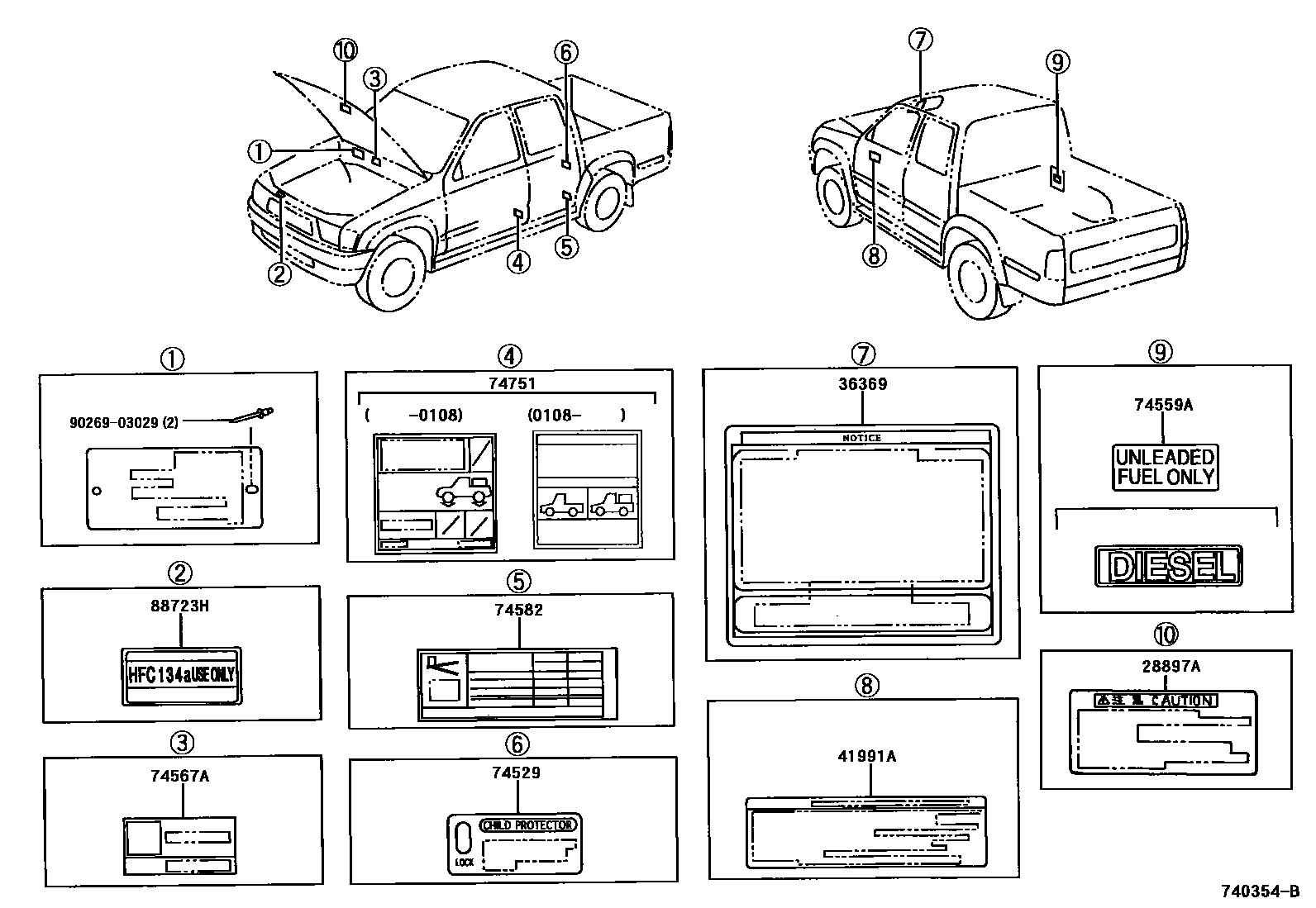

Toyota HILUX EPC diagram 7455, warning nameplate, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28897A | Battery warning nameplate | 28897-54030 |
| 36369 | Transfer case information label | 36369-35390 |
| 41991A | warning nameplate | 41991-35020 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-12010 |
| 74559A | Fuel warning plate | 74559-14050 · 74559-89101 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-26250 · 74567-35170 |
| 74582 | Load sensing valve marking plate | 47939-35400 · 47939-35410 · 47939-35420 · 47939-35450 · 47939-35451 · 47939-35452 · 47939-35460 · 47939-35490 · 47939-35560 · 47939-35580 |
| 74751 | tire pressure information label | 42661-35042 · 42661-35190 · 42661-35220 · 42661-35490 · 42661-35500 · 42661-35520 · 42661-35530 · 42661-35540 · 42661-35550 |
| 88723H | Cooler maintenance warning label | 88723-20040 |
