Toyota HILUX battery holder — Figure 7454

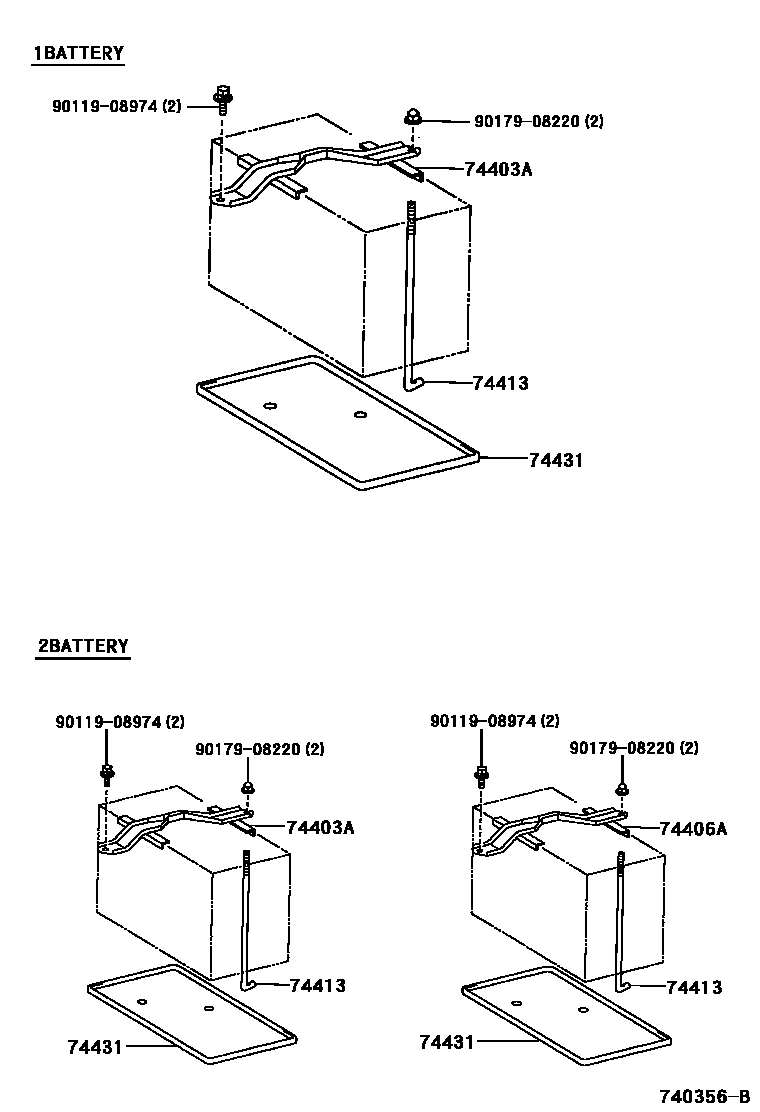

Toyota HILUX EPC diagram 7454, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74403A | Battery bracket sub-assembly | 74403-35020 · 74404-35150 |
| 74406A | Battery upper left bracket sub-assembly | 74404-35150 |
| 74413 | Battery clamp bolt | 74451-35050 |
| 74431 | battery tray | 74431-14030 · 74431-35030 |
