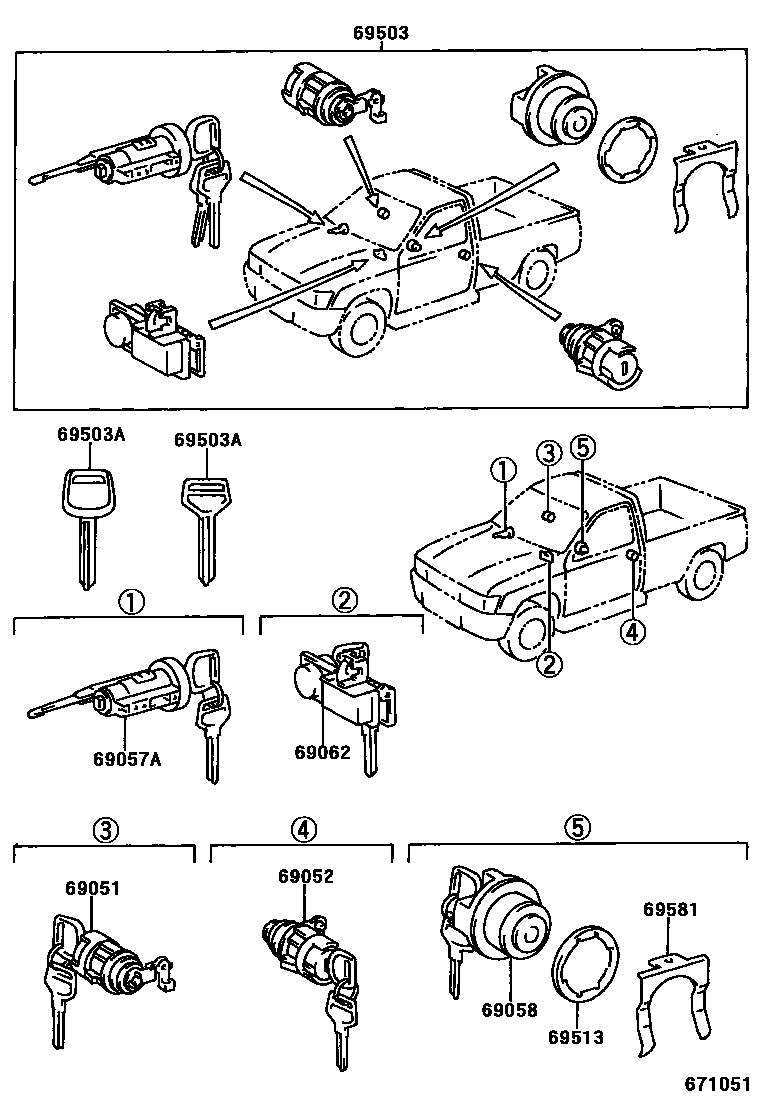

Toyota HILUX 锁芯组件 — Figure 6765
Toyota HILUX EPC diagram 6765, 锁芯组件, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-35110 · 69051-35120 · 69051-35130 |
| 69052 | Left door lock cylinder and key assembly | 69052-35110 · 69052-35120 · 69052-35130 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-35110 · 69057-35120 · 69057-35130 |
| 69058 | Fuel filler cap lock cylinder and key assembly | 69058-35040 · 69058-35050 · 69058-35060 · 69058-35090 · 69058-35100 · 69058-35110 · 69058-35120 · 69058-35130 · 69058-35170 · 69058-35180 · 69058-35190 · 69058-35200 · 69058-35210 |
| 69062 | Glove box lock cylinder and key assembly | 69056-35060 · 69056-35070 |
| 69503 | Door lock cylinder components | 69005-35490 · 69005-35491 · 69005-35500 · 69005-35521 · 69005-35530 · 69005-35531 · 69005-35580 · 69005-35590 · 69005-35670 · 69005-35680 · 69005-35690 · 69005-3D020 |
| 69503A | external tooth key | 90999-00130 · 90999-00132 · 90999-00137 · 90999-00149 · 90999-00156 · 90999-00165 |
| 69513 | Fuel filler cap lock cylinder gasket | 69513-32010 |
| 69581 | Fuel filler cap lock cylinder fixing piece | 69511-32010 |
