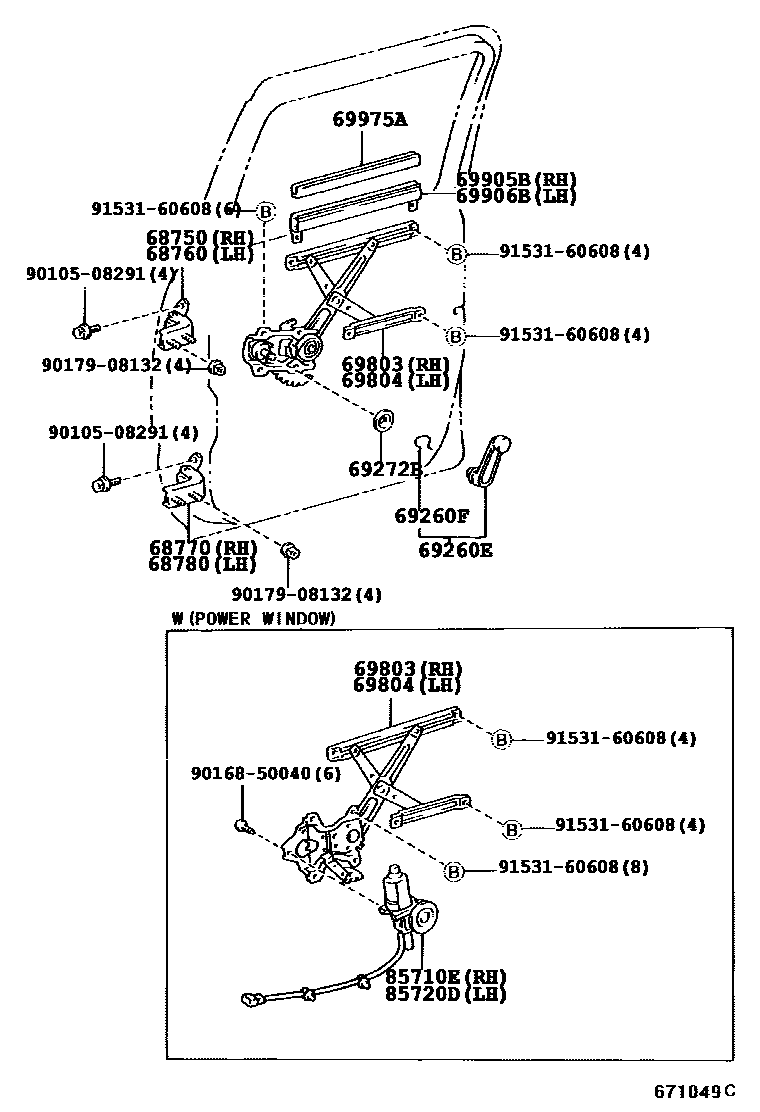

Toyota HILUX 后门车窗升降器和合页 — Figure 6757
Toyota HILUX EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-32060 |
| 68760 | Left rear door upper hinge assembly | 68760-32060 |
| 68770 | Right rear door lower hinge assembly | 68770-35030 |
| 68780 | Left rear door lower hinge assembly | 68780-35030 |
| 69260F | Shaft snap ring (for rear door window regulator handle) | 90520-01274 |
| 69272B | Rear door window regulator inner handle plate | 69268-20020 · 69285-22010 |
| 69803 | Right rear door window lifter sub-assembly | 69803-35040 · 69803-35050 |
| 69804 | Left rear door window lifter sub-assembly | 69804-35040 · 69804-35050 |
| 69905B | Right rear door glass groove sub-assembly | 69901-89113 |
| 69906B | Left rear door glass groove sub-assembly | 69901-89113 |
| 69975A | Rear door glass channel filler | 69971-89106 |
| 85710E | Right power window lift motor assembly | 85710-35130 |
| 85720D | Left electric window lift motor assembly | 85720-35100 |
