Toyota HILUX 后门板和后门玻璃 — Figure 6755

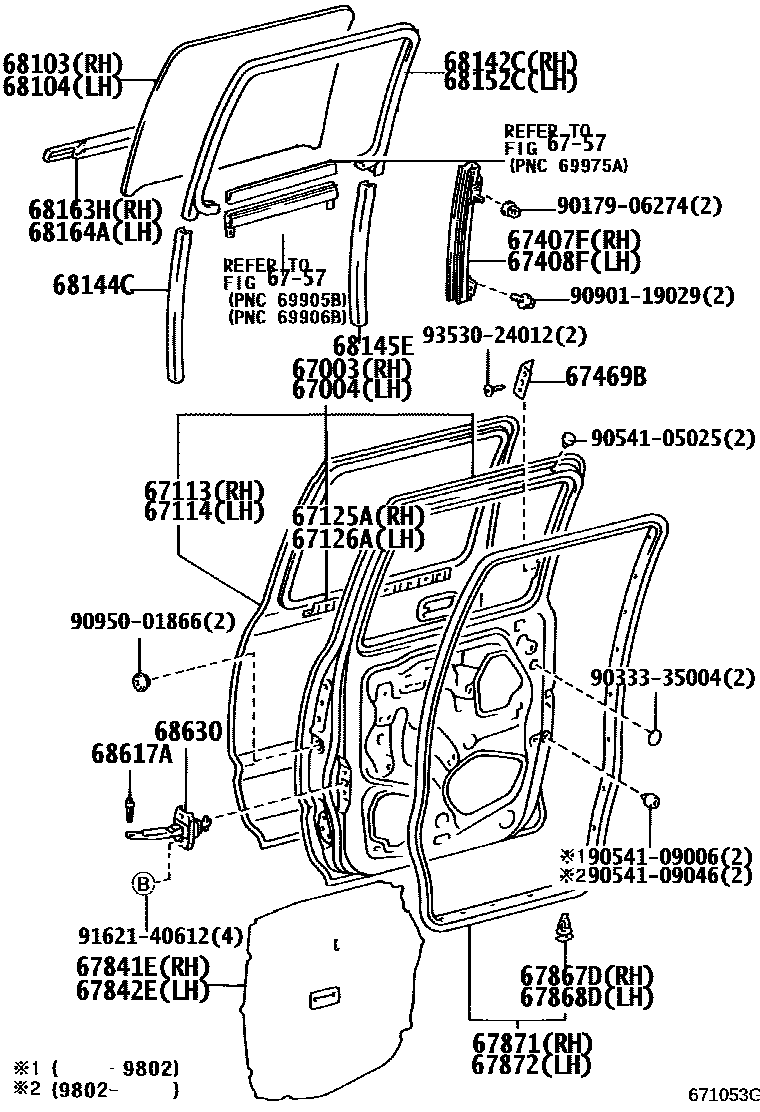

Toyota HILUX EPC diagram 6755, 后门板和后门玻璃, with 2 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-35070 |
| 67004 | Left rear door panel sub-assembly | 67004-35070 |
| 67113 | Right rear door outer panel | 67113-35020 |
| 67114 | Left rear door outer panel | 67114-35020 |
| 67125A | Right rear door outer panel reinforcement | 67125-35020 |
| 67126A | Left rear door outer panel reinforcement | 67125-35020 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-35030 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-35030 |
| 67469B | Rear door window frame lower bracket | 67469-35020 |
| 67603A | Fixings (for rear door trim) | 67771-16120 |
| 67841E | Right rear door access hole cover | 67841-35060 · 67841-35070 · 67841-35080 |
| 67842E | Left rear door access hole cover | 67841-35060 · 67842-35030 · 67842-35040 |
| 67867D | Right rear door seal strip fixing | 67867-89103 |
| 67868D | Left rear door seal strip fixing | 67868-89101 |
| 67871 | Right rear door sealing strip | 67871-35040 · 67871-35041 · 67871-35050 |
| 67872 | Left rear door sealing strip | 67872-35040 · 67872-35041 · 67872-35050 |
| 68103 | Right rear door glass sub-assembly | 68113-35010 |
| 68104 | Left rear door glass sub-assembly | 68114-35010 |
| 68142C | Right rear door glass lift slot | 68142-35020 · 68142-35021 |
| 68144C | Rear door glass front lower lift chute | 68144-35010 · 68144-35011 · 68153-35010 · 68153-35011 |
| 68145E | Rear door glass rear lower lift chute | 68145-35010 · 68145-35011 |
| 68152C | Left rear door glass lift slot | 68152-35020 · 68152-35021 |
| 68163H | Right rear door glass outer sealing strip | 68163-35020 · 68163-35021 |
| 68164A | Left rear door glass outer sealing strip | 68164-35020 · 68164-35021 |
| 68173B | Right rear door glass inner sealing strip | 68173-35020 · 68173-35021 |
| 68174 | Left rear door glass inner sealing strip | 68173-35020 · 68173-35021 |
| 68617A | Rear door opening limiter pin | 68617-12030 · 68617-20011 |
| 68630 | Rear door opening limiter assembly | 68630-35050 |
