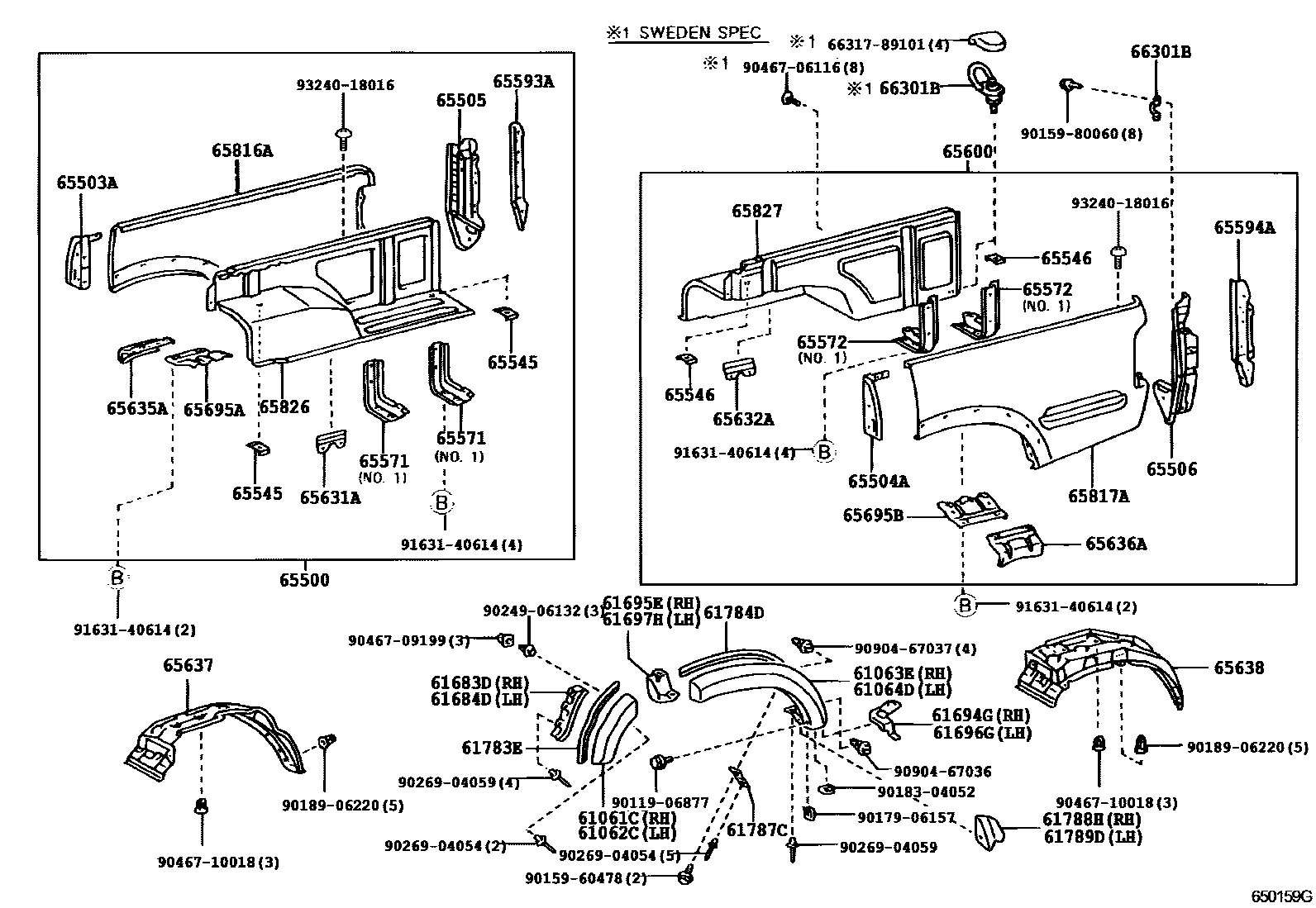

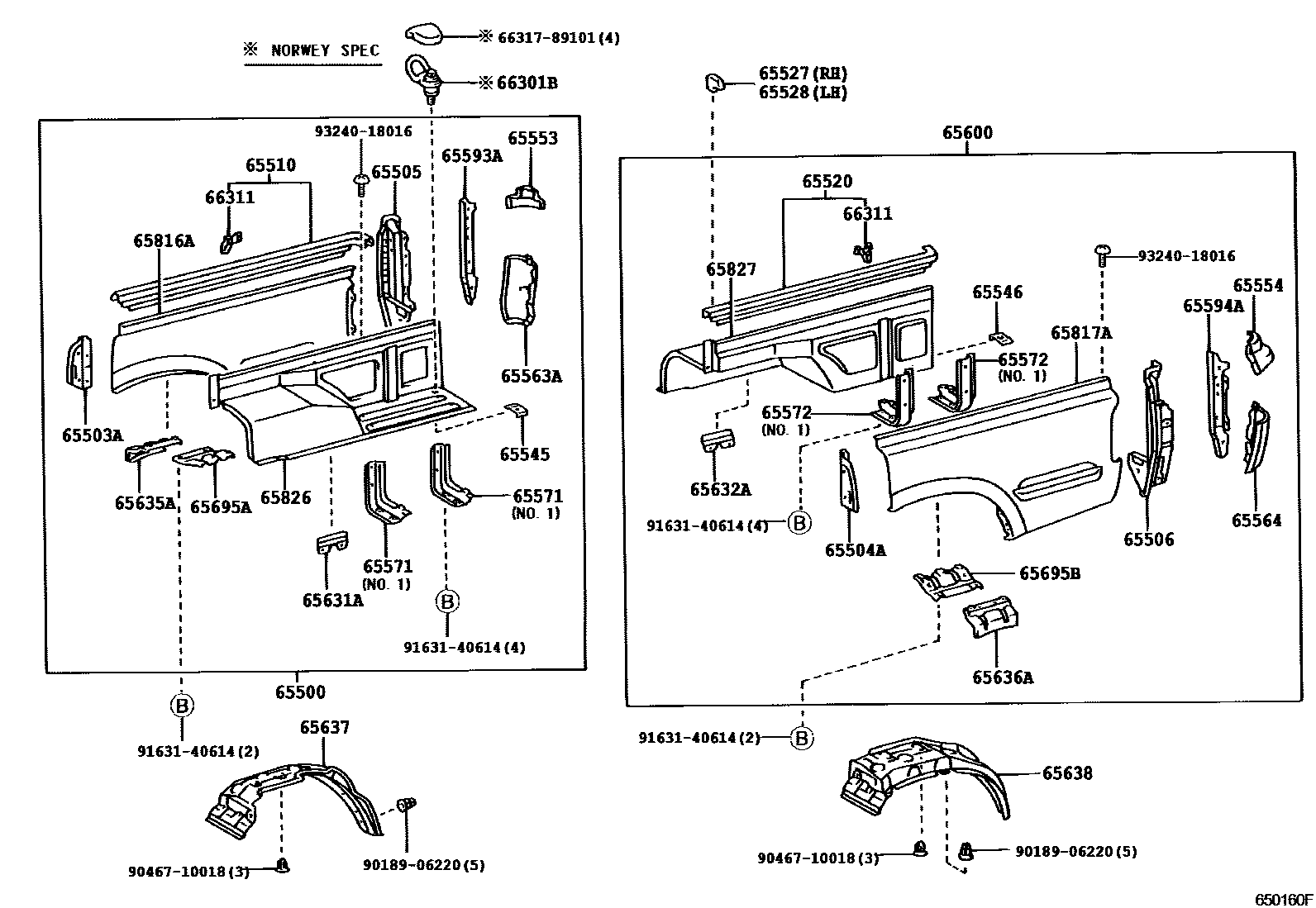

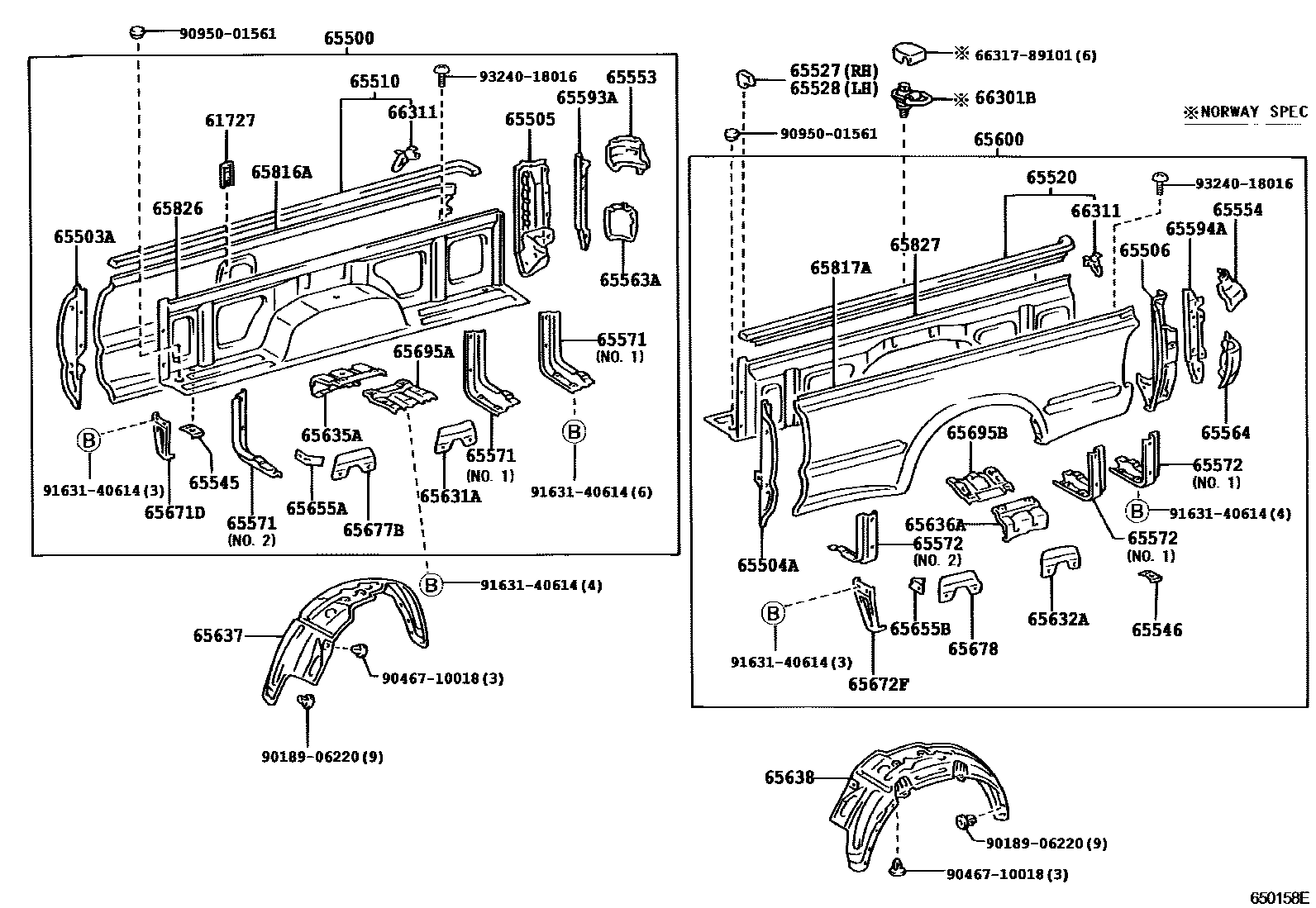

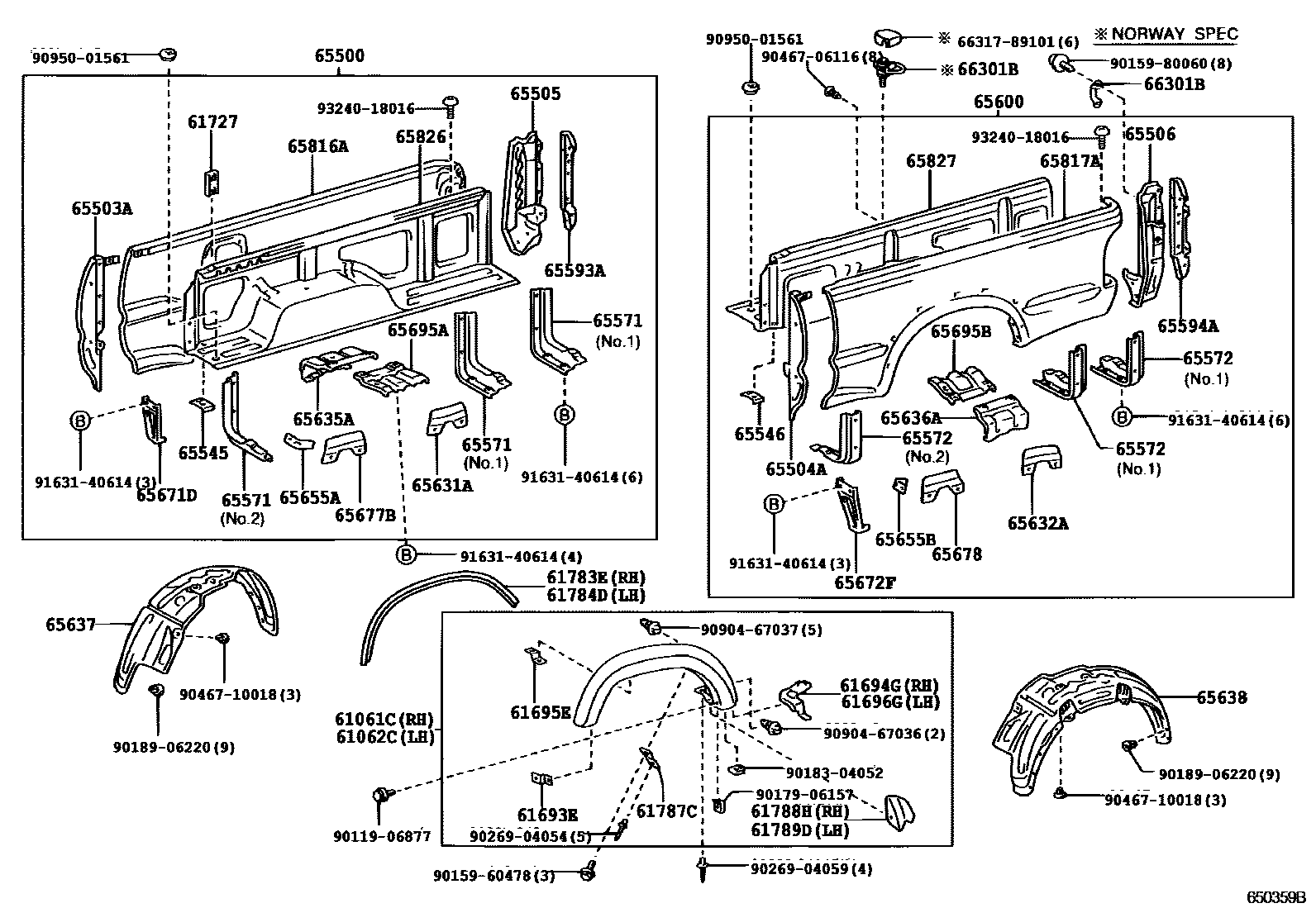

Toyota HILUX 后车身侧面板 — Figure 6554
Toyota HILUX EPC diagram 6554, 后车身侧面板, with 4 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61061C | Right rear No. 1 fender external panel sub-assembly | 61061-35900 · 61061-35901 |
| 61062C | Left rear No. 1 fender external panel sub-assembly | 61062-35900 · 61062-35901 |
| 61063E | Right rear No. 2 fender external panel sub-assembly | 61063-35900 |
| 61064D | Left rear No. 2 fender external panel sub-assembly | 61064-35900 |
| 61683D | No. 1 right rear fender external panel bracket | 61683-35040 |
| 61684D | No. 1 left rear fender external panel bracket | 61684-35040 |
| 61693E | No. 1 rear fender external panel bracket | 61693-35020 |
| 61694G | No. 2 right rear fender external panel bracket | 61694-35010 · 61694-35050 |
| 61695E | No. 3 right rear fender external panel bracket | 61695-35010 · 61695-35030 |
| 61696G | No. 2 left rear fender external panel bracket | 61696-35010 · 61696-35020 |
| 61697H | No. 3 left rear fender external plate bracket | 61697-35020 |
| 61727 | Fuel inlet guard plate | 61727-35010 |
| 61787C | No. 4 rear fender external panel bracket | 61787-35010 · 61787-35020 |
| 61788H | No. 5 rear fender external panel bracket | 61788-35020 · 61788-35030 |
| 61789D | No. 6 rear fender external panel bracket | 61789-35020 · 61789-35030 |
| 65500 | Right rear body side panel assembly | 65500-35530 · 65500-35540 · 65500-35560 · 65500-35590 · 65500-35700 · 65500-35710 · 65500-35800 · 65500-35810 · 65500-35880 · 65500-35890 · 65500-3D010 · 65500-3D030 · 65500-3D040 · 65500-3D110 |
| 65503A | Right side panel front end column sub-assembly | 65503-35030 · 65503-35050 · 65551-35040 · 65551-35050 |
| 65504A | Left side panel front end column sub-assembly | 65504-35030 · 65504-35050 · 65552-35040 · 65552-35050 |
| 65505 | Right side panel rear end column sub-assembly | 65505-35010 · 65505-35030 |
| 65506 | Left side panel rear end column sub-assembly | 65506-35010 · 65506-35030 |
| 65510 | Longitudinal beam assembly on right side panel | 65510-35020 · 65510-89145 |
| 65520 | Longitudinal beam assembly on left side panel | 65520-35020 · 65520-89145 |
| 65527 | Protective piece on the right side of the upper longitudinal beam | 65527-89102 |
| 65528 | Protective piece on the left side of the upper longitudinal beam | 65528-89101 |
| 65545 | No. 1 side panel reinforcement | 65545-35010 |
| 65546 | No. 2 side panel reinforcement | 65545-35010 |
| 65553 | Upper right side panel rear end pillar panel | 65553-35010 |
| 65554 | Upper left side panel rear end pillar panel | 65554-35010 |
| 65563A | Lower right side panel rear end pillar panel | 65563-35010 · 65563-35020 |
| 65564 | Left lower side panel rear end pillar panel | 65564-35010 · 65564-35020 |
| 65571 | Right front side panel frame | 65571-35010 · 65572-35010 |
| 65572 | Left front side panel frame | 65571-35010 · 65572-35010 |
| 65593A | Right side panel rear end column inner panel | 65593-35020 · 65593-35030 |
| 65594A | Left side panel rear end column inner panel | 65594-35020 · 65594-35030 |
| 65600 | Left rear body side panel assembly | 65600-35450 · 65600-35460 · 65600-35480 · 65600-35510 · 65600-35540 · 65600-35590 · 65600-35600 · 65600-35660 · 65600-35690 · 65600-35700 · 65600-35740 · 65600-35750 · 65600-35760 · 65600-35850 |
| 65631A | Right rear wheel house front panel | 65631-89113 |
| 65632A | Left rear wheel house front panel | 65632-89112 |
| 65635A | Right rear wheel housing panel | 65635-35010 · 65635-35020 |
| 65636A | Left rear wheel housing panel | 65636-35010 · 65636-35020 |
| 65637 | Right rear wheel house lining | 65637-35020 · 65637-35030 |
| 65638 | Left rear wheel house lining | 65638-35020 · 65638-35030 |
| 65655A | Front wheel housing seal bracket | 65655-89103 |
| 65655B | Front wheel housing seal bracket | 65655-89103 |
| 65671D | Right front side panel skirt bracket | 65671-35010 |
| 65672F | Left front side panel skirt bracket | 65672-35010 |
| 65677B | Right rear wheel house lining | 65677-35010 |
| 65678 | Left rear wheel house lining | 65678-35010 |
| 65695A | No. 2 wheel housing bracket | 65695-35020 |
| 65695B | No. 2 wheel housing bracket | 65695-35020 |
| 65816A | Right rear body side panel | 65816-35060 · 65816-35070 · 65816-35080 · 65816-35120 · 65816-35130 · 65816-35150 · 65816-35160 · 65816-35200 |
| 65817A | Left rear body side panel | 65817-35060 · 65817-35070 · 65817-35080 · 65817-35120 · 65817-35130 · 65817-35150 · 65817-35160 · 65817-35200 |
| 65826 | Right rear body inner panel | 65826-35060 · 65826-35090 · 65826-35120 · 65826-89111 |
| 65827 | Left rear body inner panel | 65827-35060 · 65827-35090 · 65827-35120 · 65827-89111 |
| 66301B | Rope hook sub-assembly | 66310-89101 · 66312-34010 |
| 66311 | rope hook | 66311-89109 |
