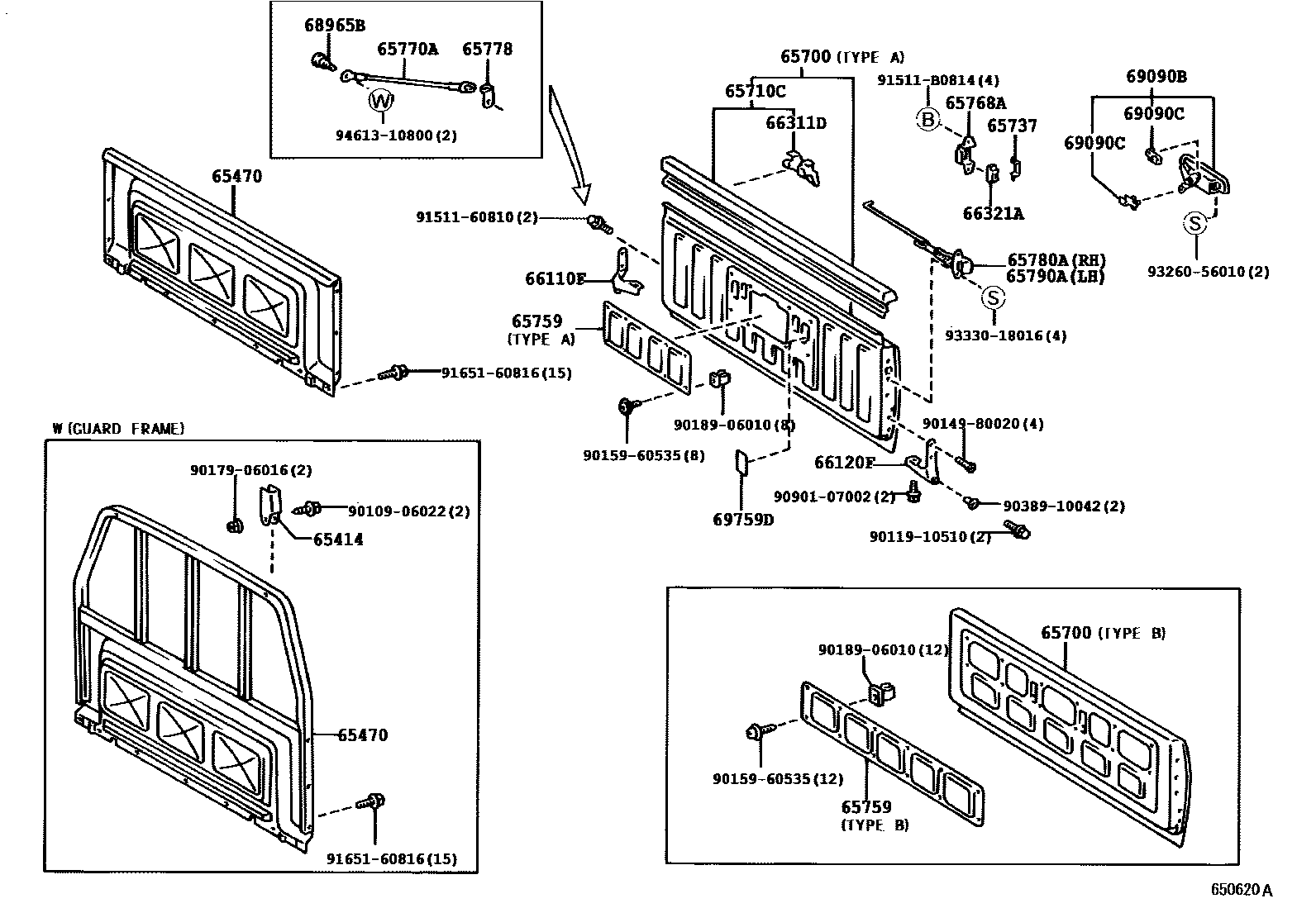

Toyota HILUX 后车身防护架和背门 — Figure 6553
Toyota HILUX EPC diagram 6553, 后车身防护架和背门, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65414 | guardrail frame stop | 65414-89102 |
| 65470 | Top plate assembly | 65470-35040 · 65470-35050 · 65470-35060 · 65470-35070 · 65470-35110 · 65470-35170 |
| 65700 | Rear body back door assembly | 65700-35010 · 65700-35090 · 65700-35100 · 65700-35130 · 65700-89146 · 65700-89147 · 65700-89151 · 65700-89154 |
| 65710C | Back door top slide rail assembly | 65710-35010 · 65710-89114 |
| 65737 | Back door stopper | 65737-89105 |
| 65759 | Rear door access hole cover | 65759-89102 · 65759-89105 |
| 65768A | Back door latch | 65768-89102 |
| 65770A | Back door support rod assembly | 65770-35010 |
| 65778 | Back door support rod stop | 65778-35010 |
| 65780A | Back door right lock assembly | 65780-35030 |
| 65790A | Back door left lock assembly | 65780-35030 · 65790-35040 · 65790-35050 |
| 66110F | Back door right hinge assembly | 66110-89108 |
| 66120F | Back door left hinge assembly | 66120-89102 |
| 66311D | rope hook | 66311-89109 |
| 66321A | Railing rubber buffer block | 66321-89109 |
| 68965B | Back door support rod shaft | 68965-35010 |
| 69090B | Rear door handle assembly | 69090-89101 · 69090-89102 |
| 69090C | Rear door handle buckle | 69759-20100 · 69759-20110 |
| 69759D | Rear door lock link silencer | 69759-35020 |
