Toyota HILUX 天窗板和背板 — Figure 6153

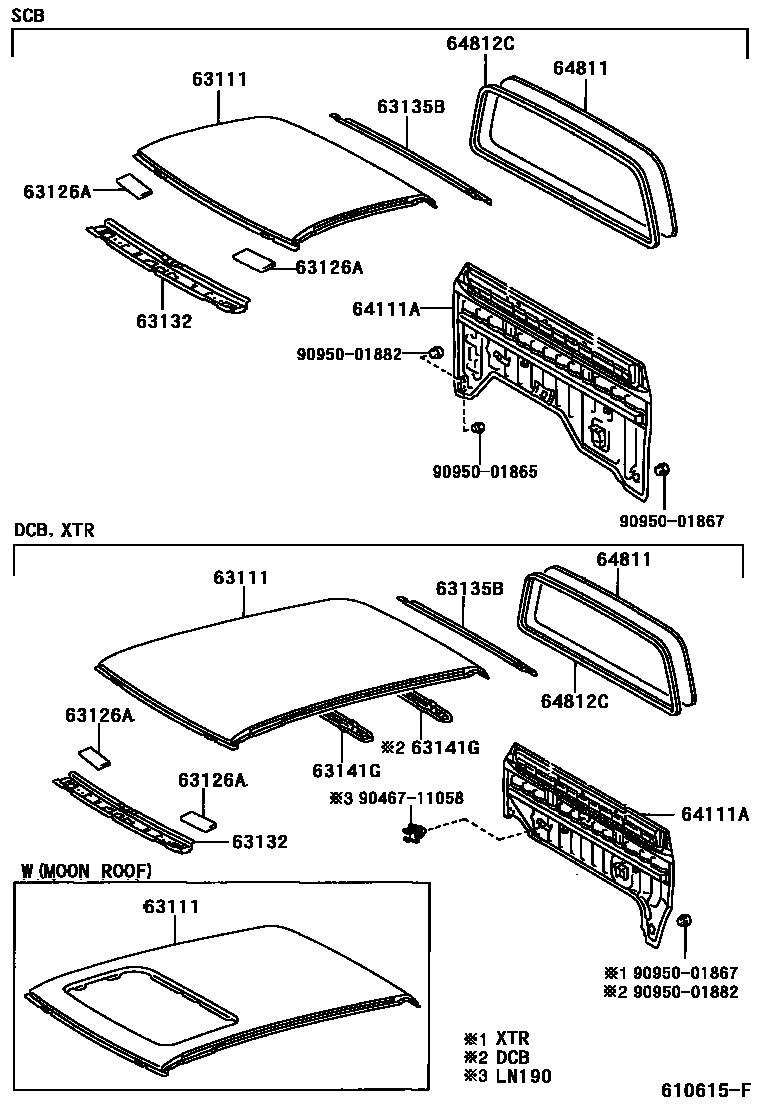

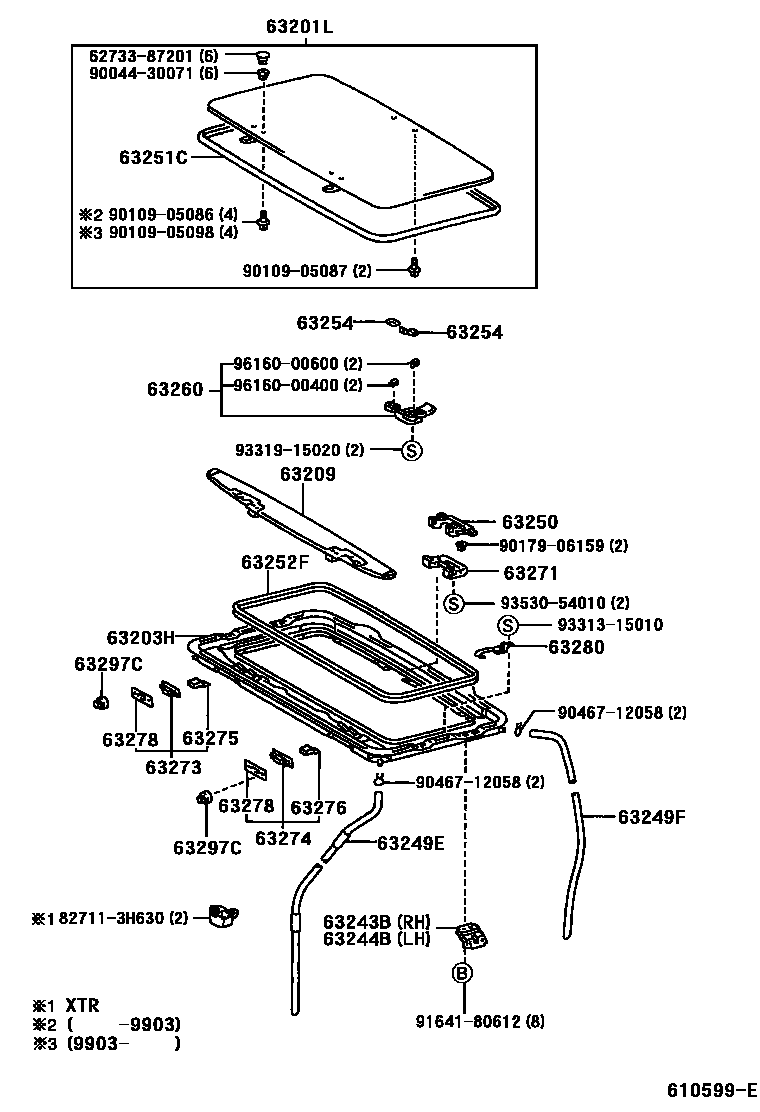

Toyota HILUX EPC diagram 6153, 天窗板和背板, with 2 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63111 | roof panel | 63111-35150 · 63111-35190 · 63111-35200 · 63111-35220 · 63111-35240 |
| 63126A | Windshield roof shock absorber | 63126-35030 |
| 63132 | Windshield inner roof panel | 63132-35030 |
| 63135B | Upper panel inside the back window | 63135-04040 · 63135-35070 · 63135-35090 |
| 63141G | No. 1 roof panel reinforcement | 63141-35030 |
| 63201L | Removable sunroof glass sub-assembly | 63201-35050 · 63201-35051 · 63201-35060 · 63201-35061 |
| 63203H | Removable skylight frame sub-assembly | 63203-35030 |
| 63209 | Roof deflector sub-assembly | 63209-89102 |
| 63243B | Removable sunroof frame right side mounting bracket | 63243-35030 · 63243-35040 |
| 63244B | Removable sunroof frame left mounting bracket | 63243-35040 · 63244-35020 |
| 63249E | Sliding skylight drain hose | 63249-35080 |
| 63249F | Sliding skylight drain hose | 63249-35090 · 63249-35100 |
| 63250 | Detachable sunroof lock base assembly | 63250-17011 |
| 63251C | Removable skylight seal | 63251-35040 |
| 63252F | Removable skylight inner sealing strip | 63252-35020 · 63252-35021 |
| 63254 | Removable sunroof glass inner rear fixing bracket | 63254-89103 · 63254-89104 |
| 63273 | Removable sunroof right hinge shell | 63273-17040 |
| 63274 | Removable sunroof left hinge shell | 63274-17040 |
| 63275 | Removable sunroof right hinge fixing bracket | 63275-17010 |
| 63276 | Removable sunroof left hinge fixing bracket | 63276-17010 |
| 63278 | Removable sunroof hinge housing seal | 63278-12010 |
| 63280 | Removable sunroof left auxiliary hook assembly | 63280-89101 |
| 63297C | Removable sunroof hinge housing bolts | 63297-12010 |
| 64111A | backplane | 64101-35050 · 64101-35060 · 64101-35080 · 64101-35100 · 64101-35120 · 64101-35130 |
| 64811 | back window glass | 64811-35010 · 64811-35030 · 64811-35031 |
| 64812C | Back window glass seal strip | 64812-35030 |
