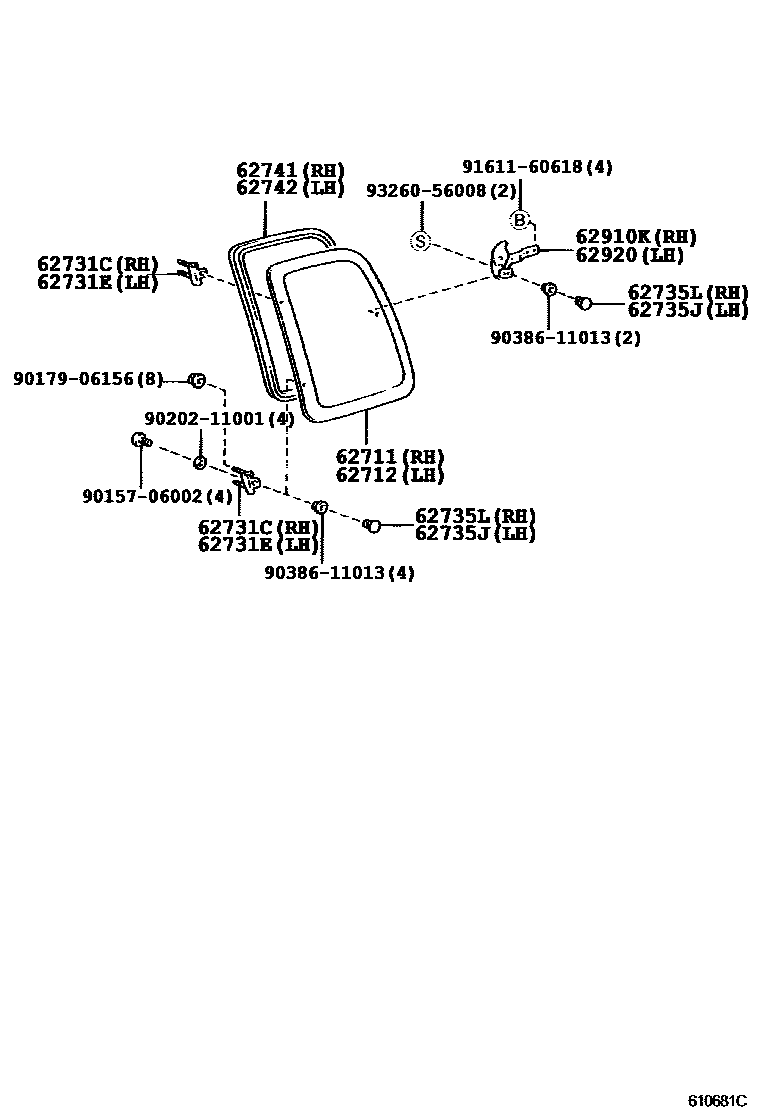

Toyota HILUX 侧窗 — Figure 6152
Toyota HILUX EPC diagram 6152, 侧窗, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62711 | Right corner window glass | 62711-35010 · 62711-35011 |
| 62712 | Left corner window glass | 62712-35010 · 62712-35011 |
| 62731C | Right corner window hinge | 62731-89101 · 62731-89102 |
| 62731E | Left corner window hinge | 62731-89101 · 62731-89102 |
| 62735J | Left corner window hinge fixing | 62735-35010 |
| 62735L | Right corner window hinge fixing | 62735-35010 |
| 62741 | Right corner window sealing strip | 62741-35020 · 62741-35021 · 62741-35022 |
| 62742 | Left corner window sealing strip | 62741-35020 · 62741-35021 · 62741-35022 |
| 62910K | Right corner window lock assembly | 62910-35020 |
| 62920 | Left corner window lock assembly | 62910-35020 |
