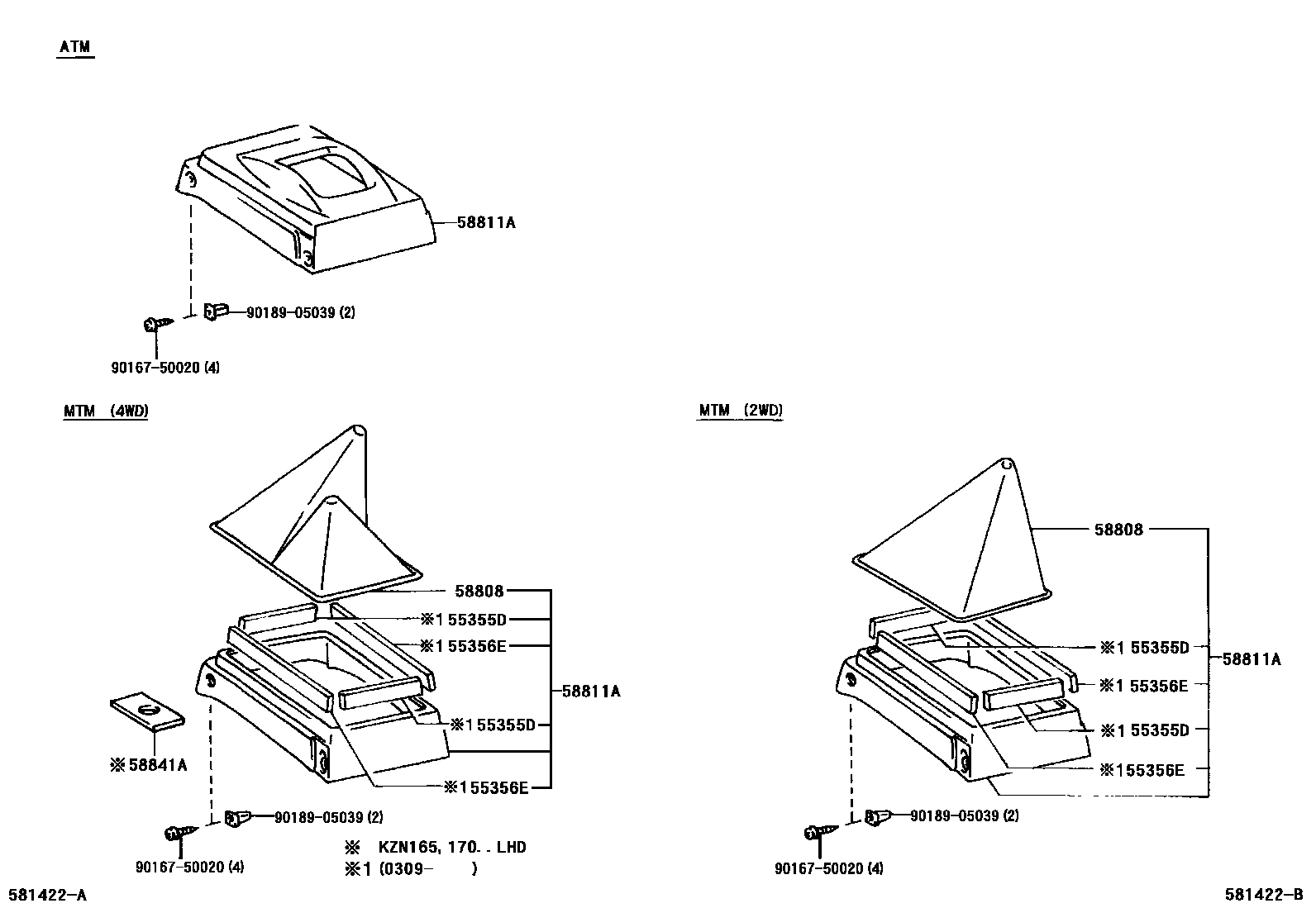

Toyota HILUX 中央扶手箱和支架 — Figure 5855
Toyota HILUX EPC diagram 5855, 中央扶手箱和支架, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55355D | Dashboard No. 1 Cushion Pad | 55355-35050 |
| 55356E | Dashboard No. 2 Cushion Pad | 55356-35050 |
| 58841A | shift hole cover | 58841-35010 |
| 58908A | Armrest box lid lock assembly | 58908-32040 · 58908-32050 |
| 58916A | Rear armrest box insert | 58916-35030 |
| 58919B | Armrest box nameplate | 58919-35020 |
| 58964 | Armrest box cover No. 1 stop | 58964-16010 |
| 58965A | Armrest box cover No. 2 stopper | 58965-16010 |
| 58993 | Armrest box rear mounting bracket | 58993-35040 |
