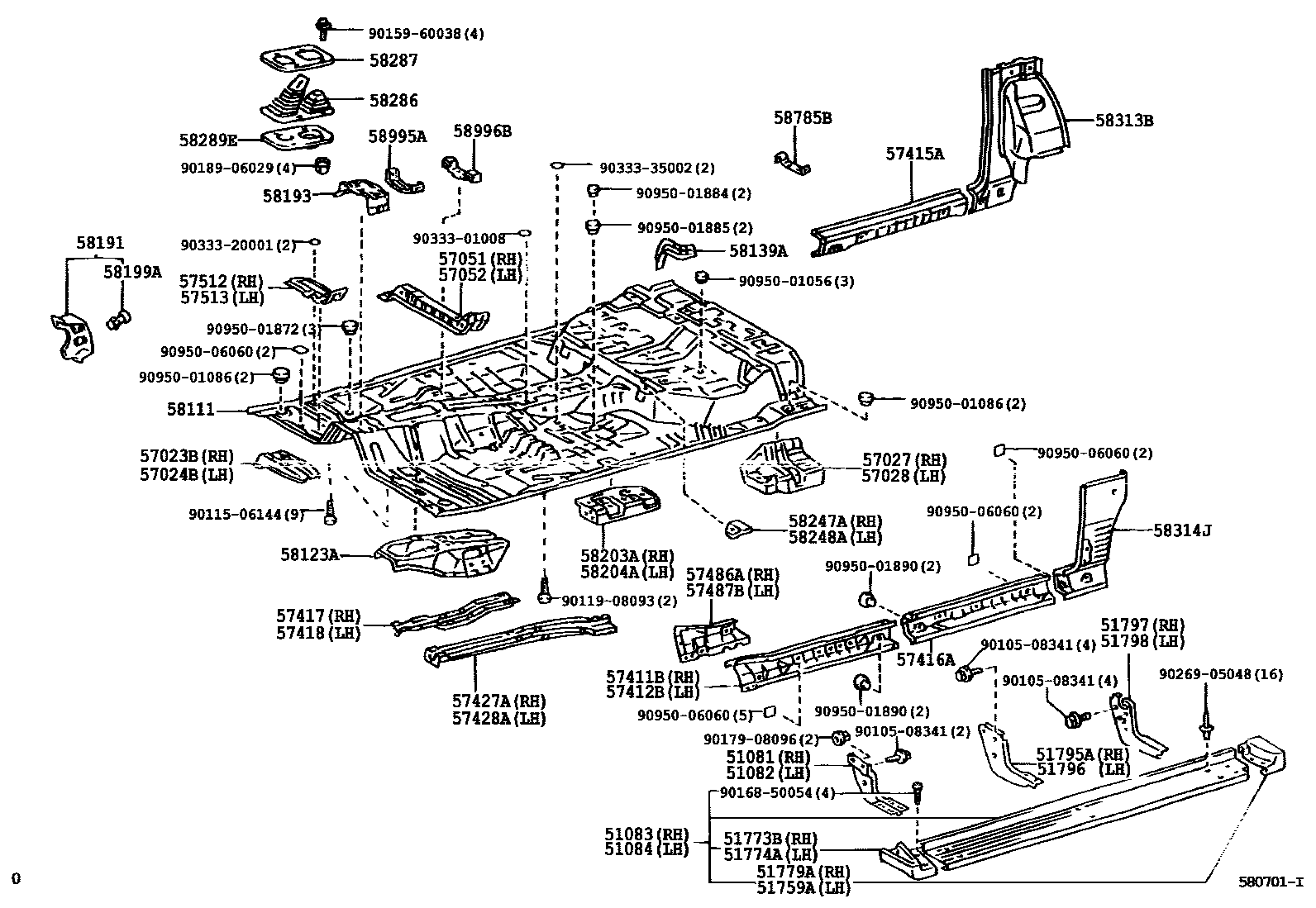

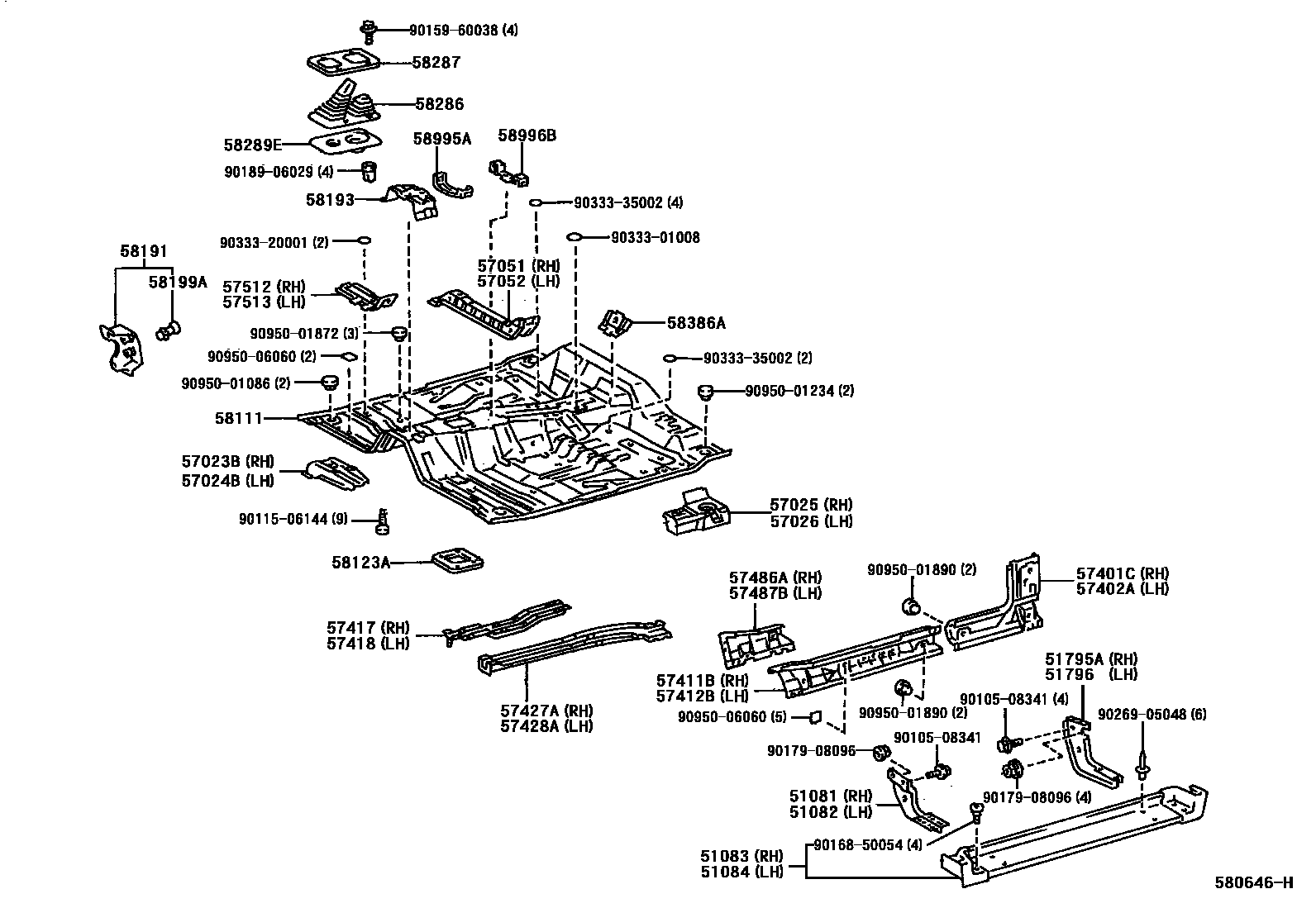

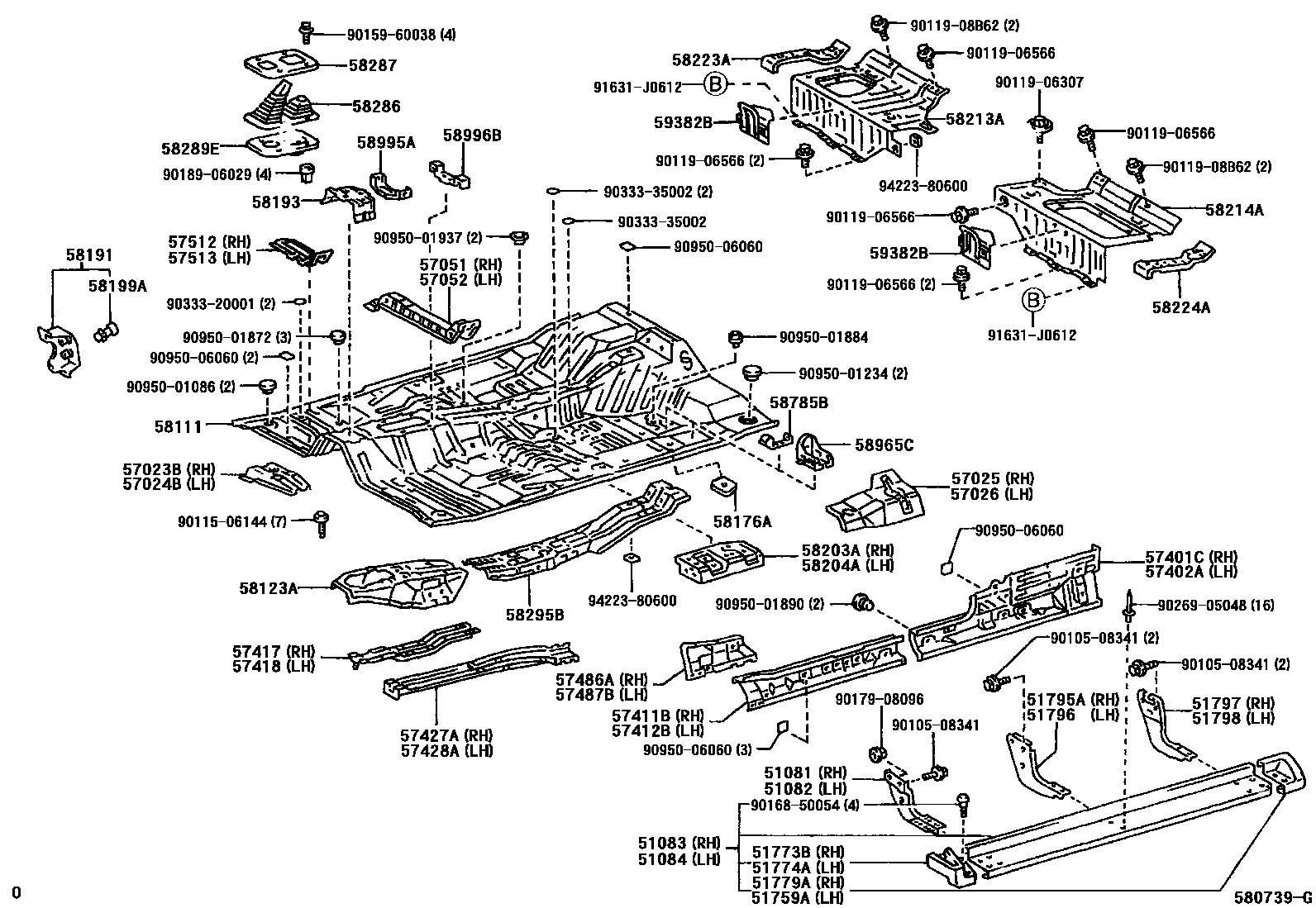

Toyota HILUX 前地板和前地板梁 — Figure 5851
Toyota HILUX EPC diagram 5851, 前地板和前地板梁, with 3 images and 61 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51081 | Right foot plate No. 1 stay sub-assembly | 51081-35040 · 51081-35050 |
| 51082 | Left foot plate No. 1 stay sub-assembly | 51082-35040 · 51082-35050 |
| 51083 | Right pedal sub-assembly | 51083-35090 · 51083-35091 · 51083-35100 · 51083-35101 · 51083-35110 · 51083-35111 · 51083-35120 · 51083-35121 · 51083-35130 · 51083-35131 |
| 51084 | Left pedal sub-assembly | 51084-35080 · 51084-35081 · 51084-35090 · 51084-35091 · 51084-35100 · 51084-35101 · 51084-35102 · 51084-35110 · 51084-35111 · 51084-35120 · 51084-35121 |
| 51759A | Left rear door step panel cover | 51759-35040 · 51759-35050 |
| 51773B | Right front door side step panel lining cover | 51773-35040 · 51778-35040 |
| 51774A | Left front door side step panel lining cover | 51774-35040 · 51779-35040 |
| 51779A | Right rear door step panel cover | 51779-35040 · 51779-35050 · 51779-35060 |
| 51795A | Right footboard bracket No. 2 | 51795-35030 · 51795-35040 · 51795-35050 |
| 51796 | Left side step plate No. 2 bracket | 51796-35030 · 51796-35040 · 51796-35050 |
| 51797 | Right footboard bracket No. 3 | 51797-35030 · 51797-35040 · 51797-35050 · 51797-35060 |
| 51798 | Left footboard No. 3 bracket | 51798-35030 · 51798-35040 · 51798-35050 · 51798-35060 |
| 57023B | Right body No. 2 mounting bracket sub-assembly | 57023-35050 |
| 57024B | Left body No. 2 mounting bracket sub-assembly | 57024-35050 |
| 57025 | Right body No. 3 mounting bracket sub-assembly | 57025-35050 · 57025-35060 |
| 57026 | Left body No. 3 mounting bracket sub-assembly | 57026-35070 · 57026-35080 |
| 57027 | Right body No. 4 mounting bracket sub-assembly | 57027-35020 |
| 57028 | Left body No. 4 mounting bracket sub-assembly | 57028-35020 |
| 57051 | Front floor right cross member sub-assembly | 57051-35020 · 57051-35040 · 57051-35041 |
| 57052 | Front floor left cross member sub-assembly | 57052-35020 · 57052-35040 · 57052-35041 |
| 57401C | Floor right inner longitudinal beam sub-assembly | 57401-35010 · 57401-35020 · 57401-35030 |
| 57402A | Floor left inner longitudinal beam sub-assembly | 57402-35010 · 57402-35020 · 57402-35030 |
| 57411B | Floor right inner longitudinal beam | 57411-35050 |
| 57412B | Floor left inner longitudinal beam | 57412-35050 |
| 57415A | Rear floor right longitudinal beam sub-assembly | 57415-35020 |
| 57416A | Rear floor left longitudinal beam sub-assembly | 57416-35020 |
| 57417 | Front floor lower right reinforcement | 57417-35040 |
| 57418 | Front floor lower left reinforcement | 57418-35040 |
| 57427A | Front floor No. 3 right reinforcement | 57427-35010 · 57427-35020 |
| 57428A | Front floor No. 3 left reinforcement | 57428-35010 · 57428-35020 |
| 57486A | Floor No. 1 right longitudinal beam reinforcement | 57486-35020 |
| 57487B | Floor No. 1 left longitudinal beam reinforcement | 57487-35020 |
| 57512 | Front floor right reinforcement | 57512-35020 · 57512-35021 · 57512-35030 |
| 57513 | Front floor left reinforcement | 57513-35020 · 57513-35021 · 57513-35030 |
| 58111 | front floor pan | 58111-04270 · 58111-04271 · 58111-04280 · 58111-04281 · 58111-04380 · 58111-35230 · 58111-35231 · 58111-35240 · 58111-35241 · 58111-35300 · 58111-35301 · 58111-35310 · 58111-35311 · 58111-35330 · 58111-35331 · 58111-35400 · 58111-35410 |
| 58123A | shift lever bracket | 58123-35050 · 58123-35051 · 58123-35052 · 58123-35060 |
| 58139A | Front floor right rear side panel | 58139-35010 |
| 58176A | Rear seat fixing nut piece | 58176-35020 |
| 58191 | Front floor footrest | 58190-35020 |
| 58193 | Dashboard bracket mounting bracket | 58193-35040 |
| 58199A | Footrest clip No. 2 | 58199-20030 |
| 58203A | Center floor right reinforcement sub-assembly | 58203-35010 · 58203-35020 |
| 58204A | Center floor left reinforcement sub-assembly | 58204-35010 · 58204-35020 |
| 58213A | Right seat floor | 58213-04030 · 58213-04040 |
| 58214A | left seat floor | 58214-04020 · 58214-04030 |
| 58223A | Floor right panel reinforcement | 58223-35010 |
| 58224A | Floor left panel reinforcement | 58224-35010 |
| 58247A | Rear right seat cushion hinge reinforcement | 58247-89102 |
| 58248A | Rear left seat cushion hinge reinforcement | 58247-89102 |
| 58286 | No. 1 shift lever dust cover | 58286-35080 · 58286-35100 · 58286-35130 · 58286-35140 · 58286-35150 · 58286-35160 · 58286-35180 |
| 58287 | Shift lever dust cover retaining ring | 58287-35030 · 58287-35050 · 58287-35060 · 58287-35080 |
| 58289E | No. 2 shift lever dust cover | 58289-35030 · 58289-35080 · 58289-35120 · 58289-35130 |
| 58295B | Seat belt anchor floor reinforcement | 58295-04030 · 58295-35010 |
| 58313B | Rear floor right panel | 58313-35900 |
| 58314J | rear floor left panel | 58314-35030 |
| 58386A | Body lower back panel 2 corner panel | 58386-35010 |
| 58785B | Tool bag strap holder | 58785-89106 |
| 58965C | Jack holder | 58965-35010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-35030 |
| 58996B | Armrest box No. 2 mounting bracket | 58996-35010 |
| 59382B | Rear seat leg lock | 59382-35010 |
