Toyota HILUX radiator grille — Figure 5351

Toyota HILUX EPC diagram 5351, radiator grille, with 2 images and 1 PNC and OE references.

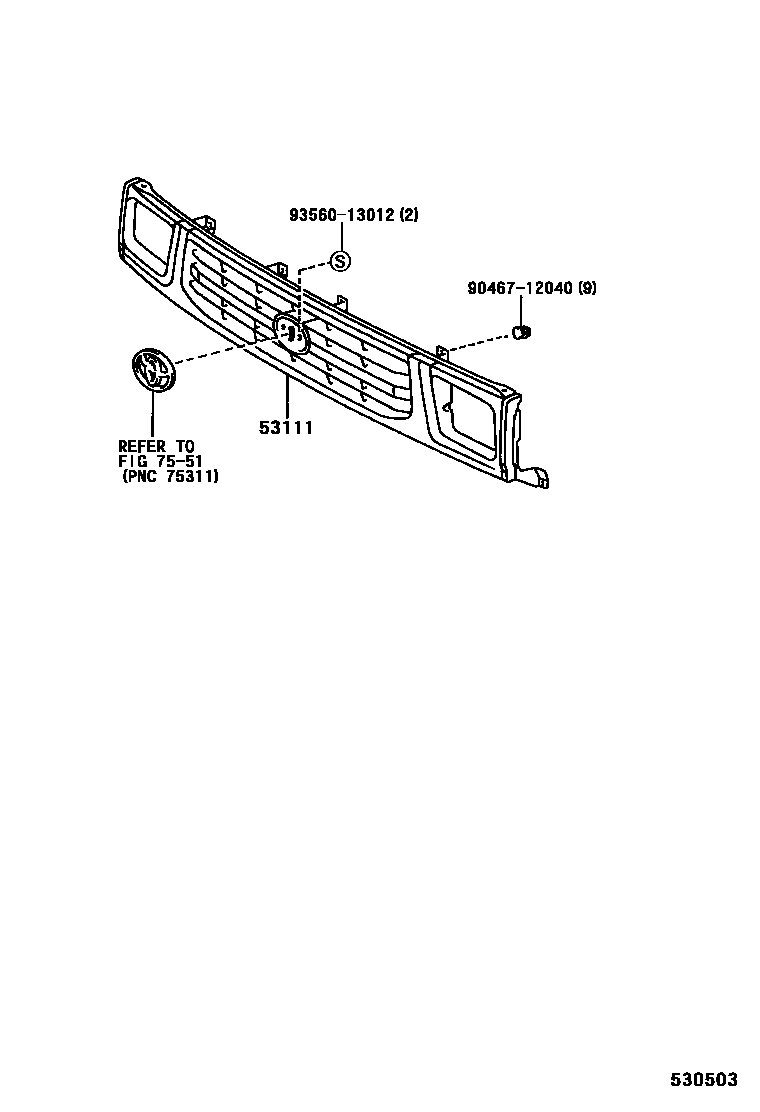

Toyota HILUX radiator grille EPC diagram — 530503
radiator grille — 530503 (199708 – 200108)

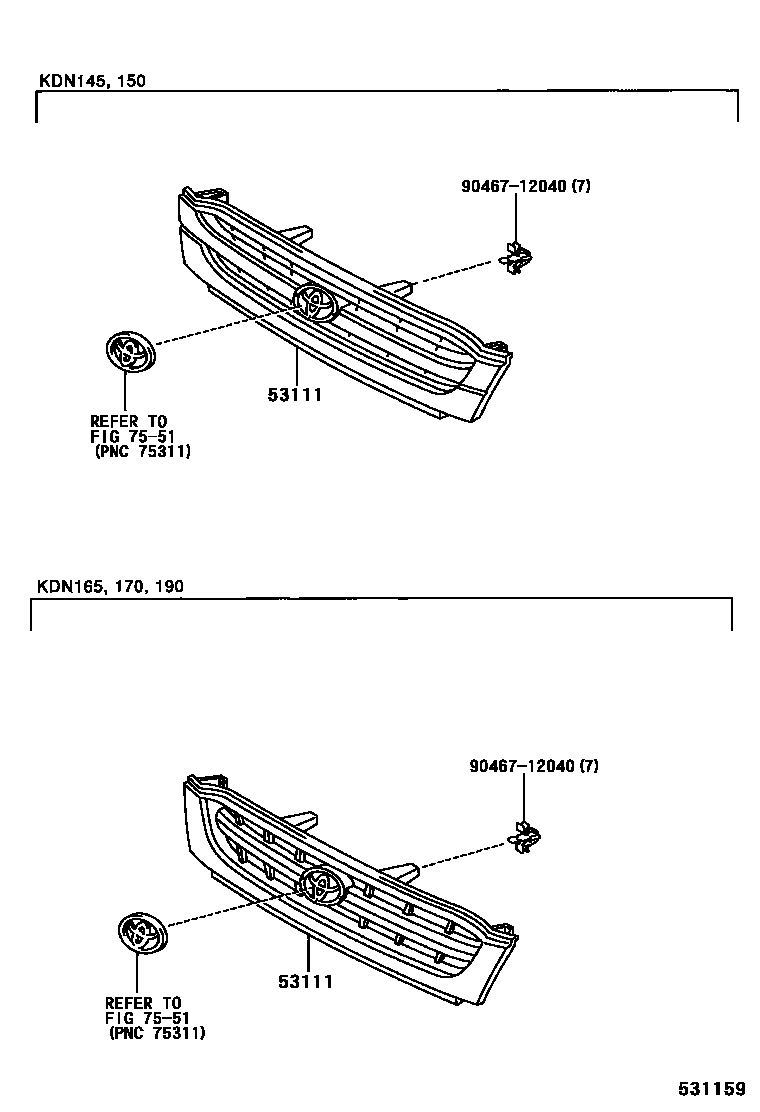

Toyota HILUX radiator grille EPC diagram — 531159
radiator grille — 531159 (200108 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53111-35370 · 53111-35380 · 53111-35410 · 53111-35420 · 53111-35510 · 53111-35520 · 53111-35530 · 53111-35540
