Toyota HILUX 前保险杠及附件 — Figure 5252

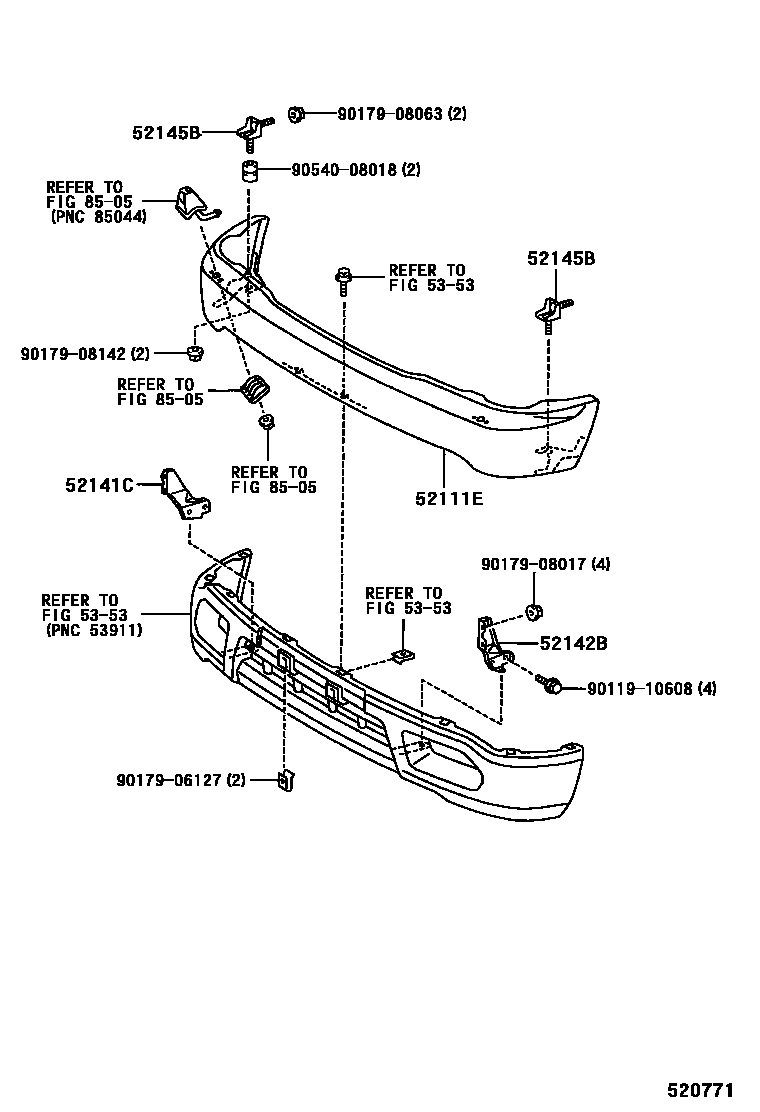

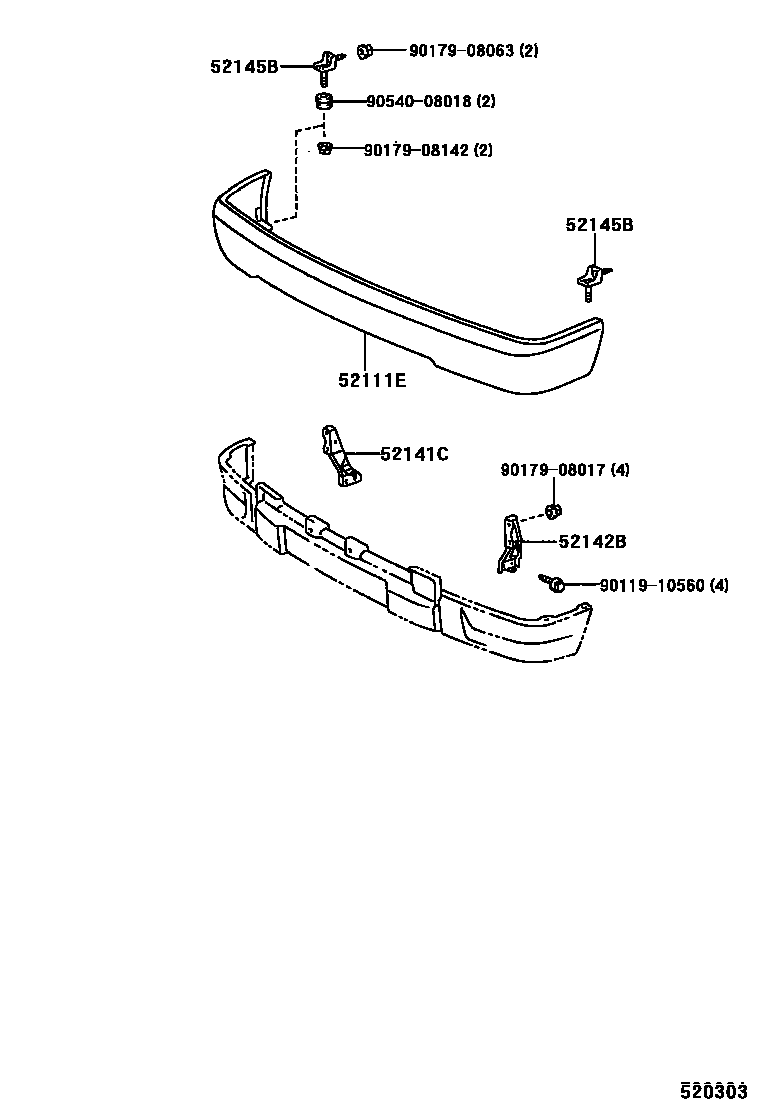

Toyota HILUX EPC diagram 5252, 前保险杠及附件, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52111E | front bumper stay | 52101-35360 · 52101-35370 · 52101-35380 · 52101-35400 · 52101-35410 · 52101-35420 · 52101-35600 · 52101-35610 · 52101-35630 |
| 52141C | Front bumper right arm | 52141-35060 · 52141-35080 |
| 52142B | Front bumper left arm | 52142-35060 · 52142-35080 |
| 52145B | Front bumper side mounting bracket | 52145-89102 |
