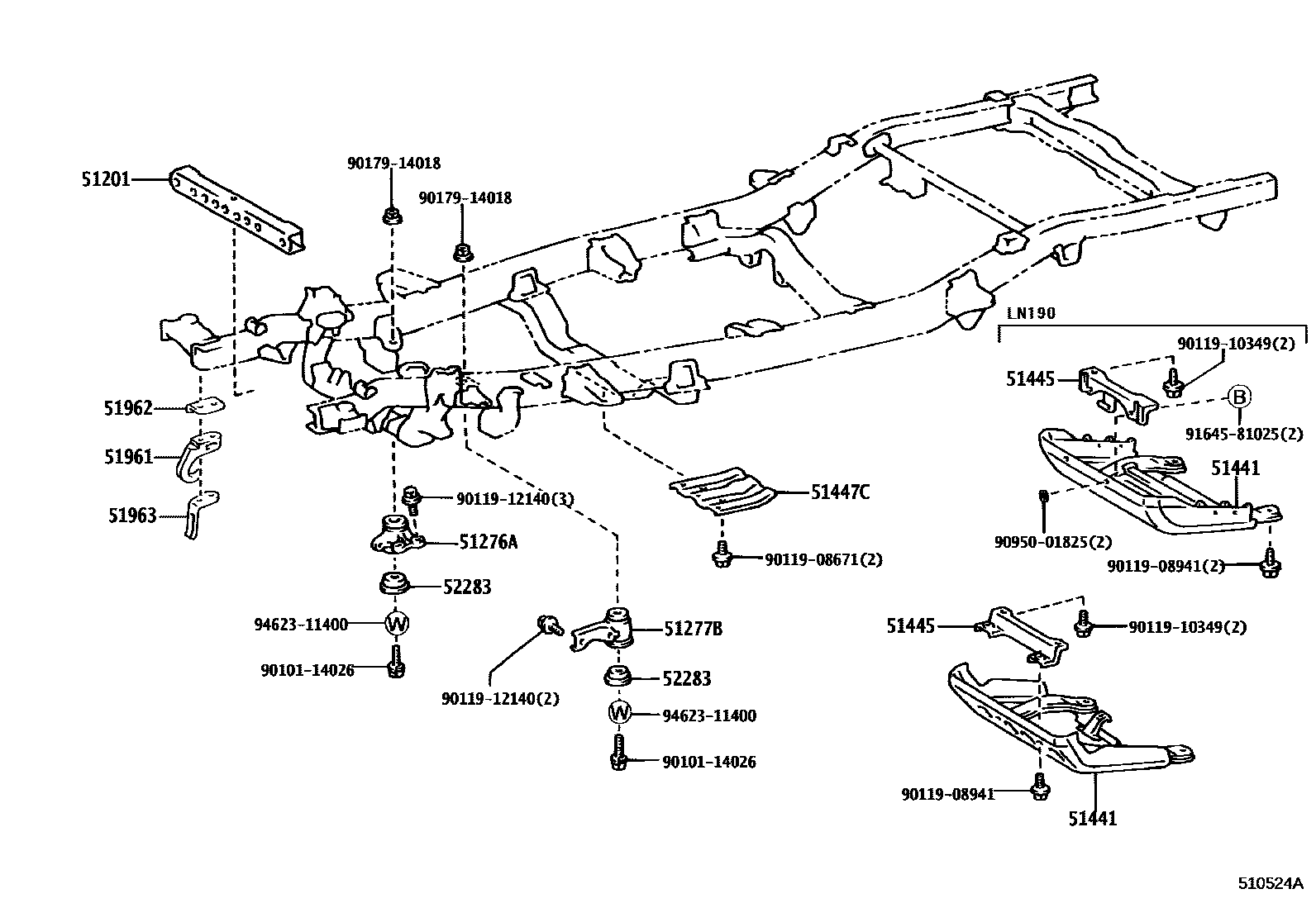

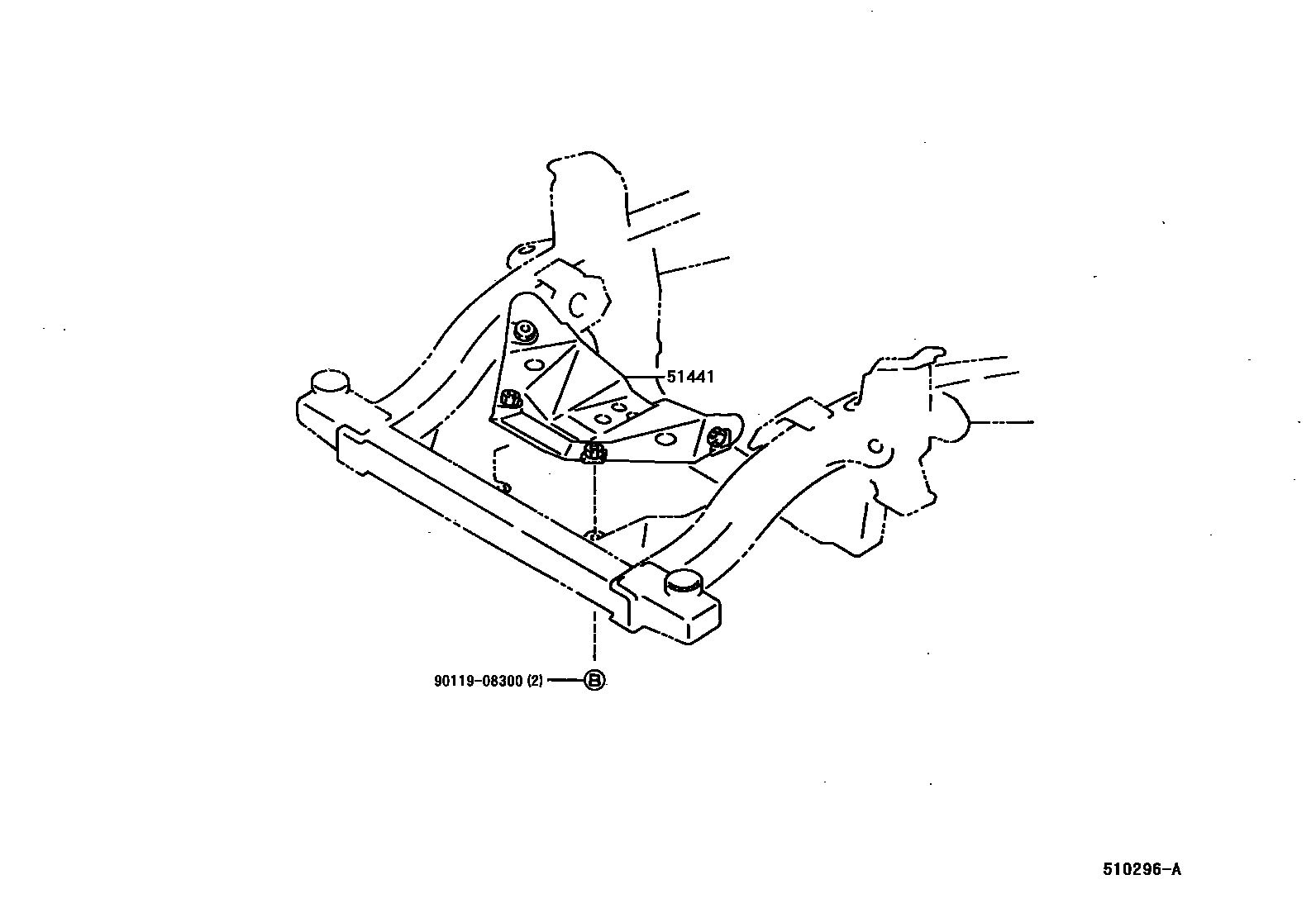

Toyota HILUX 悬架横梁和发动机底罩 — Figure 5152
Toyota HILUX EPC diagram 5152, 悬架横梁和发动机底罩, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-35290 · 51201-35300 · 51201-35310 · 51201-35330 |
| 51276A | Differential support bracket | 51250-35011 |
| 51277B | Differential left support bracket assembly | 51260-35021 |
| 51441 | No. 1 engine bottom cover | 51405-35062 · 51405-35120 · 51441-35150 · 51441-35250 · 51441-35251 |
| 51445 | Engine underhood bracket | 51445-35080 · 51445-35130 |
| 51447C | Transfer case guard | 51447-35031 · 51447-35040 |
| 51961 | No. 1 hook | 51961-35020 |
| 51962 | Hook No. 2 | 51962-35020 |
| 51963 | Hook wire block | 51963-35080 |
| 52283 | Differential support beam lower block | 52283-35011 |
