Toyota HILUX 车架 — Figure 5151

Toyota HILUX EPC diagram 5151, 车架, with 6 images and 48 PNC and OE references.

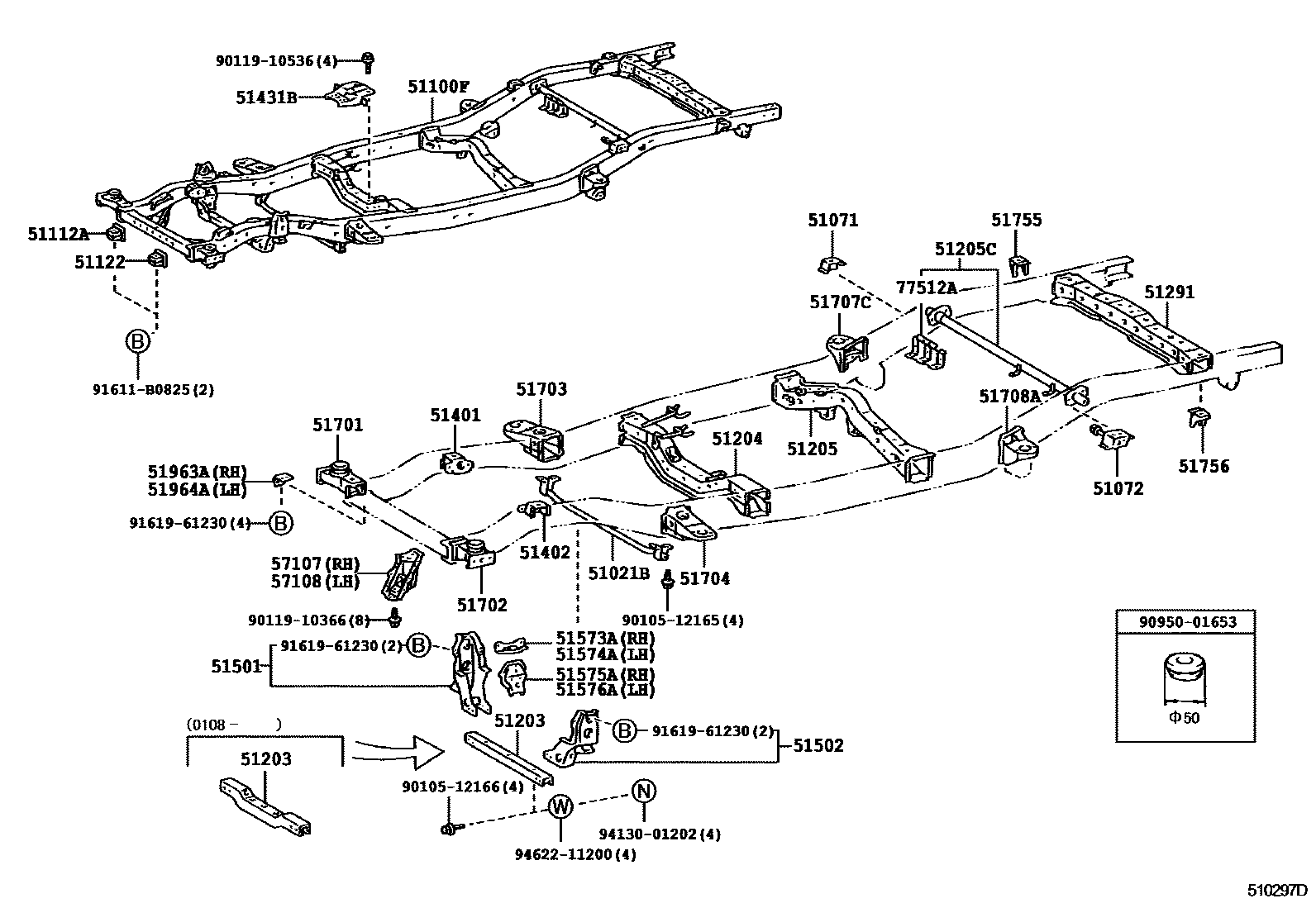

Toyota HILUX 车架 EPC diagram — 510297D
车架 — 510297D (199708 – 999999)

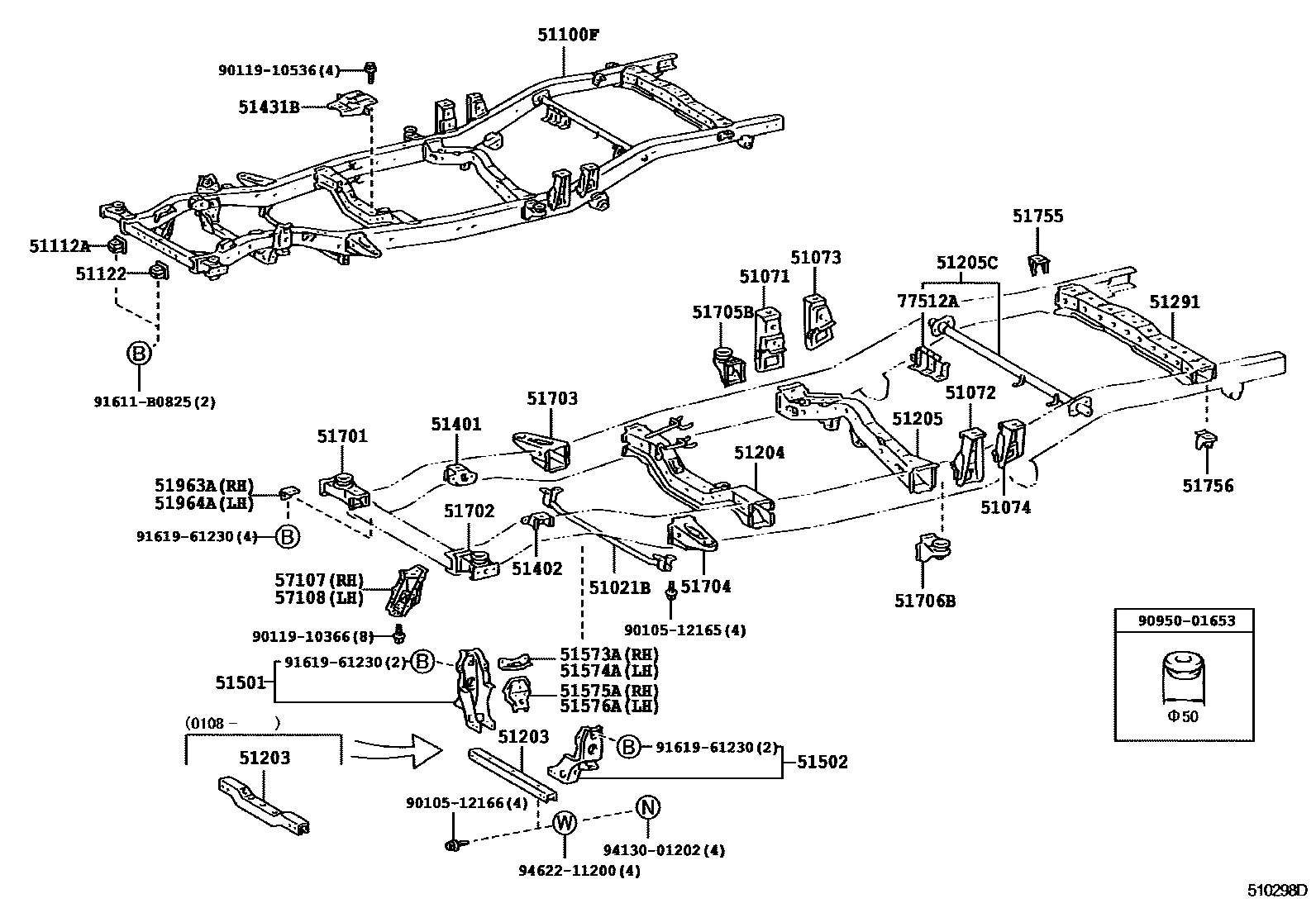

Toyota HILUX 车架 EPC diagram — 510298D
车架 — 510298D (199708 – 999999)

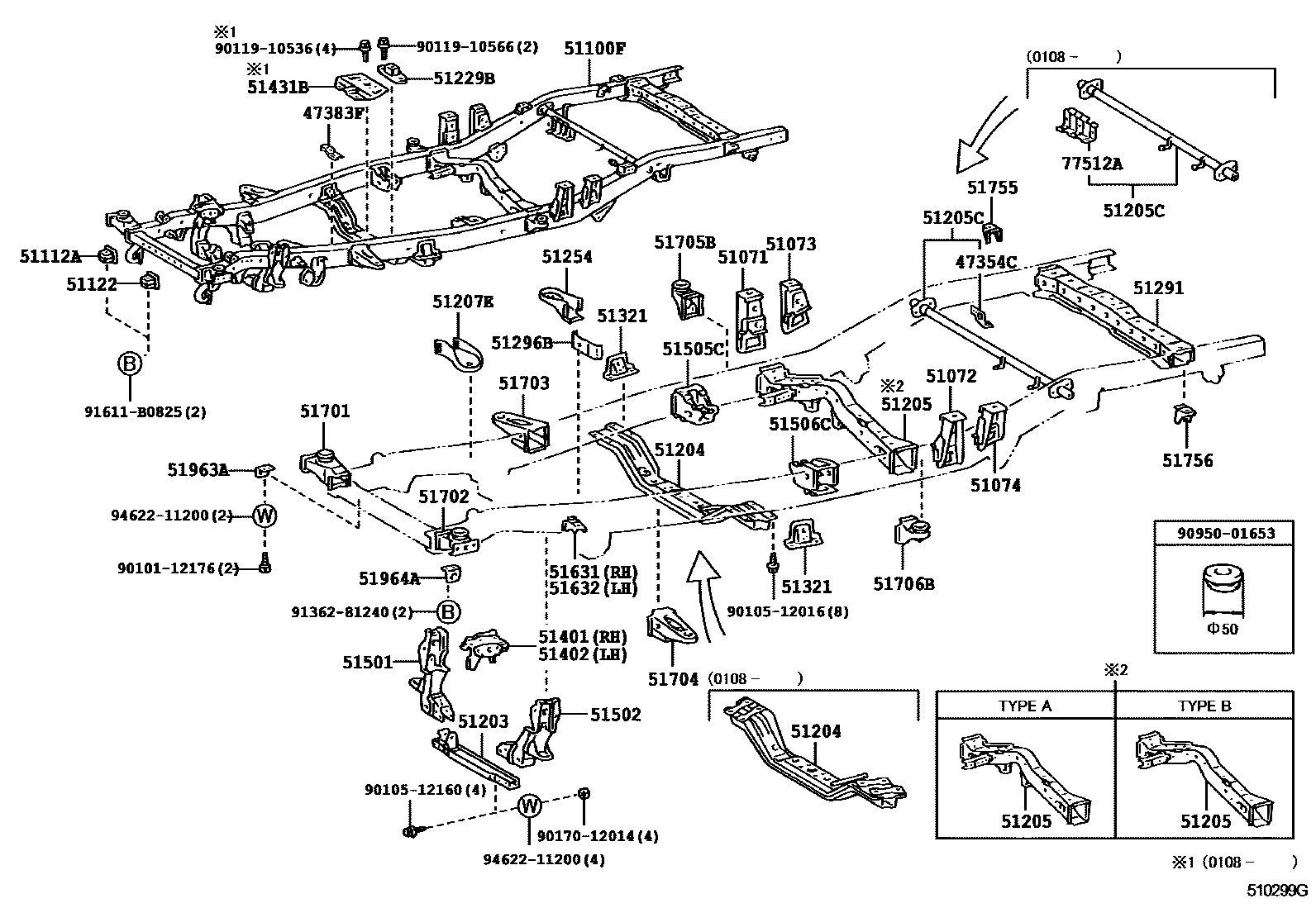

Toyota HILUX 车架 EPC diagram — 510299G
车架 — 510299G (199708 – 999999)

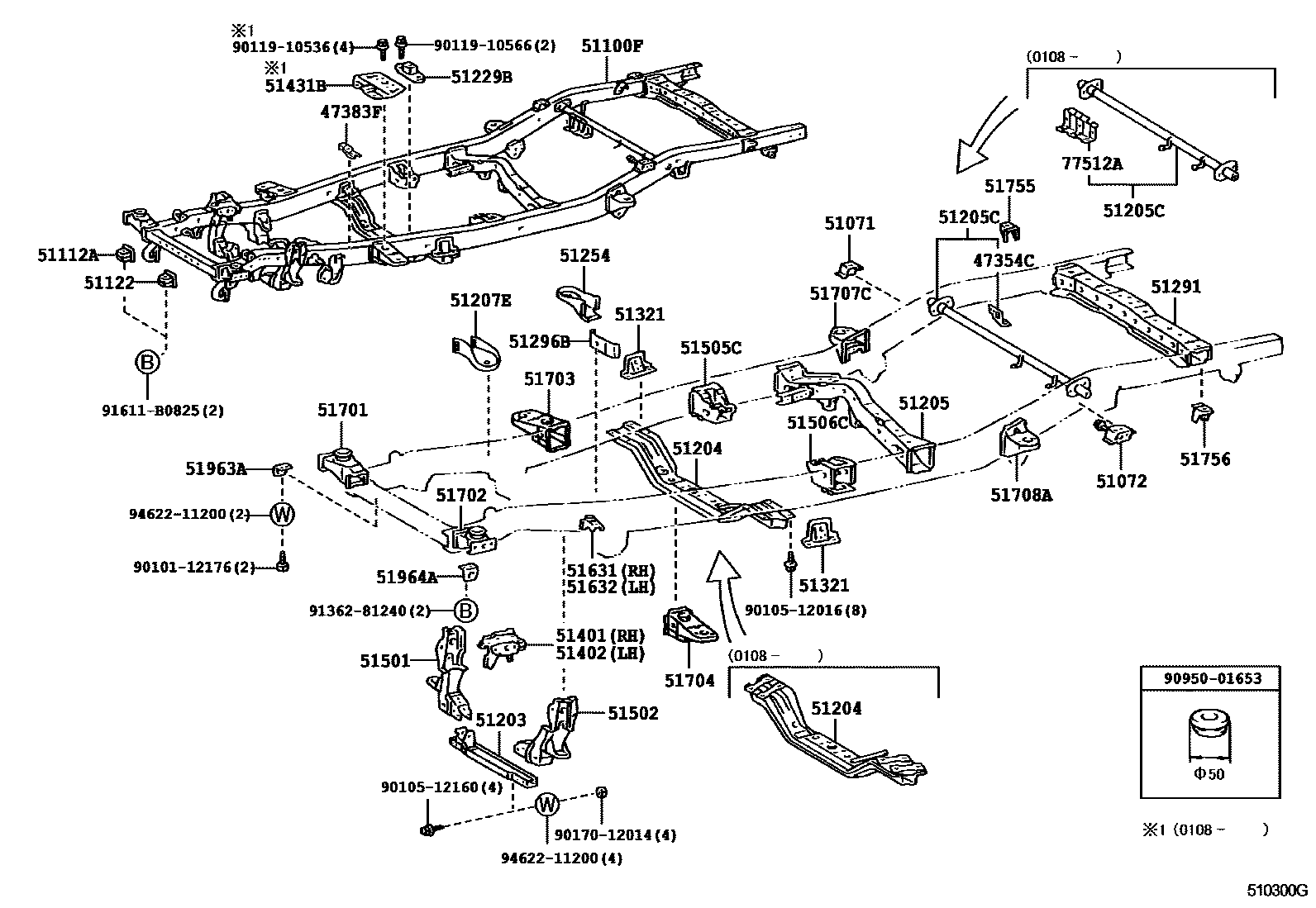

Toyota HILUX 车架 EPC diagram — 510300G
车架 — 510300G (199708 – 999999)

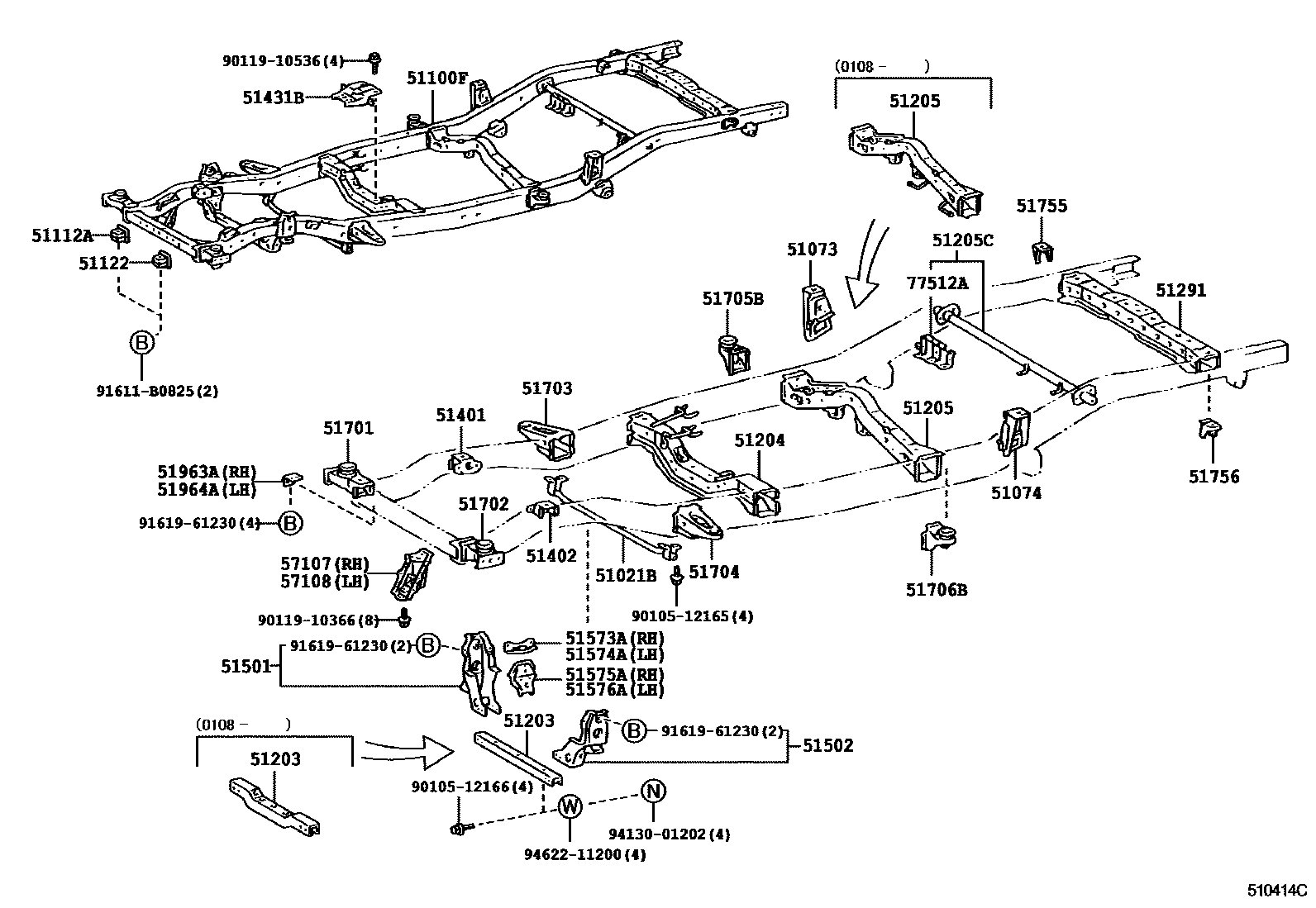

Toyota HILUX 车架 EPC diagram — 510414C
车架 — 510414C (199711 – 999999)

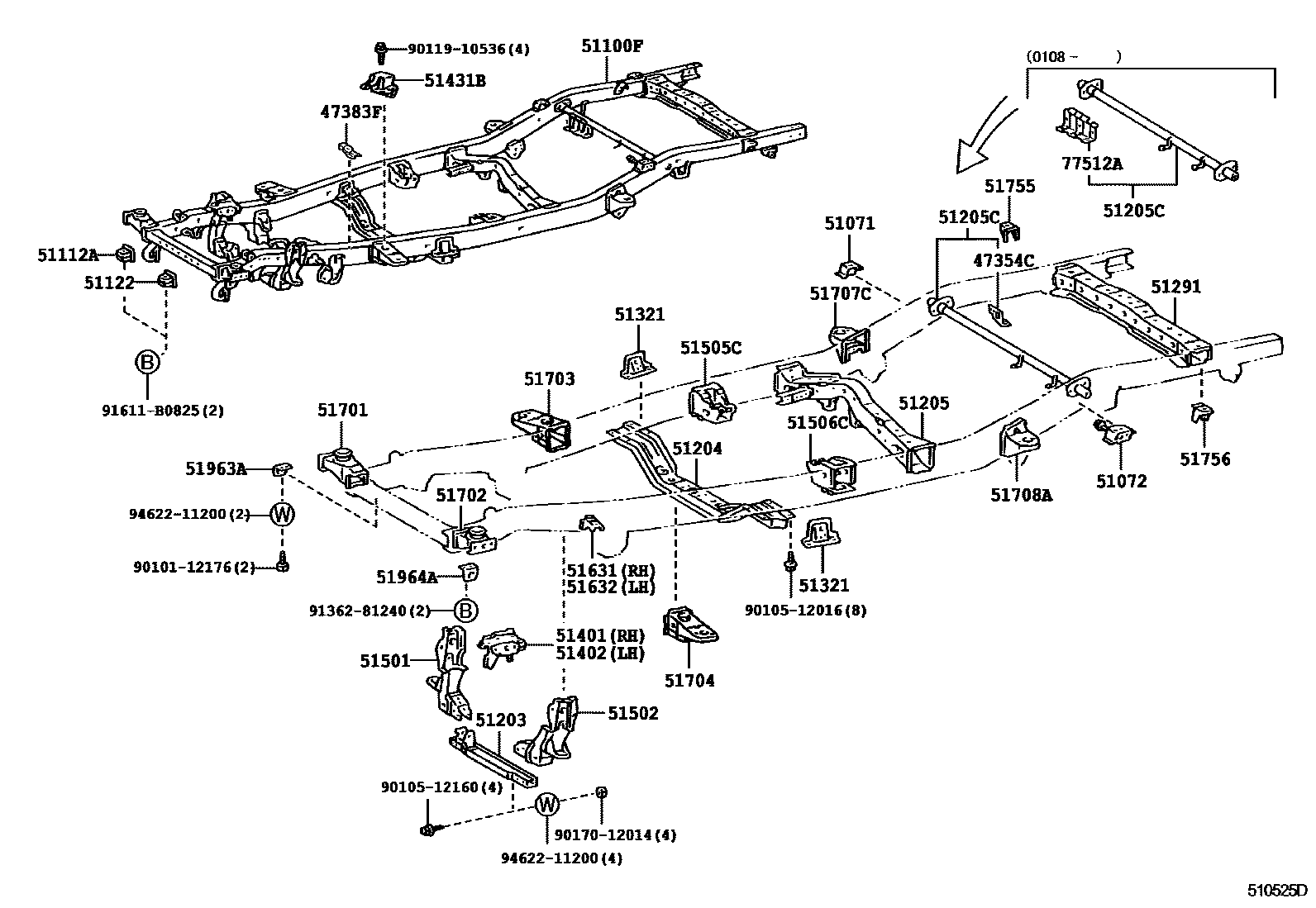

Toyota HILUX 车架 EPC diagram — 510525D
车架 — 510525D (199908 – 999999)

PNC and OE references

PNCPart nameOE numbers
47354CNo. 4 Flexible Hose Bracket47354-35110
47383FConnector bracket47383-35020
51021BFrame auxiliary cross member sub-assembly51021-35010
51071Right rear body No. 1 mounting bracket sub-assembly51741-35080 · 51741-35090
51072Left rear body No. 1 mounting bracket sub-assembly51072-35030 · 51072-35040 · 51741-35090
51073Right rear body No. 2 mounting bracket sub-assembly51742-35120
51074Left rear body No. 2 mounting bracket sub-assembly51743-35120
51100FFrame sub-assembly51001-3G020 · 51001-3G030 · 51001-3G060 · 51001-3G120 · 51001-3G150 · 51001-3G180 · 51001-3G320 · 51001-3G330 · 51001-3G360 · 51001-3G390 · 51001-3M070 · 51001-3M080 · 51001-3M100 · 51001-3M110 · 51001-3M120 · 51001-3M180 · 51001-3M190 · 51001-3M200 · 51001-3M210 · 51001-3M220 · 51001-3M280 · 51002-3G250 · 51002-3G410 · 51003-3D870 · 51003-3D890
51112ARight longitudinal beam extension51112-35070 · 51112-35080
51122Left longitudinal beam extension51112-35070 · 51112-35080
51203Frame No. 2 cross member sub-assembly51202-35340 · 51202-35451 · 51203-35270 · 51203-35360
51204Frame No. 3 beam sub-assembly51202-35370 · 51202-35400 · 51202-35420 · 51202-35440 · 51203-35310 · 51203-35340
51205Frame No. 4 beam sub-assembly51204-35540 · 51204-35550 · 51204-35560 · 51204-35590 · 51204-35640 · 51204-35670 · 51204-35680 · 51204-35700 · 51204-35710 · 51204-35720 · 51204-35730 · 51204-35780 · 51204-35790 · 51204-35800
51205CFrame No. 5 beam sub-assembly51205-35250 · 51205-35260
51207EDifferential right side bracket sub-assembly51207-35010
51229BNo. 2 frame cross member dynamic damper51229-35020 · 51229-35040
51254Differential left bracket51254-35010
51291Frame rear cross member51209-35180 · 51209-35200
51296BDifferential bracket left reinforcement51296-35010
51321Right corner plate of No. 2 beam51321-35050
51401Engine right front mounting bracket sub-assembly51047-35070 · 51047-35080 · 51047-35090 · 51401-35350 · 51401-35370
51402Engine left front mounting bracket sub-assembly51048-35070 · 51048-35080 · 51048-35090 · 51402-35300 · 51402-35320
51431BEngine rear mounting bracket51431-35060 · 51431-35100 · 51431-35141 · 51431-35240
51501Right suspension arm bracket sub-assembly51501-35110 · 51501-35120 · 51501-35130
51502Left suspension arm bracket sub-assembly51502-35110 · 51502-35120 · 51502-35130
51505CFixed arm right side bracket sub-assembly51505-35100
51506CFixed arm left bracket sub-assembly51506-35020
51573ANo. 1 right suspension arm bracket reinforcement51573-35030
51574ANo. 1 suspension arm bracket left reinforcement51573-35030
51575ANo. 2 suspension arm bracket right side reinforcement51575-35060
51576ANo. 2 suspension arm bracket left reinforcement51575-35060
51631Right front suspension rebound limiter51061-35010 · 51631-35040
51632Left front suspension rebound limiter51061-35010 · 51631-35040
51701Cab suspension No. 1 right side bracket sub-assembly51701-35160 · 51701-35170
51702Cab suspension No. 1 left side bracket sub-assembly51702-35120 · 51702-35140
51703Cab suspension No. 2 right side bracket sub-assembly51703-35120 · 51703-35130 · 51703-35140 · 51703-35150
51704Cab suspension No. 2 left side bracket sub-assembly51703-35120 · 51704-35120 · 51704-35130 · 51704-35140
51705BCab suspension No. 3 right side bracket sub-assembly51705-35130 · 51705-35150
51706BCab suspension No. 3 left bracket sub-assembly51705-35130 · 51705-35150
51707CCab suspension No. 4 right side bracket sub-assembly51707-35080
51708ACab suspension No. 4 left bracket sub-assembly51708-35080
51755Right body No. 3 bracket51755-35010
51756Left body No. 3 bracket51755-35010
51963ARight front transport hook51963-35070
51964ALeft front transport hook51964-35050
57107Right support rod bracket sub-assembly57107-35060
57108Left support rod bracket sub-assembly57108-35060
77512Afuel tank rear bracket77512-35090
