Toyota HILUX Front Spring & Shock Absorber — Figure 4803

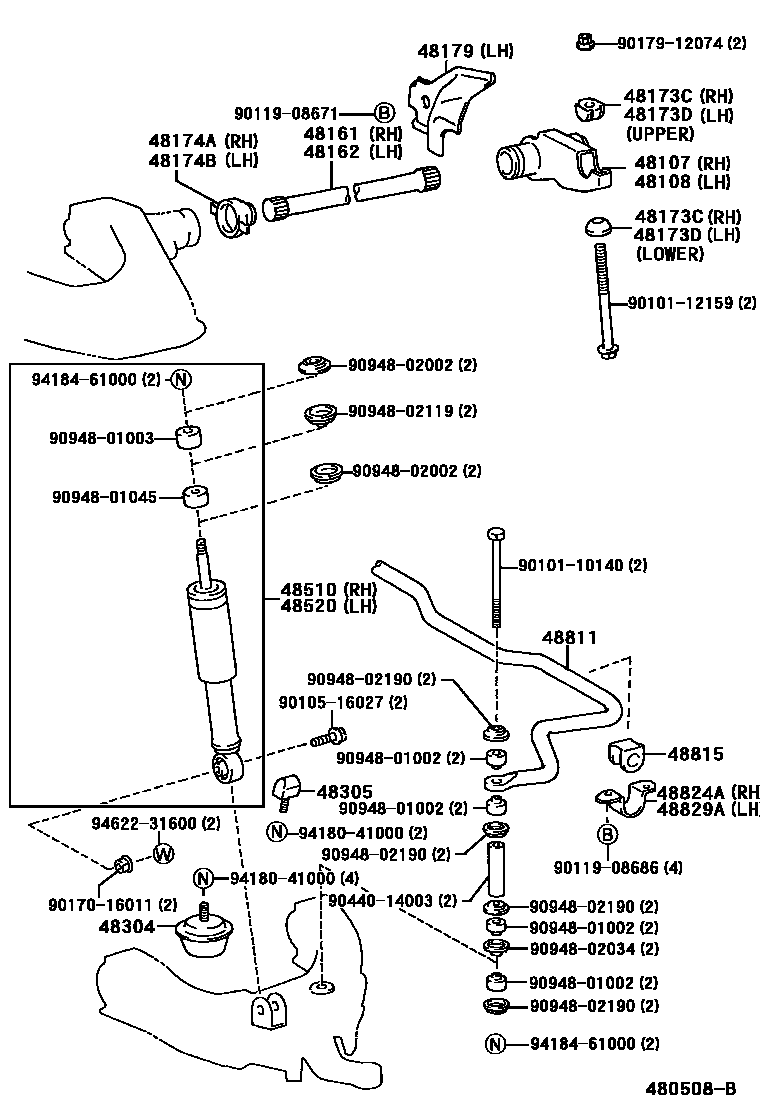

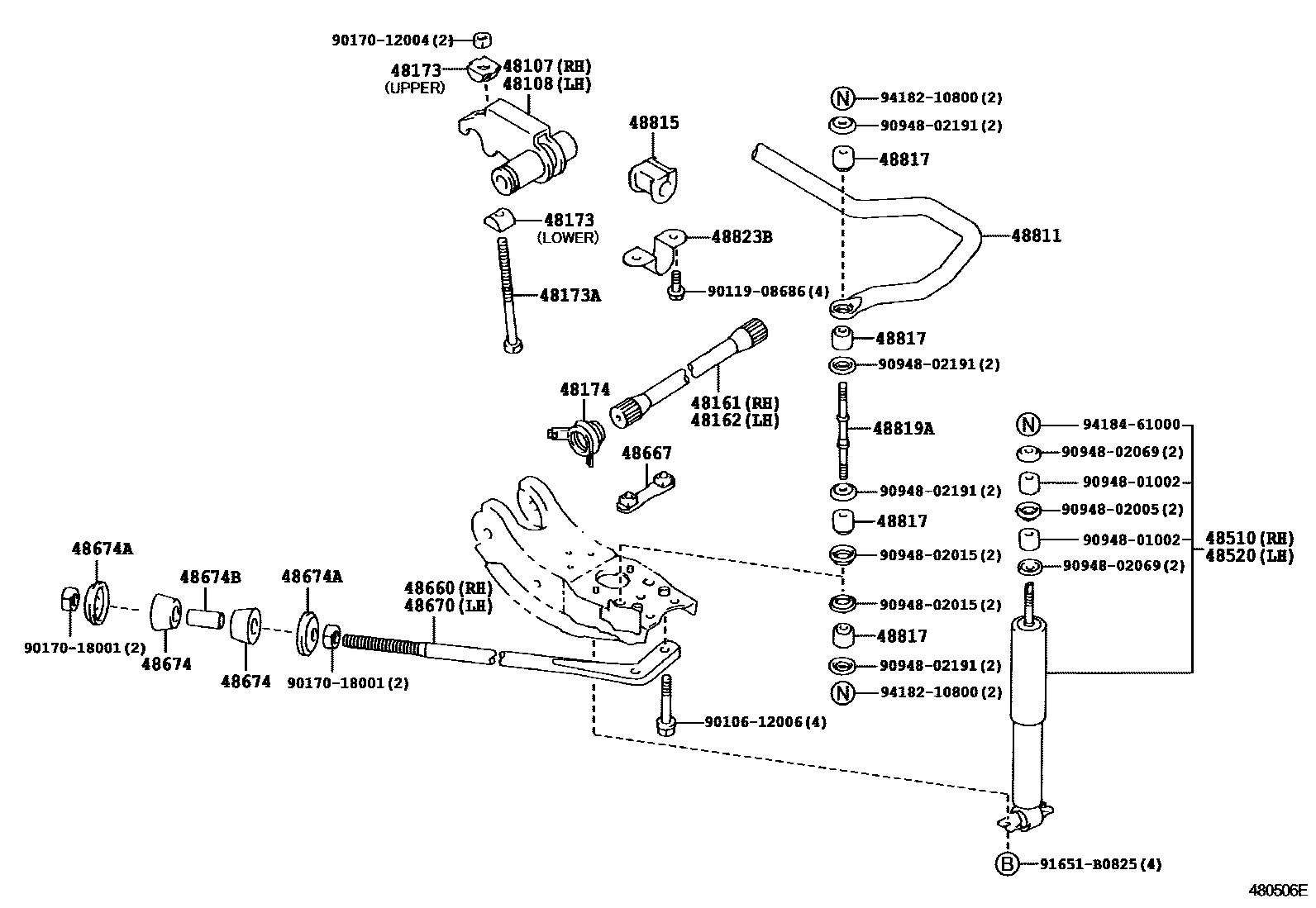

Toyota HILUX EPC diagram 4803, Front Spring & Shock Absorber, with 2 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48107 | Right fixed arm sub-assembly | 48107-35050 · 48107-35060 |
| 48108 | Left fixed arm sub-assembly | 48108-35050 · 48108-35060 |
| 48161 | Right torsion bar spring | 48161-04080 · 48161-04090 · 48161-35110 · 48161-35130 · 48161-35300 · 48161-35310 · 48161-35370 |
| 48162 | Left torsion bar spring | 48162-04080 · 48162-04090 · 48162-35110 · 48162-35130 · 48162-35300 · 48162-35310 · 48162-35370 |
| 48173 | fixed arm adjuster seat | 48173-35010 · 48173-35030 |
| 48173A | Hexagonal bolt (for adjusting the fixed arm) | 90101-12104 |
| 48173C | Right fixed arm adjuster seat | 48173-35010 · 48173-35020 |
| 48173D | Left fixed arm adjuster seat | 48173-35010 · 48173-35020 |
| 48174 | Torsion bar dust cover | 48174-35030 · 48174-35031 |
| 48174A | Right torsion bar dust cover | 48174-26010 |
| 48174B | Left torsion bar dust cover | 48174-26010 |
| 48179 | Left torsion bar dust cover protector | 48179-35030 |
| 48304 | No. 1 front spring buffer block sub-assembly | 48304-04060 · 48304-35170 |
| 48305 | No. 2 front spring buffer block sub-assembly | 48305-04020 · 48305-35020 |
| 48510 | Right front shock absorber assembly | 48511-80027 · 48511-80042 · 48511-80052 · 48511-80063 · 48511-80064 · 48511-80066 |
| 48520 | Left front shock absorber assembly | 48511-80027 · 48511-80042 · 48511-80052 · 48511-80063 · 48511-80064 · 48511-80066 |
| 48660 | Right support rod assembly | 48661-35030 |
| 48667 | Support rod retaining ring | 48667-35030 |
| 48670 | Left support rod assembly | 48671-35030 |
| 48674 | Support rod cushion | 48674-04010 · 48674-30040 |
| 48674A | Bumper stop (for support rod bumper) | 90948-02030 |
| 48674B | Collar (for support rod cushion) | 90387-18002 |
| 48811 | front stabilizer bar | 48811-35330 · 48811-35430 · 48811-35440 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-14160 |
| 48817 | Front stabilizer bar cushion | 48817-30010 |
| 48819A | front stabilizer bar bolt | 48819-35020 |
| 48823B | Front stabilizer bar bracket cover | 48823-35050 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-35080 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48829-35050 |
