Toyota HILUX 前桥控制臂和转向节 — Figure 4802

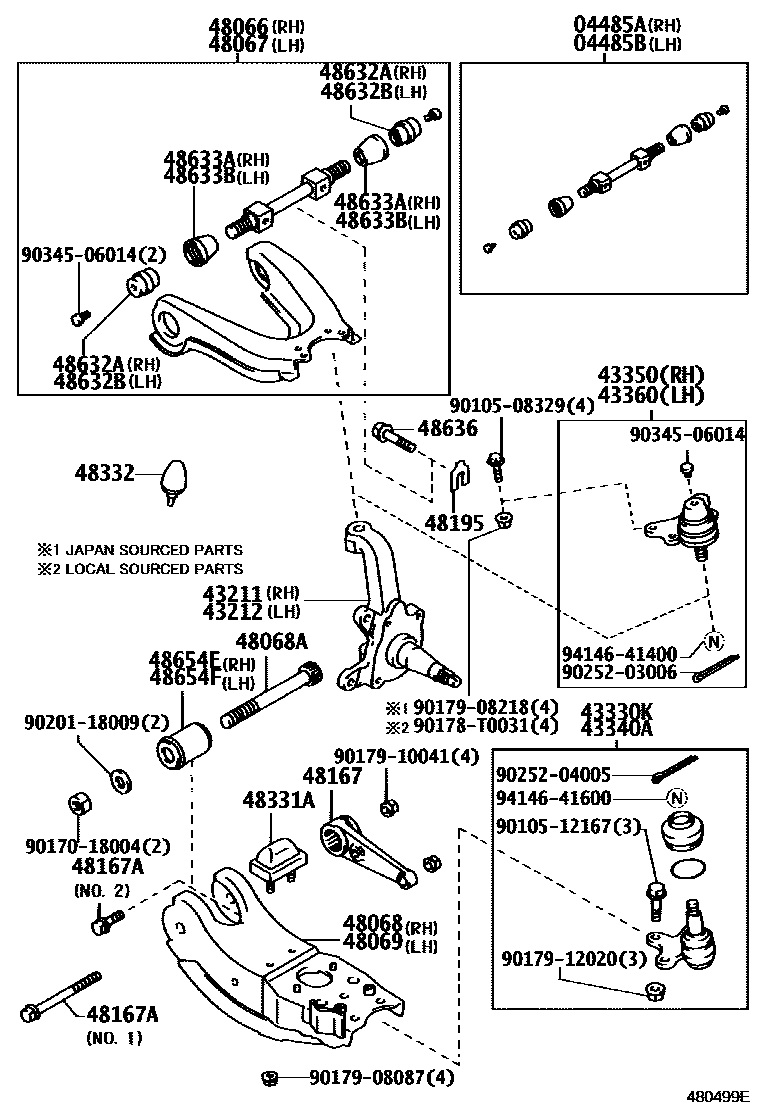

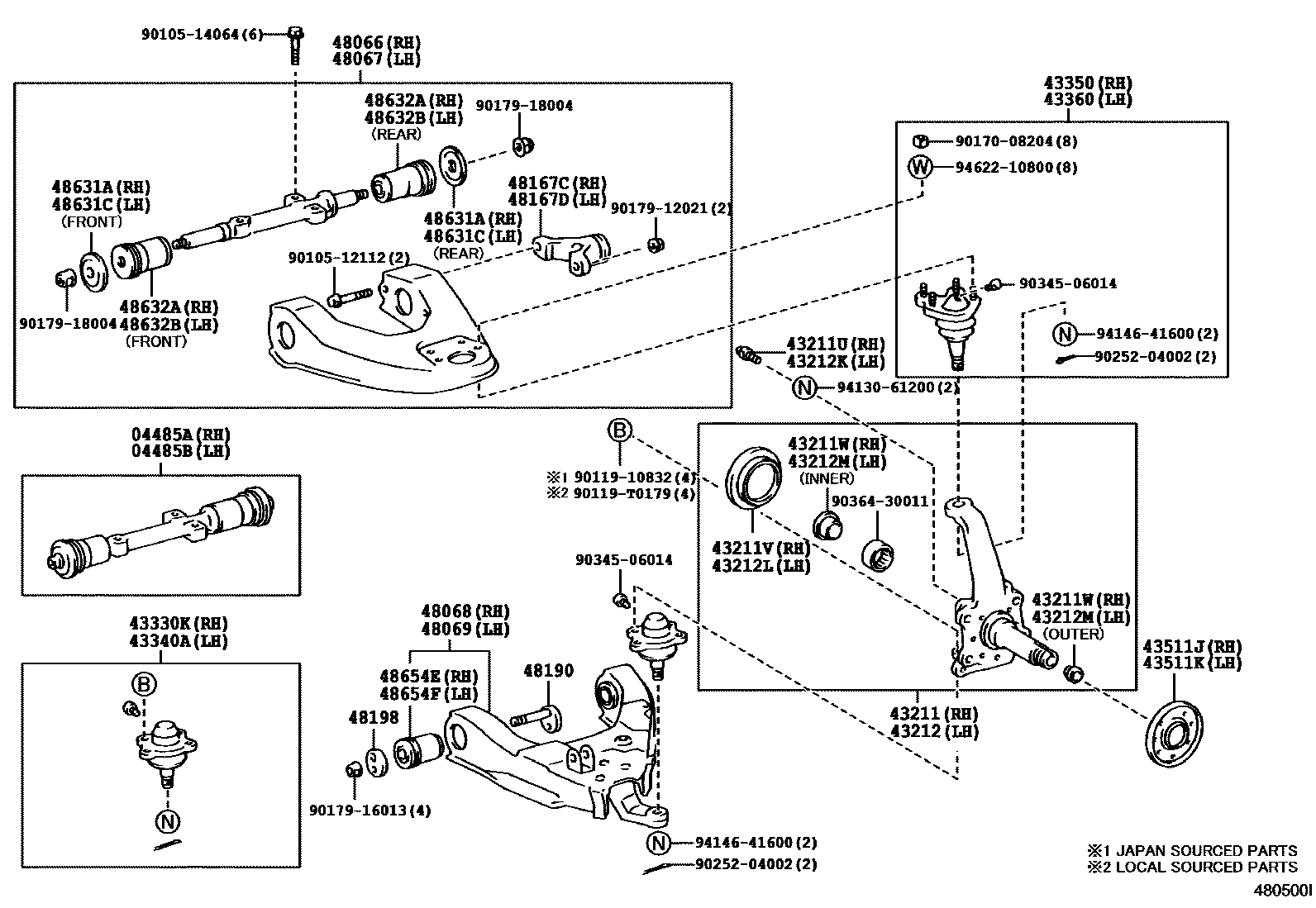

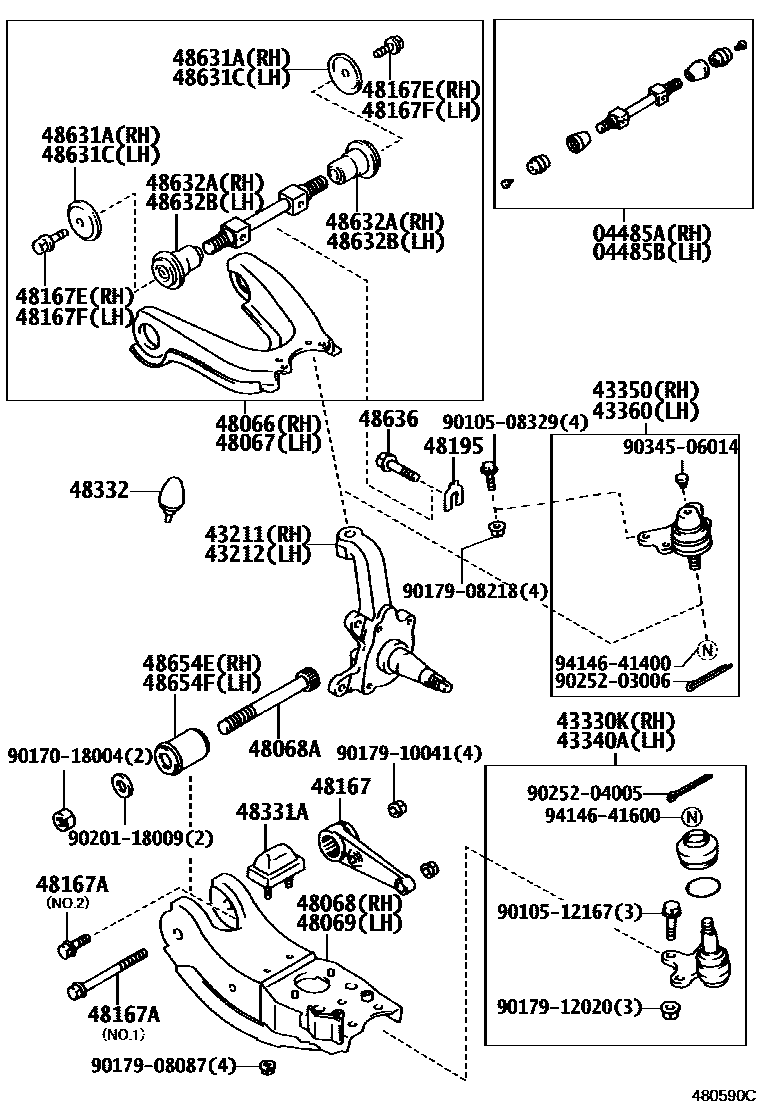

Toyota HILUX EPC diagram 4802, 前桥控制臂和转向节, with 3 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04485A | Right front suspension upper arm shaft assembly | 04485-35020 · 04485-35040 · 04485-35050 |
| 04485B | Left front suspension upper arm shaft assembly | 04485-35020 · 04485-35040 · 04485-35050 |
| 43211 | Right steering knuckle | 43201-34010 · 43201-34011 · 43201-34020 · 43201-34021 · 43201-35030 · 43201-35060 · 43211-35200 · 43211-35210 |
| 43211U | Round hexagon bolt (for right steering knuckle) | 90106-12012 |
| 43211V | Oil seal (for right steering knuckle) | 90316-60002 · 90316-60004 |
| 43211W | Bushing (for right steering knuckle) | 90381-30003 · 90381-32001 |
| 43212 | left steering knuckle | 43202-34010 · 43202-34011 · 43202-34020 · 43202-34021 · 43202-35020 · 43202-35050 · 43212-35160 · 43212-35170 |
| 43212K | Round hexagon bolt (for left steering knuckle) | 90106-12012 |
| 43212L | Oil seal (for left steering knuckle) | 90316-60002 · 90316-60004 |
| 43212M | Bushing (for left steering knuckle) | 90381-30003 · 90381-32001 |
| 43330K | Right front lower ball joint assembly | 43330-39315 · 43330-39445 |
| 43340A | Left front lower ball joint assembly | 43330-39445 · 43340-39245 |
| 43350 | Right front upper ball joint assembly | 43350-39085 · 43350-39125 |
| 43360 | Left front upper ball joint assembly | 43350-39125 · 43360-39085 |
| 43511J | Dust seal (for right front axle hub) | 90313-92001 · 90313-98001 |
| 43511K | Dust seal (for left front axle hub) | 90313-92001 · 90313-98002 |
| 48066 | Right front suspension upper arm sub-assembly | 48066-34030 · 48066-35050 · 48066-35080 · 48066-35100 · 48066-35130 |
| 48067 | Left front suspension upper arm sub-assembly | 48066-34030 · 48066-35050 · 48066-35080 · 48066-35130 · 48067-35040 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-35090 · 48605-35180 · 48605-35181 |
| 48068A | Bolt (for front suspension lower arm) | 90114-18003 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-35090 · 48606-35180 · 48606-35181 |
| 48167 | torque arm | 48167-04020 · 48167-35040 |
| 48167A | Bolt (for securing torque arm) | 90105-10087 · 91512-81025 |
| 48167C | Right front suspension torque arm | 48106-35011 |
| 48167D | Left front suspension torque arm | 48106-35011 |
| 48167E | Bolt (for right front suspension torque arm) | 90105-12017 |
| 48167F | Bolt (for left front suspension torque arm) | 90105-12017 |
| 48190 | Camber angle adjustment cam assembly | 48190-35020 |
| 48195 | Camber angle adjustment washer | 90565-12004 · 90565-12008 · 90565-12009 |
| 48198 | No. 2 camber angle adjustment cam | 48198-35010 |
| 48331A | No. 1 front spring buffer block | 48304-04050 · 48304-35160 |
| 48332 | No. 2 front spring buffer block | 48332-04040 · 48332-35020 |
| 48631A | Crash pad cover (for right front suspension upper arm) | 90948-02020 · 90948-02065 · 90948-02142 |
| 48631C | Crash pad cover (for left front suspension upper arm) | 90948-02020 · 90948-02065 · 90948-02142 |
| 48632A | Right front suspension upper arm bushing | 48632-26010 · 48632-30012 · 48632-35020 · 48635-26010 |
| 48632B | Left front suspension upper arm bushing | 48632-26010 · 48632-30012 · 48632-35020 · 48635-26010 |
| 48633A | Right front suspension upper arm pivot dust seal | 48633-35010 |
| 48633B | Left front suspension upper arm pivot dust seal | 48633-35010 |
| 48636 | Upper arm fixing bolt | 90105-12080 |
| 48654E | Right front No. 1 lower arm bushing | 48061-35011 · 48654-35100 |
| 48654F | Left front No. 1 lower arm bushing | 48061-35011 · 48654-35100 |
