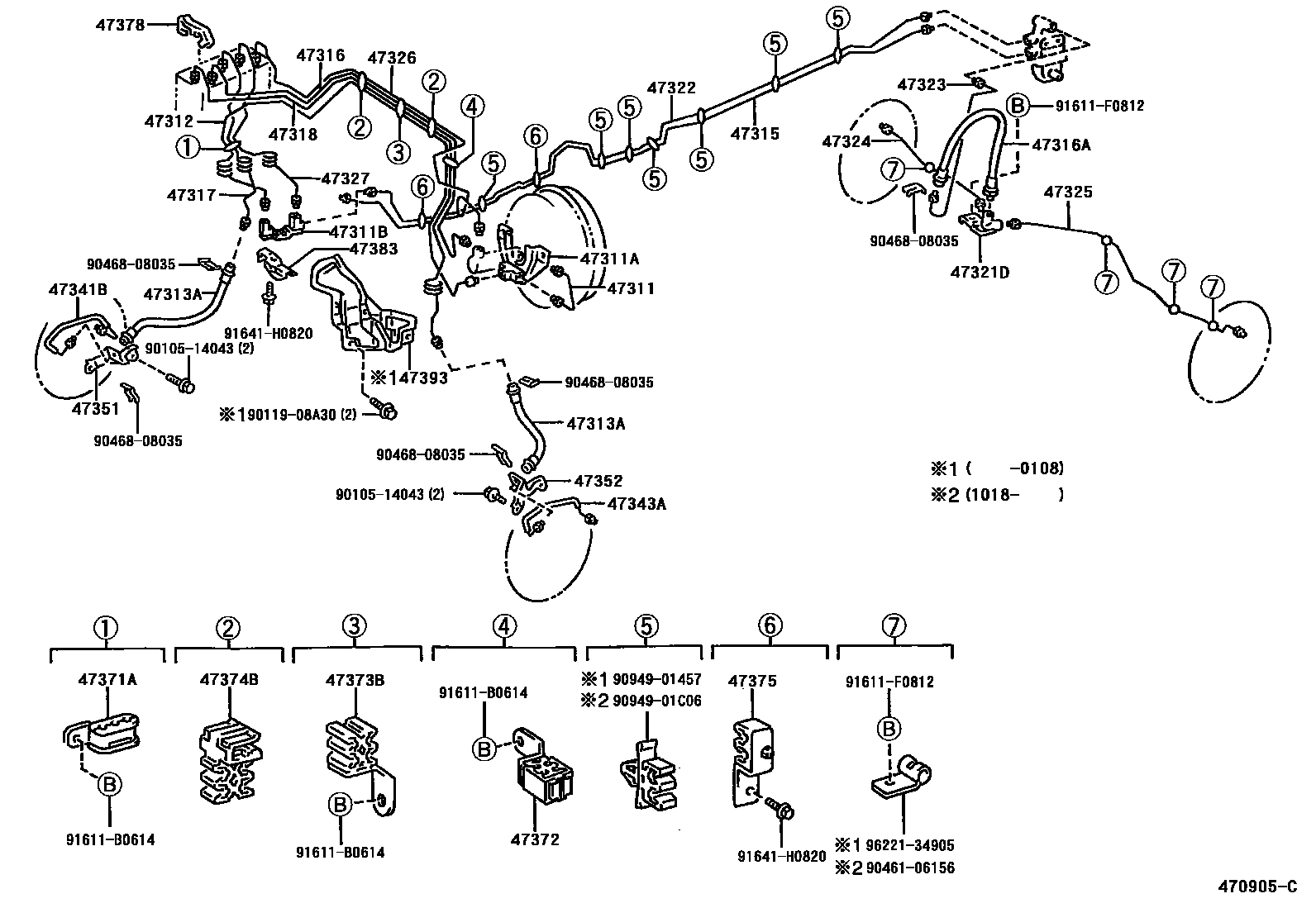

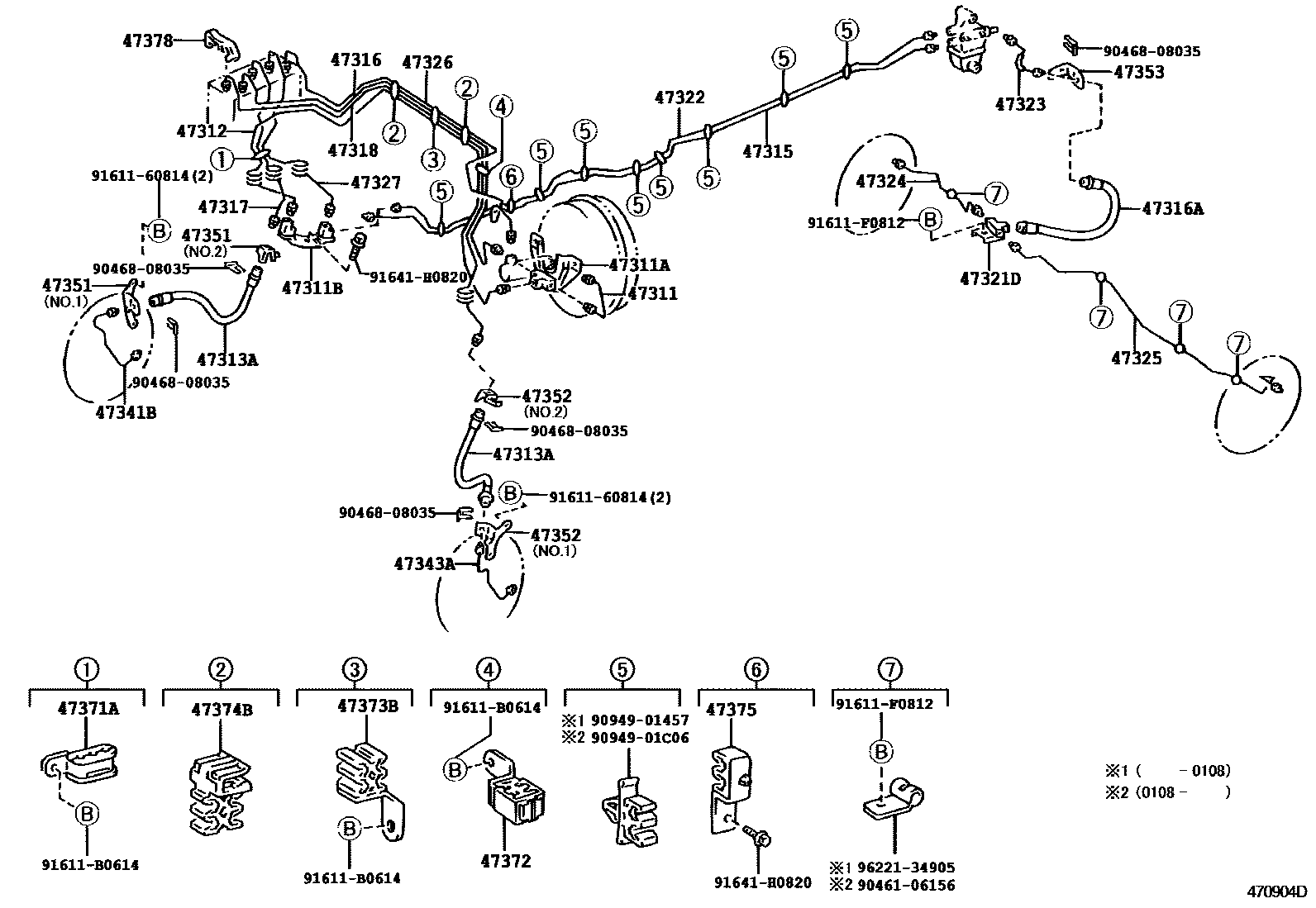

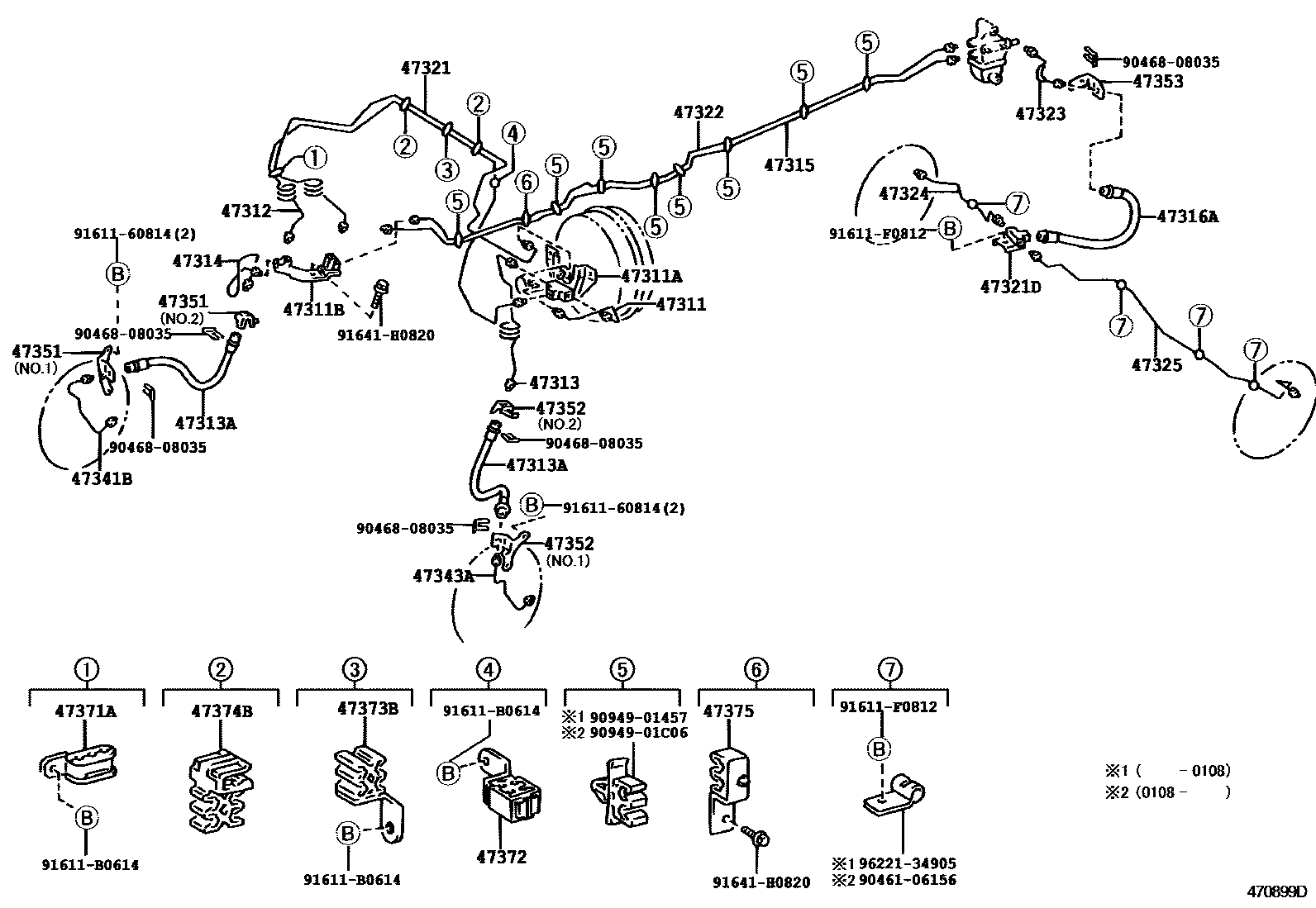

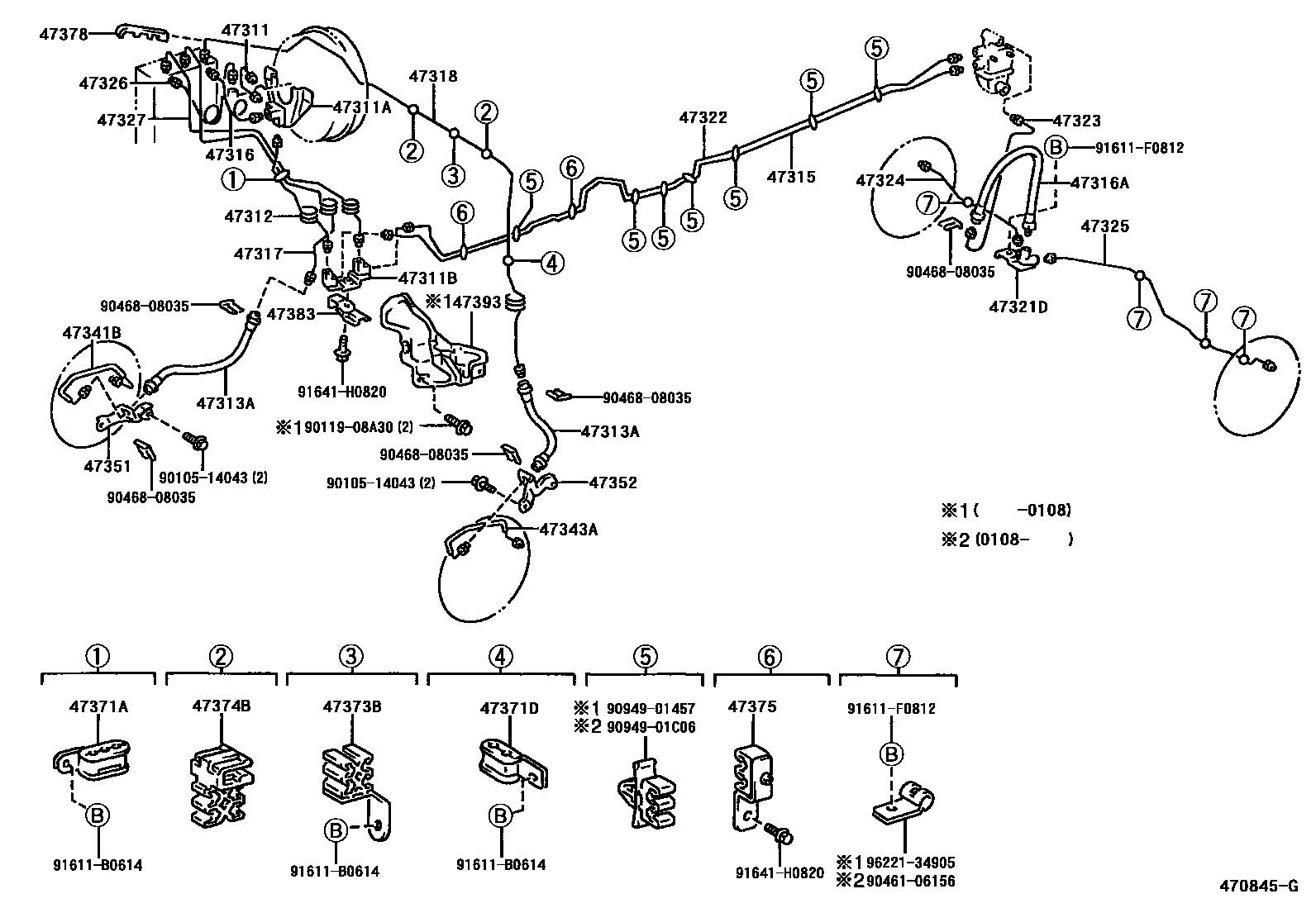

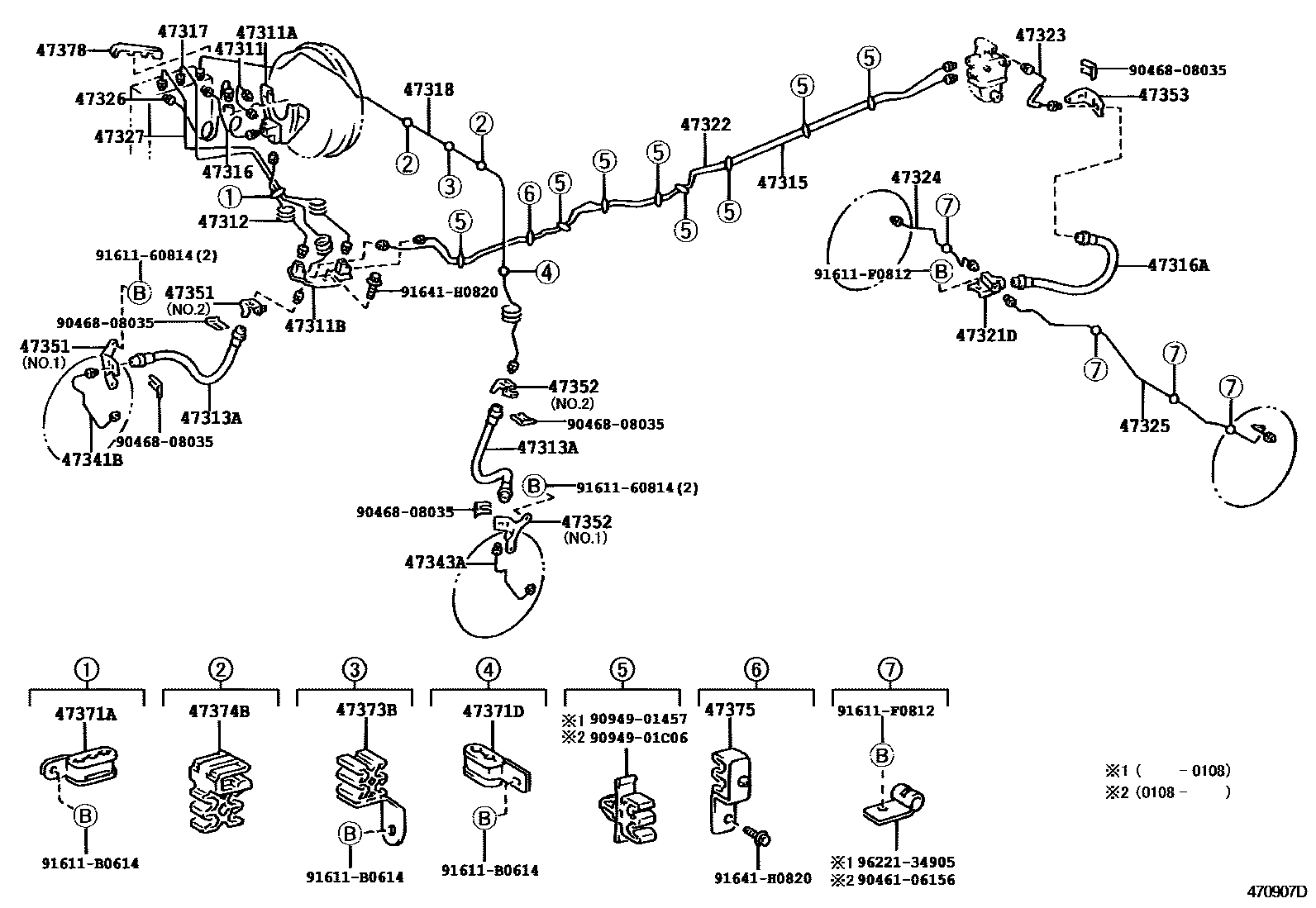

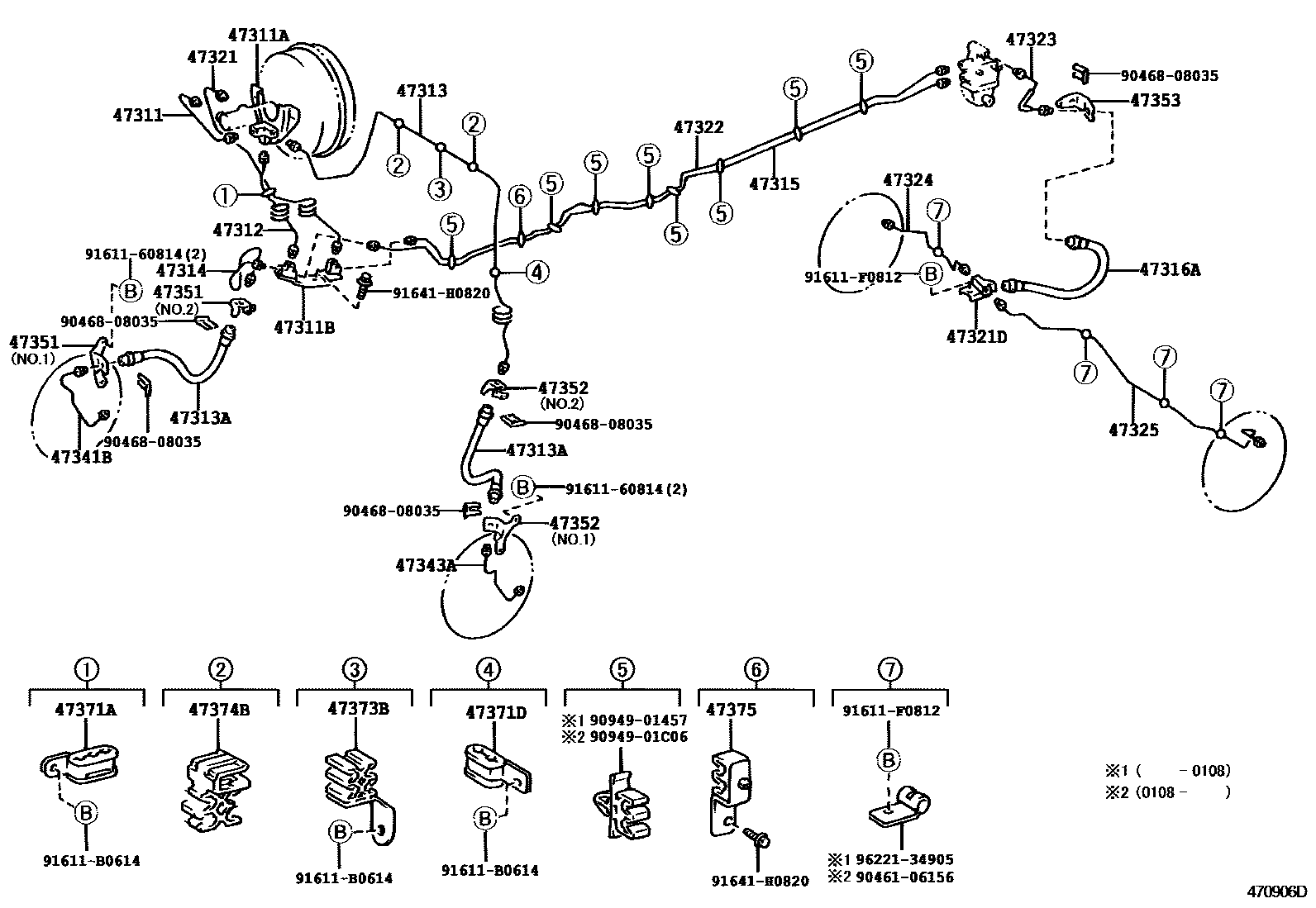

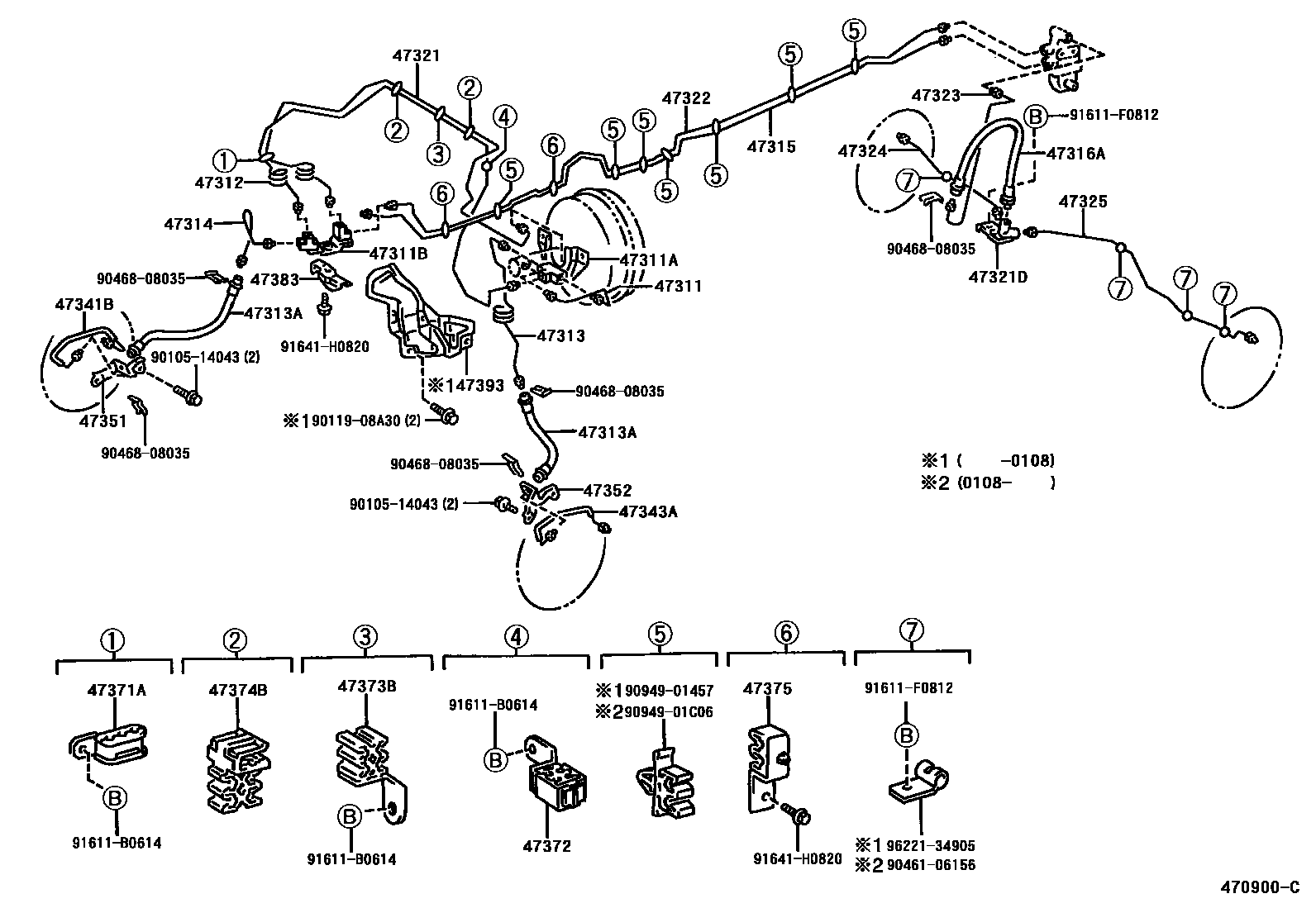

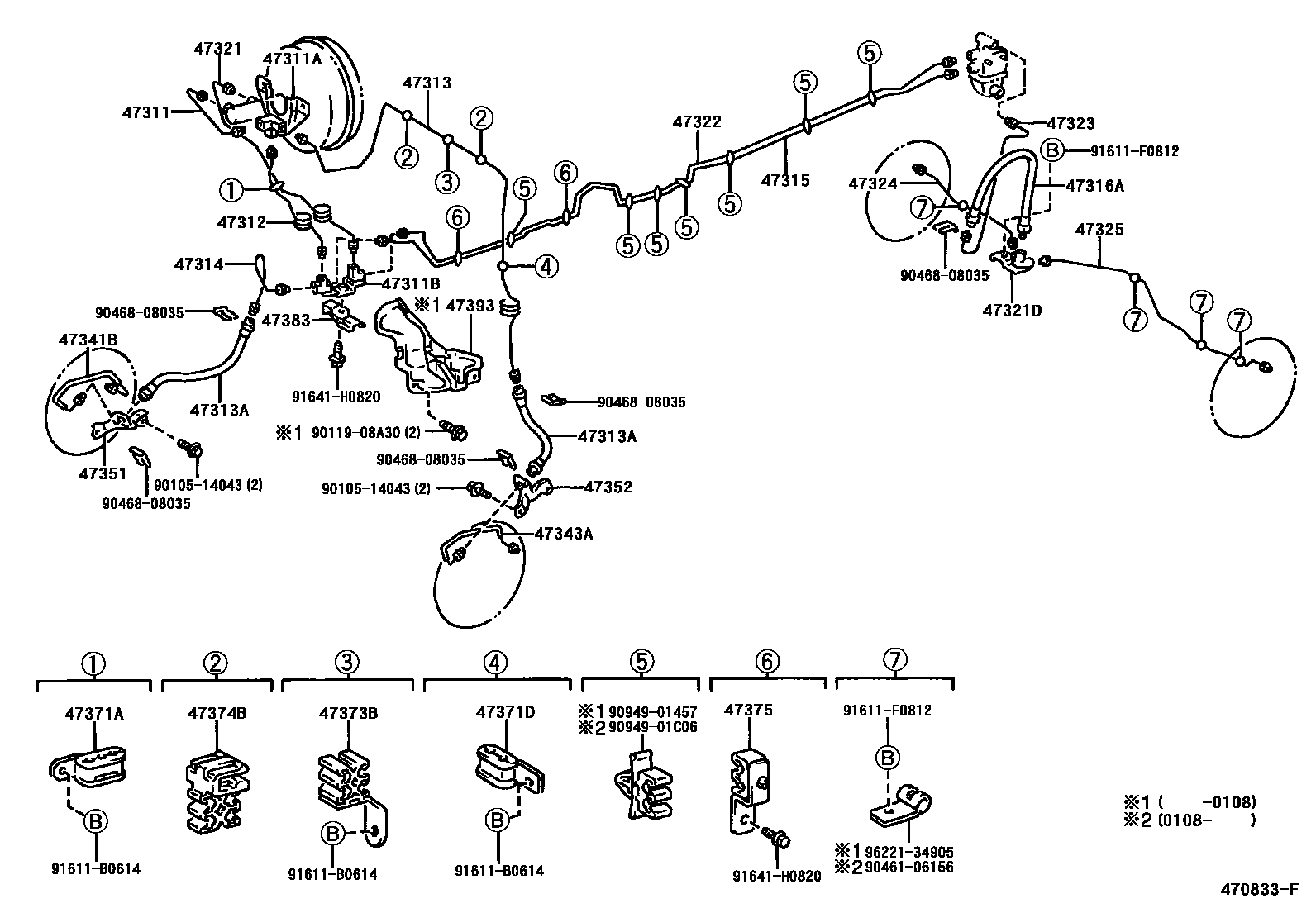

Toyota HILUX 制动配管和卡箍 — Figure 4708
Toyota HILUX EPC diagram 4708, 制动配管和卡箍, with 11 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04477 | Load sensing spring bushing and boot assembly | 04477-26010 |
| 31478D | Bleed plug cap (for LSPV) | 31478-30010 |

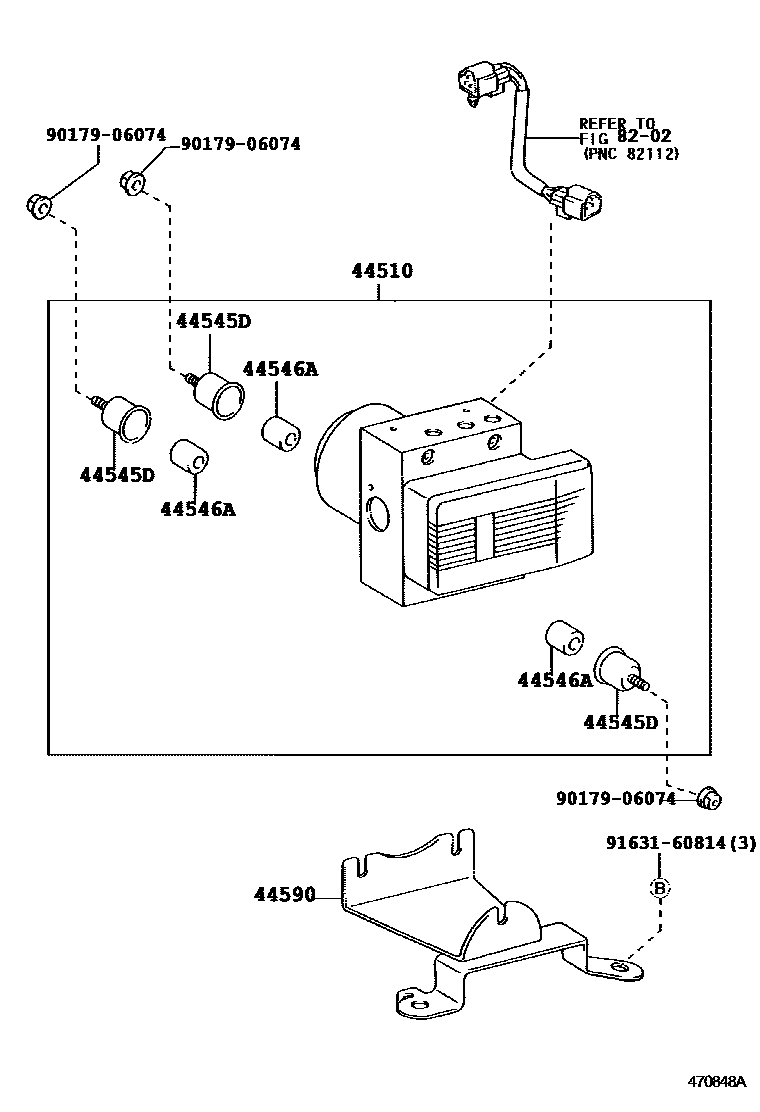

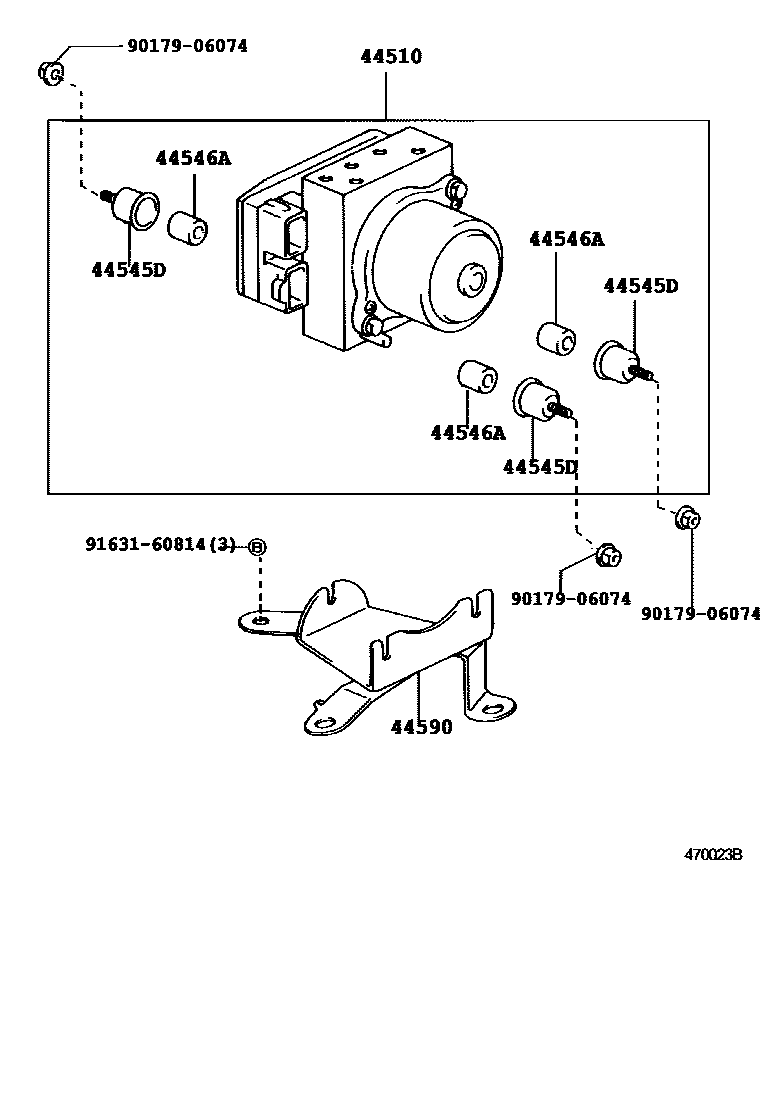

| 44510 | brake actuator assembly | 44050-35020 · 44050-35030 |
| 44545D | Brake actuator bolt mount | 44545-35080 |
| 44546A | Brake actuator bolt cushion | 44546-35090 |
| 44590 | Brake actuator bracket assembly | 44590-35030 · 44590-35040 |
| 47311 | No. 1 front brake pipe | 47311-35450 · 47311-35470 · 47311-35480 · 47311-60490 |
| 47311A | Pipe fitting (for front brake pipe) | 90904-13021 · 90904-13041 · 90904-13042 · 90904-13043 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90904-12053 · 90904-12055 · 90904-13037 · 90904-13038 |
| 47312 | No. 2 front brake pipe | 47312-3D330 · 47312-3D350 · 47312-3D380 · 47312-3D400 |
| 47313 | No. 3 front brake pipe | 47313-3D070 · 47313-3D081 · 47313-3D090 · 47313-3D100 · 47313-3D130 · 47313-3D140 |
| 47313A | No. 1 front flexible hose | 90947-02952 · 90947-02957 |
| 47314 | No. 4 front brake pipe | 47314-35280 · 47314-35300 |
| 47315 | No. 5 front brake pipe | 47315-35330 · 47315-35340 · 47315-35360 · 47315-35370 · 47315-35400 · 47315-35410 · 47315-35420 · 47315-35430 |
| 47316 | No. 6 front brake pipe | 47316-35230 · 47316-35240 · 47316-35260 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02955 · 90947-02958 |
| 47317 | No. 7 front brake pipe | 47317-35050 · 47317-35060 · 47317-35070 · 47317-35080 |
| 47318 | No. 8 front brake pipe | 47318-35100 · 47318-35110 · 47318-35120 · 47318-35130 · 47318-35150 · 47318-35160 |
| 47321 | No. 1 rear brake pipe | 47321-35780 · 47321-35790 · 47321-35800 · 47321-35810 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90413-10198 · 90904-13036 · 90904-13516 |
| 47322 | No. 2 rear brake pipe | 47322-35750 · 47322-35770 · 47322-35820 · 47322-35840 · 47322-35880 · 47322-3D010 · 47322-3D030 · 47322-3D050 |
| 47323 | No. 3 rear brake pipe | 47323-35190 · 47323-35210 · 47323-35240 |
| 47324 | No. 4 rear brake pipe | 47324-35250 · 47324-35260 · 47324-35270 · 47324-35290 · 47324-35300 |
| 47325 | No. 5 rear brake pipe | 47325-35290 · 47325-35300 · 47325-35320 · 47325-35360 · 47325-35380 |
| 47326 | No. 6 rear brake pipe | 47326-35070 · 47326-35080 |
| 47327 | No. 7 rear brake pipe | 47327-35040 · 47327-35050 · 47327-35060 · 47327-35070 |
| 47341B | No. 1 right front wheel cylinder brake pipe | 47341-35150 · 47341-35170 |
| 47343A | No. 1 left front wheel cylinder brake pipe | 47343-35150 · 47343-35170 |
| 47351 | Right front flex hose bracket | 47351-35280 · 47351-35290 · 47351-35300 · 47351-35310 |
| 47352 | Left front flex hose bracket | 47352-35320 · 47352-35350 · 47352-35360 · 47352-35380 |
| 47353 | Rear flex hose bracket | 47352-35340 |
| 47371A | No. 1 brake pipe clamp | 47371-35230 |
| 47371D | No. 8 brake pipe clamp | 47372-35080 |
| 47372 | No. 2 brake pipe clamp | 47371-35280 |
| 47373B | No. 3 brake pipe clamp | 47373-35060 |
| 47374B | No. 4 brake pipe clamp | 47372-35150 |
| 47375 | No. 5 brake pipe clamp | 47372-35030 · 47372-35180 |
| 47378 | Brake pipe guard | 47378-35020 · 47378-35030 |
| 47383 | Connector bracket | 47383-35020 |
| 47393 | brake pipe heat shield | 47393-35160 |

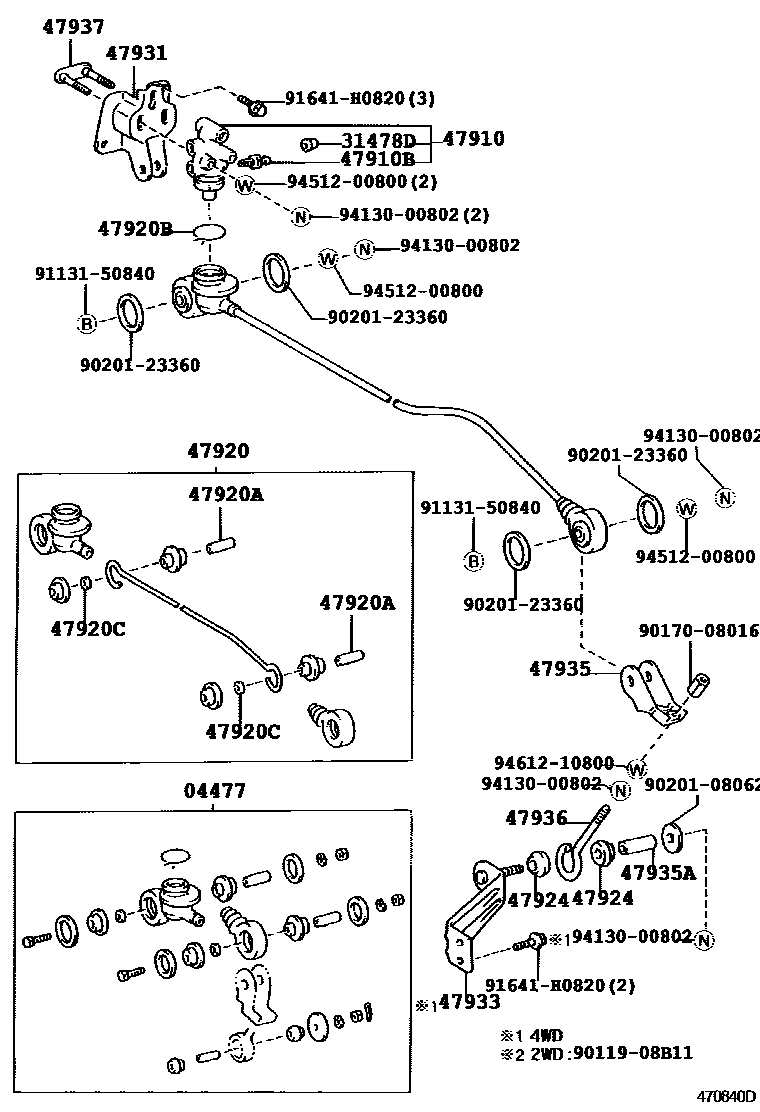

| 47910 | Load sensing proportional valve assembly | 47910-35420 · 47910-35440 |
| 47910B | Bleed plug | 47547-27020 · 47547-27030 |
| 47920 | Load sensing spring assembly | 47920-35080 · 47920-35140 |
| 47920A | Collar (for load sensing spring) | 90387-08099 |
| 47920B | Clamp (for load sensing valve dust cover) | 90467-31110 |
| 47920C | Washer (for load sensing spring) | 90202-10103 |
| 47924 | Load sensing valve bushing | 47924-35010 |
| 47931 | Load sensing valve bracket | 47931-35110 |
| 47933 | No. 1 load-sensing spring lifting eye bracket | 47933-35070 · 47933-35071 |
| 47935 | No. 1 load-sensing spring lifting ear | 47935-35030 |
| 47935A | Shaft collar (for load sensing spring lifting lugs) | 90387-08099 |
| 47936 | No. 2 load-sensing spring lifting lugs | 47936-35050 |
| 47937 | Load sensing valve fixing plate | 47937-35030 · 47937-60010 |
