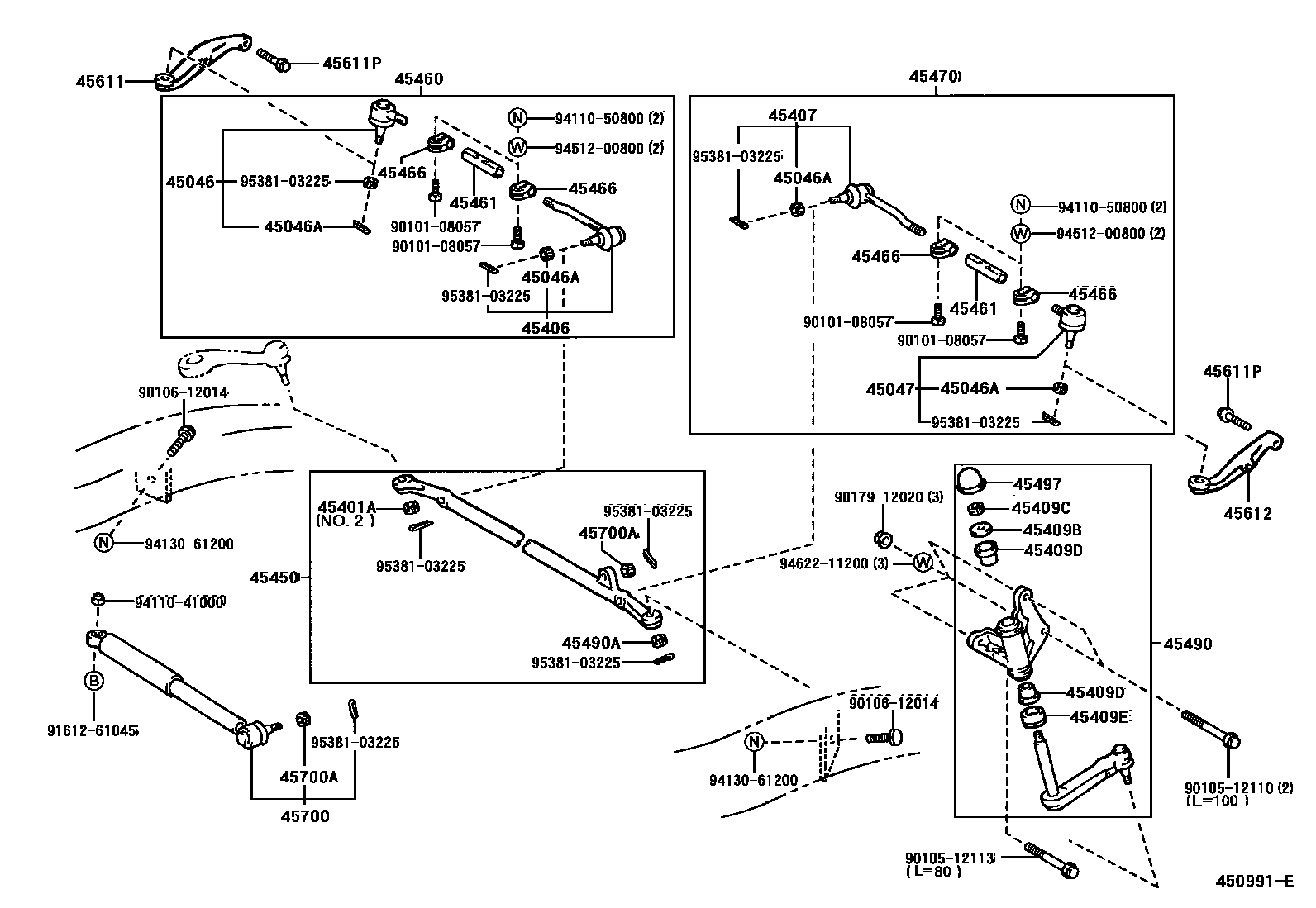

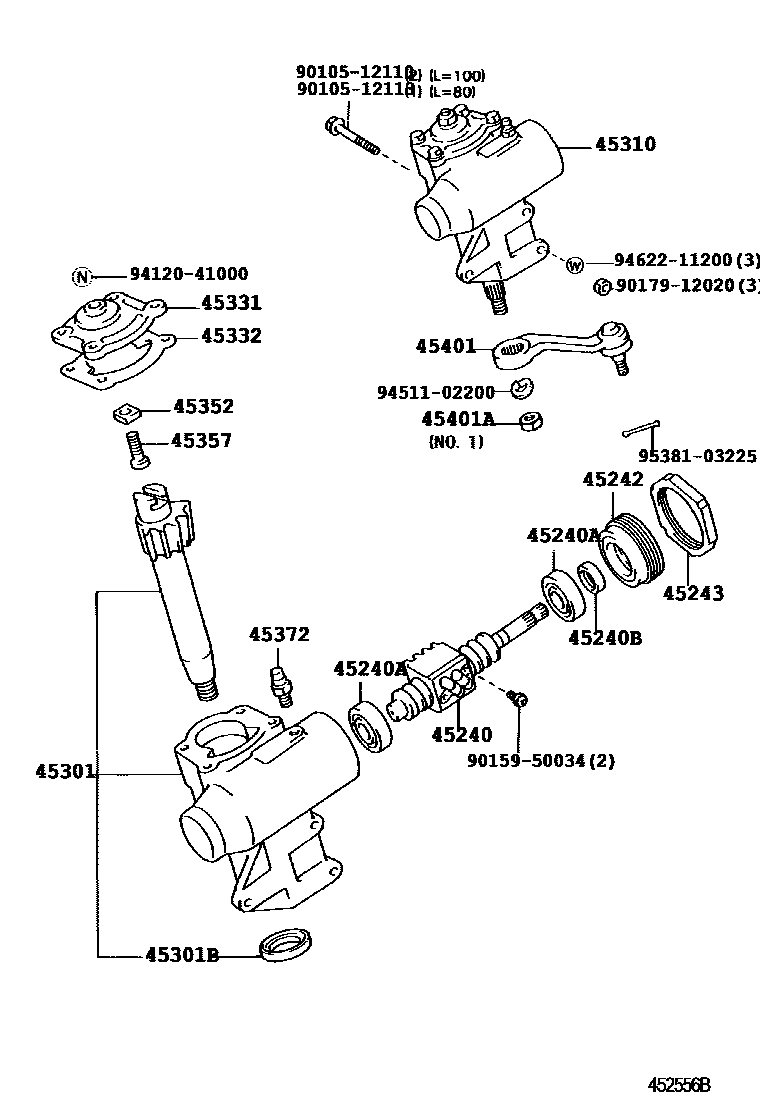

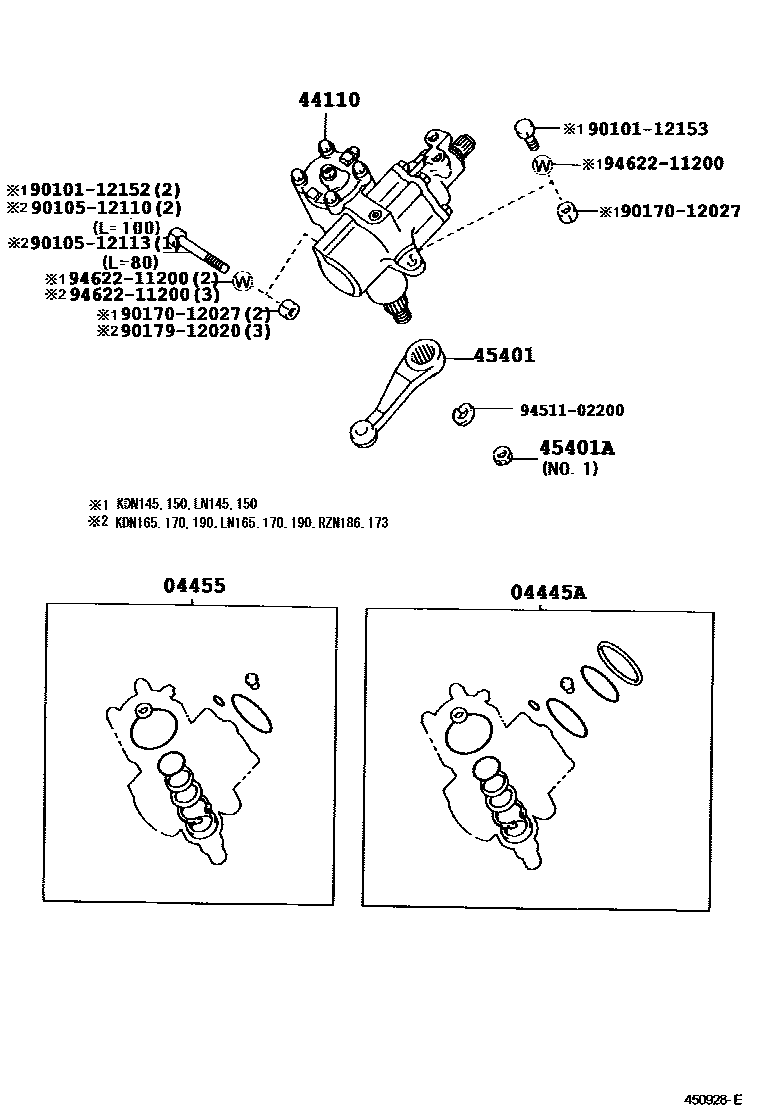

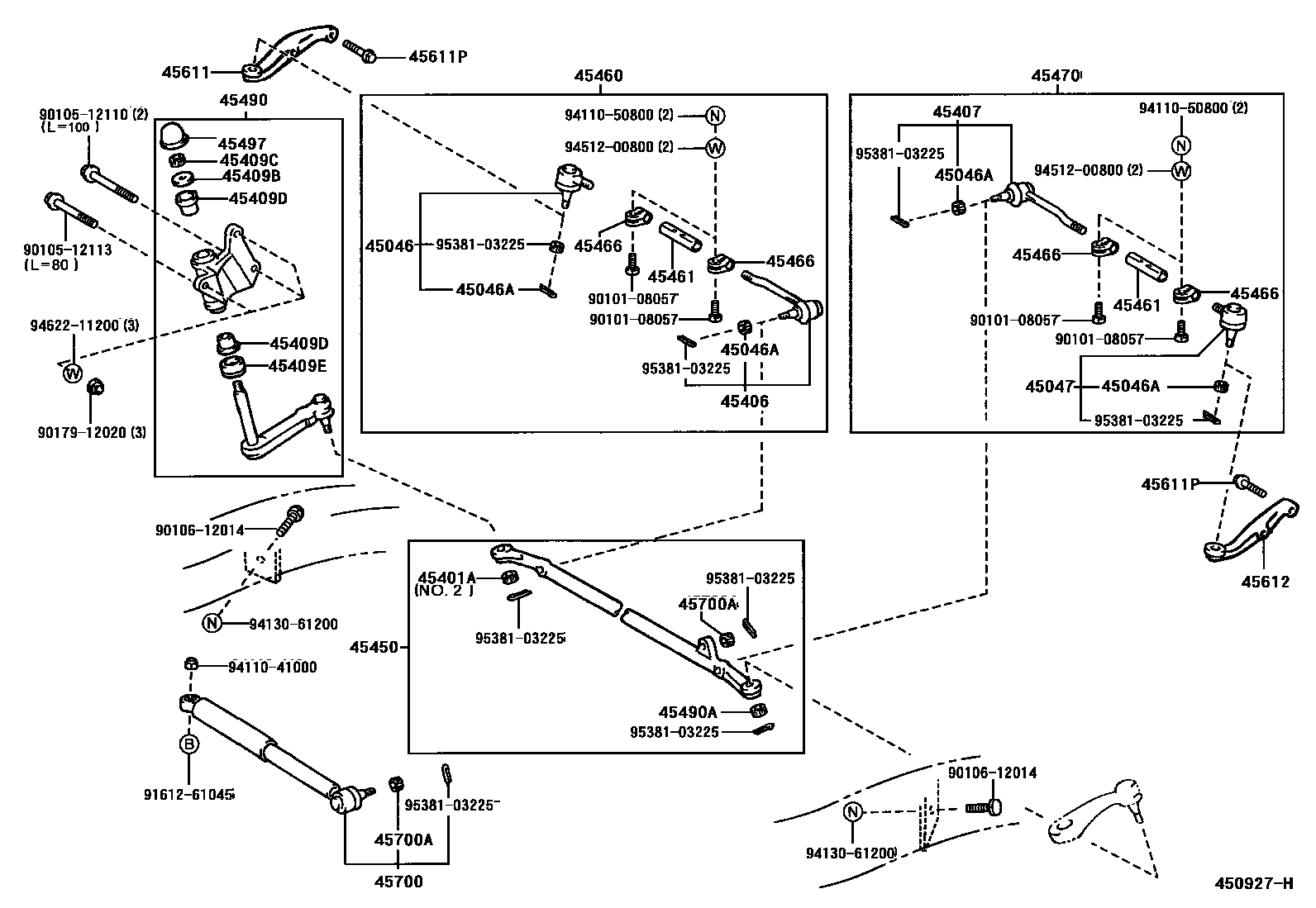

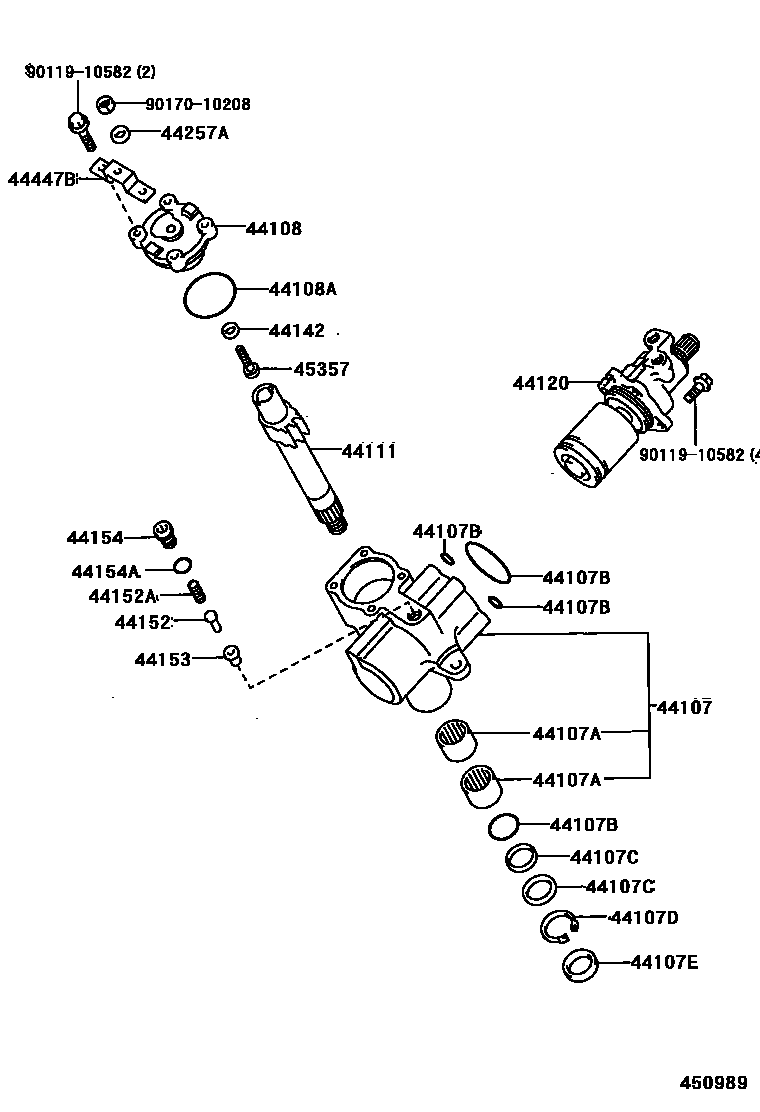

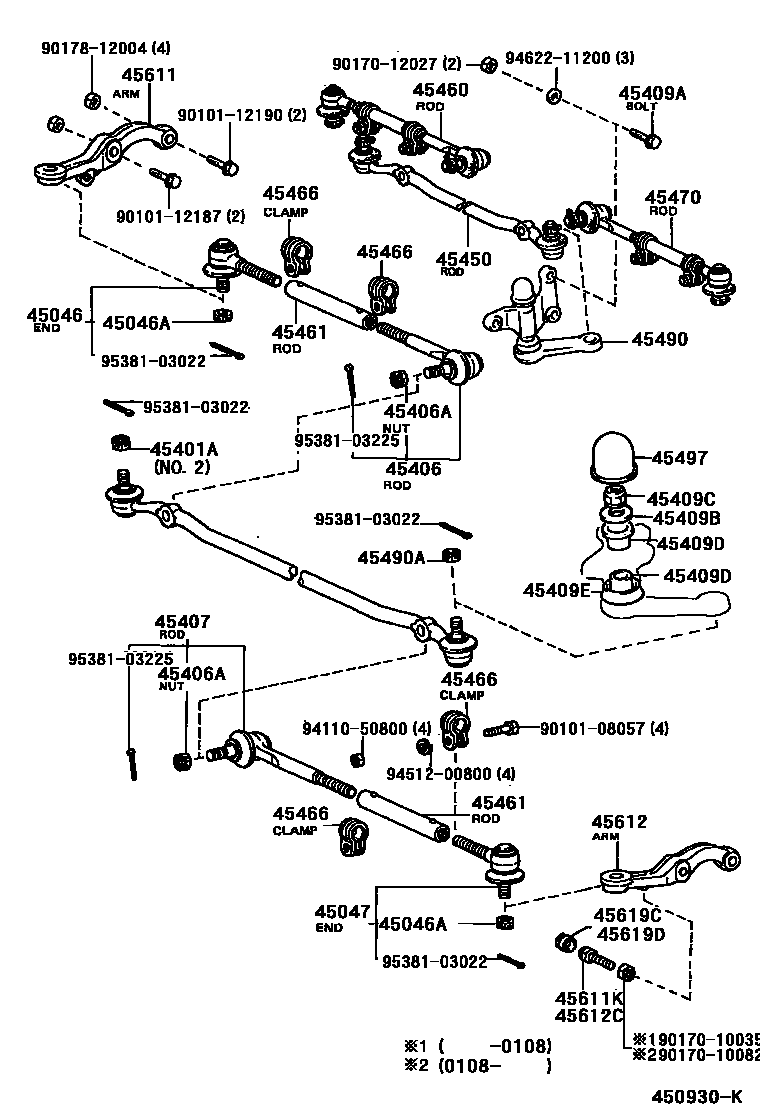

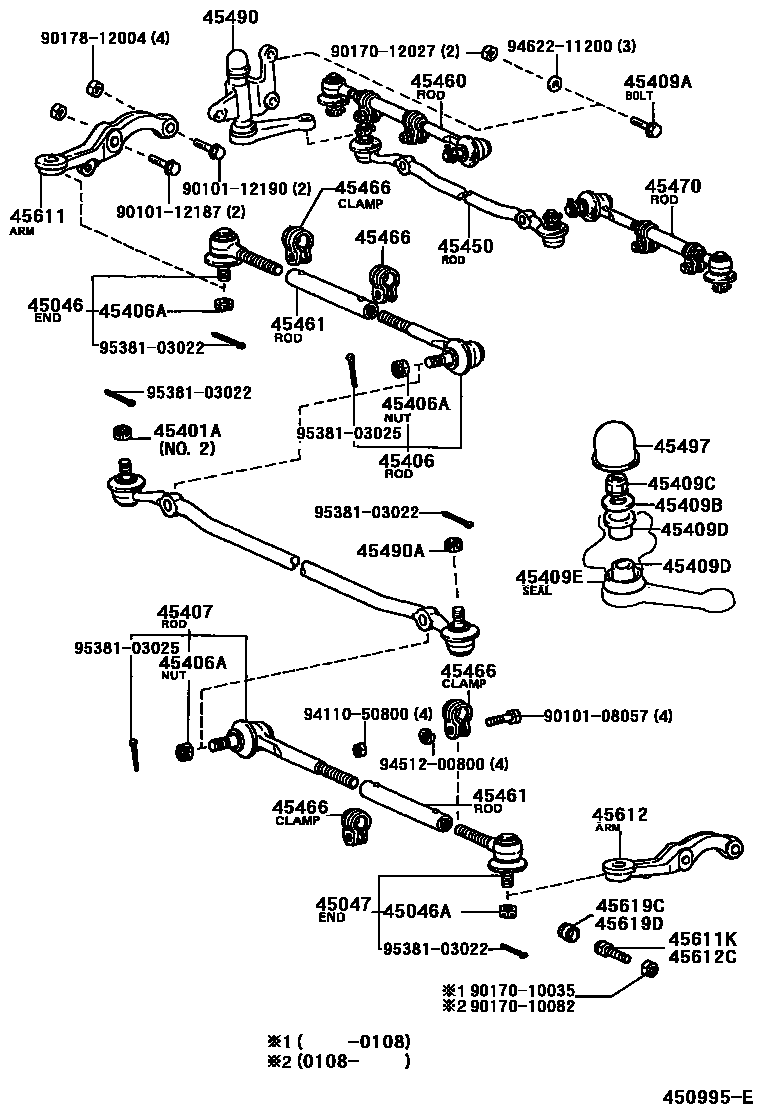

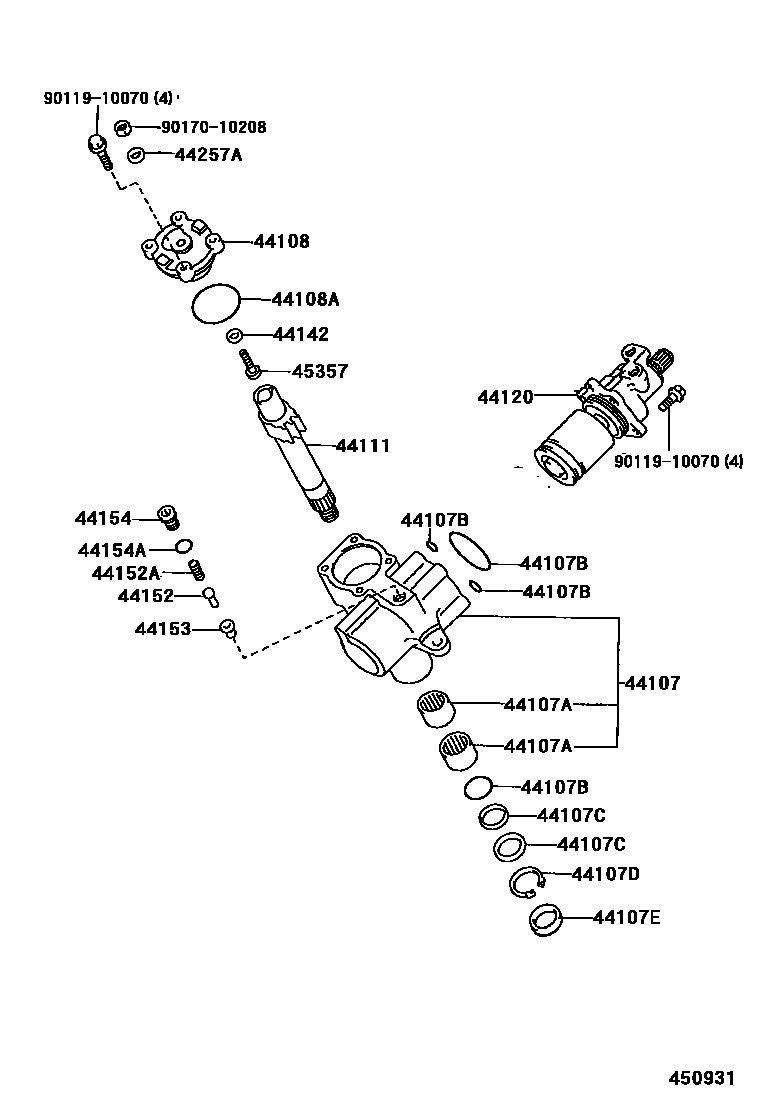

Toyota HILUX 前转向齿轮和连杆 — Figure 4505
Toyota HILUX EPC diagram 4505, 前转向齿轮和连杆, with 8 images and 64 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445A | Power steering gear gasket assembly (for rack and pinion) | 04445-35120 · 04445-35180 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-35040 · 04455-35090 · 04455-35100 |
| 44107 | Power steering housing sub-assembly | 44107-35160 · 44107-35170 · 44107-35180 · 44107-35190 |
| 44107A | Needle roller bearings (for power steering housing) | 90364-32003 · 90364-36006 |
| 44107B | O-ring (for power steering housing) | 90301-33002 · 90301-37006 · 90301-65145 · 90301-69002 · 96711-19010 |
| 44107C | Ring (for power steering housing) | 90562-31002 · 90562-32002 · 90562-35001 · 90562-36002 |
| 44107D | Hole snap ring (for power steering housing) | 90521-44002 · 90521-48002 |
| 44107E | Oil seal (for power steering housing) | 90311-32016 · 90311-36005 |
| 44108 | Side cover sub-assembly | 44108-35060 · 44108-35070 · 44108-60020 · 44108-60030 |
| 44108A | O-ring (for side cover) | 90301-64002 |
| 44110 | Power steering gear assembly | 44110-35320 · 44110-35330 · 44110-35340 · 44110-35350 |
| 44111 | horizontal axis | 44111-35030 · 44111-60030 |
| 44120 | Valve assembly with ball nut | 44120-35310 · 44120-35320 · 44120-35330 · 44120-35340 |
| 44142 | lock nut | 44142-60020 |
| 44152 | power piston plunger | 44152-30020 |
| 44152A | Compression spring (for power piston plunger) | 90501-20095 |
| 44153 | Power piston plunger guide | 44153-30020 |
| 44154 | Power piston plunger guide nut | 44154-30020 |
| 44154A | O-ring (for power piston plunger guide nut) | 96711-19014 |
| 44257A | Seal washer (for cross-axis adjustment screw) | 90210-10001 |
| 44447B | Hose Bracket No. 1 | 44447-35020 · 44447-35030 |
| 45046 | Right tie rod end sub-assembly | 45046-39375 · 45046-39385 |
| 45046A | Castle nuts (for tie rod ends) | 90171-14042 |
| 45047 | Left tie rod end sub-assembly | 45046-39375 · 45046-39385 |
| 45240 | Steering worm assembly | 45240-35110 |
| 45240A | Bearings (for steering worm) | 90369-19006 |
| 45240B | Oil seal (for steering worm) | 90311-19001 |
| 45242 | Worm bearing adjustment screw | 45242-35060 |
| 45243 | Worm bearing adjustment screw lock nut | 45243-35020 |
| 45301 | Steering housing sub-assembly | 45301-35290 |
| 45301B | Oil seal (for sector gear shaft) | 90311-32014 |
| 45310 | Steering housing assembly | 45310-35330 |
| 45331 | Sector gear shaft end cover | 45304-35080 |
| 45332 | Sector gear shaft end cover gasket | 45332-35040 |
| 45352 | Sector gear shaft thrust washer | 45352-20010 · 45353-20010 · 45354-20010 · 45355-20010 · 45356-20010 |
| 45357 | Sector gear shaft adjustment screw | 45357-60030 |
| 45372 | Steering case oil plug | 90930-03027 |
| 45401 | Steering rocker arm sub-assembly | 45401-35260 · 45401-35270 · 45411-35320 · 45411-35330 · 45411-35350 · 45411-35450 · 45411-35460 · 45411-35470 |
| 45401A | Castle nut (for steering rocker arm) | 90170-22058 · 90171-14042 |
| 45406 | Right tie rod sub-assembly | 45406-39115 · 45406-39185 |
| 45406A | Castle nuts (for tie rods) | 90171-14042 |
| 45407 | Left tie rod sub-assembly | 45406-39115 · 45406-39185 |
| 45409A | Hexagonal bolts (used to secure the follower arm bracket) | 90101-12152 · 90101-12153 |
| 45409B | Flat Washer (for follower arm rubber bushing) | 90201-14010 |
| 45409C | Nut (for follower arm bracket) | 94184-61400 · 94184-61401 |
| 45409D | Bushing (for follower arm) | 90386-18002 · 90389-21004 |
| 45409E | Dust seal (for follower arm bracket) | 90304-31012 |
| 45450 | Steering intermediate tie rod assembly | 45450-39245 · 45450-39255 · 45450-39295 · 45450-39305 · 45451-39175 · 45451-39185 · 45451-39205 · 45451-39405 · 45451-39505 · 45451-39605 |
| 45460 | Right tie rod assembly | 45460-39485 · 45460-39505 |
| 45461 | steering tie rod | 45465-35040 · 45465-35060 |
| 45466 | Tie rod end clamp | 45466-30020 |
| 45470 | Left tie rod assembly | 45460-39485 · 45460-39505 |
| 45490 | Steering follower arm assembly | 45490-39305 · 45490-39315 · 45490-39445 · 45490-39446 · 45490-39455 · 45490-39456 · 45490-39465 · 45490-39466 · 45490-39475 · 45490-39476 |
| 45490A | Castle nut (for follower arm) | 90171-12028 |
| 45497 | Follower arm bracket cover | 45497-28010 |
| 45611 | Right steering knuckle arm | 45611-35130 · 45611-35230 |
| 45611K | Bolt (for right steering knuckle block) | 90106-10003 · 90106-10032 |
| 45611P | Bolt (for steering knuckle) | 90105-14043 |
| 45612 | Left steering knuckle arm | 45612-35150 · 45612-35250 |
| 45612C | Bolt (for left steering knuckle block) | 90106-10003 · 90106-10032 |
| 45619C | Right steering knuckle stop cover | 45619-35030 |
| 45619D | Left steering knuckle stop cover | 45619-35030 |
| 45700 | Steering damper assembly | 45700-39046 |
| 45700A | Nut (for steering damper) | 90171-12028 |
