Toyota HILUX 动力转向配管 — Figure 4503

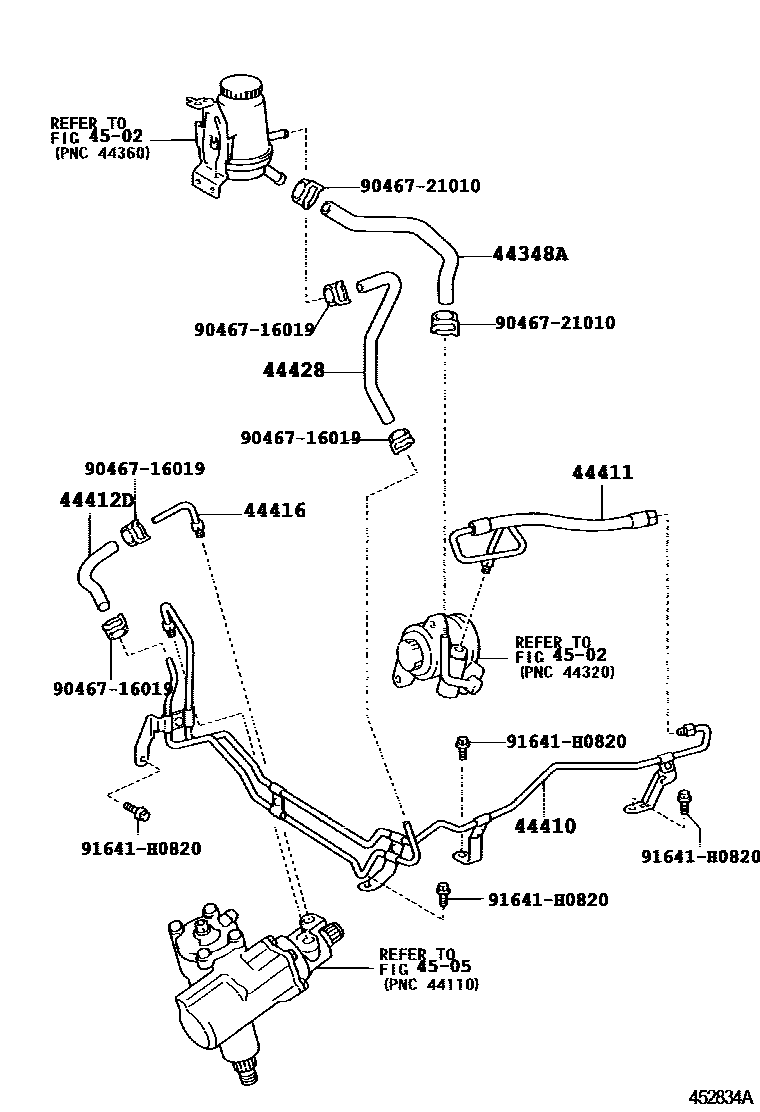

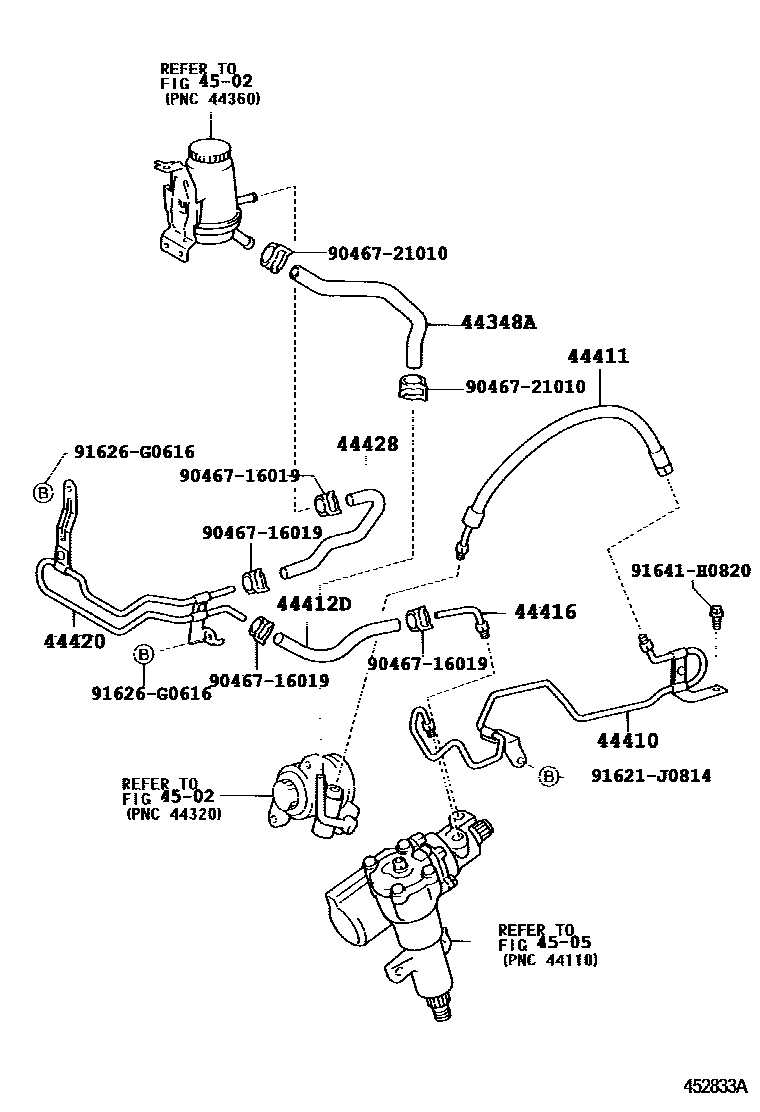

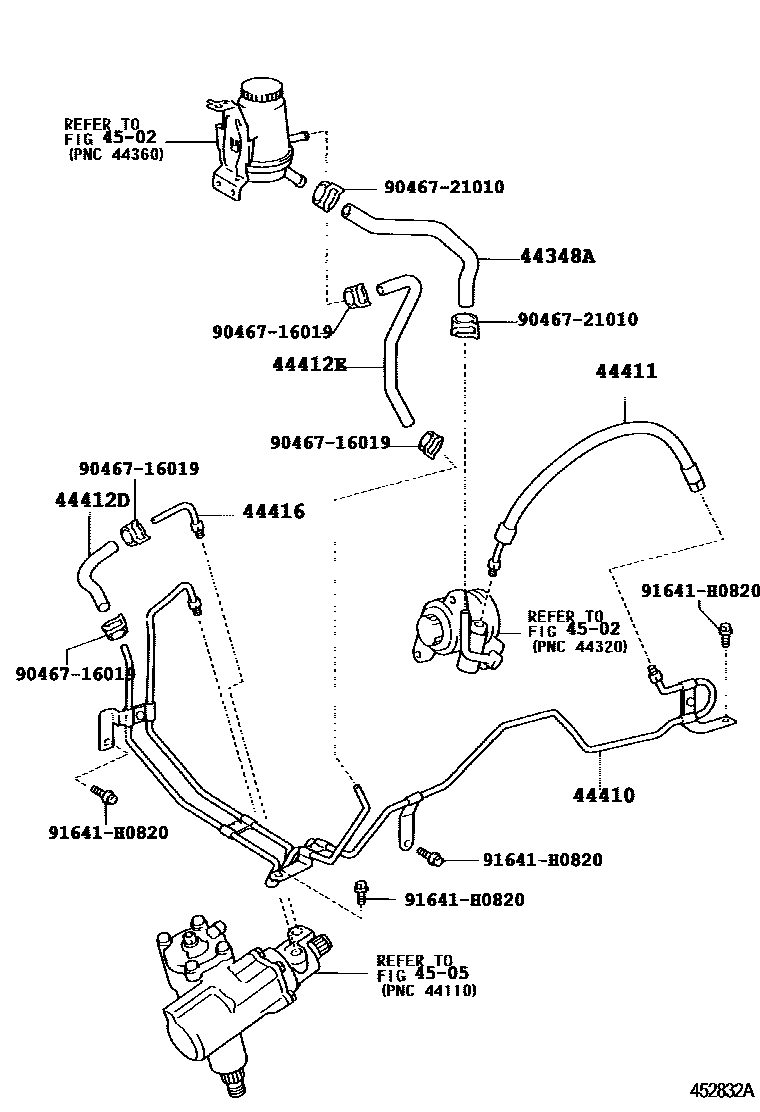

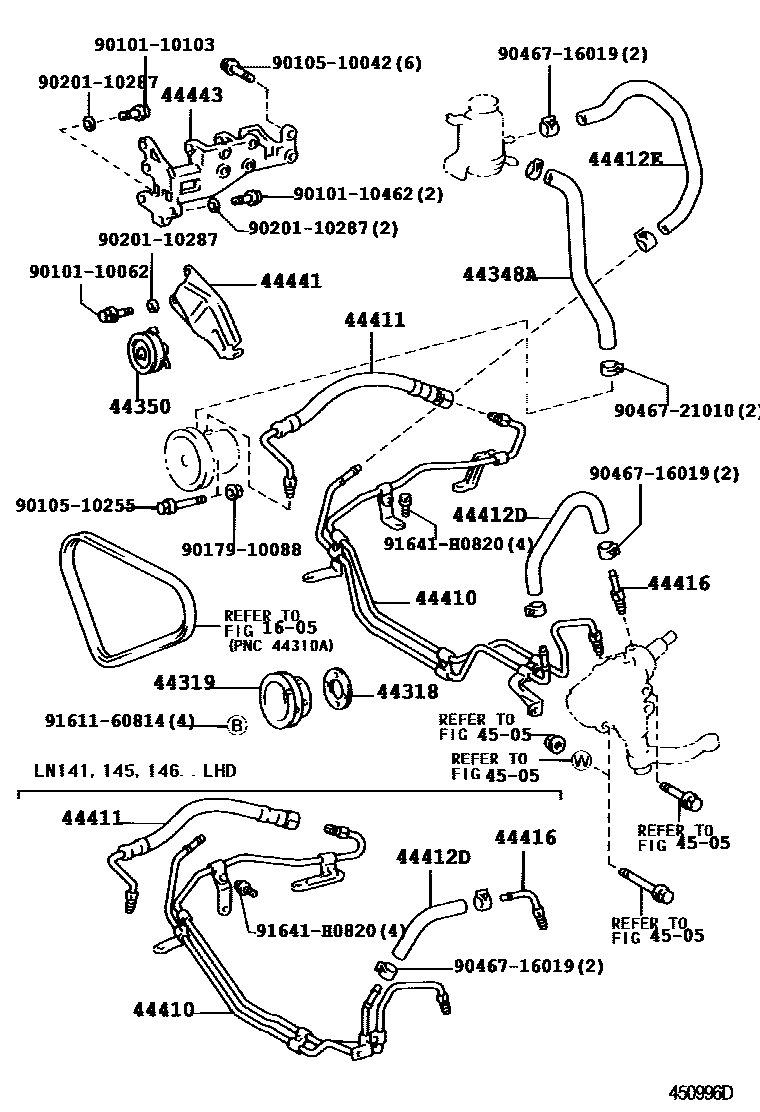

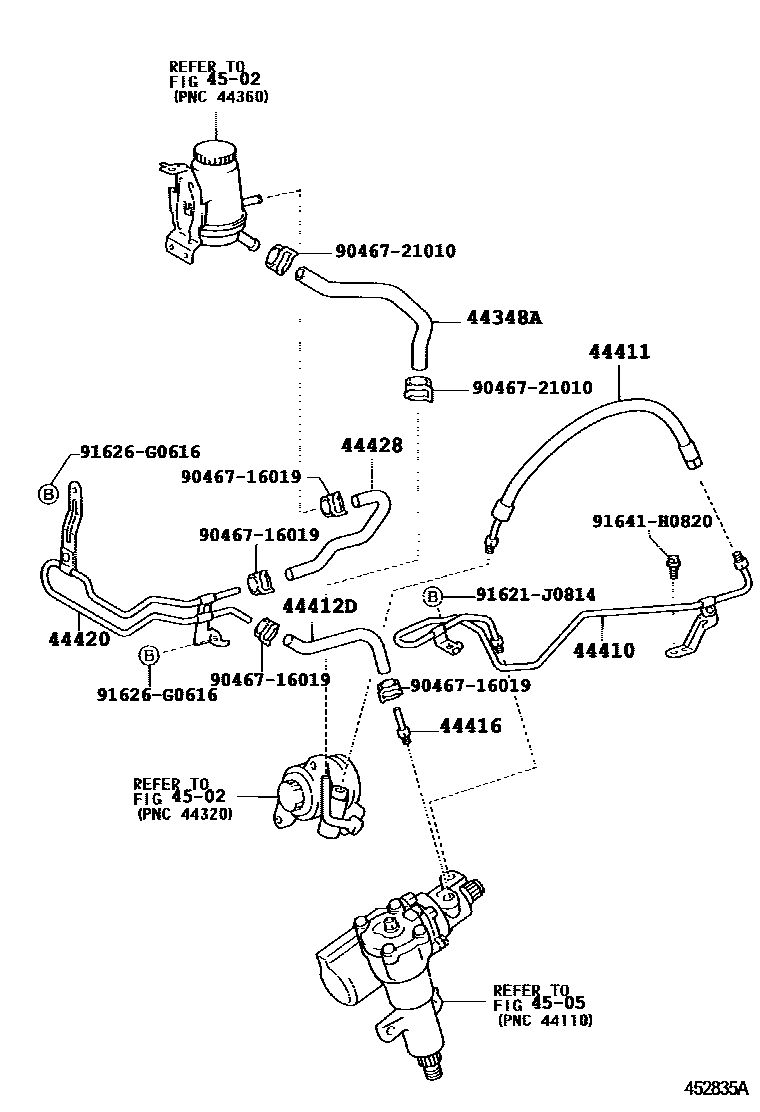

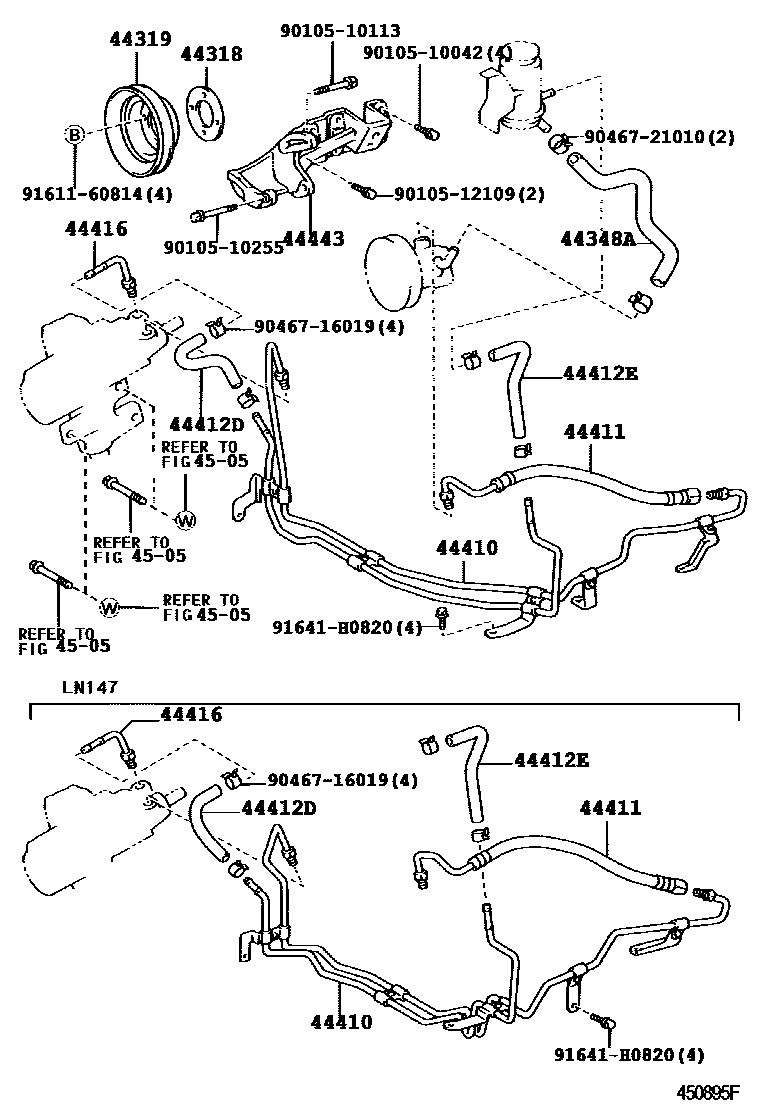

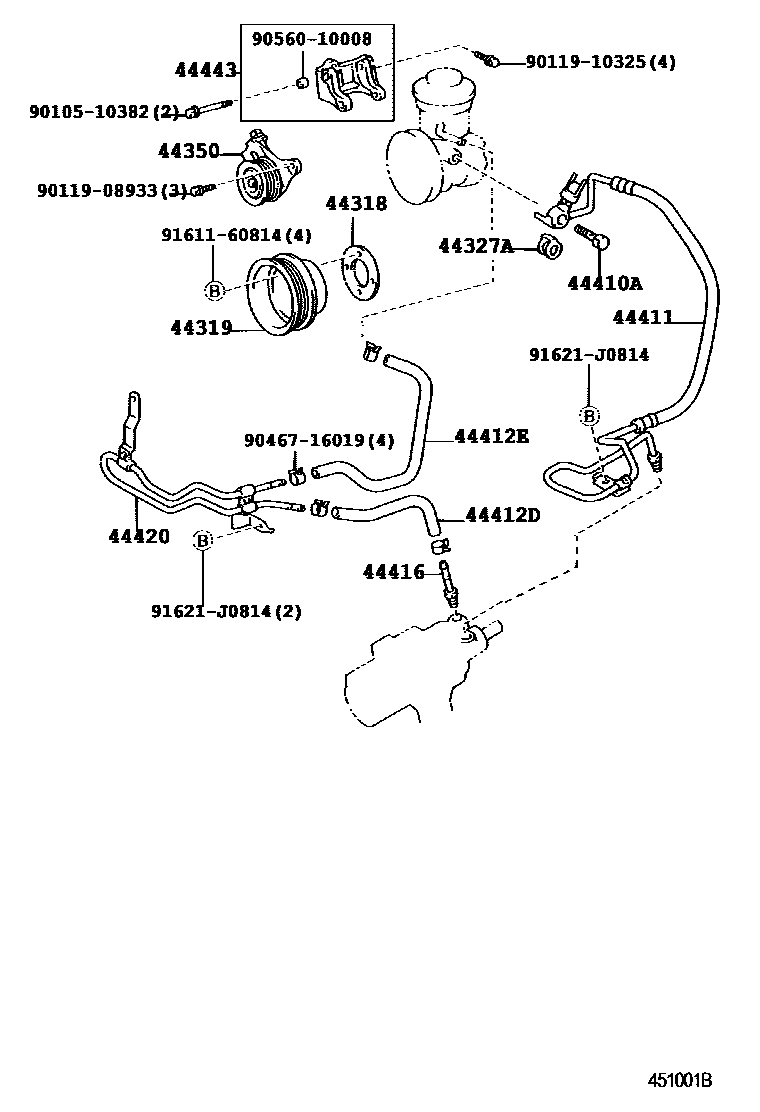

Toyota HILUX EPC diagram 4503, 动力转向配管, with 7 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44318 | Vane pump drive pulley spacer | 44318-26010 · 44318-26020 · 44318-35010 |
| 44319 | Vane pump drive pulley | 44319-22010 · 44319-34010 · 44319-35030 |
| 44327A | No. 1 pressure hole gasket | 44327-26020 |
| 44348A | No. 1 hose (tank to pump) | 44348-35200 · 44348-35210 · 44348-35211 · 44348-35260 |
| 44350 | Power steering idler assembly | 44350-34010 · 44350-60020 |
| 44410 | Pressure supply pipe assembly | 44410-35450 · 44410-35460 · 44410-35500 · 44410-35510 · 44410-35511 · 44410-35610 · 44410-35620 · 44410-35640 · 44410-35650 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16034 |
| 44411 | pressure supply hose | 44411-35480 · 44411-35481 · 44411-35490 · 44411-35520 · 44411-35521 · 44411-35530 · 44411-35540 · 44411-35541 · 44411-35630 · 44411-35650 |
| 44412D | No. 1 oil return hose | 44412-35100 · 44412-35110 · 44412-35300 · 90445-18147 · 90445-18156 |
| 44412E | No. 2 oil return hose | 44412-35180 · 44412-35190 · 44412-35200 · 44412-35350 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-35020 · 44416-35070 · 44416-35100 · 44416-35150 · 44416-35160 |
| 44420 | Oil cooler assembly | 44420-35170 · 44420-35220 |
| 44428 | No. 2 oil return hose | 44428-35090 · 44428-35100 |
| 44441 | Pump front bracket | 44441-35040 |
| 44443 | pump bracket | 44443-26041 · 44443-34010 · 44443-35050 · 44443-35051 · 44443-35070 |
