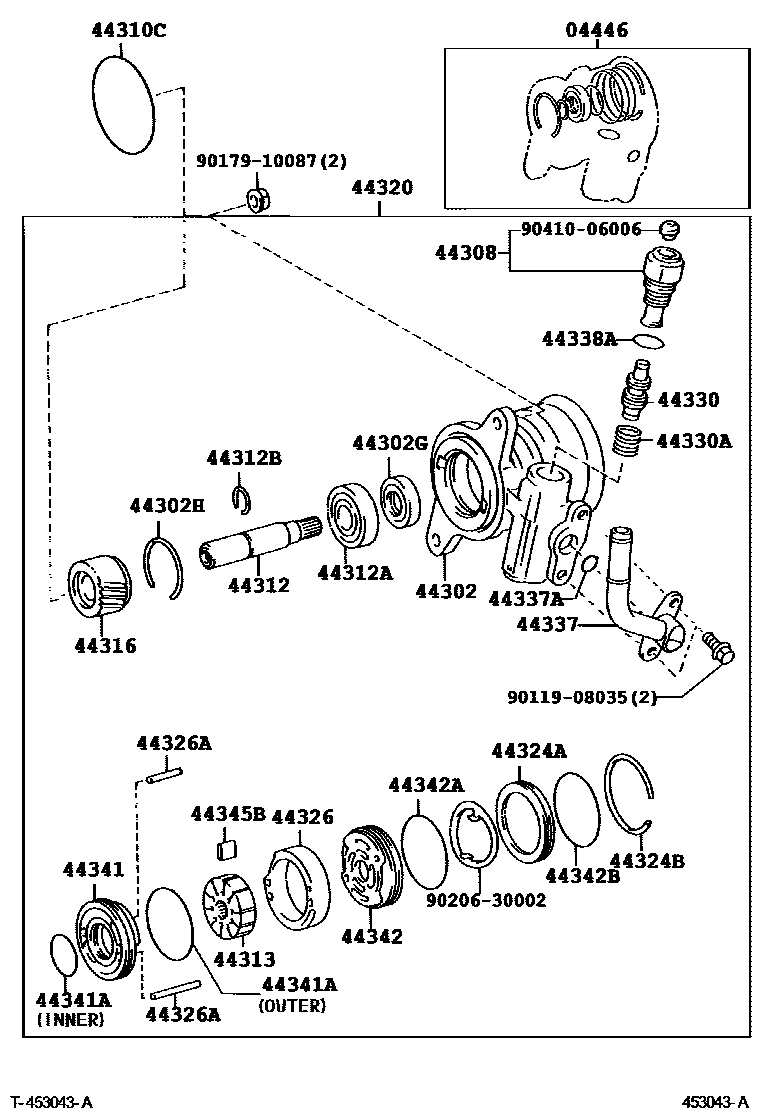

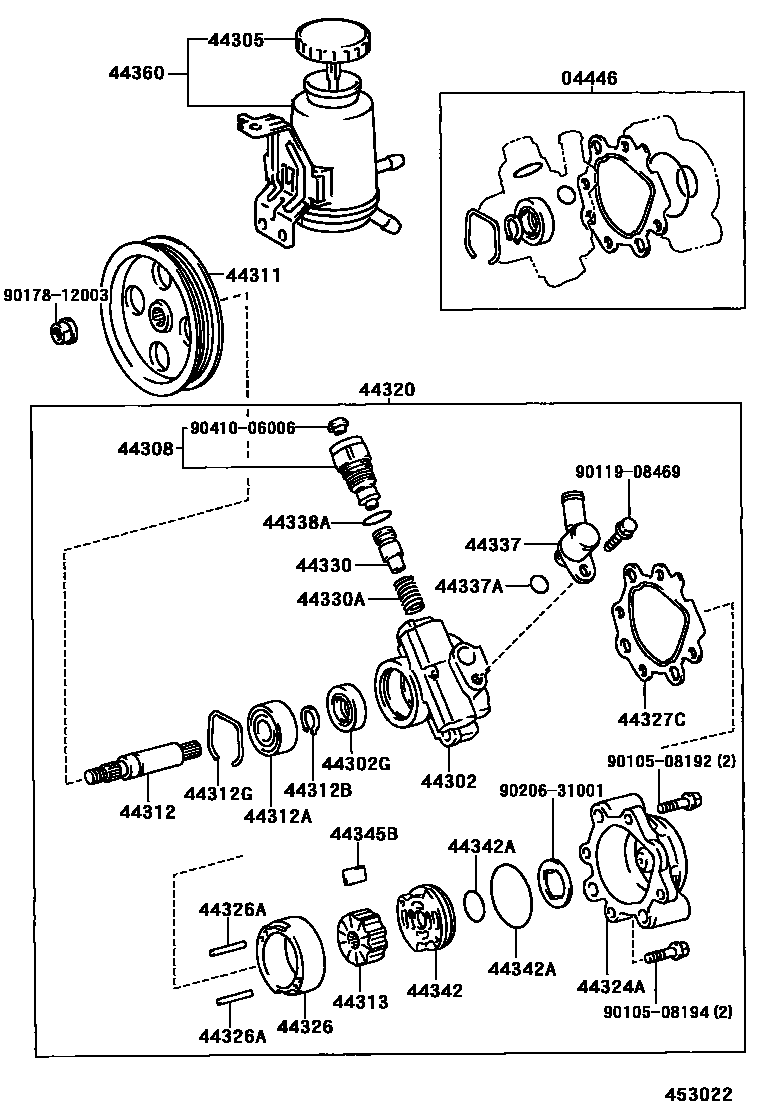

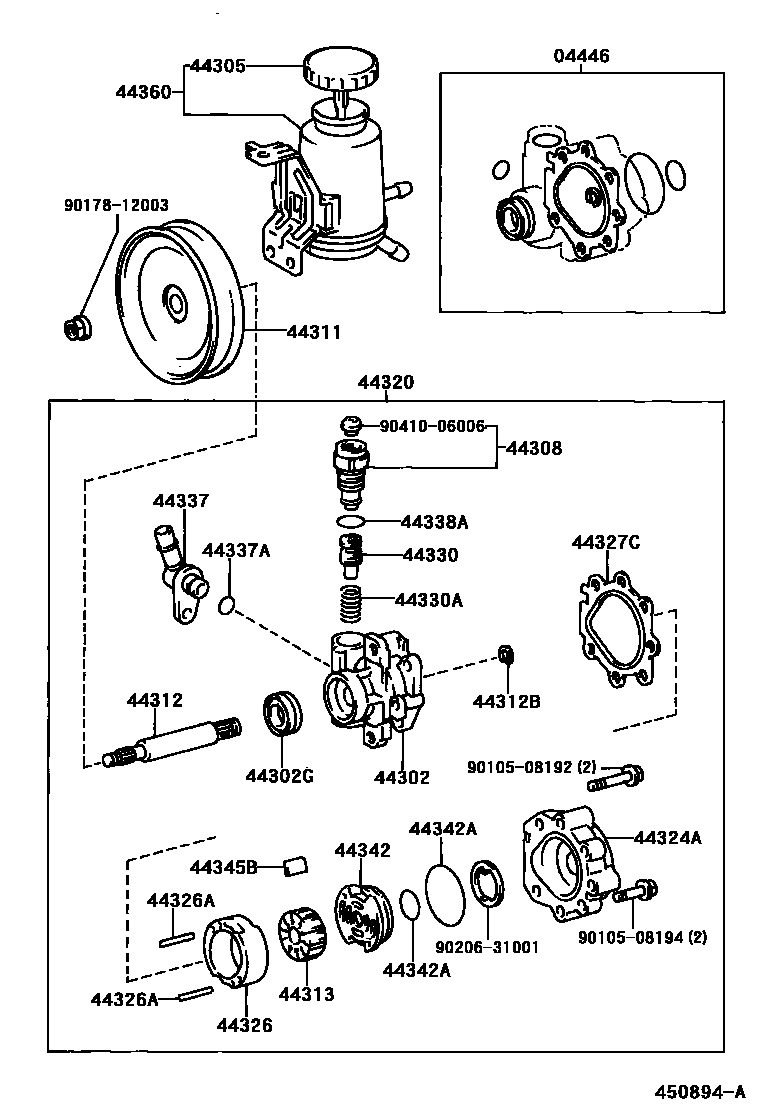

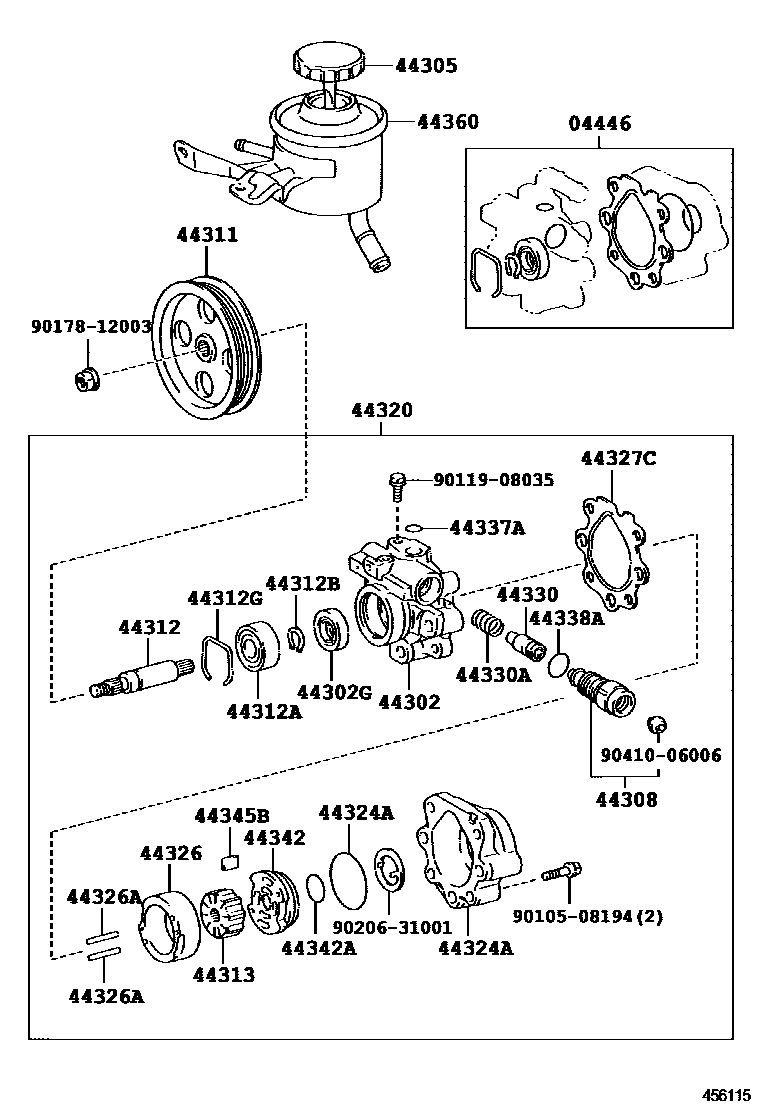

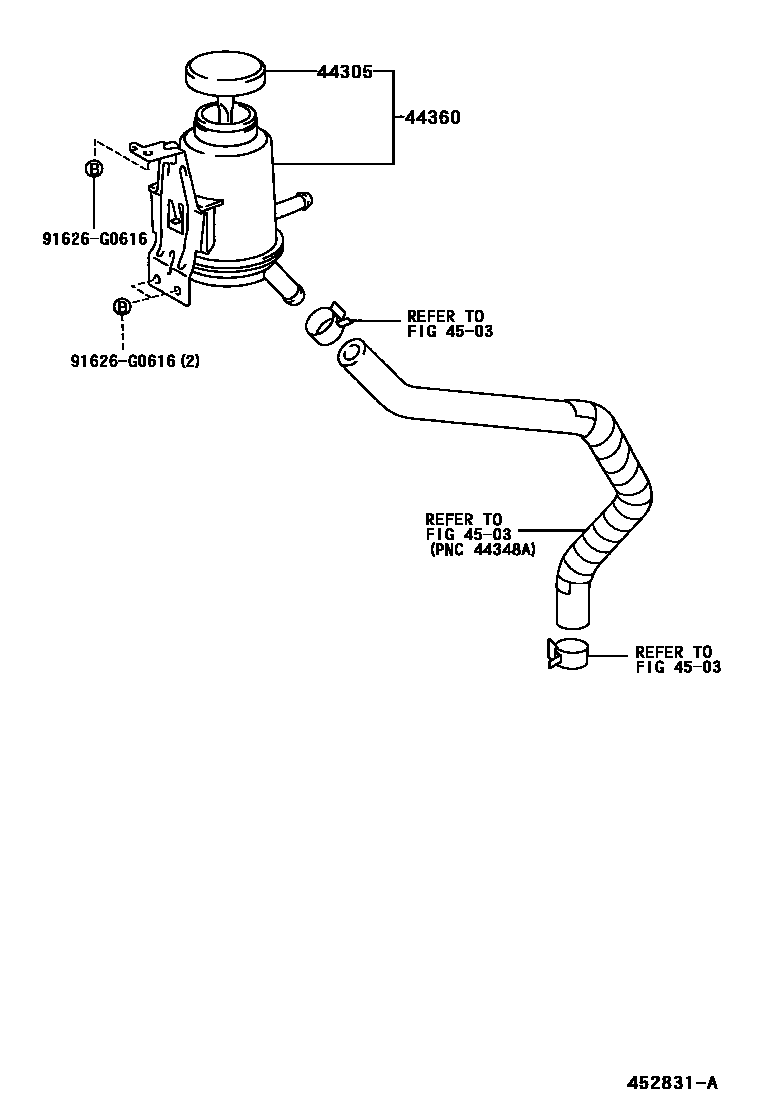

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-30120 · 04446-34010 · 04446-60091 |
| 44302 | Front vane pump housing sub-assembly | 44302-26012 · 44302-26030 · 44302-34010 · 44302-35040 · 44302-60060 |
| 44302G | No. 2 oil seal (for vane pump housing) | 90311-17007 · 90311-18015 · 90316-17004 |
| 44302H | No. 1 snap ring (for vane pump housing) | 90520-38016 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-35020 |
| 44308 | Pressure hole connector sub-assembly | 44308-26041 · 44308-26080 |
| 44310C | O-ring (for vane pump) | 90301-60002 |
| 44311 | vane pump pulley | 44311-26040 · 44311-26060 · 44311-34020 · 44311-35050 |
| 44312 | vane pump shaft | 44312-26010 · 44312-32020 · 44312-60020 |
| 44312A | Bearings (for vane pump shafts) | 90363-17013 · 90363-17016 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 · 90520-15005 |
| 44312G | No. 2 snap ring (for vane pump shaft bearing) | 90521-44002 |
| 44313 | vane pump rotor | 44313-26060 · 44313-26070 · 44313-26080 · 44313-26090 · 44313-26100 |
| 44316 | vane pump gear | 44316-60030 |
| 44320 | Vane pump assembly | 44310-35610 · 44320-35520 · 44320-35521 · 44320-35530 · 44320-35560 |
| 44324A | Pump back shell | 44324-28030 · 44324-34010 · 44324-60040 |
| 44324B | Hole snap ring (for pump rear housing) | 90521-62002 |
| 44326 | Cam ring (for vane pumps) | 44325-12270 · 44325-12280 · 44325-12290 · 44325-12300 · 44325-12310 · 44325-32270 · 44325-32280 · 44325-32290 · 44325-32300 · 44325-32310 · 44325-35060 · 44325-35070 · 44325-35080 · 44325-35090 · 44325-35100 |
| 44326A | Direct sales (for vane pump cam rings) | 90250-04047 · 90250-04049 · 90250-04071 |
| 44327C | Vane pump casing gasket | 44327-26010 |
| 44330 | Flow control valve assembly | 44330-26071 · 44330-26081 · 44330-26091 · 44330-26101 · 44330-26111 · 44330-26121 · 44330-60070 · 44330-60080 · 44330-60090 · 44330-60100 · 44330-60110 · 44330-60120 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 · 90501-13034 |
| 44337 | Power steering suction port connector | 44337-35070 · 44337-35080 · 44337-35100 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11016 |
| 44338A | O-ring (for pressure port connector) | 90301-19003 · 90301-19018 |
| 44341 | Vane pump front cover | 44341-60010 |
| 44341A | O-ring (for vane pump front cover) | 90301-28005 · 90301-53004 |
| 44342 | Vane pump rear end cover | 44342-26020 · 44342-60020 |
| 44342A | O-ring (for vane pump rear end cover) | 90301-18007 · 90301-47001 · 90301-53004 |
| 44342B | Compression spring (for vane pump rear end cover) | 90301-53007 |
| 44345B | vane pump disc | 44345-26010 · 44345-26020 · 44345-26030 · 44345-26040 · 44345-26050 · 44345-60010 · 44345-60020 · 44345-60030 · 44345-60040 · 44345-60050 |
| 44360 | Vane pump oil storage tank assembly | 44306-35250 · 44360-35140 · 44360-35150 |
