Toyota HILUX Steering Column & Shaft — Figure 4501

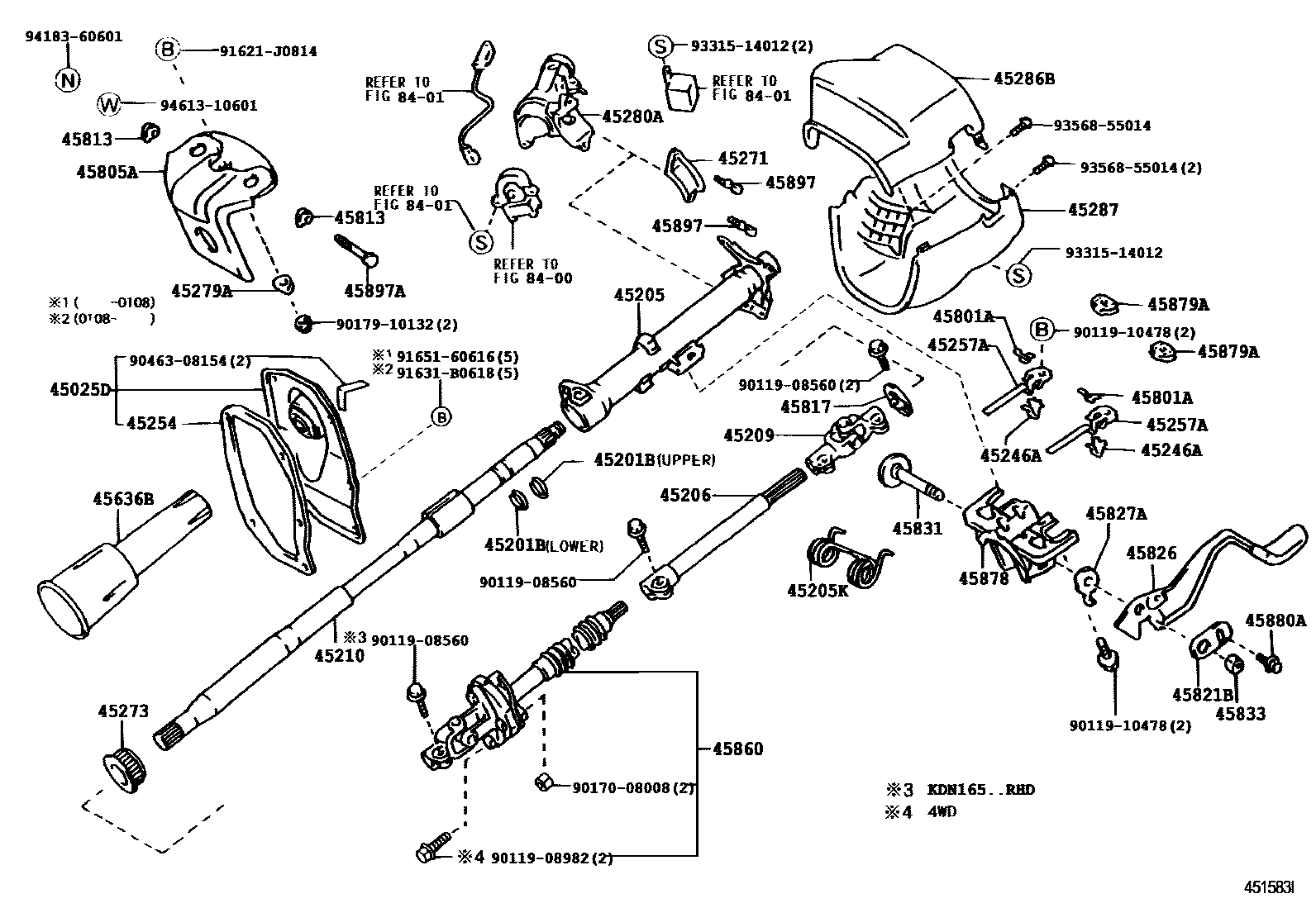

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 1 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-35300 · 45025-35310 · 45025-35320 · 45025-35330 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 · 90520-17269 |
| 45205 | Steering column tube sub-assembly | 45205-35270 · 45205-35280 |
| 45205K | Spring (for steering column tube) | 90949-03027 |
| 45206 | Steering slip fork sub-assembly with shaft | 45206-35070 |
| 45209 | Steering slip fork sub-assembly | 45209-35110 |
| 45210 | Steering spindle assembly | 45210-12480 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-12110 |
| 45254 | steering column escutcheon | 45254-35130 · 45254-35150 |
| 45257A | Steering column energy absorbing sheet | 45257-12070 |
| 45271 | Clamp on steering column | 45271-16020 |
| 45273 | Steering spindle bushing | 45273-12020 |
| 45279A | Steering column tube lower connecting piece | 45279-12040 |
| 45280A | Steering column upper bracket assembly | 45280-12321 · 45280-12331 |
| 45636B | Intermediate shaft tie rod joint protection device | 45636-35040 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45805A | Tilt-adjustable steering bracket sub-assembly | 45803-35010 · 45805-35020 |
| 45813 | No. 1 tilt-adjustable steering bracket collar | 45813-12010 |
| 45817 | Steering shaft thrust stop | 45817-35030 |
| 45821B | No. 1 tilt-adjustable steering bracket reinforcement | 45821-12010 |
| 45826 | Steering tilt adjustment lever | 45826-35050 |
| 45827A | Steering tilt adjustment lever | 45827-12030 |
| 45831 | No. 1 tilt adjustment lever locking bolt | 45831-12020 |
| 45833 | Tilt-adjustable steering column adjustment nut No. 1 | 45833-12010 |
| 45860 | No. 2 steering intermediate shaft assembly | 45860-35180 · 45860-35190 · 45860-35191 · 45860-35210 · 45860-35211 · 45860-35220 · 45860-35221 |
| 45878 | Steering column upper bracket | 45878-12220 |
| 45879A | Separate enclosure | 45879-12050 |
| 45880A | Bolt (for steering tilt adjustment lever) | 45832-12010 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
| 45897A | Tilt-adjustable steering pawl retaining bolt | 45897-12040 |
