Toyota HILUX Front Axle Hub — Figure 4303

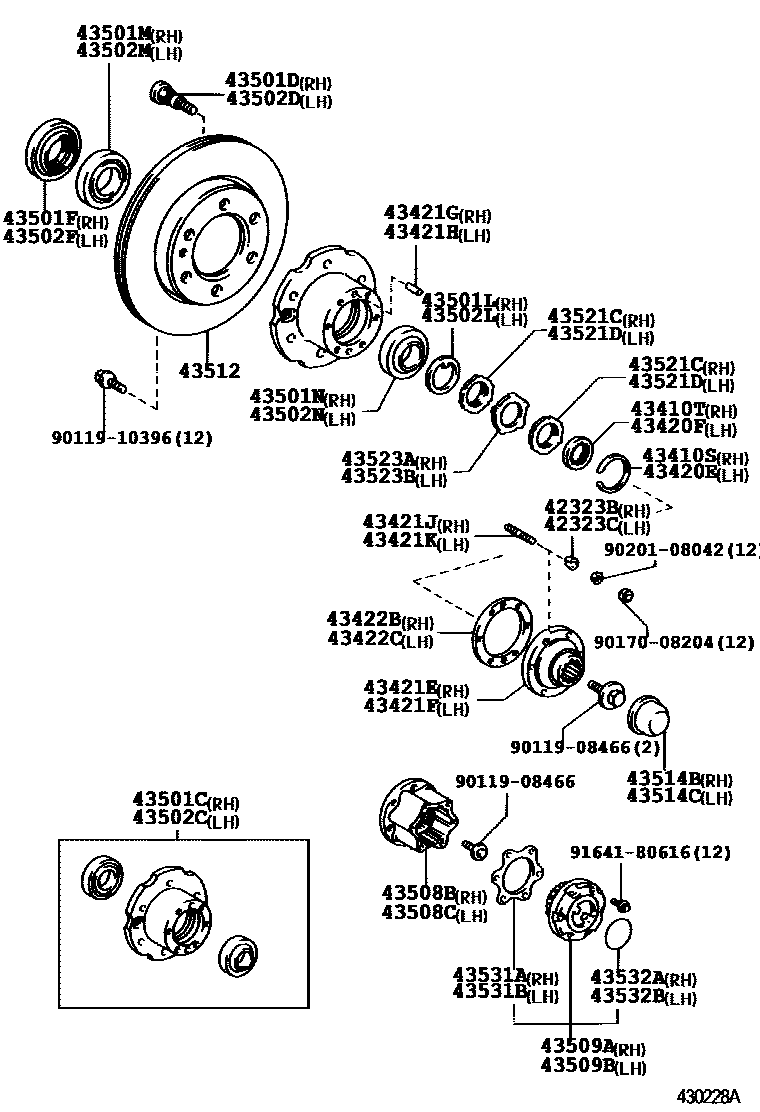

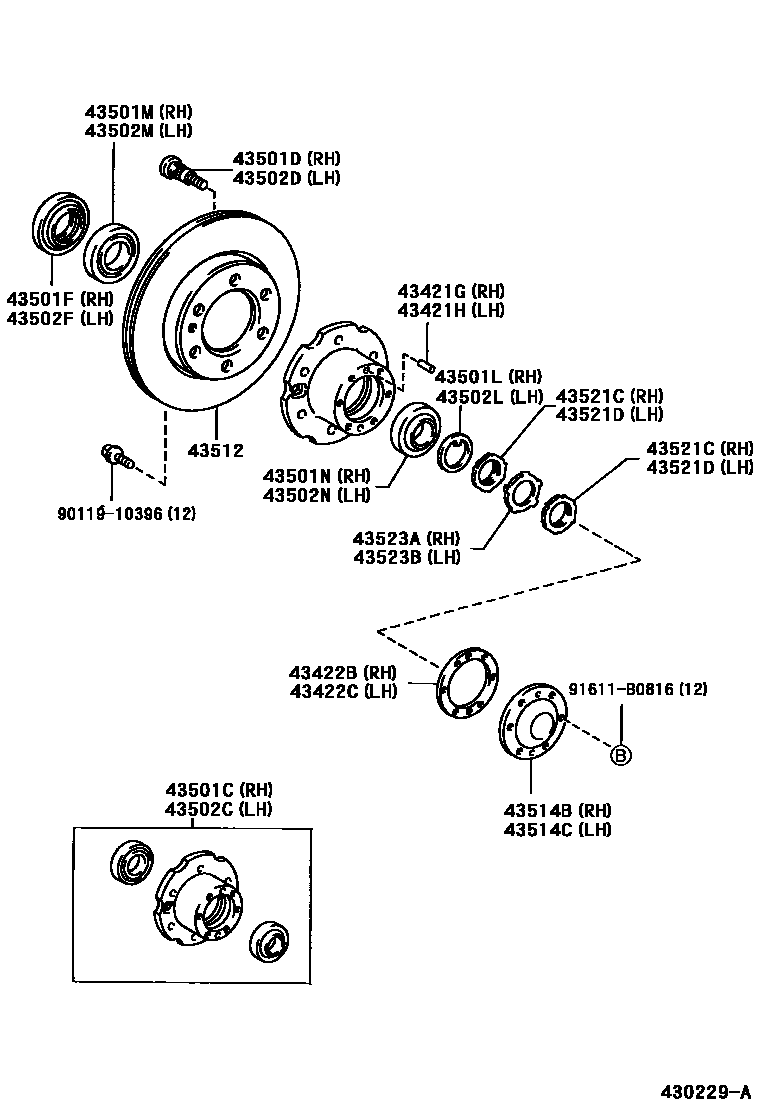

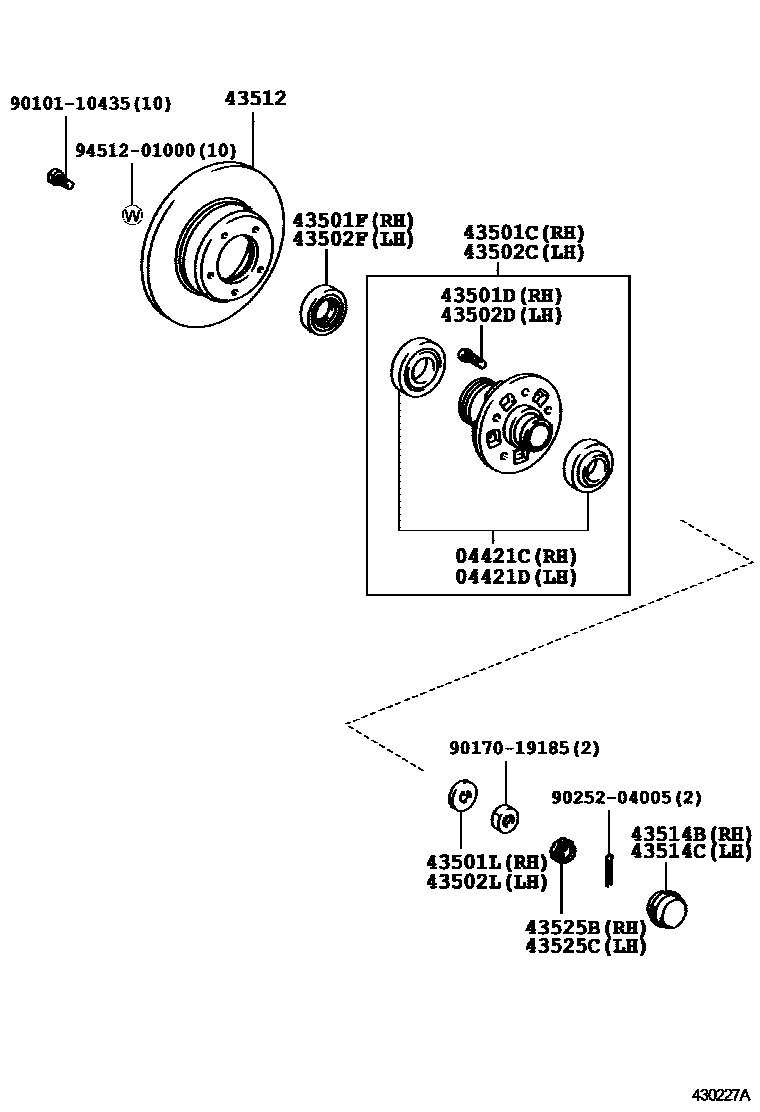

Toyota HILUX EPC diagram 4303, Front Axle Hub, with 3 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04421C | Right front axle half shaft bearing assembly | 04421-35020 |
| 04421D | Left front axle half shaft bearing assembly | 04421-35020 |
| 42323B | Taper washer (for front axle right half shaft) | 42323-60010 |
| 42323C | Taper washer (for front axle left half shaft) | 42323-60010 |
| 43410S | Snap ring (for right front driveshaft) | 90520-27023 |
| 43410T | Spacer (for right front driveshaft) | 90560-27005 · 90560-27010 · 90560-27011 |
| 43420E | Snap ring (for left front driveshaft) | 90520-27023 |
| 43420F | Spacer (for left front driveshaft) | 90560-27005 · 90560-27010 · 90560-27011 |
| 43421E | Right front axle outer shaft flange | 43421-35010 |
| 43421F | Left front axle outer shaft flange | 43421-35010 |
| 43421G | Direct pin (for right front axle outer shaft flange) | 90250-07057 |
| 43421H | Direct pin (for left front axle outer shaft flange) | 90250-07057 |
| 43421J | Stud bolt (for right front axle outer shaft flange) | 90116-08325 |
| 43421K | Stud bolt (for left front axle outer shaft flange) | 90116-08325 |
| 43422B | Right front axle outer shaft flange gasket | 43422-60010 |
| 43422C | Left front axle outer shaft flange gasket | 43422-60010 |
| 43501C | Right front axle hub sub-assembly | 43502-39105 · 43502-39115 · 43503-29015 · 43503-39025 · 43511-39015 |
| 43501D | Hub bolt (for right front axle) | 90942-02047 · 90942-02049 |
| 43501F | Oil seal (for right front axle hub) | 90311-50005 · 90311-66003 |
| 43501L | Claw washer (for right front axle hub) | 90214-20007 · 90214-42030 |
| 43501M | Inner bearing (for right front axle hub) | 90080-36064 |
| 43501N | Outer bearing (for right front axle hub) | 90080-36067 |
| 43502C | Left front axle wheel hub sub-assembly | 43502-39105 · 43502-39115 · 43503-29015 · 43503-39025 · 43511-39015 |
| 43502D | Hub bolt (for left front axle) | 90942-02047 · 90942-02049 |
| 43502F | Oil seal (for left front axle hub) | 90311-50005 · 90311-66003 |
| 43502L | Claw washer (for left front axle hub) | 90214-20007 · 90214-42030 |
| 43502M | Inner bearing (for left front axle hub) | 90080-36064 |
| 43502N | Outer bearing (for left front axle hub) | 90080-36067 |
| 43508B | Right free wheel hub body sub-assembly | 43508-35050 |
| 43508C | Left free hub body sub-assembly | 43508-35050 |
| 43509A | Right free hub cap sub-assembly | 43509-35030 |
| 43509B | Left free hubcap sub-assembly | 43509-35030 |
| 43512 | front brake disc | 43512-35180 · 43512-35190 |
| 43514B | Right front axle hub grease cap | 43423-35010 · 43514-35010 · 43514-35020 |
| 43514C | Left front axle hub grease cap | 43423-35010 · 43514-35010 · 43514-35020 |
| 43521C | Right front wheel adjustment nut | 43521-60011 |
| 43521D | Left front wheel adjustment nut | 43521-60011 |
| 43523A | Right front wheel adjustment lock washer | 90215-42025 |
| 43523B | Left front wheel adjustment lock washer | 90215-42025 |
| 43525B | Right front wheel adjustment lock cover | 43525-22010 |
| 43525C | Left front wheel adjustment lock cover | 43525-22010 |
| 43531A | Right free wheel hub pad | 43531-60010 |
| 43531B | Left free wheel hub pad | 43531-60010 |
| 43532A | Right free hub ring | 43532-60010 |
| 43532B | Left free hub ring | 43532-60010 |
