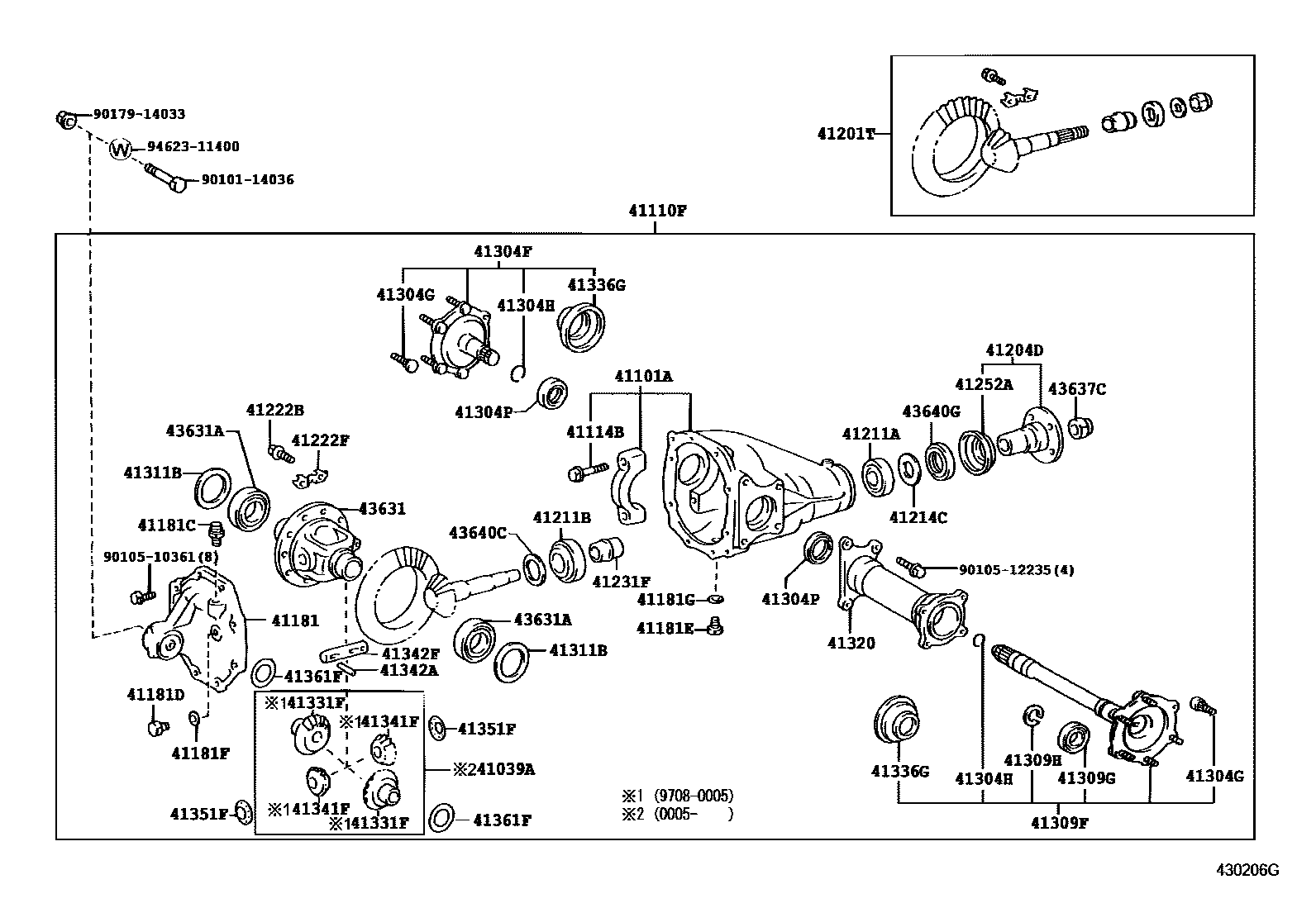

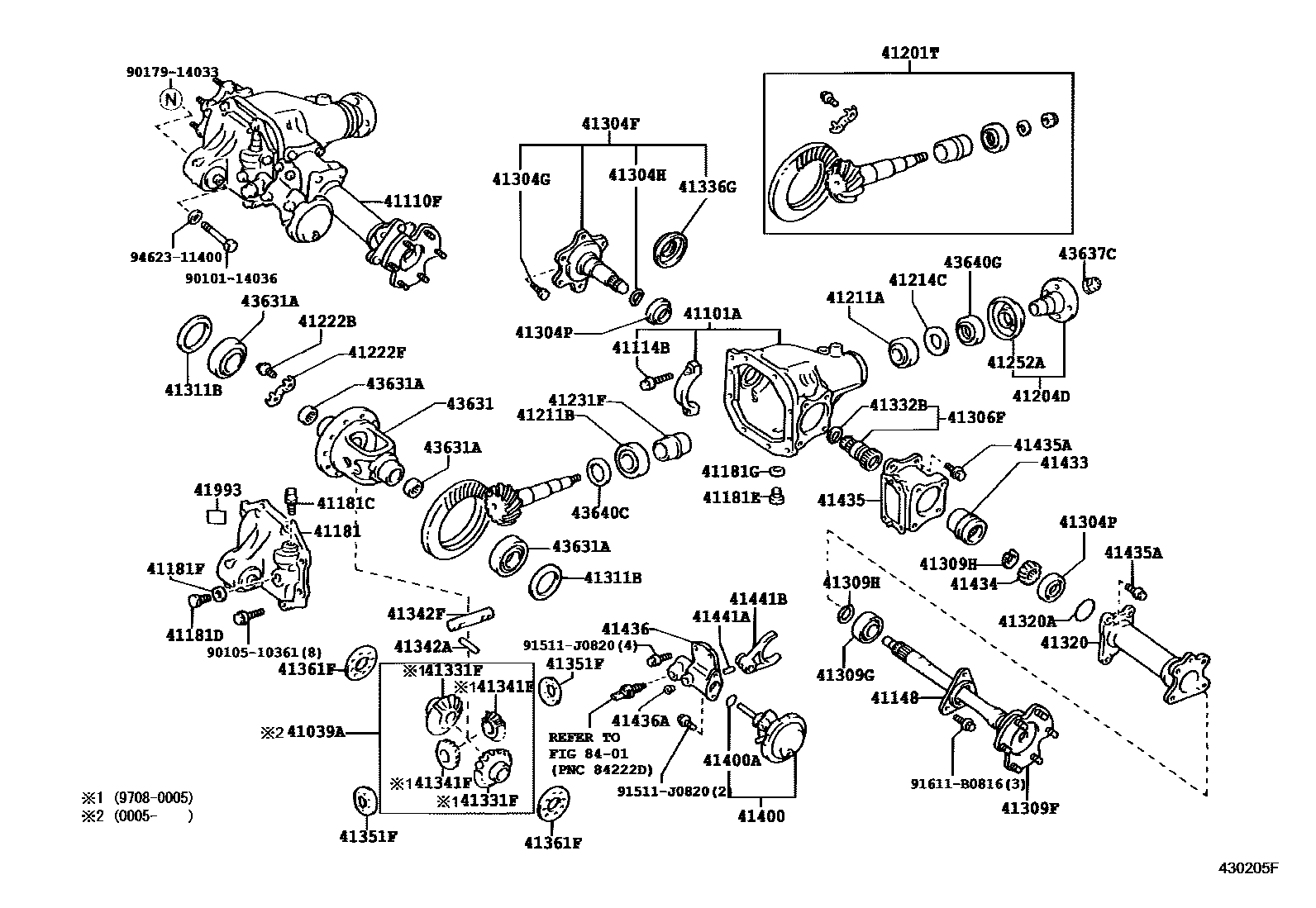

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 8 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039A | Differential gear assembly | 41039-34030 |
| 41101A | Front differential housing sub-assembly | 41101-35060 |
| 41110F | Front differential case assembly | 41110-34250 · 41110-35360 · 41110-35450 · 41110-3D370 |
| 41114B | Front differential bearing cap bolts | 90105-12053 |
| 41148 | Differential bearing retainer | 41148-35010 |
| 41181 | front differential case cover | 41108-35010 · 41108-35020 |
| 41181C | Breather plug (for front differential case cover) | 90930-03031 · 90930-03077 |
| 41181D | Plug (for front differential oil fill port) | 90341-18006 |
| 41181E | Screw plug (for front differential drain port) | 90341-18030 · 90341-18057 |
| 41181F | Gasket (for front differential oil plug) | 12157-10010 |
| 41181G | Gasket (for front differential drain plug) | 12157-10010 |
| 41201T | Front differential final drive gear assembly | 41201-80004 · 41201-80109 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-35050 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-30022 · 90366-30078 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-35023 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-30021 · 41214-35020 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11353 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-35030 |
| 41231F | Front differential drive pinion bearing spacer | 41231-22010 |
| 41252A | Dust cover (for front differential) | 41252-30010 |
| 41304F | Right differential side gear shaft sub-assembly | 41304-35020 |
| 41304G | Serrated threaded bolt (for differential side gear shaft) | 90114-12011 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90521-29002 |
| 41304P | Oil seal (for differential side gear shaft) | 90311-35032 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-35021 |
| 41309F | Left differential side gear shaft sub-assembly | 41309-35010 · 41309-35021 |
| 41309G | Bearings (for differential side gear shaft) | 90369-36009 |
| 41309H | Shaft snap ring (for differential side gear shaft) | 90520-33008 · 96152-00300 |
| 41311B | Flat washer (for front differential case) | 90201-50003 · 90201-50004 · 90201-50005 · 90201-50006 · 90201-50007 · 90201-50008 · 90201-50009 · 90201-50010 · 90201-50011 · 90201-50012 · 90201-50013 · 90201-50014 · 90201-50015 · 90201-50016 · 90201-50017 · 90201-50018 · 90201-50019 · 90201-50020 · 90201-50021 · 90201-50022 · 90201-50023 · 90201-50024 · 90201-50025 |
| 41320 | Front differential tube assembly | 41320-35011 · 41320-35020 |
| 41320A | O-ring (for front differential tube) | 90301-68003 |
| 41331F | Front differential side gear | 41331-14040 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-29002 |
| 41336G | Dust cover (for front differential side gear shaft) | 41336-22010 · 41336-28010 · 41336-35010 |
| 41341F | Front differential planetary gear | 41341-30020 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-22020 · 41342-22021 |
| 41351F | Front differential planetary gear thrust washer | 41351-30060 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-30040 · 41361-30050 · 41361-30060 · 41361-30070 · 41361-30080 · 41361-30090 · 41361-30100 |
| 41400 | Differential vacuum actuator assembly | 41400-35010 |
| 41400A | O-ring (for differential vacuum actuator) | 90301-29008 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35020 · 41434-35021 |
| 41435 | Differential clutch housing | 41435-35010 |
| 41435A | Bolt (for securing differential clutch housing) | 90109-12028 · 90109-12029 |
| 41436 | Front differential clutch housing cover | 41436-35010 |
| 41436A | Plug (for front differential clutch housing) | 90341-10065 |
| 41441A | Slotted spring pin (for differential shift fork) | 90254-05016 |
| 41441B | Differential shift fork | 41441-35010 |
| 41531D | Fitting No. 1 (for front differential vacuum hose) | 90413-04016 · 90413-05006 |
| 41531E | Check valve (for front differential vacuum hose) | 90917-10065 |
| 41531G | No. 2 front differential vacuum hose | 90445-08338 |
| 41531H | No. 3 front differential vacuum hose | 90447-08083 · 90447-08166 · 95413-49960 |
| 41531N | Fitting No. 2 (for front differential vacuum hose) | 90413-04008 |
| 41541 | Differential vacuum tank | 41541-35050 |
| 41550 | Front differential vacuum tube seal assembly | 41550-35180 |
| 41993 | Differential oil information label | 41993-35010 |
| 42599 | Separate differential vacuum hose | 42599-35130 · 42599-35140 · 42599-35150 |
| 43631 | Front axle differential housing | 41311-22060 · 41311-35060 |
| 43631A | Front axle differential bearing | 90364-33009 · 90368-50006 |
| 43637C | Castle nut (for front axle drive pinion) | 90179-18020 |
| 43640C | Front axle driving pinion thrust spacer or washer | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35438 · 90201-35439 · 90201-35440 · 90201-35441 · 90201-35515 · 90201-35516 · 90201-35517 · 90201-35518 |
| 43640G | T-type oil seal (for front axle differential housing) | 90311-38047 |
