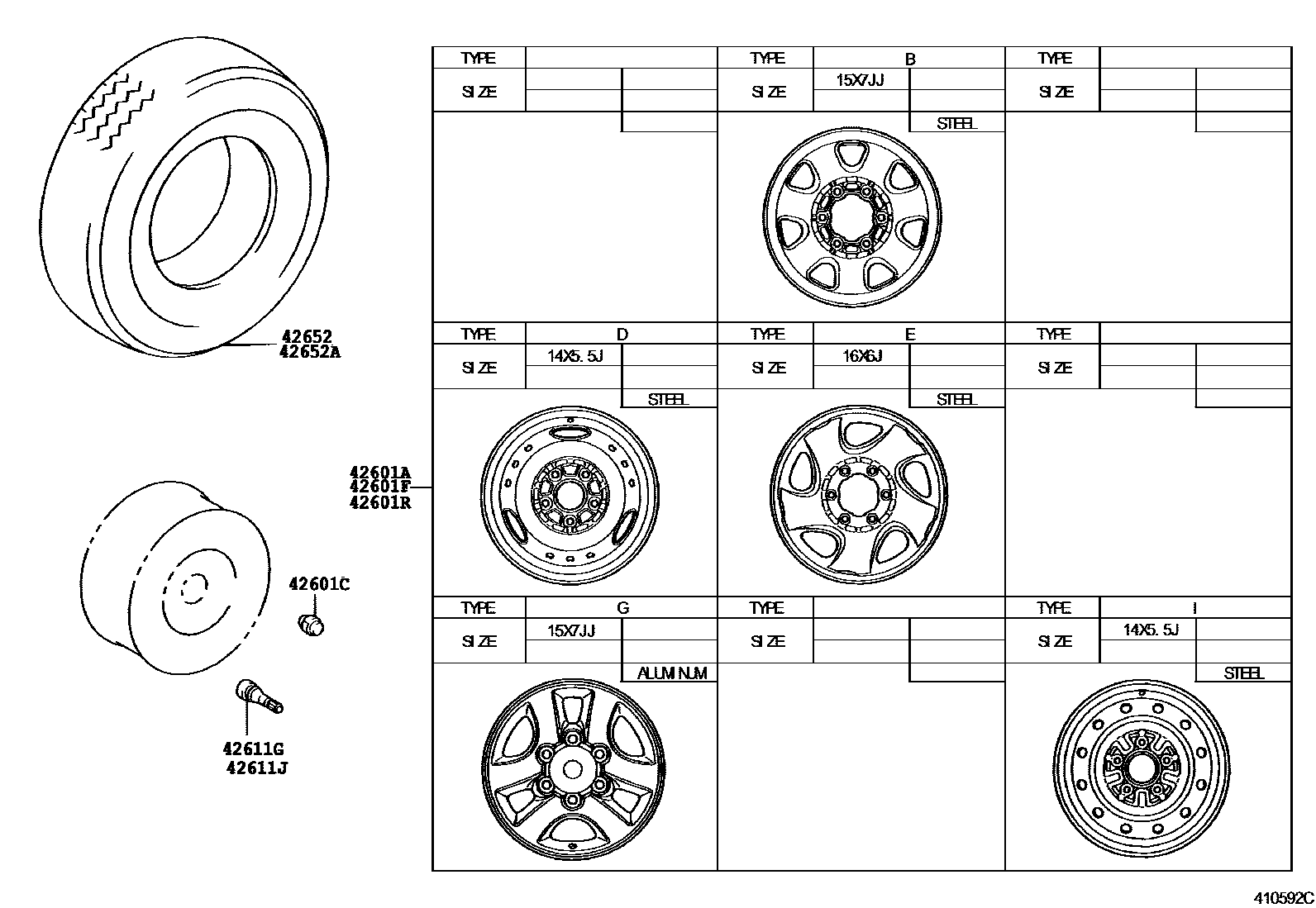

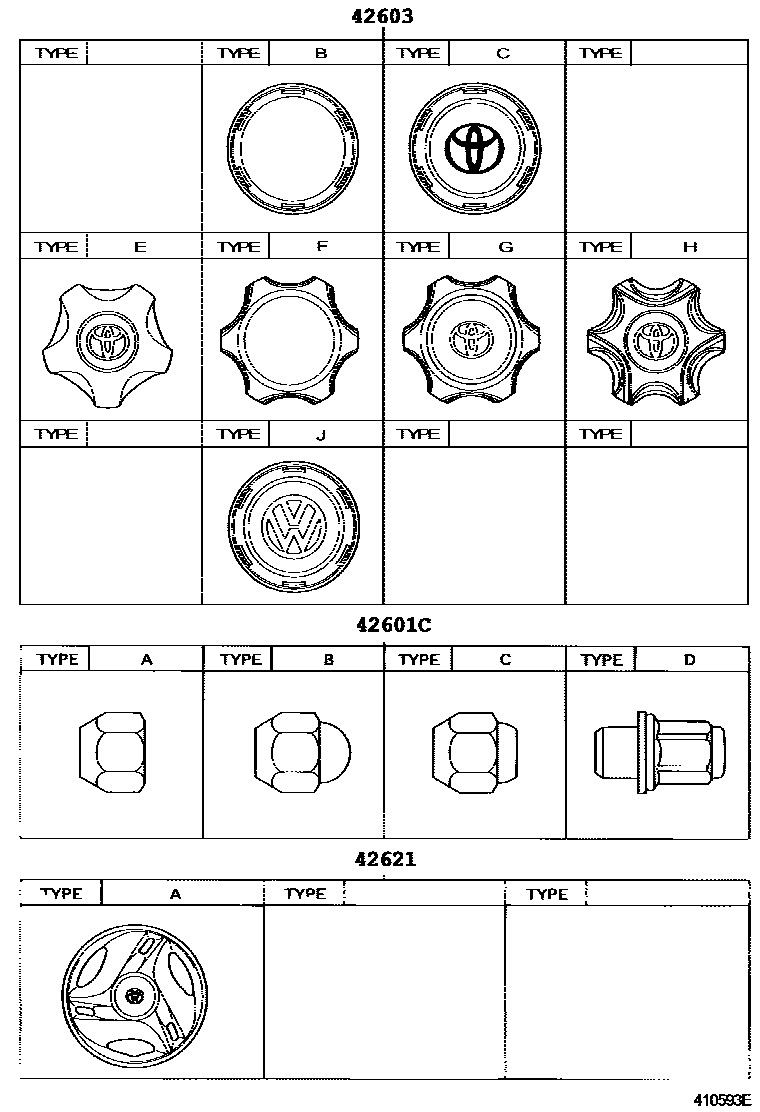

Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601A | Spoke wheel (for spare tire) | 42601-35620 · 42601-35760 · 42601-35770 · 42601-35790 |
| 42601C | Hub nut (for axle) | 90942-01051 · 90942-01075 · 90942-01082 · 90942-01095 |
| 42601F | Spoke wheels (for front tires) | 42601-35620 · 42601-35760 · 42601-35770 · 42601-35790 · 42611-35210 |
| 42601R | Spoke wheels (for rear tires) | 42601-35620 · 42601-35760 · 42601-35770 · 42601-35790 · 42611-35210 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-35320 · 42603-35470 · 42603-35480 · 42603-35510 · 42603-35520 · 42603-35680 · 42603-35770 · 42603-35780 · 42603-35790 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42621-35240 |
| 42652 | tires | 42605-35210 · 42652-35400 · 42652-35401 · 42652-35402 · 42652-35403 · 42652-35630 · 42652-35631 · 42652-3D010 · 42652-3D011 · 42652-3D012 · 42652-3D020 · 42652-3D021 · 42652-3D022 · 42652-3D130 · 42652-3D131 · 42652-3D132 · 42652-3D140 · 42652-3D141 |
| 42652A | Tire (for Spare Wheel) | 42605-35210 · 42652-35400 · 42652-35401 · 42652-35402 · 42652-35403 · 42652-35630 · 42652-35631 · 42652-3D010 · 42652-3D011 · 42652-3D012 · 42652-3D020 · 42652-3D021 · 42652-3D022 · 42652-3D130 · 42652-3D131 · 42652-3D132 · 42652-3D140 · 42652-3D141 |
