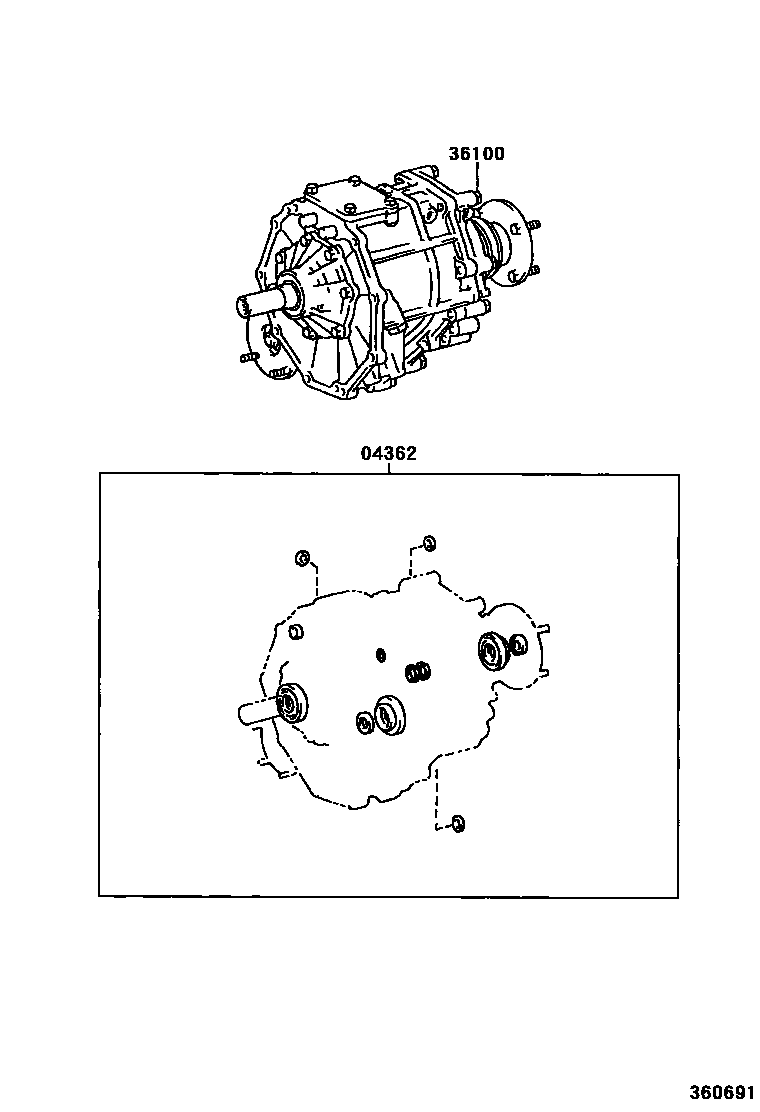

Toyota HILUX Transfer Assembly & Gasket Kit — Figure 3608
Toyota HILUX EPC diagram 3608, Transfer Assembly & Gasket Kit, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04362 | Transfer case overhaul gasket assembly | 04362-35060 · 04362-35061 · 04362-60530 · 04362-60540 |
| 36100 | Transfer case assembly | 36100-3D030 · 36100-3D040 · 36100-3D050 · 36100-3D060 · 36100-3D080 · 36100-3D090 · 36100-3D100 · 36100-3D110 · 36100-3D290 · 36100-3D310 · 36100-3D340 |
