Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

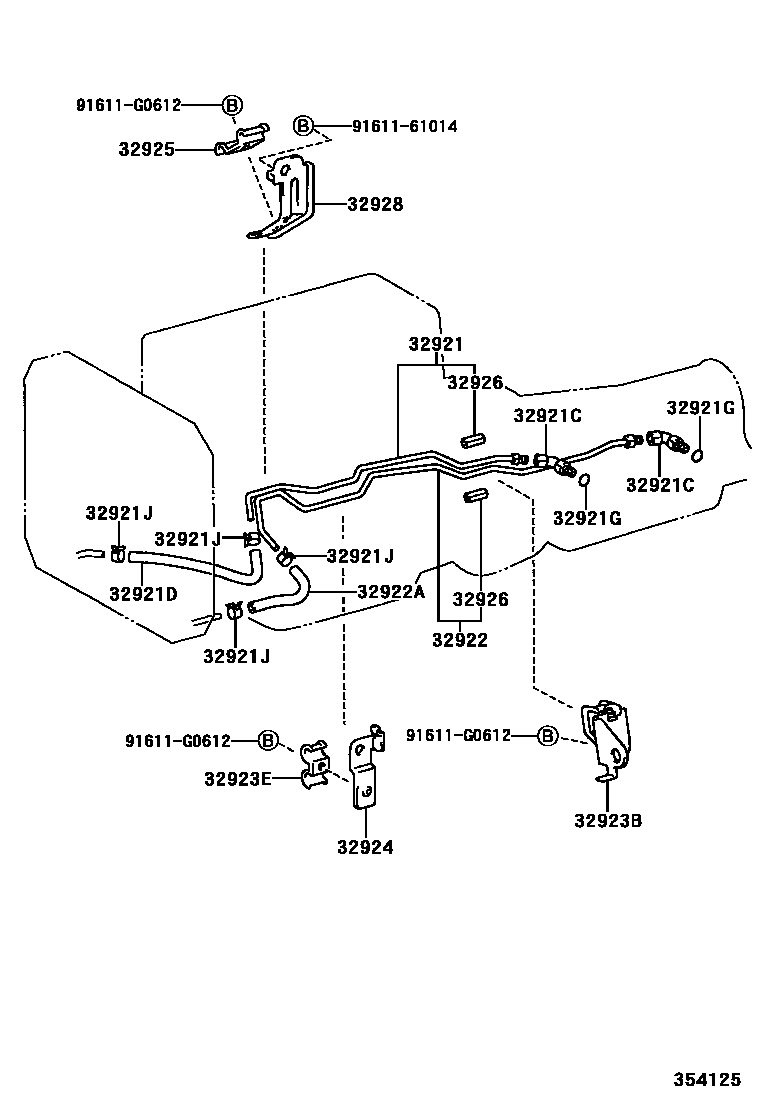

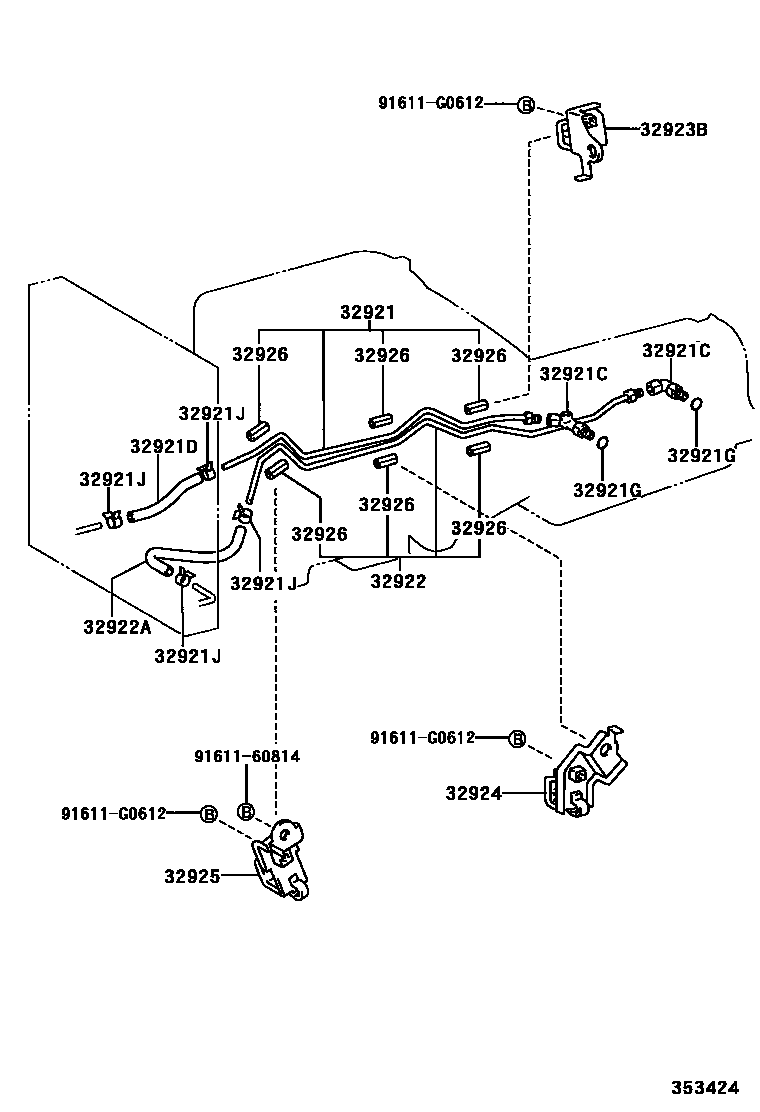

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-35360 · 32921-35390 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-16021 · 90407-14024 · 90407-16009 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-35300 · 90445-17134 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 · 90301-11006 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 · 90467-16022 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-35390 · 32922-35420 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17102 · 90445-17140 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32909-35140 · 32909-35210 |
| 32923E | No. 6 automatic transmission oil cooler pipe clamp | 90949-01B25 |
| 32924 | No. 2 transmission oil cooler pipe clamp | 32909-60080 · 32924-30090 |
| 32925 | No. 3 transmission oil cooler pipe clamp | 32909-60060 · 90462-12044 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32928 | No. 1 Flexible Hose Clamp | 32928-35050 |
