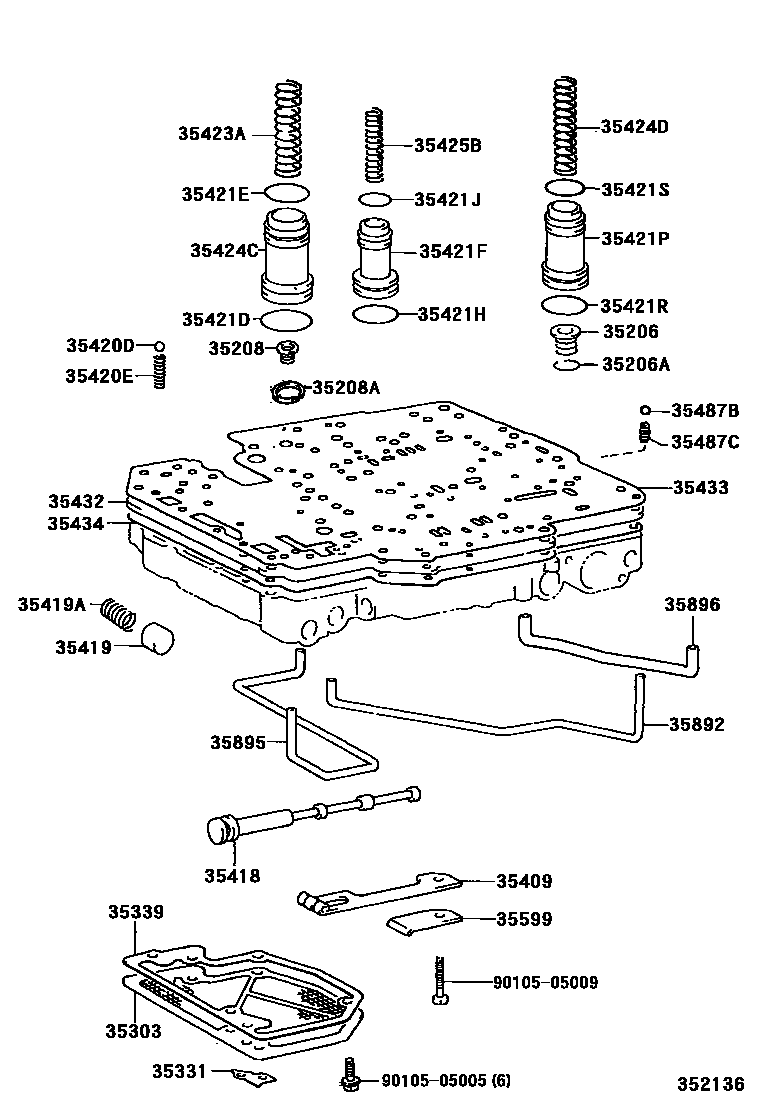

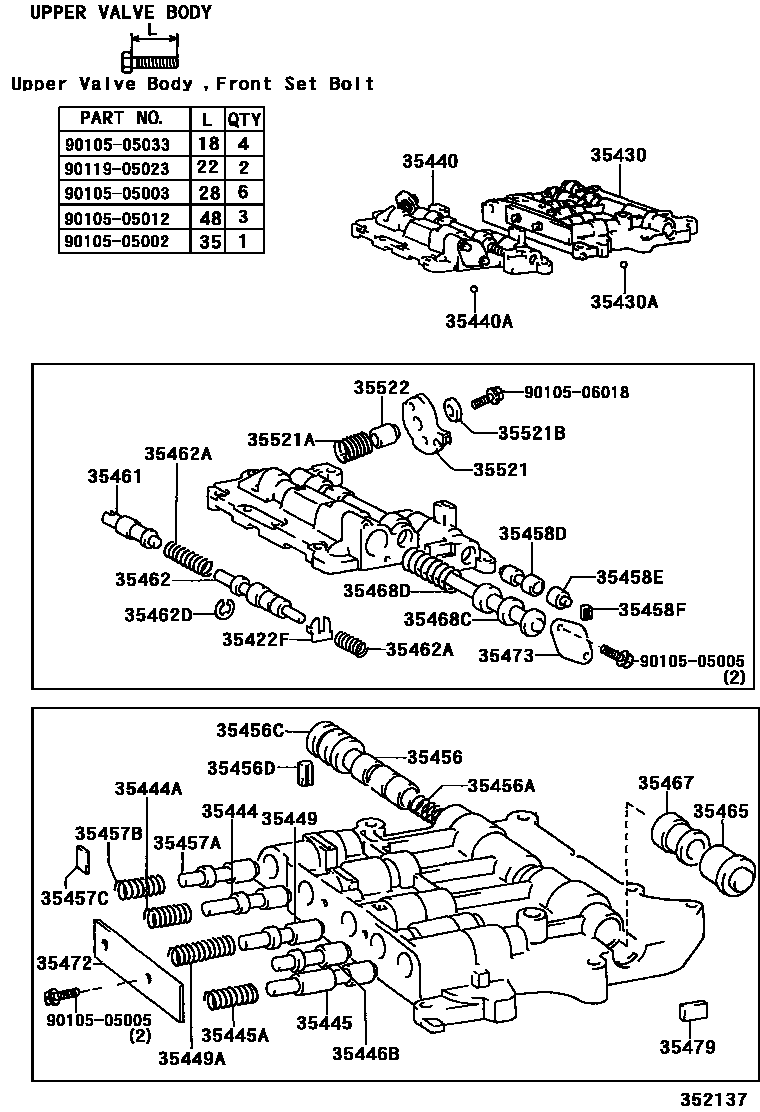

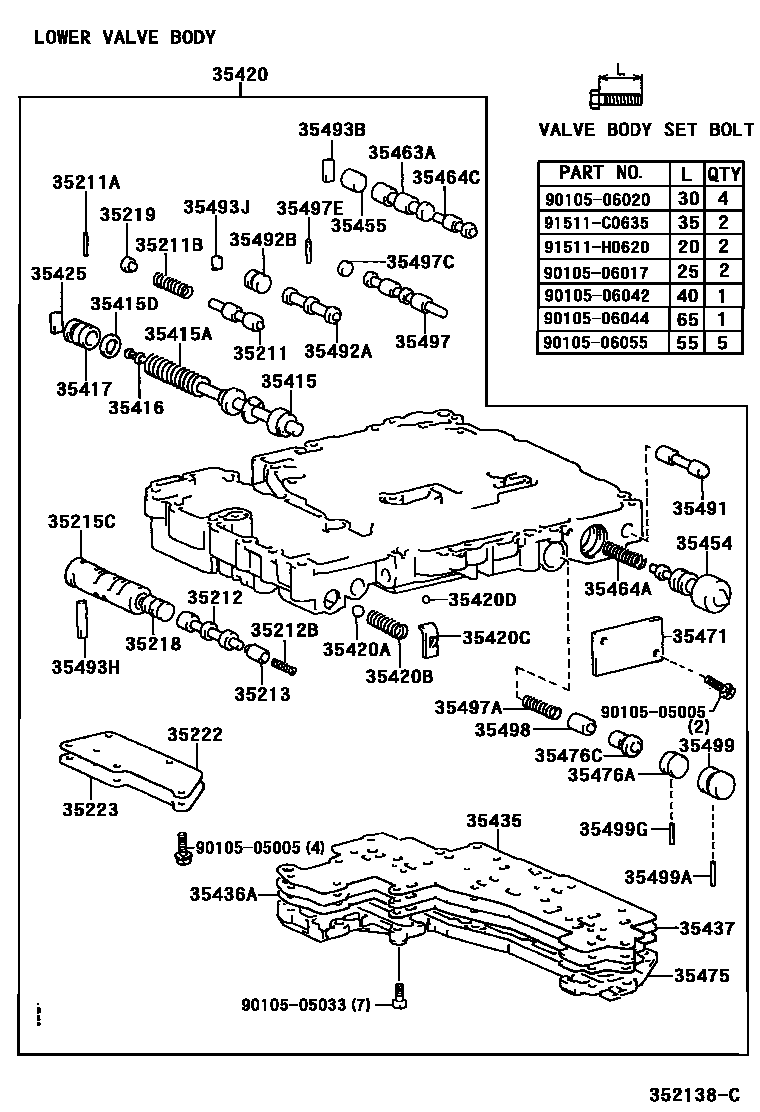

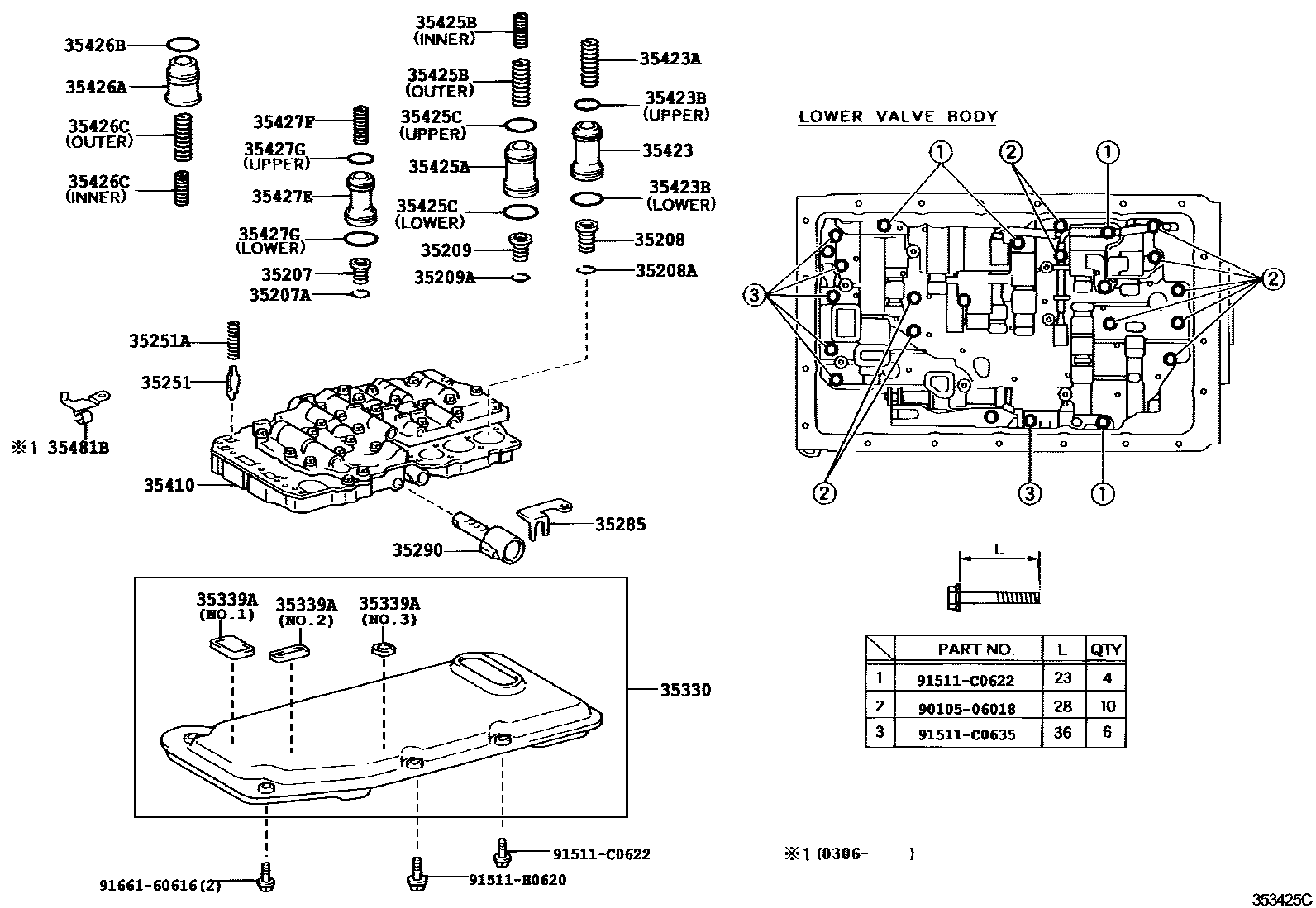

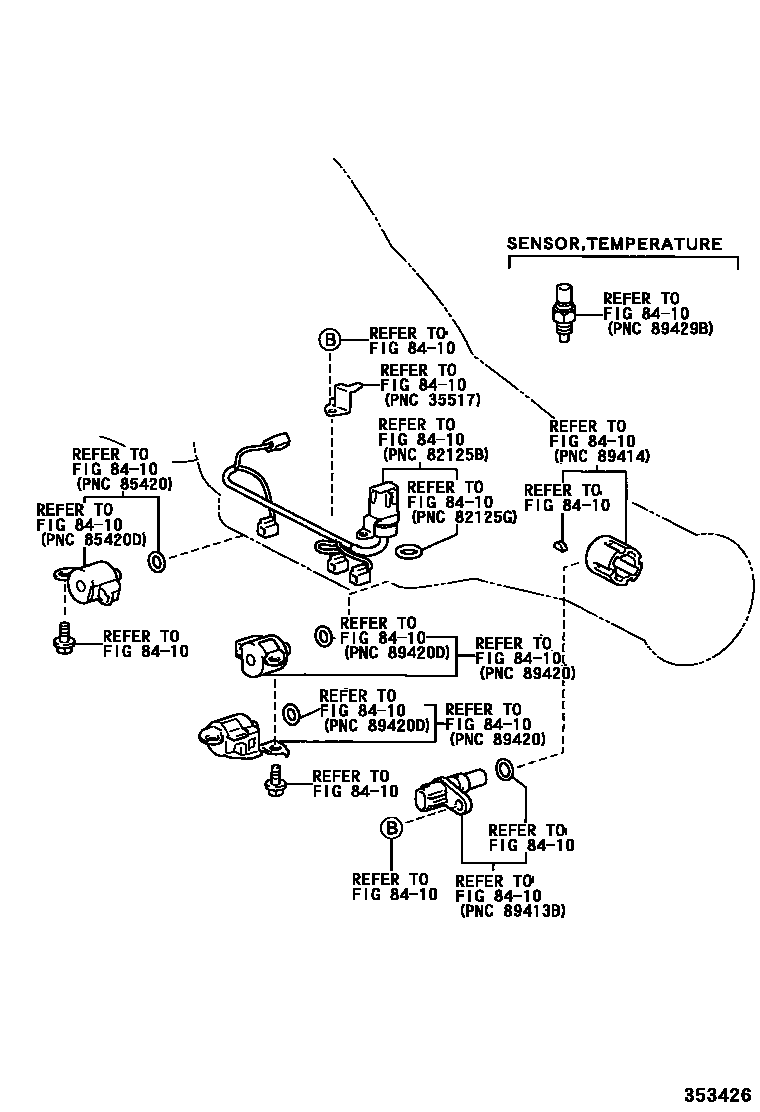

Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 5 images and 140 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35206 | C-1 Accumulator spring sub-assembly | 35206-28010 |
| 35206A | Hole snap ring (for C-1 accumulator spring) | 90521-22004 |
| 35207 | B-0 accumulator spring sub-assembly | 35207-22010 |
| 35207A | Hole snap ring (for B-0 accumulator spring) | 90521-22004 |
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35208-26010 · 35208-35010 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-24010 |
| 35209A | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35211 | lock signal valve | 35211-14010 |
| 35211A | Direct pin (for locking signal valve) | 90250-02007 |
| 35211B | Compression spring (for locking signal valve) | 90501-10217 |
| 35212 | lock relay valve | 35202-30020 |
| 35212B | Compression spring (for locking relay valve) | 90501-07017 |
| 35213 | Lock relay control valve | 35213-30030 |
| 35215C | No. 1 locking relay valve sleeve | 35215-14010 |
| 35218 | Lock relay valve plunger | 35218-14010 |
| 35219 | Lock signal valve plunger | 35219-14010 |
| 35222 | Lock relay valve body plate | 35222-14010 |
| 35223 | Lock relay valve body gasket | 35223-14010 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35285 | Solenoid valve lock plate | 35285-24020 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-60020 |
| 35303 | Oil filter sub-assembly | 35303-14010 |
| 35330 | Valve body oil filter assembly | 35330-60030 |
| 35331 | Oil filter cover | 35331-14010 |
| 35339 | Oil filter gasket | 35339-28020 |
| 35339A | No. 1 oil filter gasket | 35339-30080 · 35339-30090 · 35339-30100 |
| 35409 | Manual lock spring sub-assembly | 35409-30010 |
| 35410 | Transmission valve body assembly | 35410-35640 |
| 35415 | pressure regulator valve | 35203-30011 |
| 35415A | Compression spring (for pressure regulator valve) | 90501-17020 |
| 35415D | Gasket (for pressure regulator valve) | 90564-12004 |
| 35416 | No. 1 main regulator valve plunger | 35416-30030 |
| 35417 | pressure regulator valve sleeve | 35417-30050 |
| 35418 | Manual valve | 35418-30050 |
| 35419 | No. 1 one-way valve | 35419-22010 |
| 35419A | Compression spring (for one-way valve) | 90501-16083 |
| 35420 | Lower valve body assembly | 35420-26200 |
| 35420A | Ball (for pressure reducing valve) | 90360-13024 |
| 35420B | Spring (for pressure reducing valve) | 90501-18677 |
| 35420C | Seat (for pressure reducing valve) | 35427-22011 |
| 35420D | Ball (for lower valve body) | 35495-22020 · 35496-22030 |
| 35420E | Spring (for lower valve body) | 90501-04727 |
| 35421D | Ring (for accumulator piston No. 1) | 90301-29011 |
| 35421E | Ring (for accumulator piston No. 1) | 90301-23010 |
| 35421F | No. 2 accumulator piston | 35441-30010 |
| 35421H | Ring (for accumulator piston No. 2) | 90301-26012 |
| 35421J | Ring (for accumulator piston No. 2) | 90301-18010 |
| 35421P | No. 3 accumulator piston | 35421-26010 |
| 35421R | Ring (for No. 3 accumulator piston) | 90301-26012 |
| 35421S | Ring (for No. 3 accumulator piston) | 90301-21012 |
| 35422F | Valve damping stop | 35422-22010 |
| 35423 | B-2 Accumulator Piston | 35423-30030 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-19017 · 90501-27019 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-23010 · 90301-31010 |
| 35424C | C-1 Accumulator Piston | 35424-26010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-25033 |
| 35425 | Pressure regulator valve sleeve seat | 35425-14010 |
| 35425A | C-2 Accumulator Piston | 35425-30020 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-23135 · 90501-25027 · 90501-28030 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-25010 · 90301-31010 |
| 35426A | C-0 Accumulator Piston | 35426-40010 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-24010 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-22008 · 90501-23073 |
| 35427E | B-0 accumulator piston | 35427-30040 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-23095 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20008 · 90301-26011 |
| 35430 | Rear upper valve body assembly | 35430-26070 |
| 35430A | Ball (for rear upper valve body) | 35495-22020 · 90360-06023 |
| 35432 | No. 1 valve body plate | 35432-26160 |
| 35433 | No. 1 valve body gasket | 35433-14012 |
| 35434 | No. 2 valve body gasket | 35434-14012 |
| 35435 | No. 3 valve body plate gasket | 35435-14010 |
| 35436A | No. 4 valve body plate gasket | 35436-14010 |
| 35437 | 3rd-4th gear shift valve separation plate | 35437-22020 |
| 35440 | Front upper valve body assembly | 35440-26070 |
| 35440A | Ball (for front upper valve body) | 35495-22020 |
| 35444 | intermediate regulator valve | 35444-22010 |
| 35444A | Compression spring (for intermediate regulator valve) | 90501-09686 |
| 35445 | Low speed regulator valve | 35445-22010 |
| 35445A | Compression spring (for low speed regulator valve) | 90501-08725 |
| 35446B | governor regulator valve plunger | 35446-20010 |
| 35449 | sequence valve | 35447-22010 |
| 35449A | Compression spring (for sequence valve) | 90501-12055 |
| 35454 | Low gear coast shift valve | 35454-30010 |
| 35455 | 1-2 gear low gear shift valve plunger | 35455-22010 |
| 35456 | 2nd-3rd gear shift valve | 35456-22010 |
| 35456A | Compression spring (for 2-3 gear shift valve) | 90501-08724 |
| 35456C | Plunger (for 2-3 gear shift valve) | 35452-22010 |
| 35456D | Seat (for 2-3 gear shift valve) | 35493-22020 |
| 35457A | lock regulator valve | 35457-22010 |
| 35457B | Compression spring (for locking regulator valve) | 90501-09095 |
| 35457C | Seat (for locking regulator valve) | 35438-22020 |
| 35458D | reverse valve | 35458-22010 |
| 35458E | Plunger (for reverse valve) | 35459-22010 |
| 35458F | Seat (for reverse valve) | 35493-22010 |
| 35461 | Downshift plug | 35408-30010 |
| 35462 | throttle valve | 35462-22011 |
| 35462A | Compression spring (for throttle valve) | 90501-07680 · 90501-11073 |
| 35462D | E-ring (for throttle valve) | 90523-06023 |
| 35463A | 1-2 gear lower shift valve | 35463-22010 |
| 35464A | Compression spring (for 1-2 gear shift valve) | 90501-06684 |
| 35464C | 1-2 gear upper shift valve | 35464-22020 |
| 35465 | Intermediate shift valve plunger | 35465-22010 |
| 35467 | Intermediate shift valve | 35467-22010 |
| 35468C | Secondary regulator valve | 35204-30010 |
| 35468D | Compression spring (for secondary regulator valve) | 90501-19001 |
| 35471 | No. 1 valve body cover | 35471-22010 |
| 35472 | No. 2 valve body cover | 35472-22010 |
| 35473 | Transmission valve body cover | 35473-22010 |
| 35475 | No. 5 valve body cover | 35475-14010 |
| 35476A | Straight screw plug (for third-speed coaster shift valve) | 90334-12001 |
| 35476C | Three-speed slide valve | 35476-30010 |
| 35479 | Intermediate shift valve seat | 35479-22010 |
| 35481B | Valve body wiring harness clip | 35481-24010 |
| 35487B | No. 4 one-way ball | 35487-30010 |
| 35487C | Compression spring (for one-way balls) | 90504-05006 |
| 35491 | Reverse brake plug | 35491-22010 |
| 35492A | Manual downshift timing valve | 35492-30010 |
| 35492B | Plunger (for manual downshift timing valve) | 35494-30010 |
| 35493B | 1-2 gear shift valve plunger seat | 35493-22010 |
| 35493H | Shift valve plunger seat (for locking relay valve) | 35493-30040 |
| 35493J | Shift valve plunger seat (for manual downshift timing valve) | 35493-14010 |
| 35497 | 3rd-4th gear shift valve | 35497-30020 |
| 35497A | Compression spring (for 3-4 gear shift valve) | 90501-10060 |
| 35497C | Plunger (for 3-4 gear shift valve) | 90334-13001 |
| 35497E | Needle roller (for 3-4 gear shift valve) | 90361-02051 |
| 35498 | 3rd-4th gear slide shift valve | 35498-30010 |
| 35499 | 3rd-4th gear shift valve plunger | 35499-30030 |
| 35499A | Direct sales (for 3-4 gear shift valve) | 90250-02012 |
| 35499G | Direct sales (for 3-4 gear shift valve) | 90250-02012 |
| 35521 | throttle cam | 35521-20010 |
| 35521A | Spring (for throttle cam return) | 90508-12331 |
| 35521B | Gasket (for throttle cam assembly) | 90201-06472 |
| 35522 | Throttle valve cam pin | 35522-22010 |
| 35599 | Manual locking spring cover | 35599-30010 |
| 35892 | overdrive brake pipe | 35892-28020 |
| 35895 | Front clutch oil supply pipe | 35895-14011 |
| 35896 | Overdrive switch fuel supply pipe | 35896-30020 |
