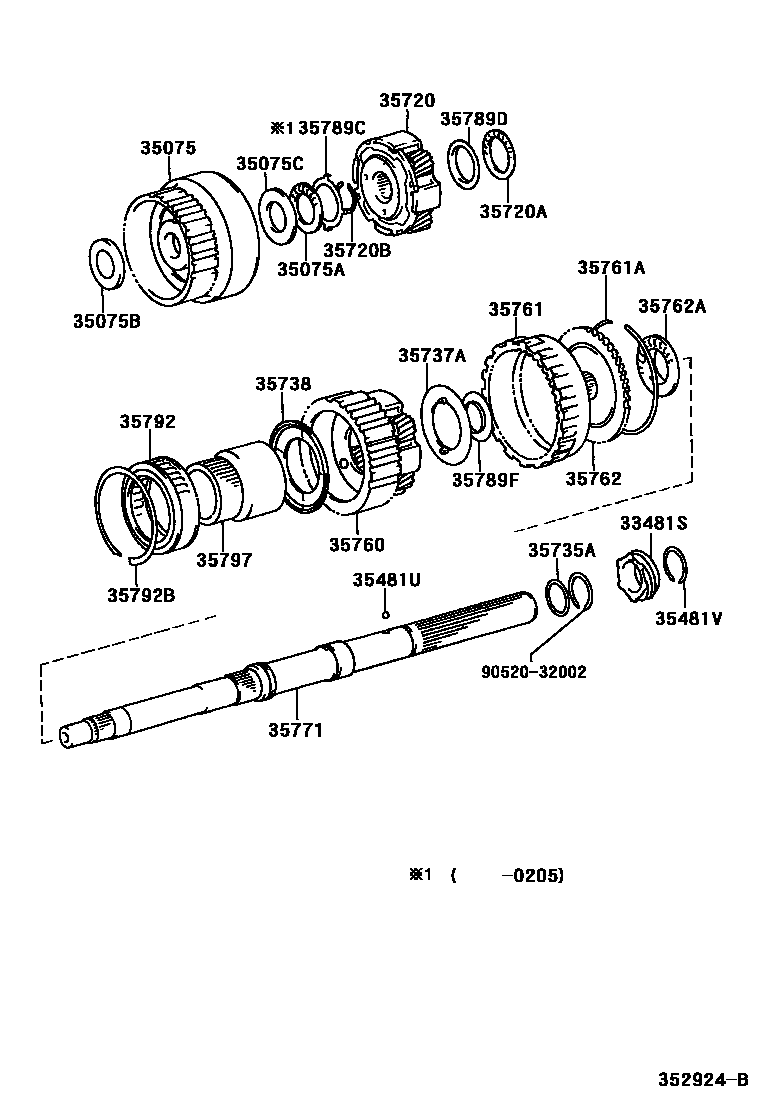

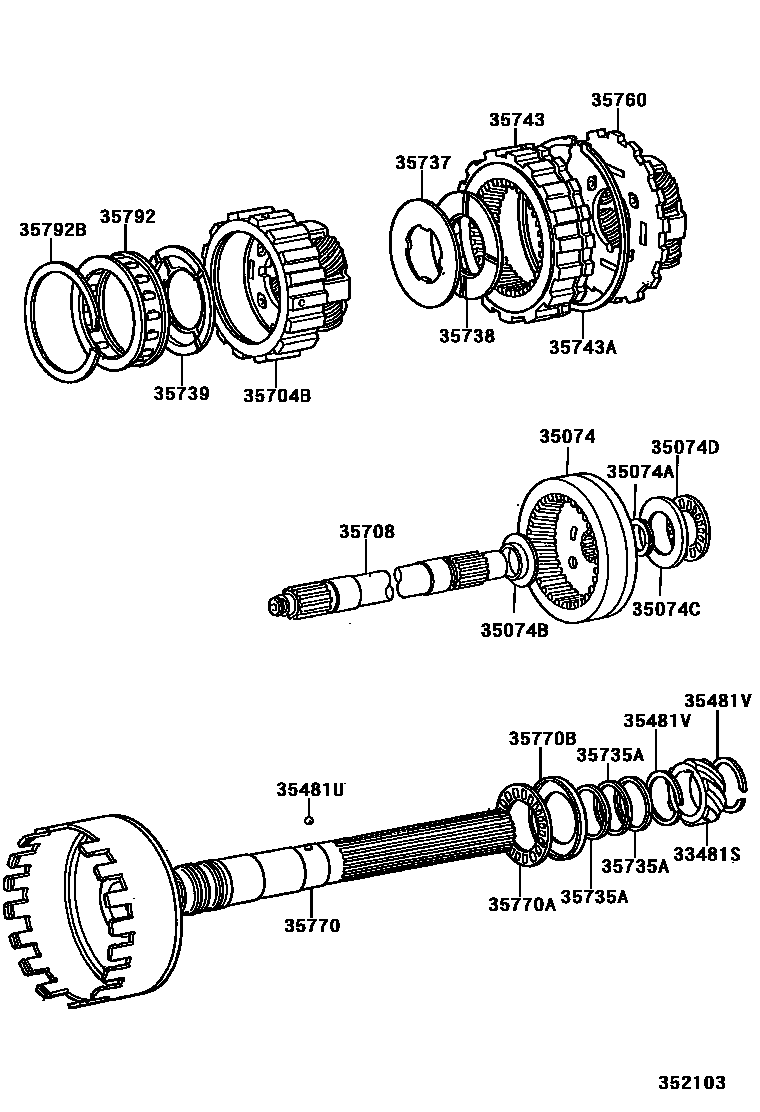

Toyota HILUX 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota HILUX EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33481S | Speedometer driving gear (ATM) | 33481-26011 · 33481-30060 |
| 35074 | Rear planetary ring gear sub-assembly | 35074-30030 |
| 35074A | Locating ring (for rear planetary ring gear) | 90522-20037 |
| 35074B | Front thrust bearing race (for rear planetary ring gear) | 35789-30180 |
| 35074C | Rear thrust bearing race (for rear planetary ring gear) | 35789-22020 |
| 35074D | Rear thrust bearing (for rear planetary ring gear) | 90374-28014 |
| 35075 | Front planetary ring gear sub-assembly | 35075-50010 |
| 35075A | Thrust needle roller bearing (for front planetary ring gear) | 90374-32004 · 90374-35004 |
| 35075B | Front thrust bearing race (for front planetary ring gear) | 35789-30120 |
| 35075C | Rear thrust bearing race (for front planetary ring gear) | 35789-30130 |
| 35481U | Speedometer driving gear key or ball (ATM) | 90360-06004 |
| 35481V | Ring or spacer (for automatic transmission speedometer drive gear) | 90520-28009 |
| 35704B | Front planetary gear sub-assembly | 35704-30030 |
| 35708 | Intermediate shaft sub-assembly | 35708-30041 |
| 35720 | Front planetary gear assembly | 35720-35030 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-35001 |
| 35720B | Shaft snap ring (for front planetary gear) | 90520-24026 |
| 35735A | Planetary gear output shaft oil protection ring | 35735-22010 · 35735-30020 |
| 35737 | Planetary gear carrier thrust washer | 35737-30020 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-30030 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-30010 · 35739-30030 |
| 35739 | No. 3 planetary gear carrier thrust washer | 35739-30010 |
| 35743 | Front planetary ring gear | 35743-30010 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99121 |
| 35760 | Rear planetary gear assembly | 35705-30010 · 35760-30030 |
| 35761 | Rear planetary ring gear | 35761-30020 |
| 35761A | Hole snap ring (for rear planetary ring gear) | 90521-99024 |
| 35762 | Rear planetary gear flange | 35762-30040 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-38003 |
| 35770 | Output shaft assembly | 35770-30010 |
| 35770A | Thrust bearing (for output shaft) | 90374-38013 |
| 35770B | Thrust bearing race (for output shaft) | 35789-22040 |
| 35771 | output shaft | 35771-30040 |
| 35789C | Front thrust bearing race (for front planetary gear) | 35789-30080 |
| 35789D | Rear thrust bearing race (for front planetary gear) | 35789-30100 |
| 35789F | Thrust bearing race (for rear planetary gear flange) | 35789-30160 |
| 35792 | No. 2 one-way clutch | 35792-14020 · 35792-30011 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-79148 · 90521-87001 |
| 35797 | One-way clutch inner race | 35797-50010 |
