Toyota HILUX Shift Lever & Retainer — Figure 3312

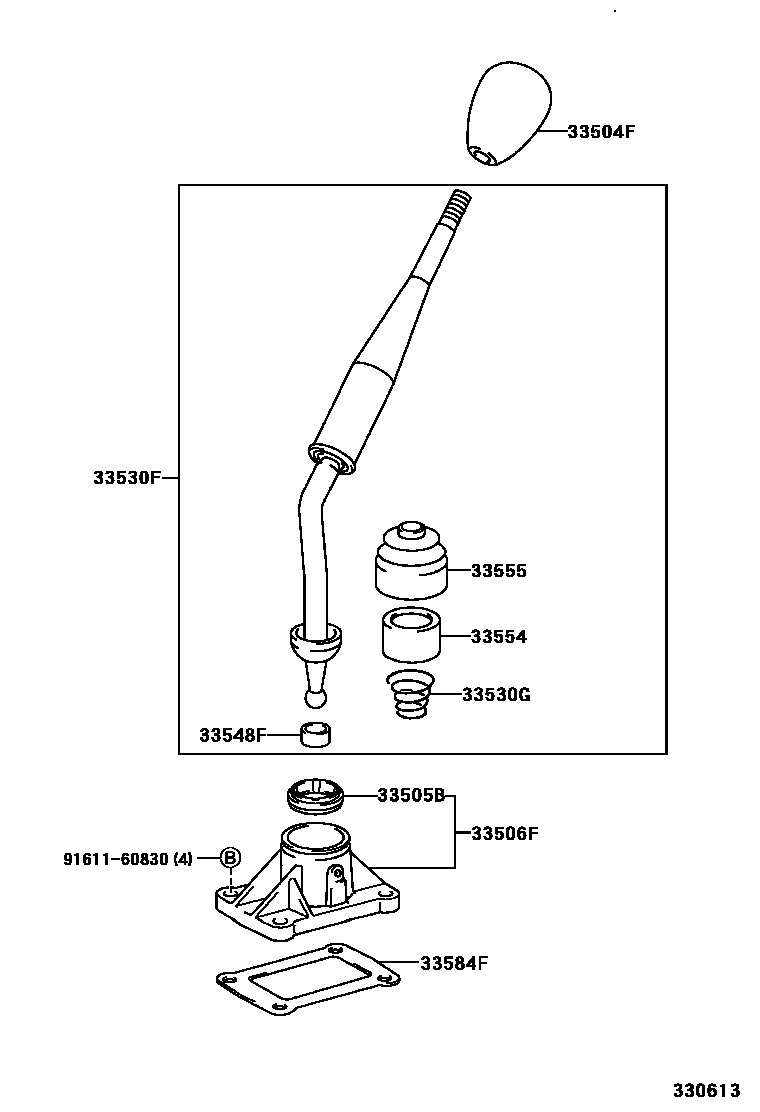

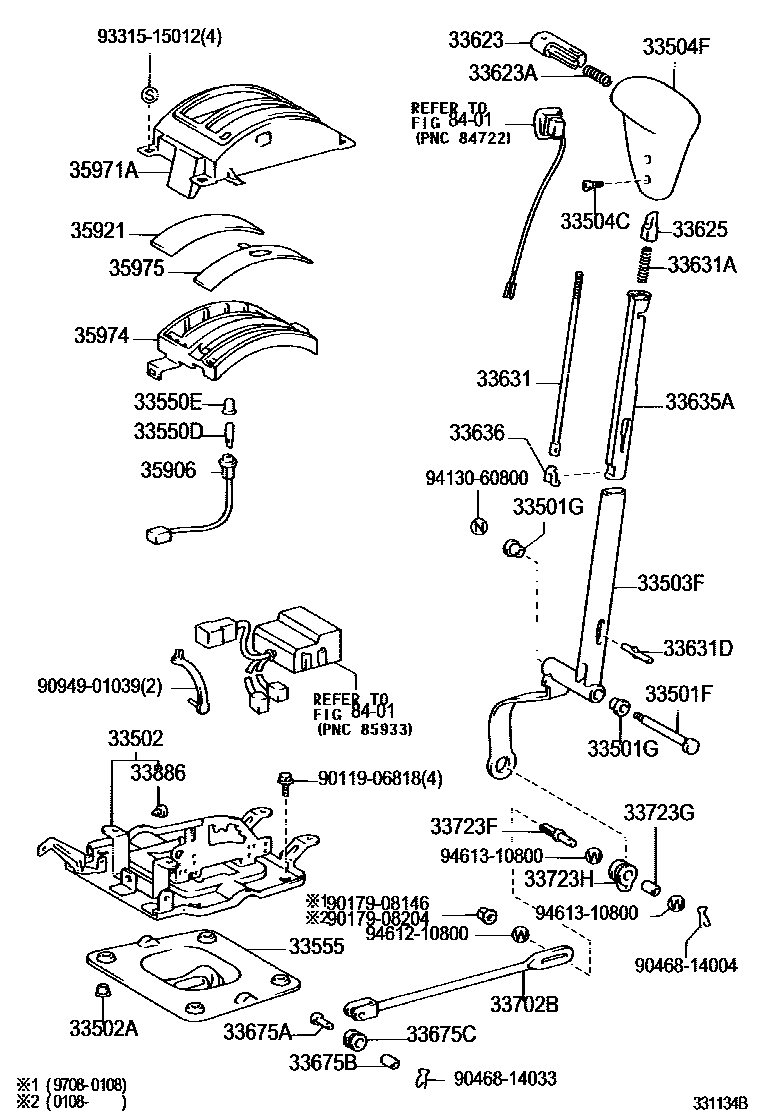

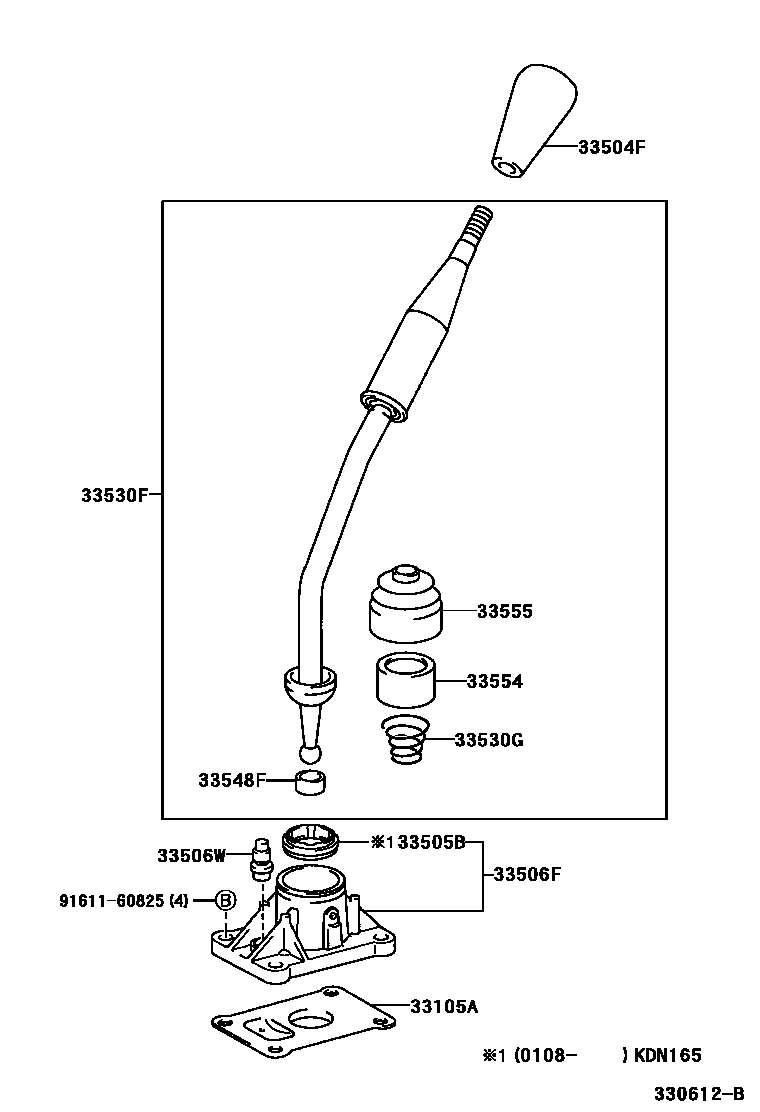

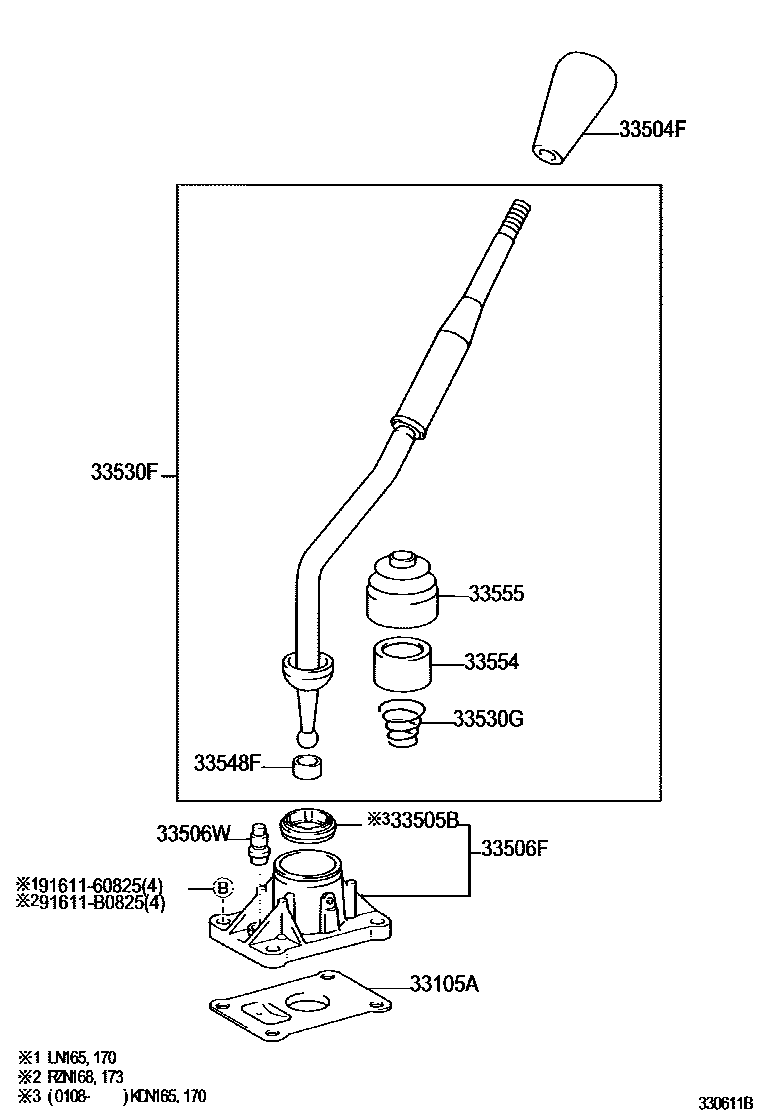

Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 4 images and 38 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33105A | Extension housing oil baffle sub-assembly (MTM) | 33105-35040 · 33144-35030 · 33144-35060 |
| 33501F | Control shaft sub-assembly (for floor shift) | 33511-22160 |
| 33501G | Bushing (for floor mounted shift control shaft) | 90385-11003 |
| 33502 | Shift lever base plate sub-assembly | 33502-35460 |
| 33502A | Collar (for securing floor shift) | 90387-06065 |
| 33503F | Shift lever sub-assembly (for floor shift) | 33055-35190 |
| 33504C | Screw (for securing shift lever knob) | 90159-40109 |
| 33505B | Shift lever seat sub-assembly | 33505-35020 · 33505-35030 |
| 33506F | Shift control lever stopper sub-assembly (for floor shift) | 33506-35070 · 33506-35100 · 33506-35140 · 33506-35160 |
| 33506W | Breather plug (for shift lever stop) | 90930-03075 · 90930-03114 |
| 33530F | Shift lever assembly (for floor shift) | 33530-35400 · 33530-35410 · 33530-35420 · 33530-35460 · 33530-35510 · 33530-35530 · 33530-35560 · 33530-35570 · 33530-35590 |
| 33530G | Conical spring (for gear selector) | 90502-26007 · 90502-26008 |
| 33548F | Shift lever bushing No. 1 (for floor shift) | 33548-31010 |
| 33550D | position indicator light bulb | 99132-12034 |
| 33550E | position indicator cover | 90339-09001 |
| 33554 | shift lever cover | 33554-30012 |
| 33555 | Gear shift lever dust cover | 33555-35040 · 33555-35100 · 33555-60030 |
| 33584F | Shift lever stop pad (for floor shift) | 33584-60010 |
| 33623A | Compression spring (for shift lever knob button) | 90501-07009 |
| 33625 | Shift lever handle sleeve | 33625-24010 |
| 33631 | Locking lever | 33631-16020 |
| 33631A | Compression spring (for locking lever) | 90501-07074 |
| 33631D | Grooved pin (for locking lever) | 90256-04003 |
| 33635A | Cable guide No. 1 (for gear selector) | 33635-16020 |
| 33636 | Cable guide No. 2 (for gear selector) | 33636-35010 |
| 33675A | Pin with hole (for transmission control lever) | 90240-08054 |
| 33675B | Bushing (for transmission control lever) | 90389-08005 |
| 33675C | retaining ring (for transmission control lever) | 90480-17177 |
| 33702B | No. 1 shift rod sub-assembly (for floor shift) | 33702-35260 · 33702-35310 |
| 33723F | Connecting rod swivel joint (for floor shifting) | 33723-22010 |
| 33723G | Bushing (for floor mounted shift control shaft) | 90389-08005 |
| 33723H | Retaining ring (for floor mounted shift control shaft) | 33572-22010 |
| 33886 | shift lever block | 33886-22020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35090 |
| 35921 | control position indicator board | 35921-38020 |
| 35971A | Position indicator light upper shell | 35971-35020 |
| 35974 | Position indicator light lower shell | 35974-35050 |
| 35975 | Slide cover (for position indicator light) | 35975-35040 |
