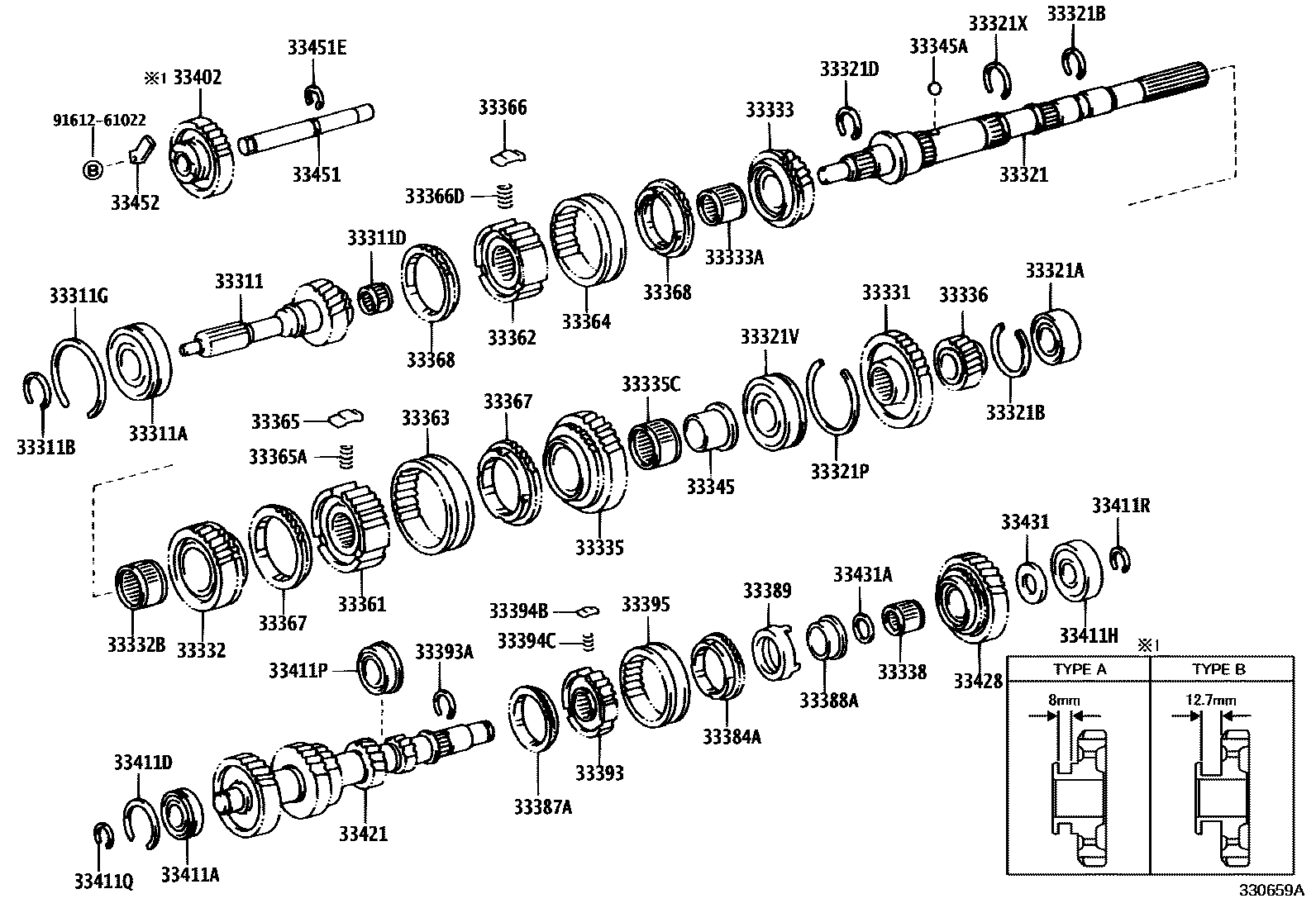

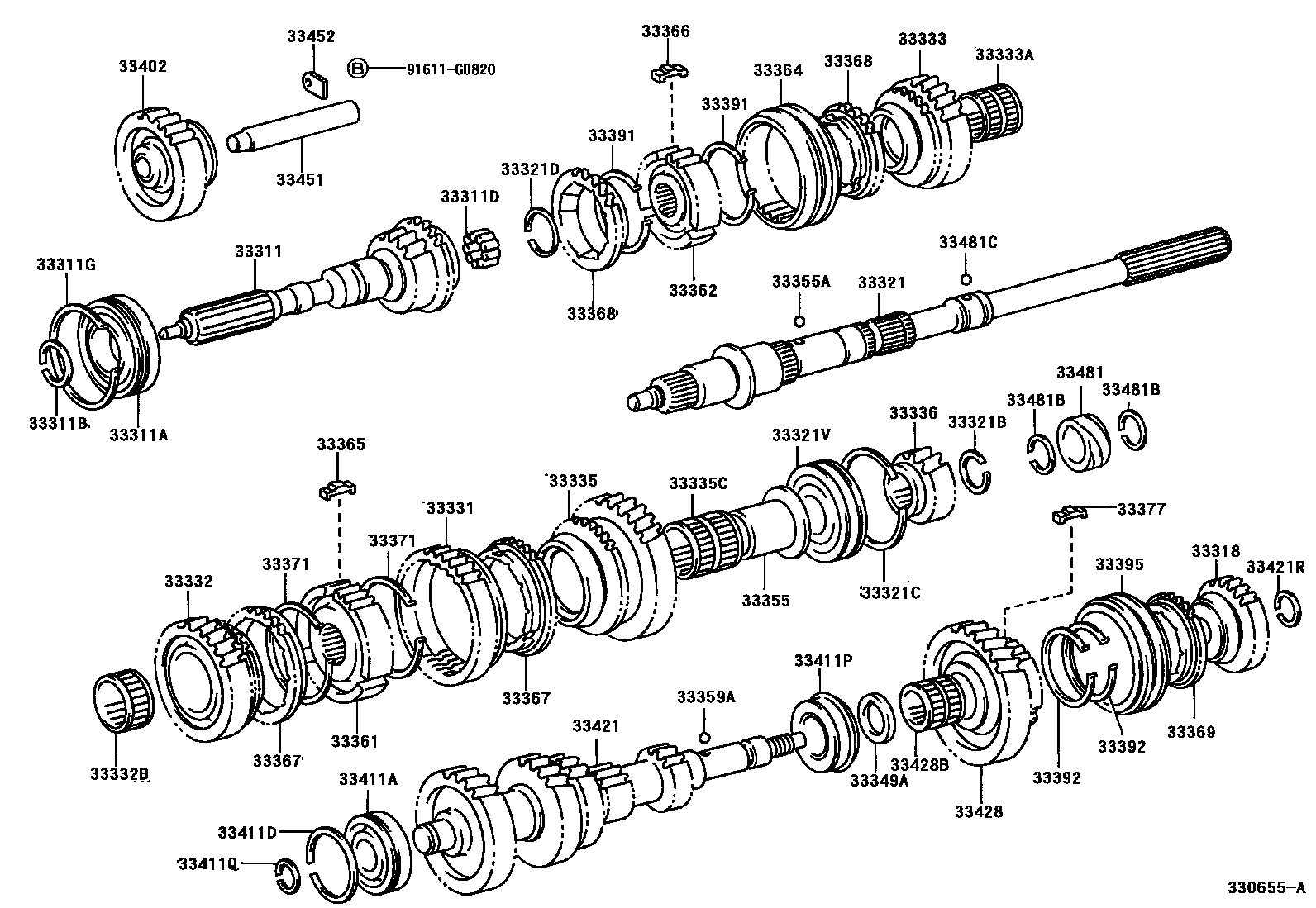

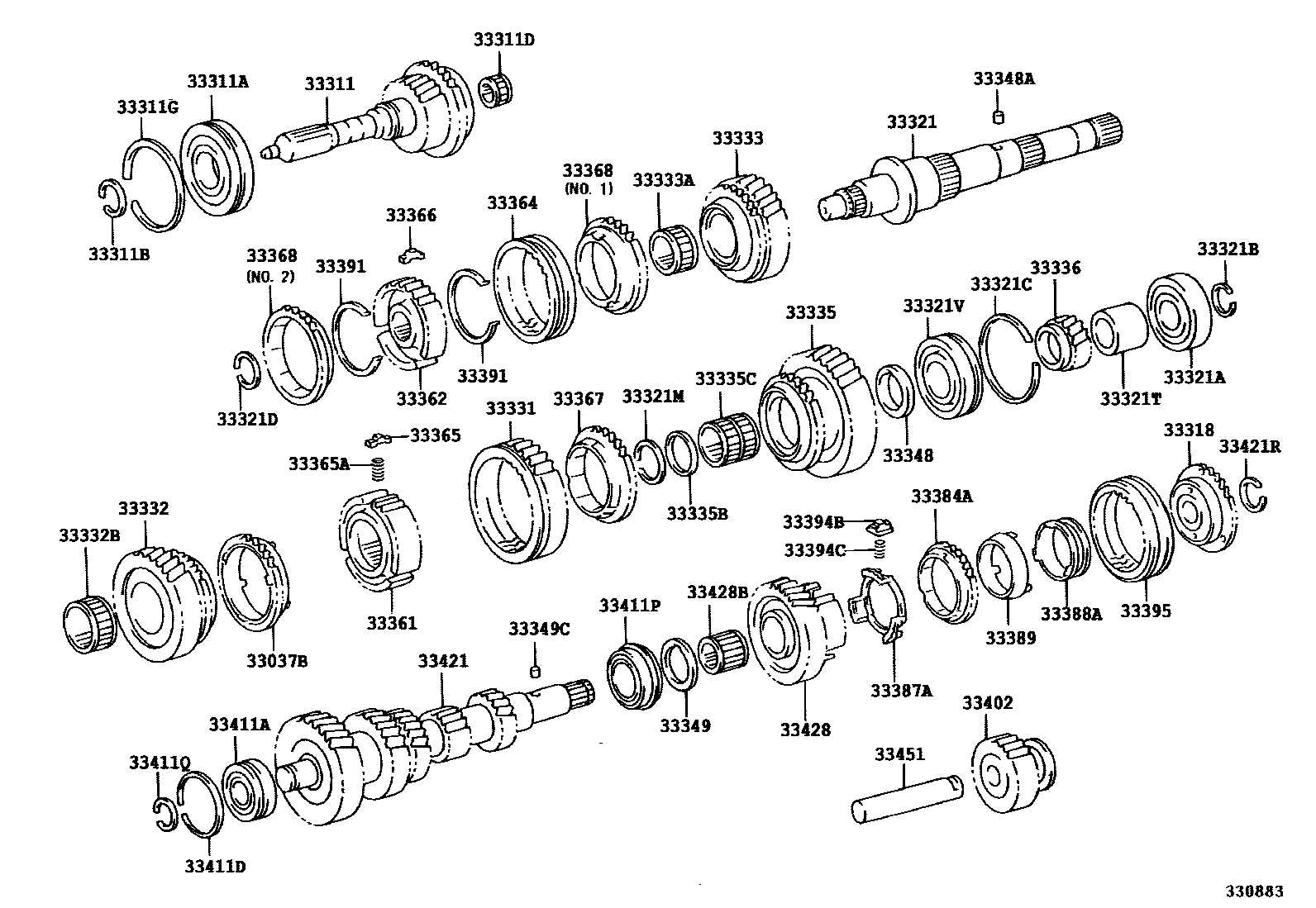

Toyota HILUX 变速器齿轮(MTM) — Figure 3305
Toyota HILUX EPC diagram 3305, 变速器齿轮(MTM), with 3 images and 80 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33037B | No. 1 synchronizer lock ring assembly | 33037-60040 |
| 33311 | input shaft | 33301-30080 · 33301-35080 · 33301-35110 · 33301-60050 |
| 33311A | Bearing (for front input shaft) | 90363-32024 · 90363-35033 · 90363-40050 |
| 33311B | Shaft snap ring (for front bearing) | 90520-30214 · 90520-30215 · 90520-30216 · 90520-30217 · 90520-30218 · 90520-30219 · 90520-33107 · 90520-33132 · 90520-33168 · 90520-33169 · 90520-33170 · 90520-33171 · 90520-33172 · 90520-38008 · 90520-38009 · 90520-38010 · 90520-38011 · 90520-38012 · 90520-38013 · 90520-38014 |
| 33311D | Input shaft bearing | 90361-06002 · 90364-19006 · 90364-25012 |
| 33311G | Shaft snap ring (for front bearing) | 90520-76001 · 90520-76002 · 90520-88001 |
| 33318 | No. 5 gear spline | 33318-35030 · 33318-35040 |
| 33321 | output shaft | 33321-35092 · 33321-35140 · 33321-35160 |
| 33321A | Bearings (for rear output shaft) | 33350-30010 · 90363-30075 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-25003 · 90520-25004 · 90520-25005 · 90520-25006 · 90520-25009 · 90520-25010 · 90520-25011 · 90520-25012 · 90520-25013 · 90520-25014 · 90520-25015 · 90520-25016 · 90520-25017 · 90520-25270 · 90520-25271 · 90520-25272 · 90520-25273 · 90520-25284 · 90520-25285 · 90520-28031 · 90520-28032 · 90520-28033 · 90520-28034 · 90520-28035 · 90520-28037 · 90520-28039 · 90520-28042 · 90520-28043 · 90520-28045 · 90520-28046 · 90520-28047 · 90520-28048 · 90520-28049 · 90520-28050 · 90520-28051 · 90520-28052 · 90520-54003 |
| 33321C | Shaft snap ring (for output shaft bearing) | 90520-71221 · 90520-81001 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-28010 · 90520-28011 · 90520-28012 · 90520-28013 · 90520-28014 · 90520-28015 · 90520-28016 · 90520-28017 · 90520-28018 · 90520-28245 · 90520-28246 · 90520-28248 · 90520-30014 · 90520-30015 · 90520-30016 · 90520-30017 · 90520-30018 · 90520-30019 · 90520-30020 |
| 33321M | Shaft snap ring (for bearings) | 90520-36007 · 90520-36008 · 90520-36009 · 90520-36010 · 90520-36011 · 90520-36012 · 90520-36013 |
| 33321P | Snap ring (for output shaft center bearing) | 90520-76001 |
| 33321T | Spacer (for output shaft) | 90561-30005 |
| 33321V | Bearings (for center output shaft) | 90363-30059 · 90363-35036 · 90363-35039 |
| 33321X | Shaft snap ring (for output shaft center bearing) | 90520-33001 · 90520-33002 · 90520-33003 · 90520-33004 · 90520-33005 · 90520-33006 · 90520-33007 · 90520-33107 · 90520-33108 · 90520-33109 · 90520-33132 · 90520-33133 · 90520-33134 · 90520-33172 |
| 33331 | reverse gear | 33331-30061 · 33331-35061 · 33331-35062 · 33331-60040 |
| 33332 | Second gear | 33033-26030 · 33033-35011 · 33033-35021 · 33033-35090 · 33033-60050 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-38002 · 90364-43006 · 90364-47003 |
| 33333 | Third gear | 33034-35060 · 33034-35070 · 33034-35090 · 33034-35100 · 33034-60030 |
| 33333A | Needle roller bearing (for third gear) | 90364-32023 · 90364-35005 · 90364-38011 |
| 33335 | first gear | 33032-26020 · 33032-28030 · 33032-28031 · 33032-35041 · 33032-60080 |
| 33335B | Spacer (for first gear bearing) | 90560-39002 |
| 33335C | Needle roller bearing (for first gear) | 90364-39005 · 90364-39011 · 90364-43006 |
| 33336 | fifth gear | 33336-28010 · 33336-28020 · 33336-30030 · 33336-35100 |
| 33338 | Fifth gear bushing or bearing | 90364-27002 |
| 33345 | First gear bushing | 33345-30020 |
| 33345A | Steel ball (for first gear bushing) | 90360-06004 |
| 33348 | First gear thrust washer | 33348-35010 |
| 33348A | Pin or steel ball (for first gear thrust washer) | 90250-05026 |
| 33349 | Fifth gear thrust washer | 33346-35020 |
| 33349A | Fourth gear gear washer | 33349-35010 |
| 33349C | Pin (for fifth gear thrust washer) | 90250-05026 |
| 33355 | First gear bearing inner race | 33355-35020 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-06004 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-06004 |
| 33361 | No. 1 transmission clutch hub | 33361-30030 · 33361-35020 · 33361-35040 |
| 33362 | No. 2 transmission clutch hub | 33362-30051 · 33362-35030 · 33362-35040 |
| 33363 | No. 1 transmission hub sleeve | 33363-35030 |
| 33364 | No. 2 transmission hub sleeve | 33364-26020 · 33364-35040 · 33364-35050 |
| 33365 | No. 1 synchromesh shift key | 33365-30060 · 33365-35020 · 33365-35021 · 33365-35040 · 33365-35060 |
| 33365A | compression spring | 90501-08134 · 90501-08212 |
| 33366 | No. 2 synchromesh shift key | 33365-30060 · 33366-35030 · 33366-35040 · 33366-35041 |
| 33366D | compression spring | 90501-08134 |
| 33367 | Synchronizer lock ring No. 1 | 33367-30060 · 33367-35020 · 33367-35080 · 33367-53030 · 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 · 33368-30120 · 33368-35030 · 33368-35040 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-14031 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33394-30011 |
| 33384A | No. 3 synchronizer outer locking ring | 33384-30010 · 33384-35011 |
| 33387A | Reverse synchronizer lock ring | 33387-30010 · 33387-30011 · 33387-34010 |
| 33388A | Reverse synchronizer extension ring | 33388-30010 · 33388-30011 · 33388-60010 |
| 33389 | synchronizer cone ring | 33389-30010 · 33389-30011 · 33389-60010 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 · 33391-25030 |
| 33392 | No. 3 synchromesh shift key spring | 33371-14010 |
| 33393 | No. 3 transmission clutch hub | 33393-30040 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-24002 · 90520-24003 · 90520-24004 · 90520-24005 |
| 33394B | No. 3 synchromesh shift key | 33394-30020 · 33394-30021 · 33394-35030 |
| 33394C | compression spring | 90501-07104 |
| 33395 | No. 3 transmission hub sleeve | 33395-30021 · 33395-35020 · 33395-35031 |
| 33402 | Reverse idler gear sub-assembly | 33402-30031 · 33402-30032 · 33402-35050 · 33402-35060 · 33402-53020 |
| 33411A | Bearing or roller (for front countershaft gear) | 90365-25014 · 90365-25019 · 90365-25023 |
| 33411D | No. 1 countershaft gear front bearing snap ring | 90520-49222 · 90520-56002 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90363-22007 |
| 33411P | intermediate shaft intermediate bearing | 33430-30010 · 90365-31006 · 90365-34005 |
| 33411Q | No. 2 countershaft gear front bearing snap ring | 90520-23057 · 90520-23058 · 90520-23059 · 90520-23060 · 90520-23061 · 90520-23062 · 90520-23089 · 90520-23090 · 90520-23115 · 90520-23143 · 90520-23144 · 90520-23145 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-20008 · 90520-20009 · 90520-20010 · 90520-20011 · 90520-20012 · 90520-20013 · 90520-20014 |
| 33421 | countershaft gear | 33421-28051 · 33421-28052 · 33421-35170 · 33421-35180 · 33421-35220 · 33421-60170 |
| 33421R | Shaft snap ring (for countershaft rear gear) | 90520-19008 · 90520-19009 · 90520-19010 · 90520-19011 · 90520-19012 · 90520-19013 · 90520-19014 · 90520-22016 · 90520-22017 · 90520-22018 · 90520-22019 · 90520-22020 · 90520-22021 · 90520-22022 |
| 33428 | Countershaft fifth gear | 33046-28032 · 33046-35062 · 33046-35090 · 33428-30040 · 33428-60030 |
| 33428B | Bearings (for countershaft fifth gear) | 90364-26002 · 90364-30009 |
| 33431 | No. 1 countershaft gear spacer | 33431-22030 |
| 33431A | No. 2 countershaft gear spacer | 33431-22020 |
| 33451 | Reverse gear idler shaft | 33451-28010 · 33451-28011 · 33451-30060 · 33451-35030 |
| 33451E | E-ring (for reverse idler shaft) | 90523-17001 |
| 33452 | Reverse gear idler shaft stop | 33452-30021 · 33452-36030 |
| 33481 | Speedometer driving gear (MTM) | 33481-22010 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-26061 |
| 33481C | Reverse gear shift positioning steel ball | 90360-06004 |
