Toyota HILUX 喷油泵总成 — Figure 2202

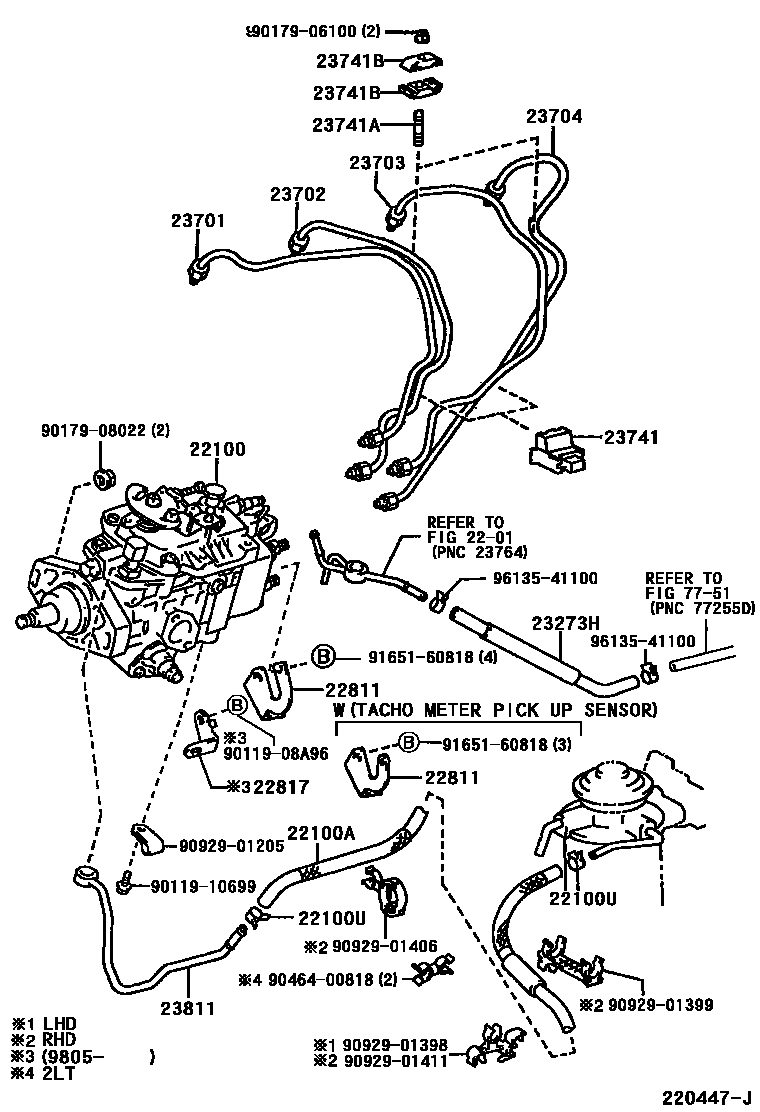

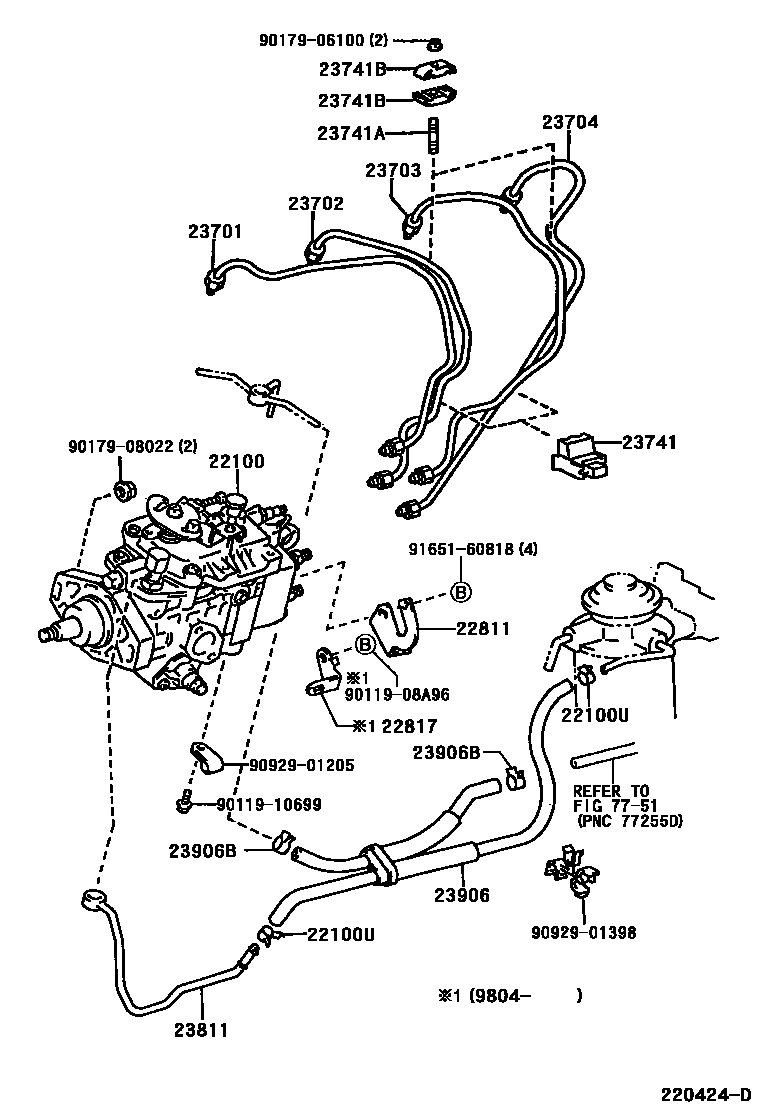

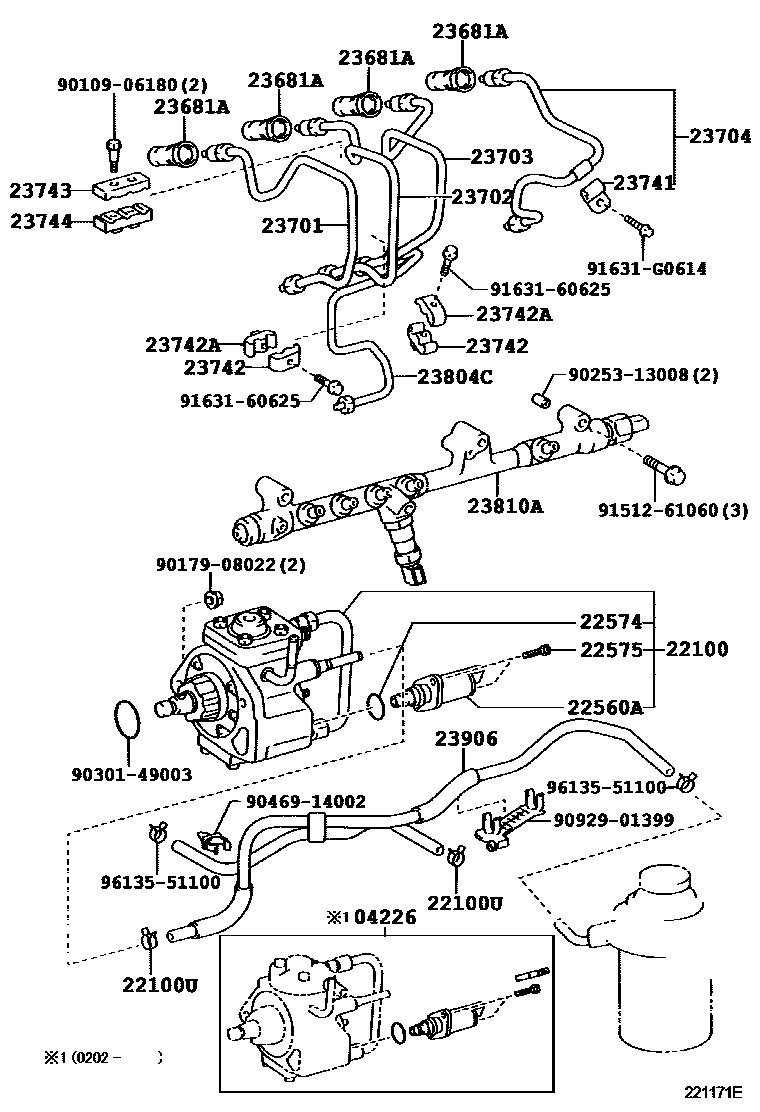

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 4 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-30020 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-30020 · 22100-30021 · 22100-5B320 · 22100-5B360 · 22100-5B460 · 22100-5B670 · 22100-5B820 · 22100-5B830 · 22100-5B850 · 22100-5B860 · 22100-5B870 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-54100 · 23271-54110 |
| 22100U | Fuel hose clamp (for fuel injection pump) | 90467-13050 · 96135-51300 |
| 22560A | Oil suction control valve assembly | 22560-30020 |
| 22574 | Oil suction control solenoid valve gasket | 22574-30040 |
| 22575 | Oil suction control valve bolt | 22395-54270 |
| 22811 | No. 1 fuel injection pump bracket | 22811-54041 · 22811-54042 · 22811-54050 |
| 22817 | pump bracket bracket | 22817-54011 |
| 23273H | No. 2 fuel hose | 23273-54050 · 23273-54060 |
| 23681A | Injector body seal | 23681-30010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-30010 · 23701-54140 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-30010 · 23702-54140 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-30010 · 23703-54100 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-39015 · 23704-54100 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-30010 · 23741-54030 |
| 23741A | Stud bolts (for fuel injection pipe clamp) | 90116-06095 |
| 23741B | Fuel injection pipe clamp | 23741-56010 |
| 23742 | No. 2 fuel injection pipe clamp | 23742-27010 |
| 23742A | No. 3 fuel injection pipe clamp | 23742-58020 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-30010 · 23743-30011 |
| 23744 | No. 4 fuel injection pipe clamp | 23743-30020 · 23743-30021 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-30020 |
| 23810A | Common rail assembly | 23810-30070 · 23810-30071 |
| 23811 | Fuel pipe (for fuel filter to injection pump) | 23811-54151 |
| 23906 | Fuel hose sub-assembly | 23906-30010 · 23906-30020 · 23906-54090 |
| 23906B | Hose clip (for fuel hose) | 96135-41100 |
