Toyota HILUX 起动机 — Figure 1904

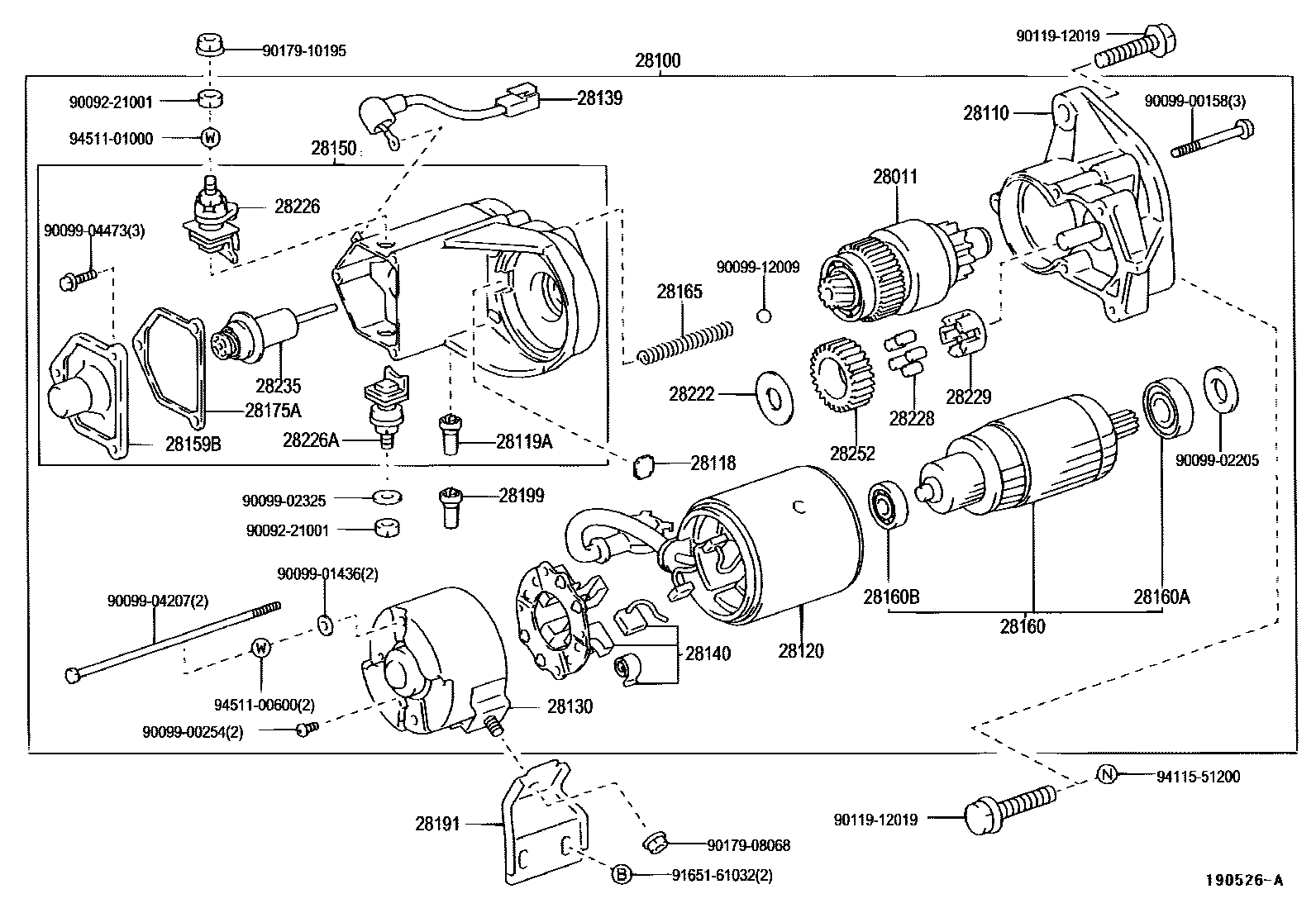

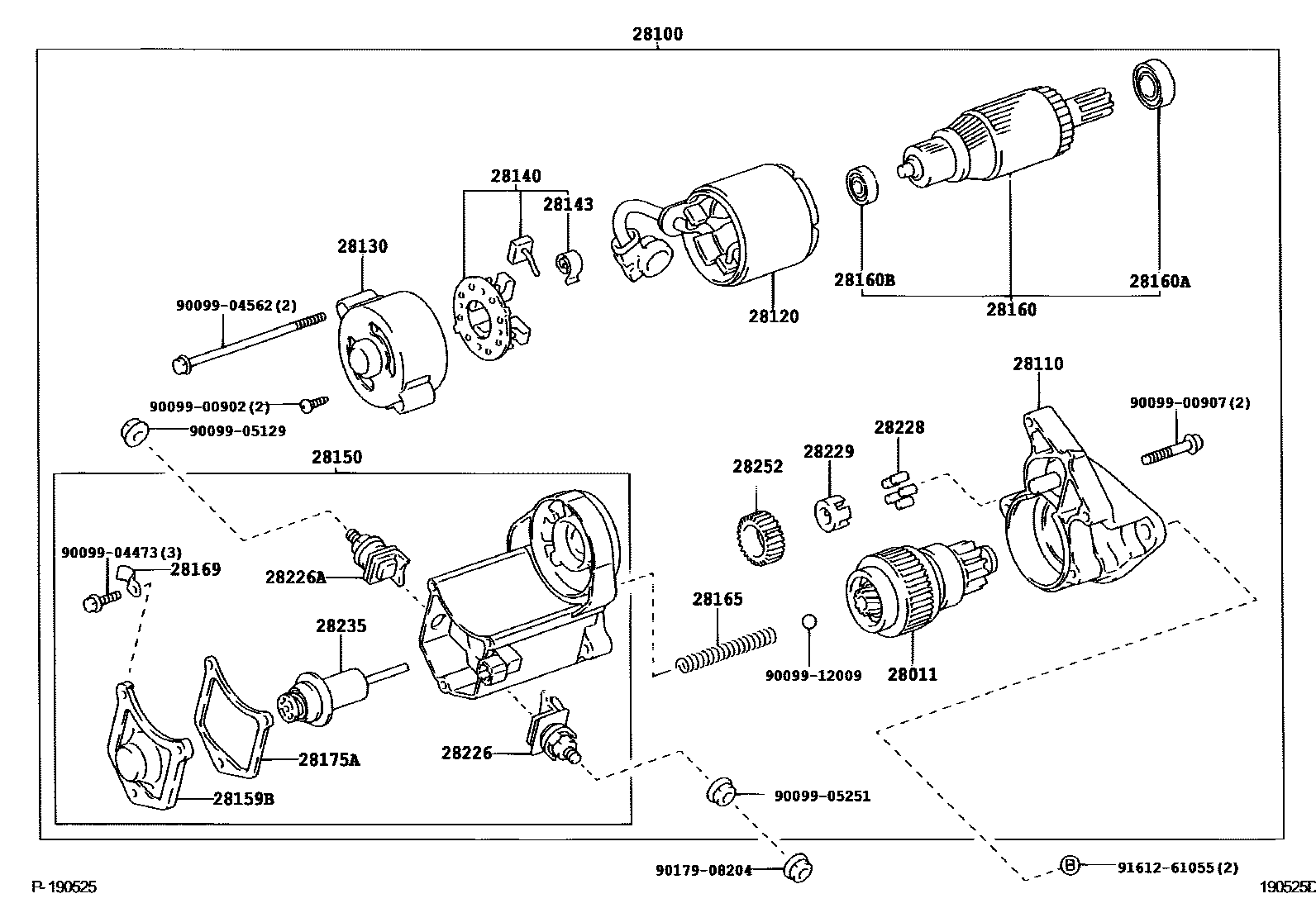

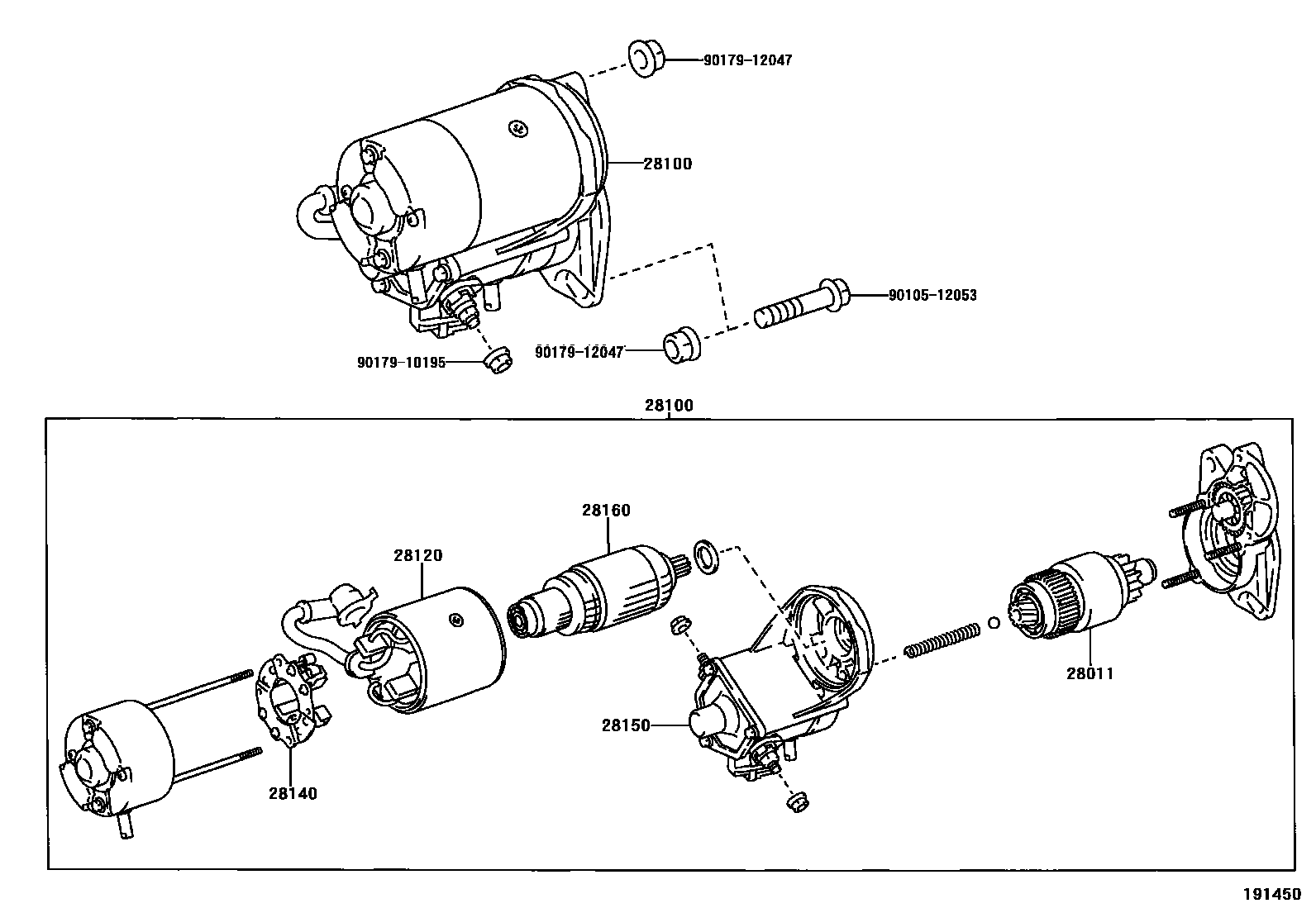

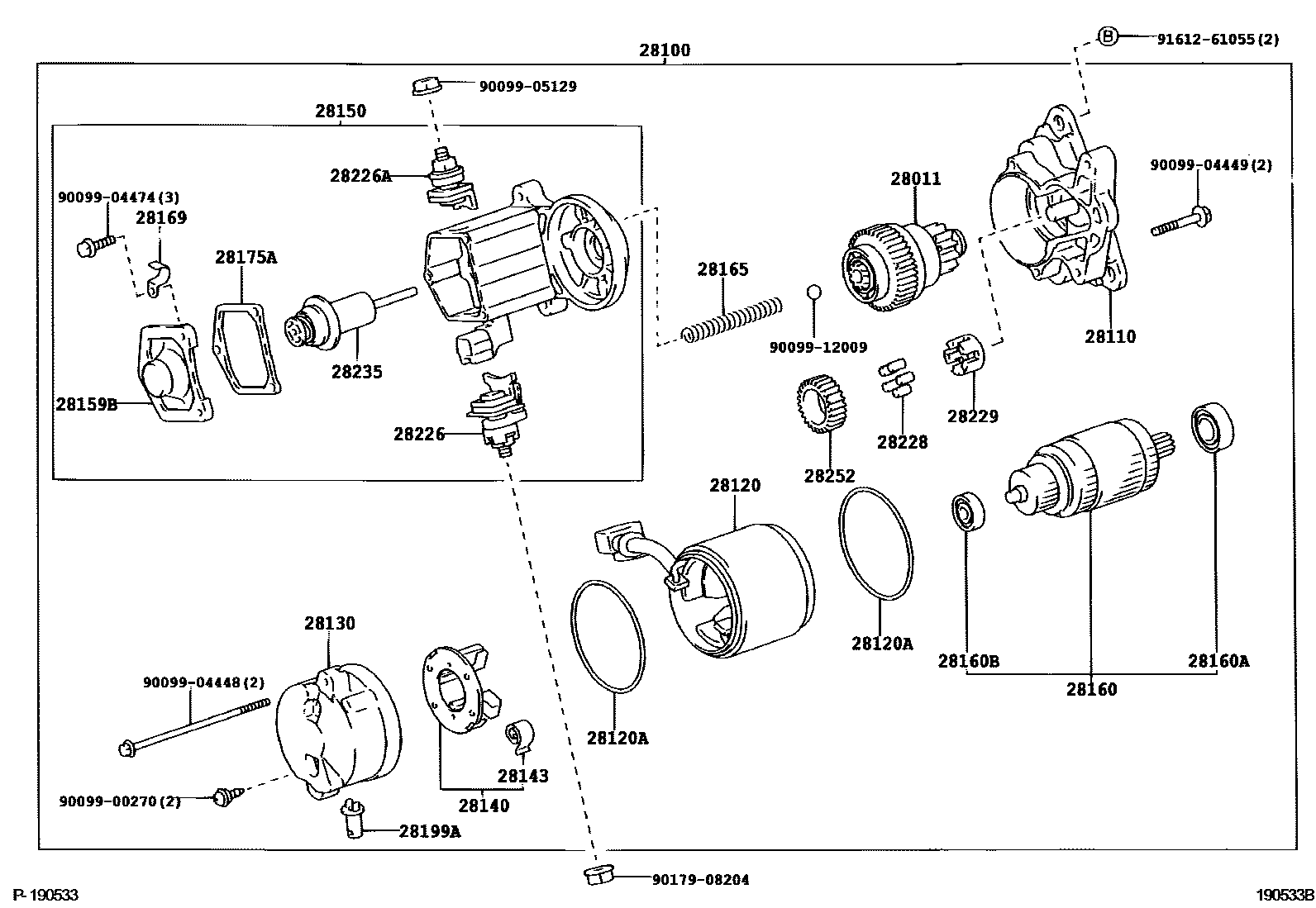

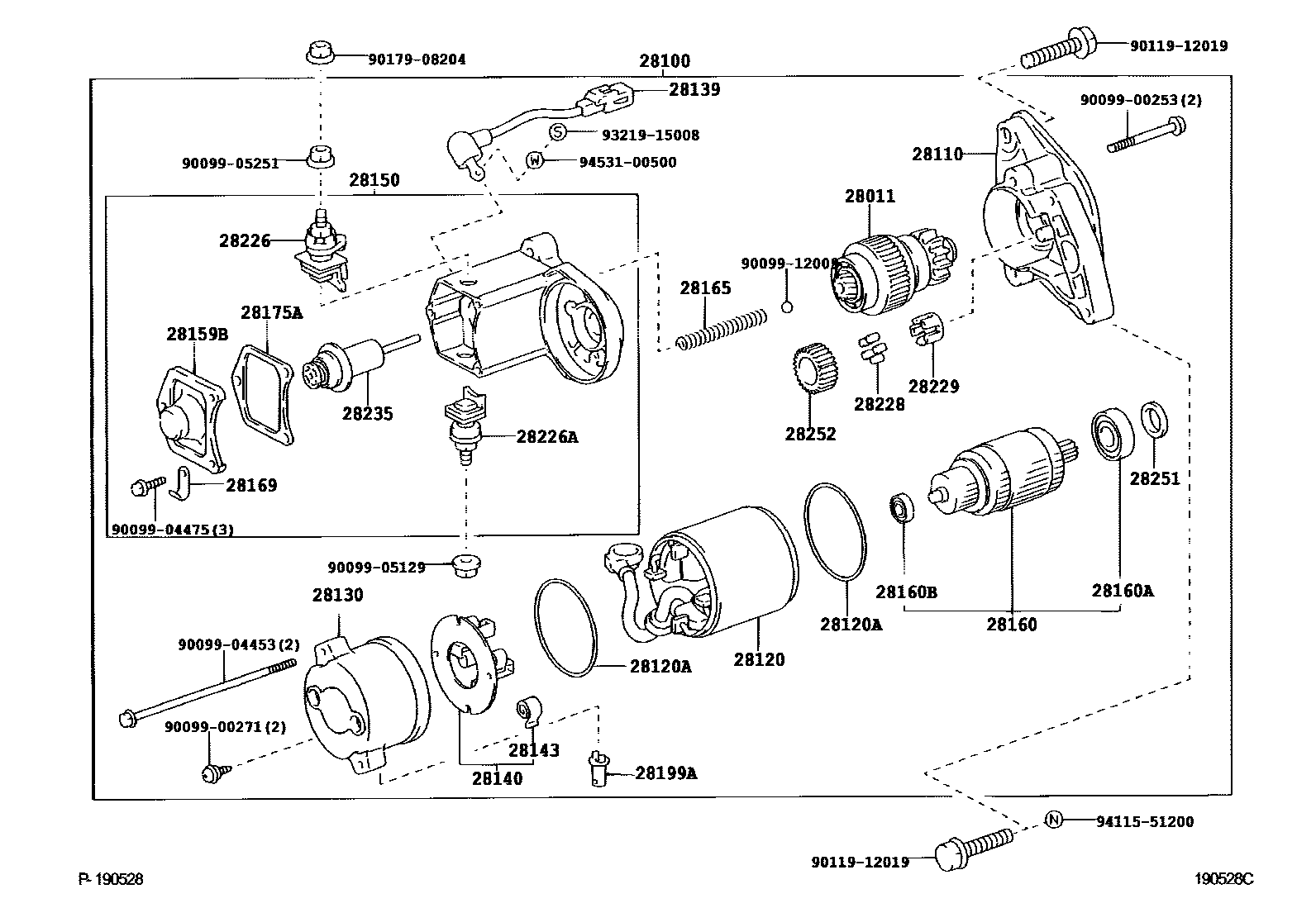

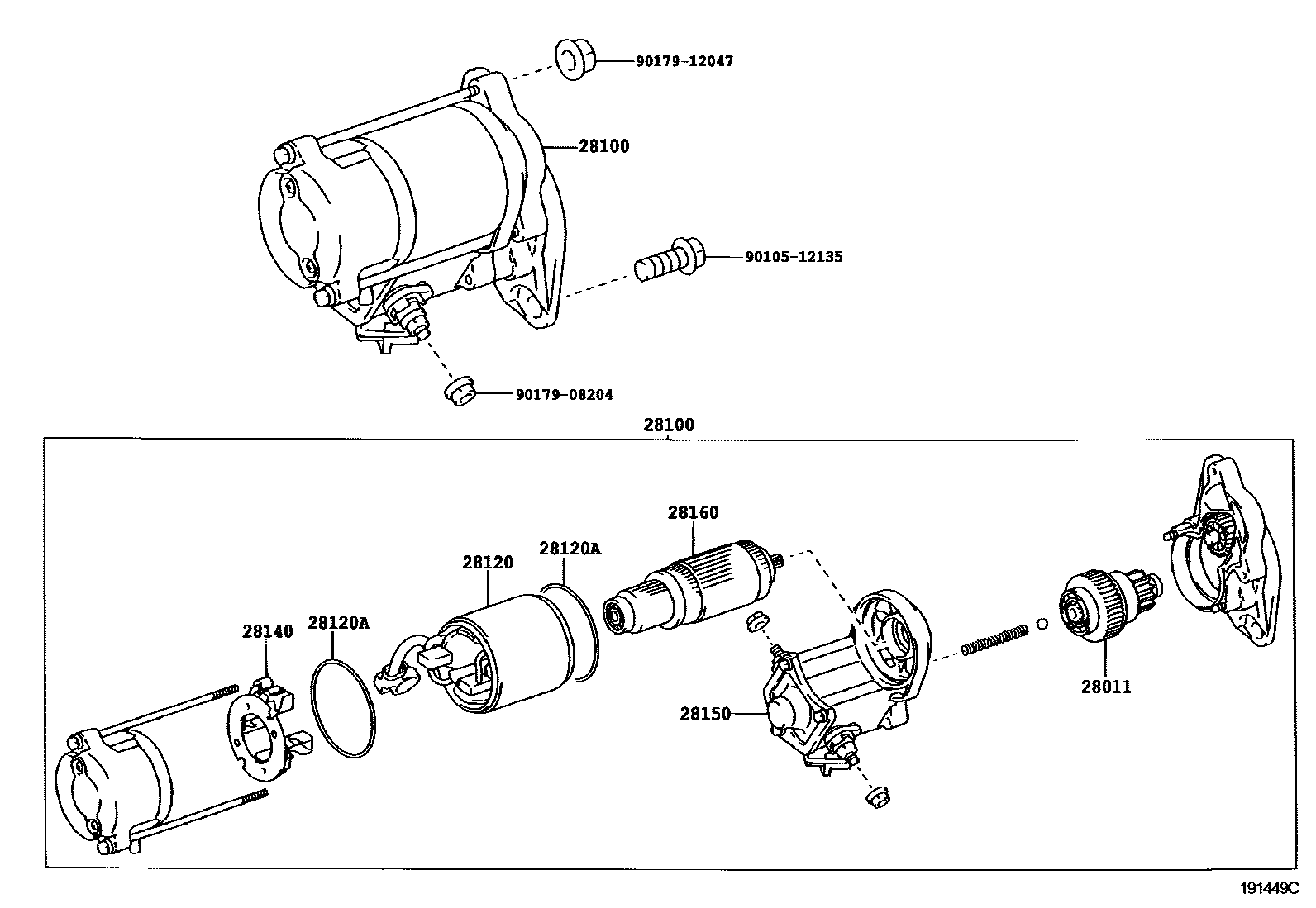

Toyota HILUX EPC diagram 1904, 起动机, with 6 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-26042 · 28011-30040 · 28011-30050 · 28011-54010 · 28011-54380 · 28011-76070 |
| 28100 | Starter assembly | 28100-30040 · 28100-30050 · 28100-54320 · 28100-54380 · 28100-75070 · 28100-75090 |
| 28110 | Starter drive end housing assembly | 28110-54380 · 28110-75070 · 28110-75090 · 28115-54011 |
| 28118 | Plate (for starter yoke) | 28118-77090 |
| 28119A | Starter end frame cover | 28199-54190 |
| 28120 | Starter yoke assembly | 28120-26071 · 28120-54380 · 28120-56081 · 28120-66040 · 28120-67020 |
| 28120A | O-ring (for starter yoke) | 90099-14064 |
| 28130 | Starter commutator end frame assembly | 28130-15020 · 28130-54380 · 28130-54430 · 28130-64170 |
| 28139 | Lead No. 1 (for starter) | 28139-54251 · 28139-54380 |
| 28140 | Starter brush holder assembly | 28140-26070 · 28140-54380 · 28140-76070 · 28140-77090 |
| 28143 | starter brush spring | 28143-54380 · 90099-17112 |
| 28150 | Starter electromagnetic switch assembly | 28150-30040 · 28150-30050 · 28150-54320 · 28150-54380 · 28150-75070 · 28150-75130 |
| 28159B | Electromagnetic switch cover | 28159-10040 · 28159-54380 · 28159-55050 · 28159-56310 |
| 28160 | Starter armature assembly | 28160-26071 · 28160-54140 · 28160-54380 · 28160-74070 |
| 28160A | starter armature bearing | 28253-45020 · 90099-10107 · 90099-10196 · 90099-10208 |
| 28160B | Starter armature bearing No. 2 | 90099-10113 · 90099-10119 · 90099-10197 |
| 28165 | Starter solenoid switch return spring | 28165-26040 · 28165-76070 · 28165-77090 |
| 28169 | Starter motor lead clamp | 28169-10040 · 28169-54380 · 28169-55050 |
| 28175A | Electromagnetic switch cover gasket | 28175-10040 · 28175-54380 · 28175-55050 · 28175-56310 |
| 28191 | starter bracket | 28191-54010 · 28191-54020 |
| 28199 | starter cover | 28199-46080 |
| 28199A | Starter dust protection device | 28199-74110 |
| 28222 | Starter idler clutch washer | 28222-77090 |
| 28226 | battery terminal starter assembly | 28226-54320 · 28226-54340 · 28226-54380 · 28226-64200 · 28226-70040 |
| 28226A | Motor terminal starter assembly | 28226-54220 · 28226-72010 · 28226-74070 |
| 28228 | Starter idler clutch roller | 28228-26040 · 28228-56080 |
| 28229 | Starter idler gear fixing | 28229-26040 · 28229-56080 · 28229-74070 |
| 28235 | Electromagnetic switch core | 28235-17030 · 28235-35080 · 28235-54380 · 28235-55050 |
| 28251 | Starter drive pinion | 28254-54380 |
| 28252 | starter idler gear | 28254-45020 · 28254-64130 · 28254-74070 · 28254-77090 |
