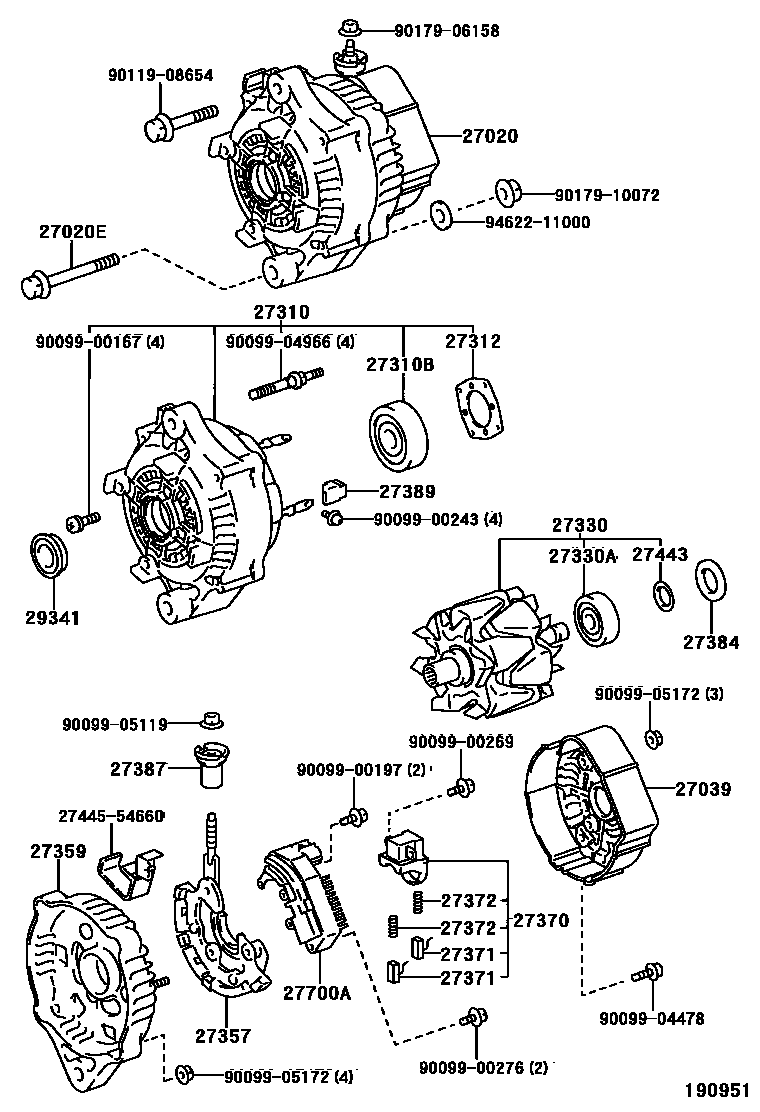

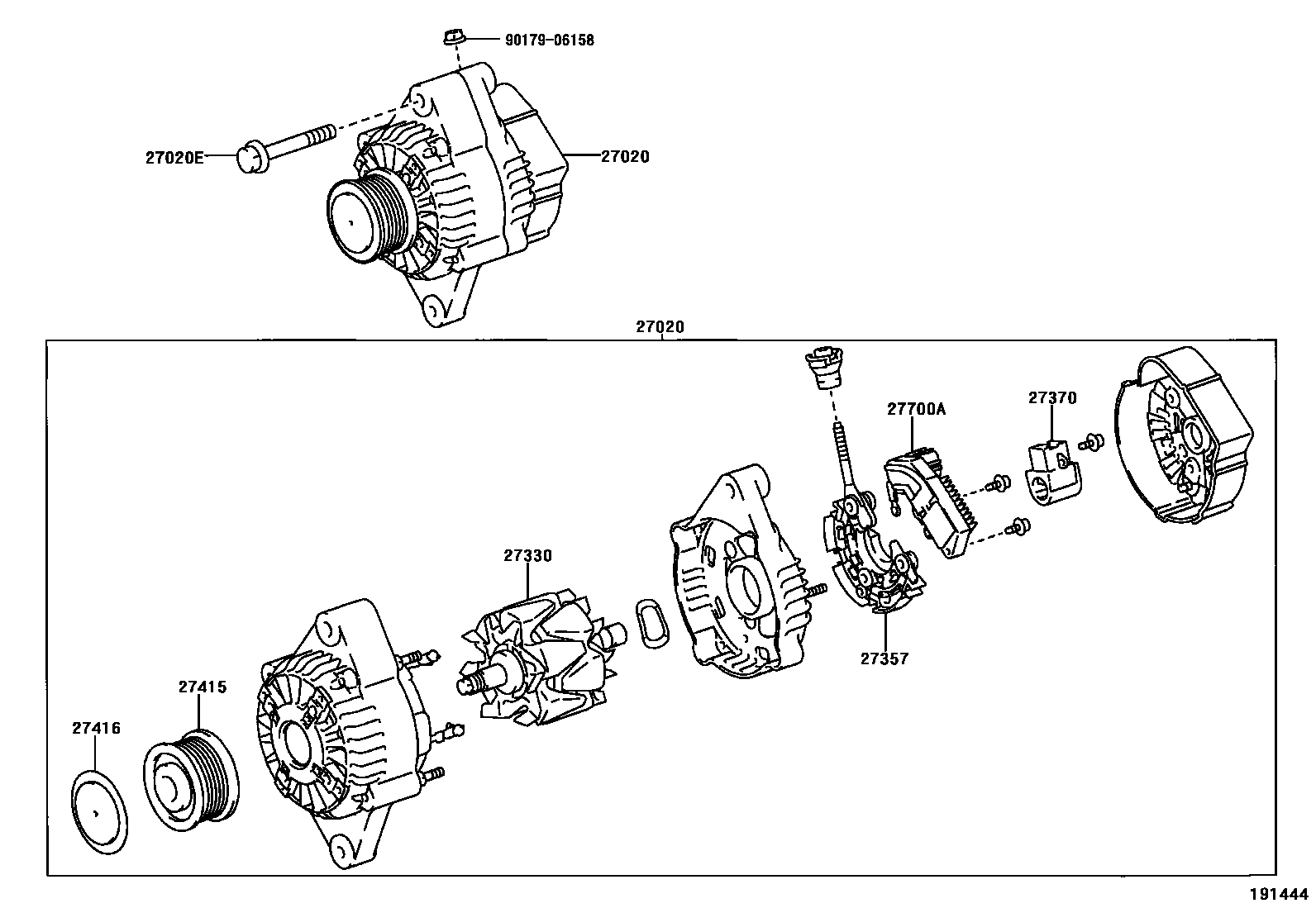

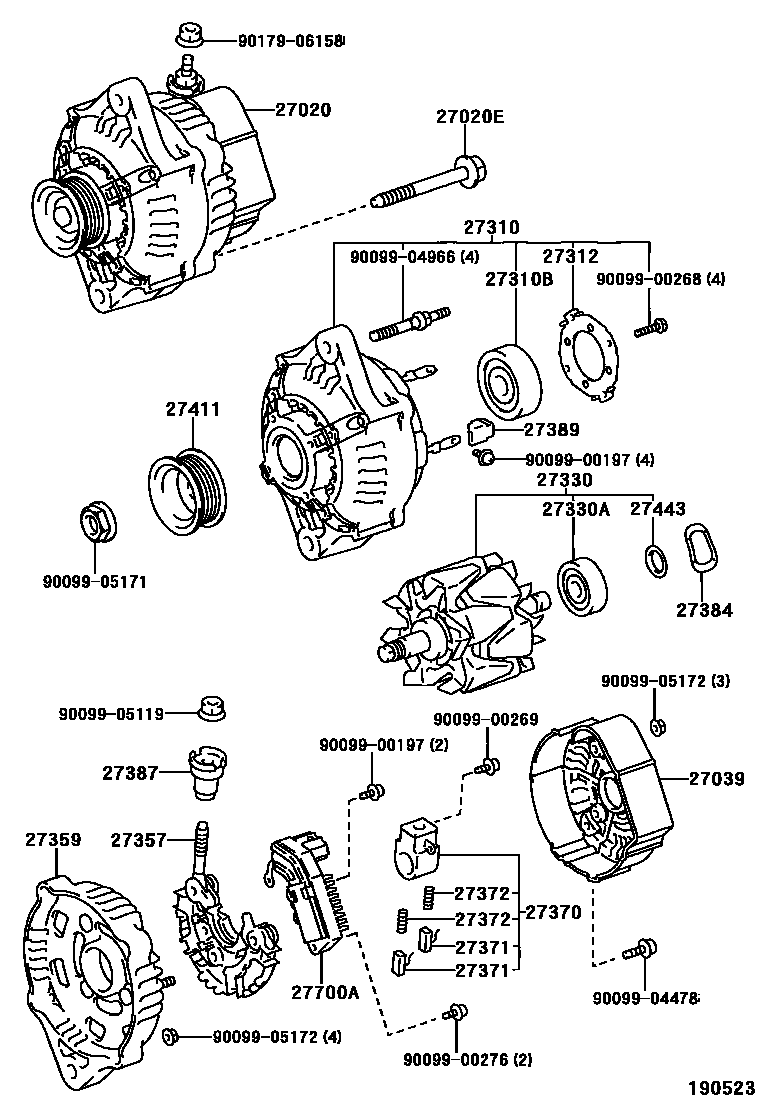

Toyota HILUX Alternator — Figure 1903
Toyota HILUX EPC diagram 1903, Alternator, with 3 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-30020 · 27060-54290 · 27060-75190 |
| 27020E | Bolts (for generator) | 90101-10231 · 90105-10092 · 90105-10221 · 90105-10239 · 90105-10287 |
| 27039 | Alternator Rear End Cover | 27039-16380 |
| 27310 | Alternator Drive End Frame Assembly | 27310-54630 · 27310-75040 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10165 · 90099-10178 |
| 27312 | Retainer Plate | 27312-64130 · 27312-70200 |
| 27330 | Alternator Rotor Assembly | 27330-11250 · 27330-64130 · 27330-67100 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-13360 · 27357-16380 · 27357-67100 |
| 27359 | Generator rectifier end frame | 27359-16182 |
| 27370 | Alternator Brush Holder Assembly | 27370-35060 · 27370-58320 |
| 27371 | Generator brushes | 27371-70300 |
| 27372 | Generator brush spring | 27372-87501 |
| 27384 | Washer | 27384-16380 |
| 27387 | Terminal Insulator | 27387-70171 |
| 27389 | Terminal Insulator | 27389-63020 |
| 27411 | Alternator Pulley | 27411-16150 |
| 27415 | PULLEY, ALTERNATOR W/CLUTCH | 27415-30020 |
| 27416 | Generator pulley cover | 27416-30010 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27700A | Generator voltage regulator assembly | 27700-30070 · 27700-50030 |
| 29341 | Generator oil seal | 29341-64130 |
