Toyota HILUX vacuum tube — Figure 1708

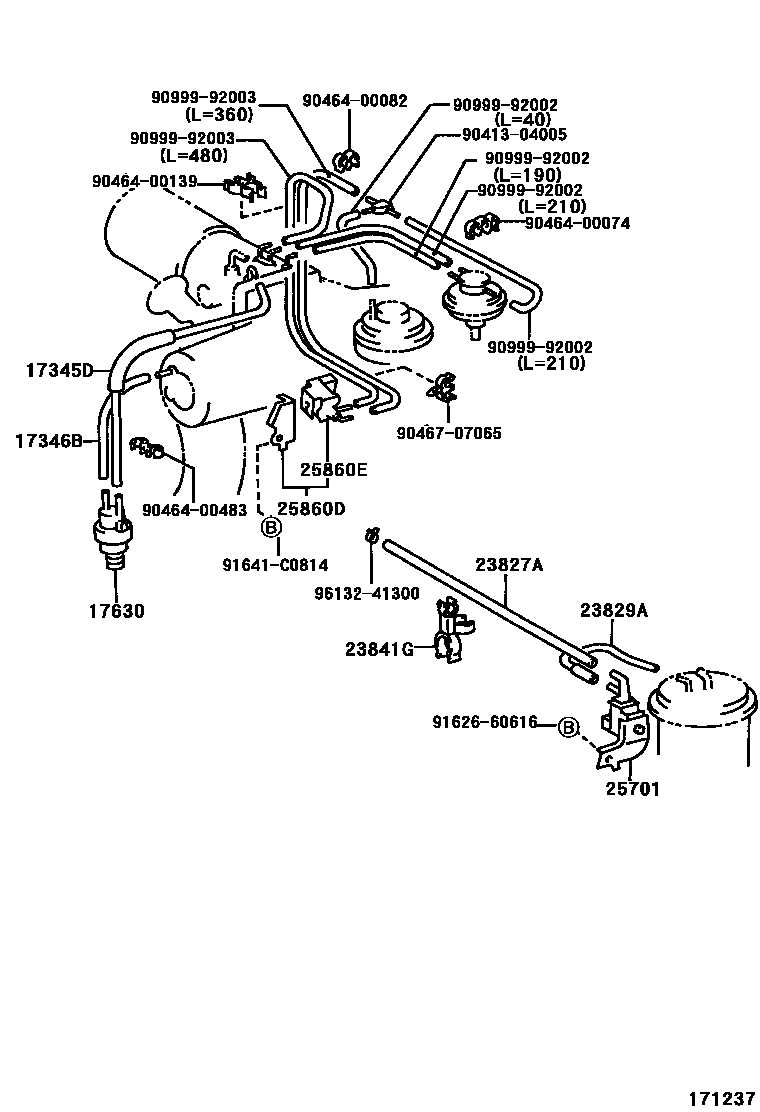

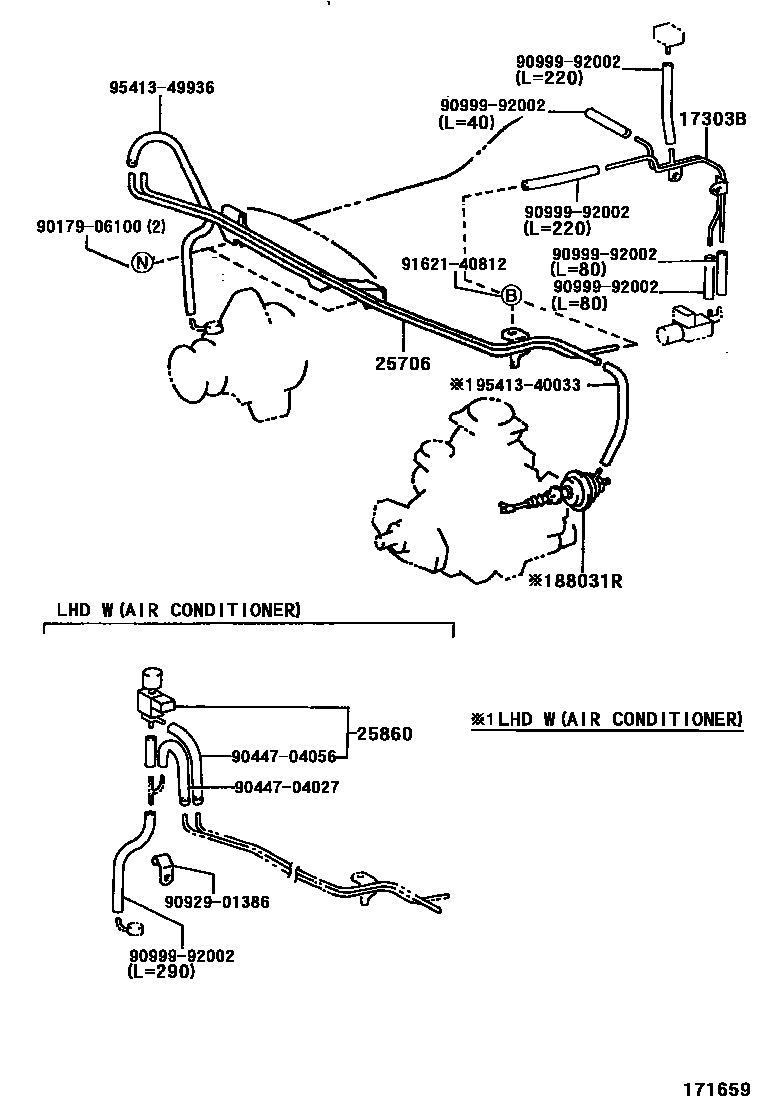

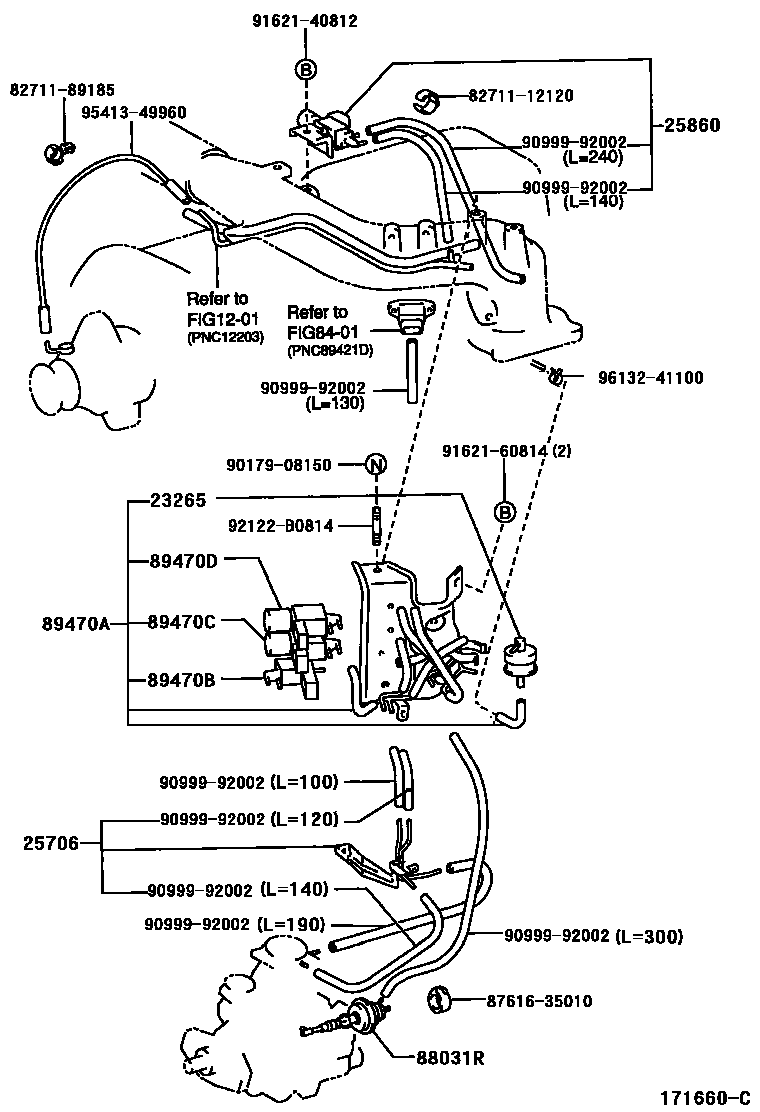

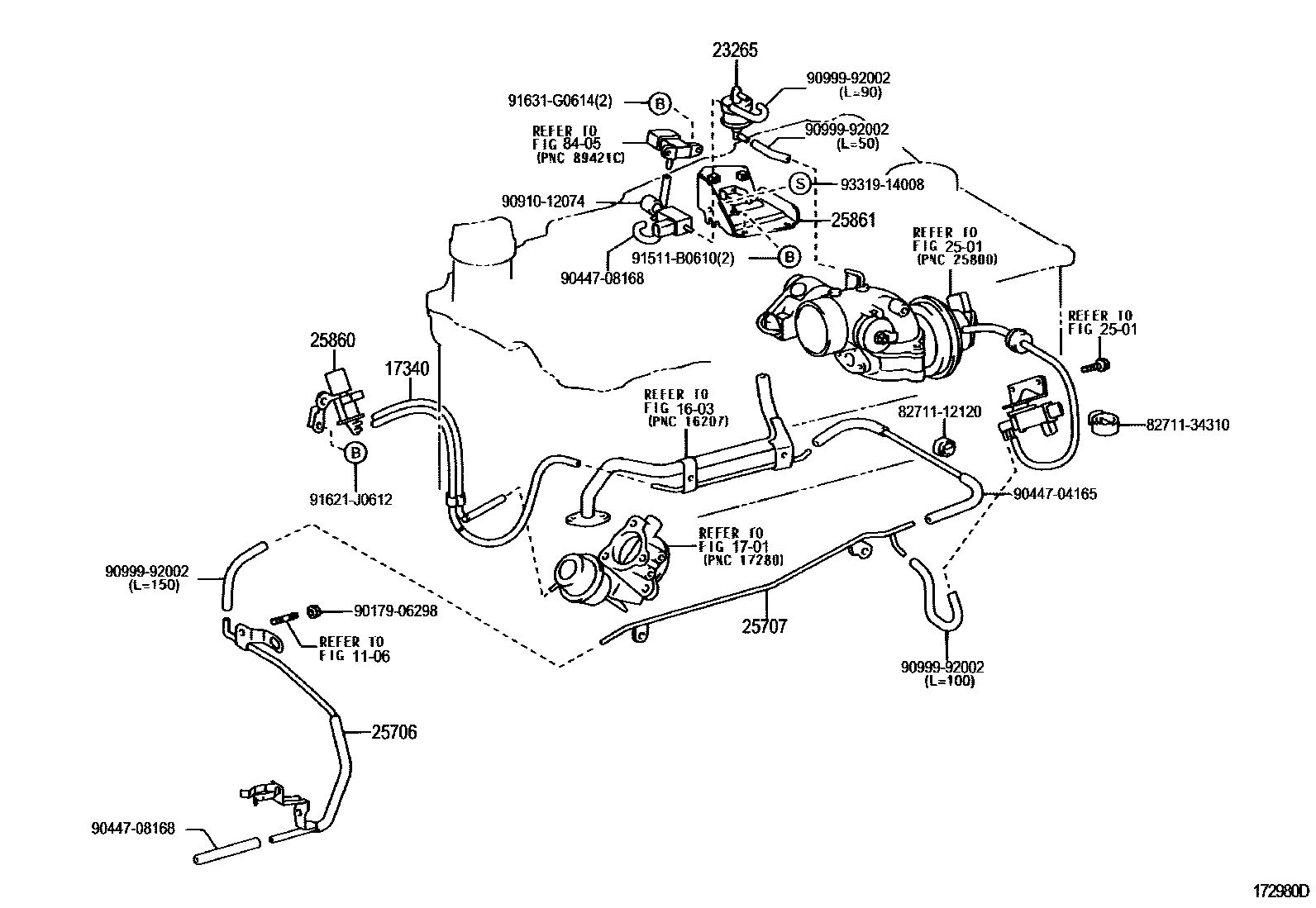

Toyota HILUX EPC diagram 1708, vacuum tube, with 7 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-54060 |
| 17308B | Vacuum hose sub-assembly | 17308-54050 |
| 17340 | Vacuum switch valve hose assembly | 17340-30010 |
| 17345D | No. 5 air hose | 17345-75010 |
| 17346B | No. 6 air hose | 17346-75010 |
| 17630 | Air control valve assembly | 17630-15090 · 17630-70020 |
| 23265 | No. 1 gas filter | 90917-11033 · 90917-11036 |
| 23827A | No. 2 fuel vapor supply hose | 23827-75090 |
| 23829A | Fuel vapor supply hose | 23829-75180 |
| 23841G | fuel hose clamp | 23841-75010 |
| 25701 | Emission control valve assembly | 25701-75040 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-30020 · 25706-54040 · 25706-54041 · 25706-54070 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-67011 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-30030 · 25860-54150 · 25860-54160 · 25860-54190 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-75060 |
| 25860E | No. 2 vacuum switch valve | 90910-12065 |
| 25861 | Vacuum switch valve bracket | 25862-30020 |
| 88031R | Idle speed lift actuator assembly | 88031-35130 |
| 89470A | Vacuum switch valve assembly with bracket | 89470-35060 |
| 89470B | Vacuum switch valve | 90910-12059 |
| 89470C | No. 2 vacuum switch valve | 90910-12089 |
| 89470D | No. 3 vacuum switching valve | 90910-12093 |
