Toyota HILUX Air Cleaner — Figure 1703

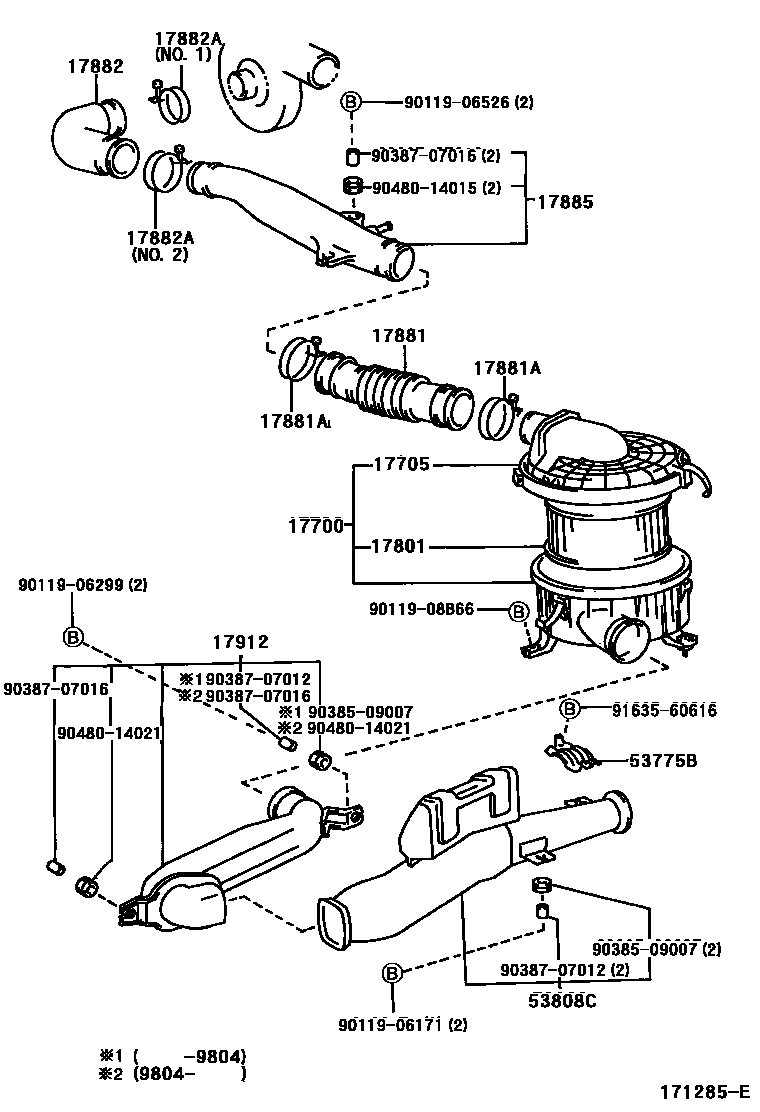

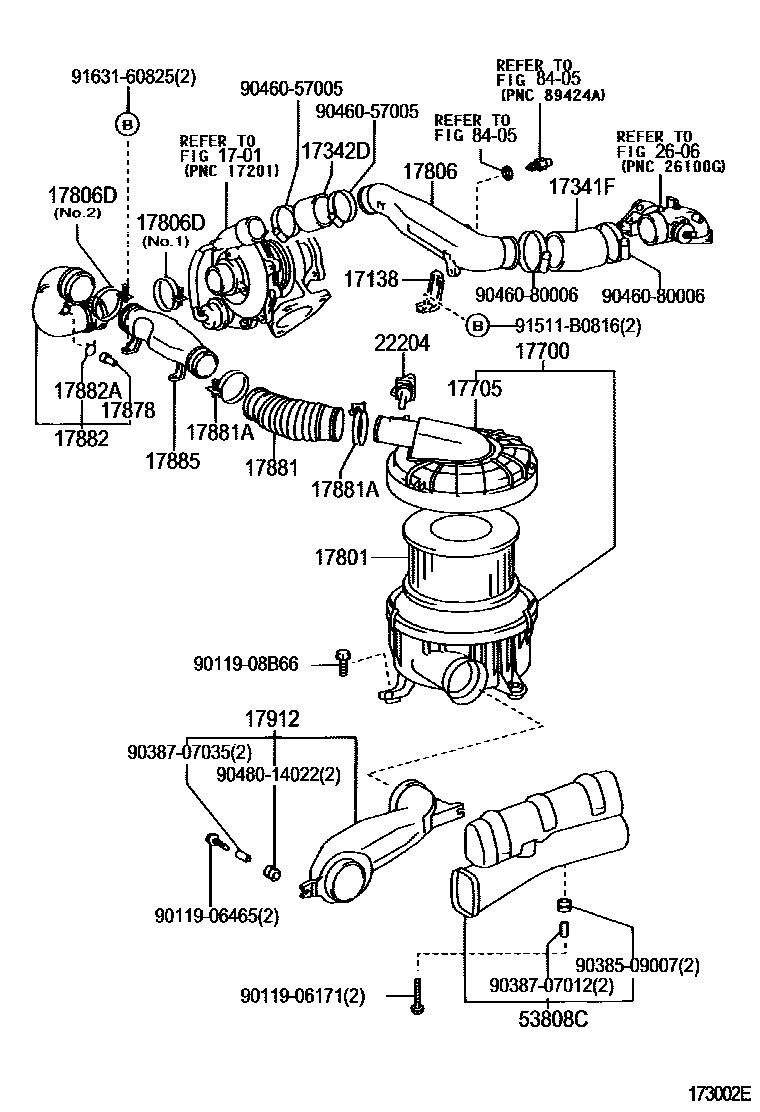

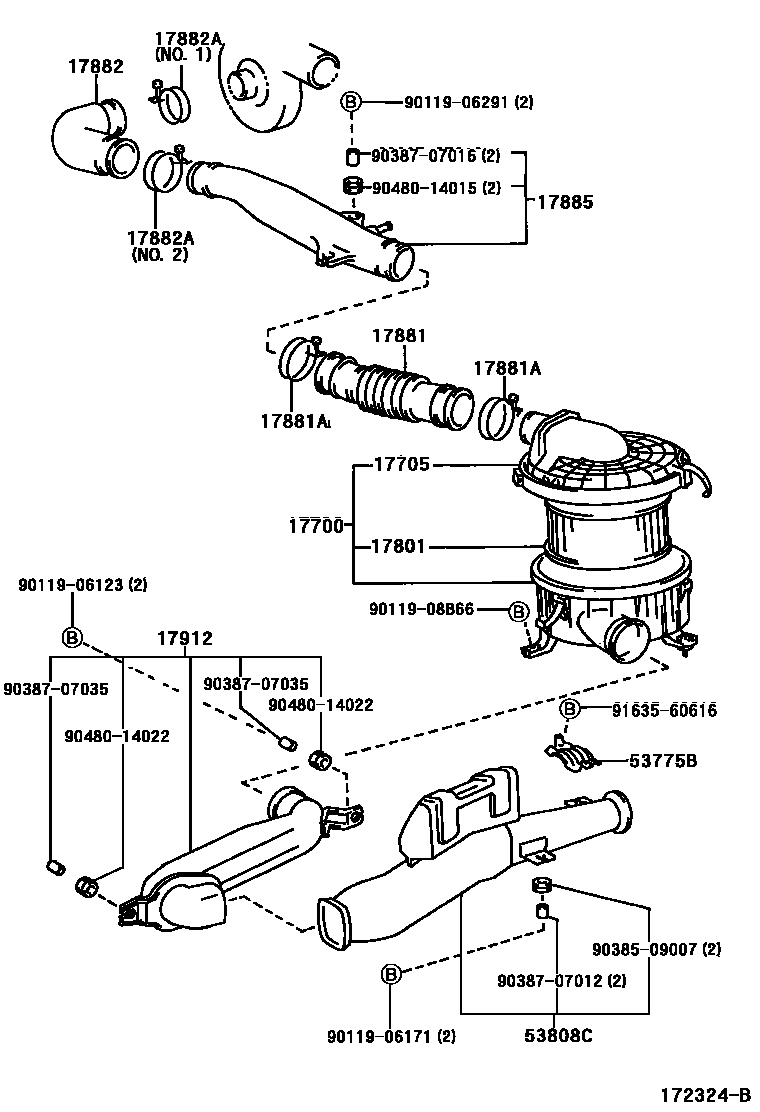

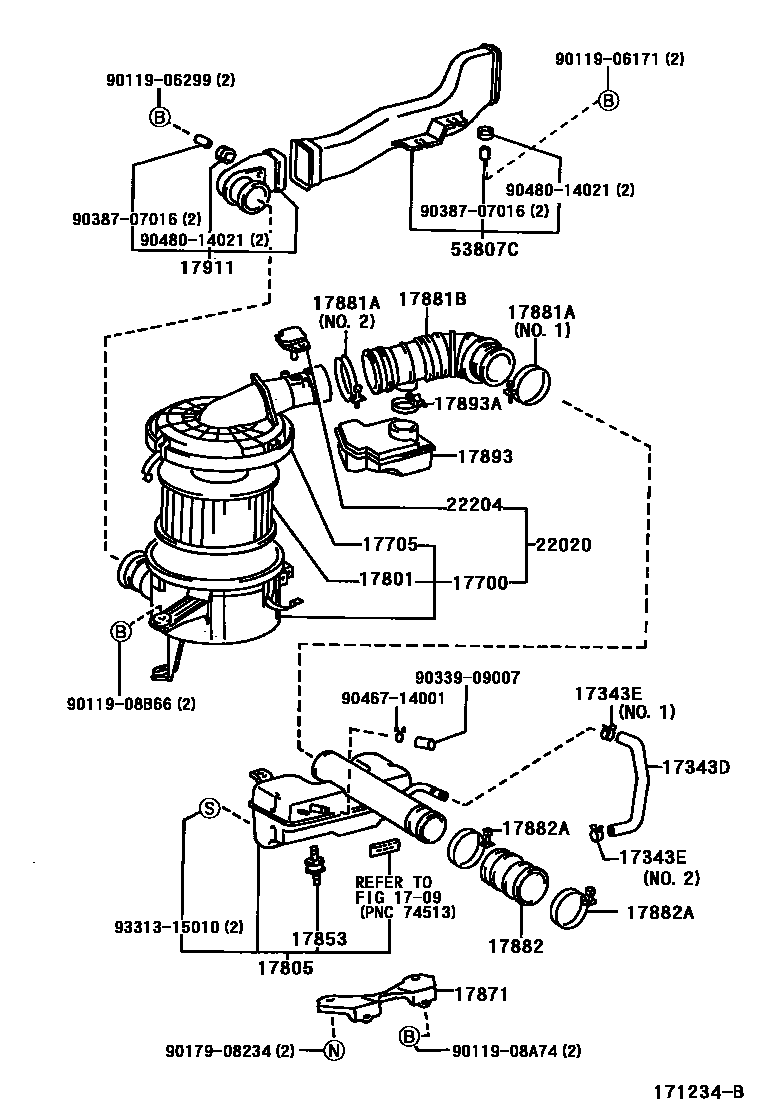

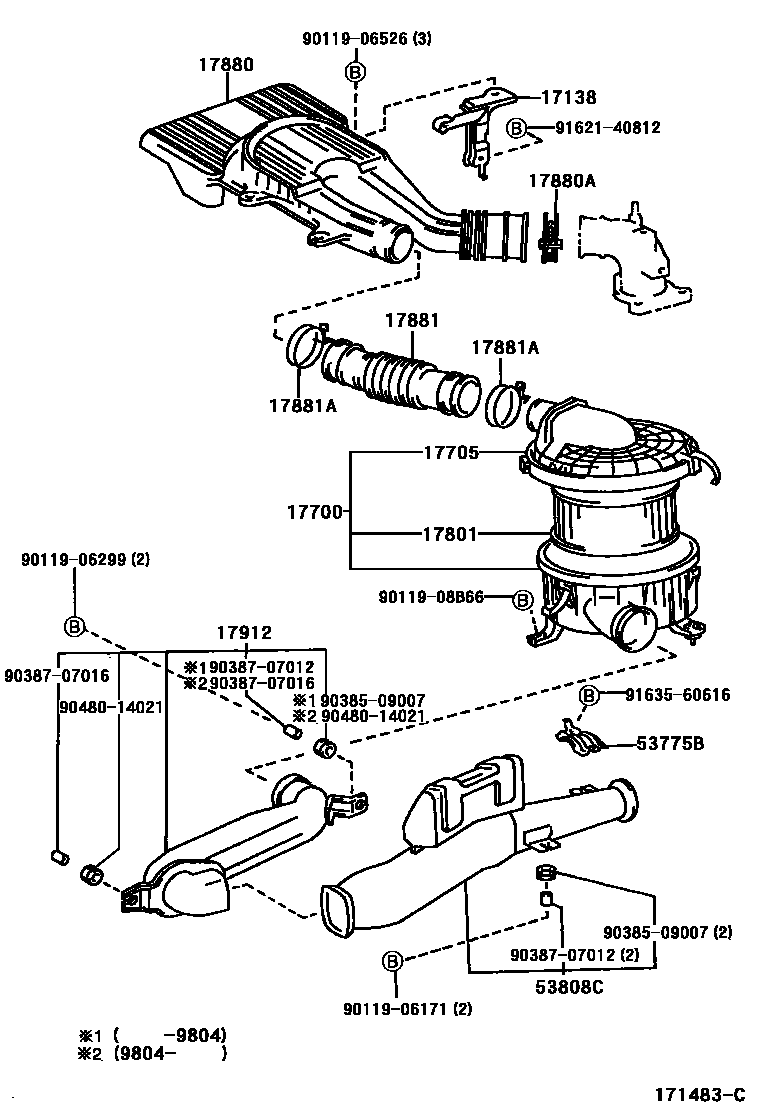

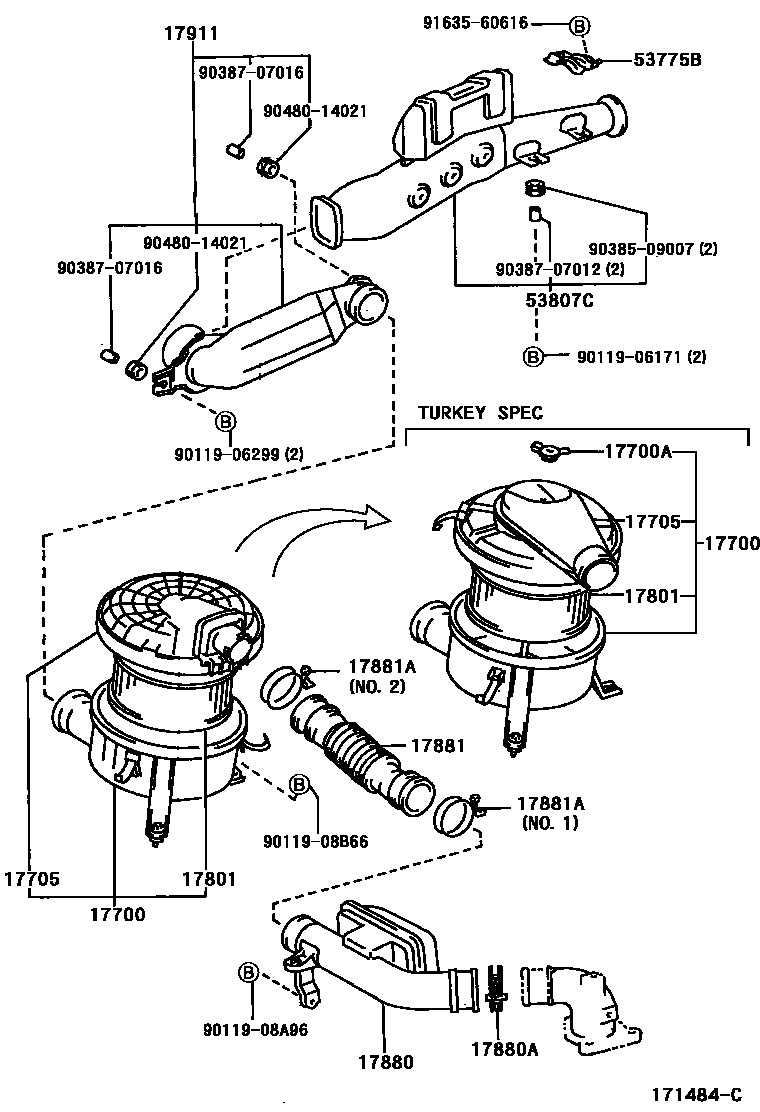

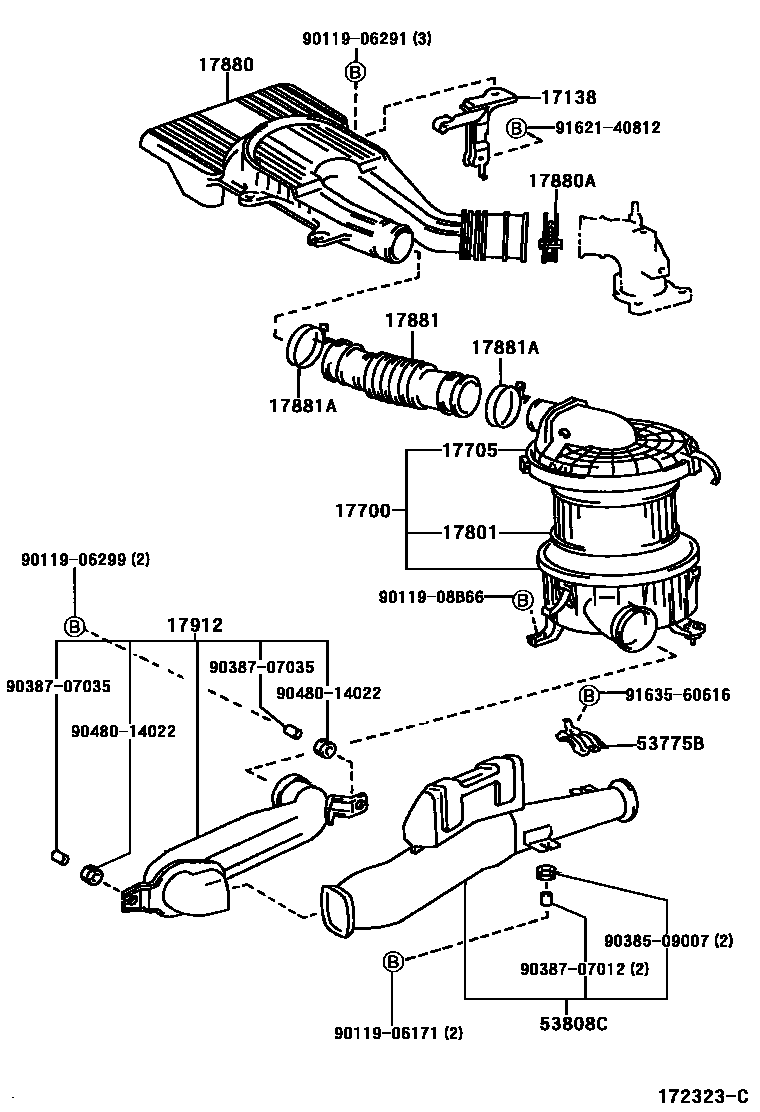

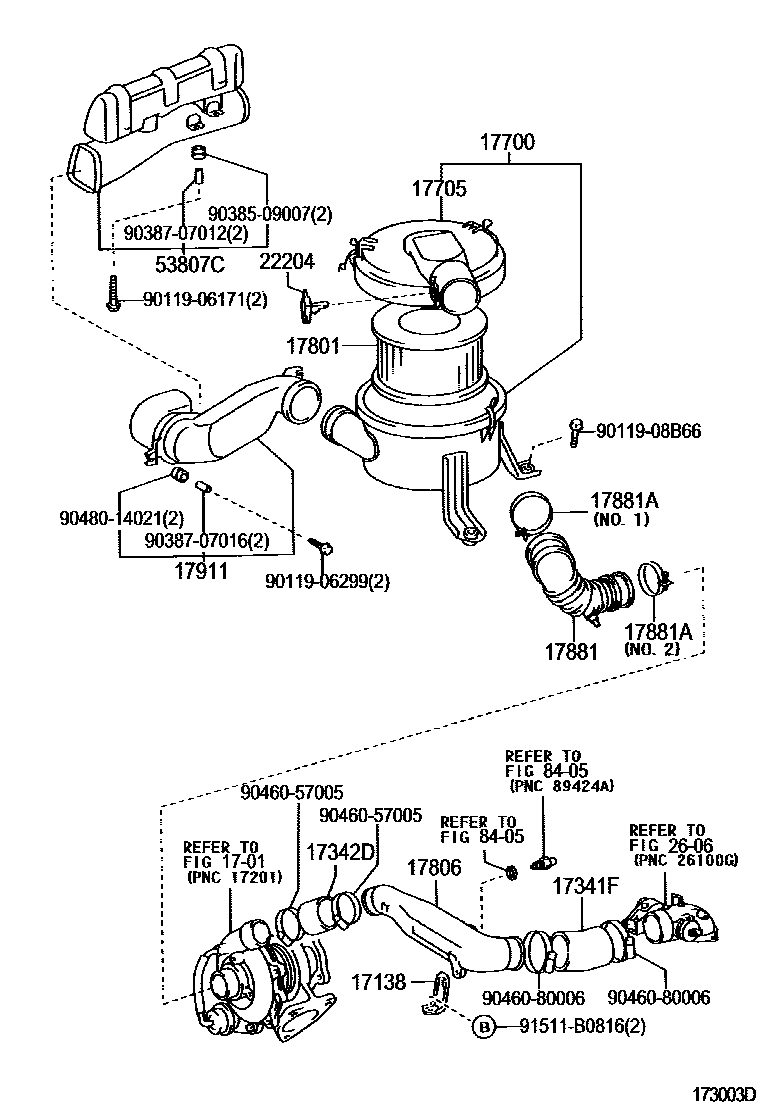

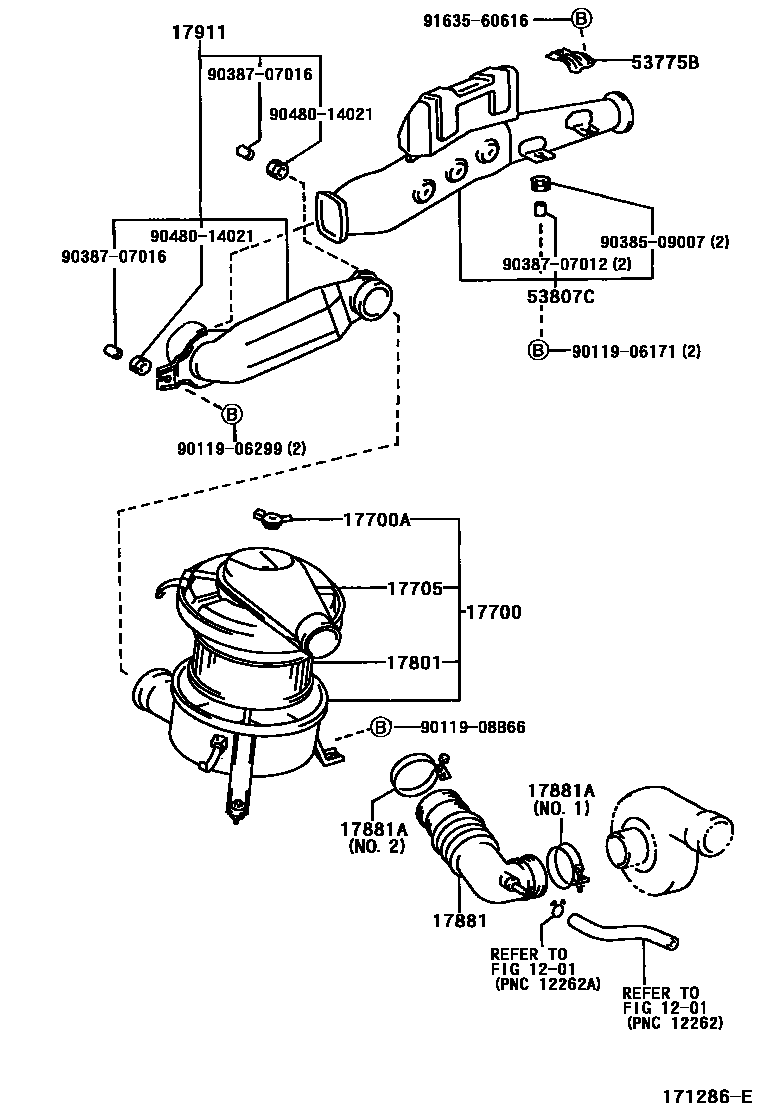

Toyota HILUX EPC diagram 1703, Air Cleaner, with 9 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17138 | Air intake pipe or air intake hose stay | 17138-30010 · 17138-54010 · 17138-54011 |
| 17341F | Air hose No. 1 | 17341-30030 · 17341-30040 |
| 17342D | Air hose No. 2 | 17342-30030 · 17342-30050 |
| 17343D | No. 3 air hose | 17343-75010 |
| 17343E | Hose clamp (for size 3 air hose) | 90467-22004 · 96134-42100 |
| 17700 | air filter assembly | 17700-30090 · 17700-30100 · 17700-5B060 · 17700-5B061 · 17700-5B080 · 17700-5B090 · 17700-5B091 · 17700-5B190 · 17700-75230 |
| 17700A | Wing nut (for air cleaner) | 90175-08008 |
| 17705 | Air filter cover sub-assembly | 17705-30050 · 17705-30060 · 17705-54390 · 17705-54391 · 17705-54400 · 17705-54410 · 17705-54411 · 17705-54480 · 17705-75180 |
| 17801 | Air filter element sub-assembly | 17801-54150 · 17801-54160 · 17801-54180 · 17801-75030 |
| 17805 | Intake connecting pipe sub-assembly | 17805-75150 |
| 17806 | No. 2 air filter pipe assembly | 17113-30010 · 17113-30011 |
| 17806D | Clamp (for air cleaner tube) | 96111-10650 · 96111-10730 |
| 17853 | Air filter bracket vibration isolation pad | 17853-75010 |
| 17871 | Air intake connecting pipe stay | 17871-75011 |
| 17878 | No. 3 air intake connecting pipe | 17878-30010 |
| 17880 | Air cleaner hose assembly | 17880-54240 · 17880-54250 |
| 17880A | hose clamp | 96111-10710 · 96111-10730 |
| 17881 | No. 1 air cleaner hose | 17881-30050 · 17881-30060 · 17881-54640 · 17881-54650 · 17881-54660 · 17881-54670 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-10600 · 96111-10650 · 96111-10730 · 96111-10750 · 96111-10780 · 96111-10830 · 96111-10900 |
| 17881B | No. 1 air cleaner hose | 17881-75110 |
| 17882 | No. 2 air cleaner hose | 17882-0C010 · 17882-30040 · 17882-54360 · 17882-54460 · 17882-75040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 90467-31110 · 96111-10600 · 96111-10730 · 96111-10800 |
| 17885 | air cleaner tube | 17885-30020 · 17885-54200 |
| 17893 | Intake resonator | 17893-75050 |
| 17893A | hose clamp | 96111-10480 |
| 17911 | No. 1 cold air intake pipe | 52810-35010 · 52810-35020 · 52810-35021 |
| 17912 | No. 2 cold air intake pipe | 52820-35020 · 52820-35021 · 52820-35022 · 52820-35060 |
| 22020 | Air flow meter assembly with air filter | 22020-75010 |
| 22204 | Intake air flow meter assembly | 22204-30010 · 22204-75020 |
| 53775B | Cold air intake pipe mounting bracket | 53775-35010 |
| 53807C | Right front fender air duct sub-assembly | 53807-35050 · 53807-35060 · 53807-35080 |
| 53808C | Left front fender air duct sub-assembly | 53808-35030 · 53808-35060 |
