Toyota HILUX Exhaust Pipe — Figure 1702

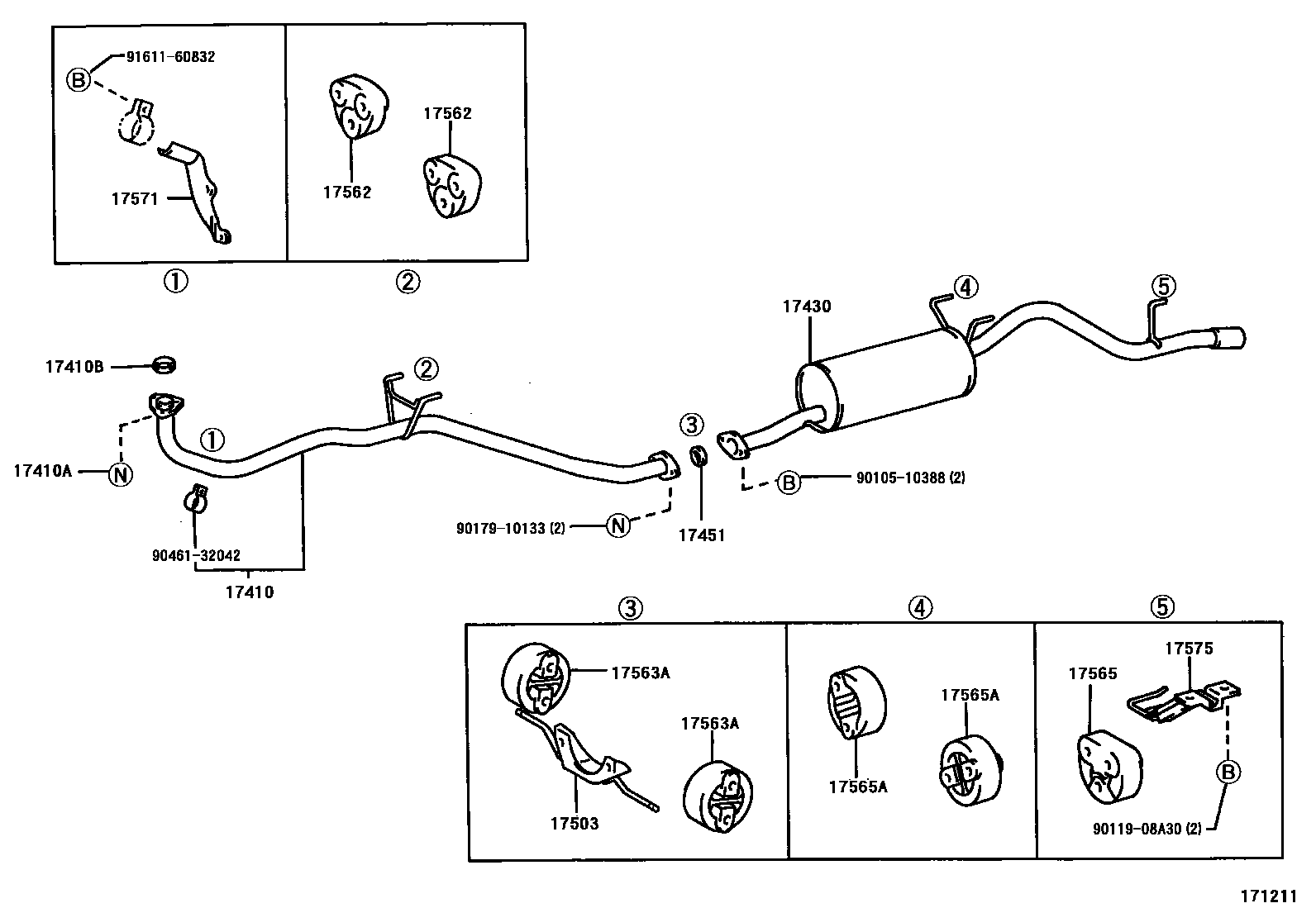

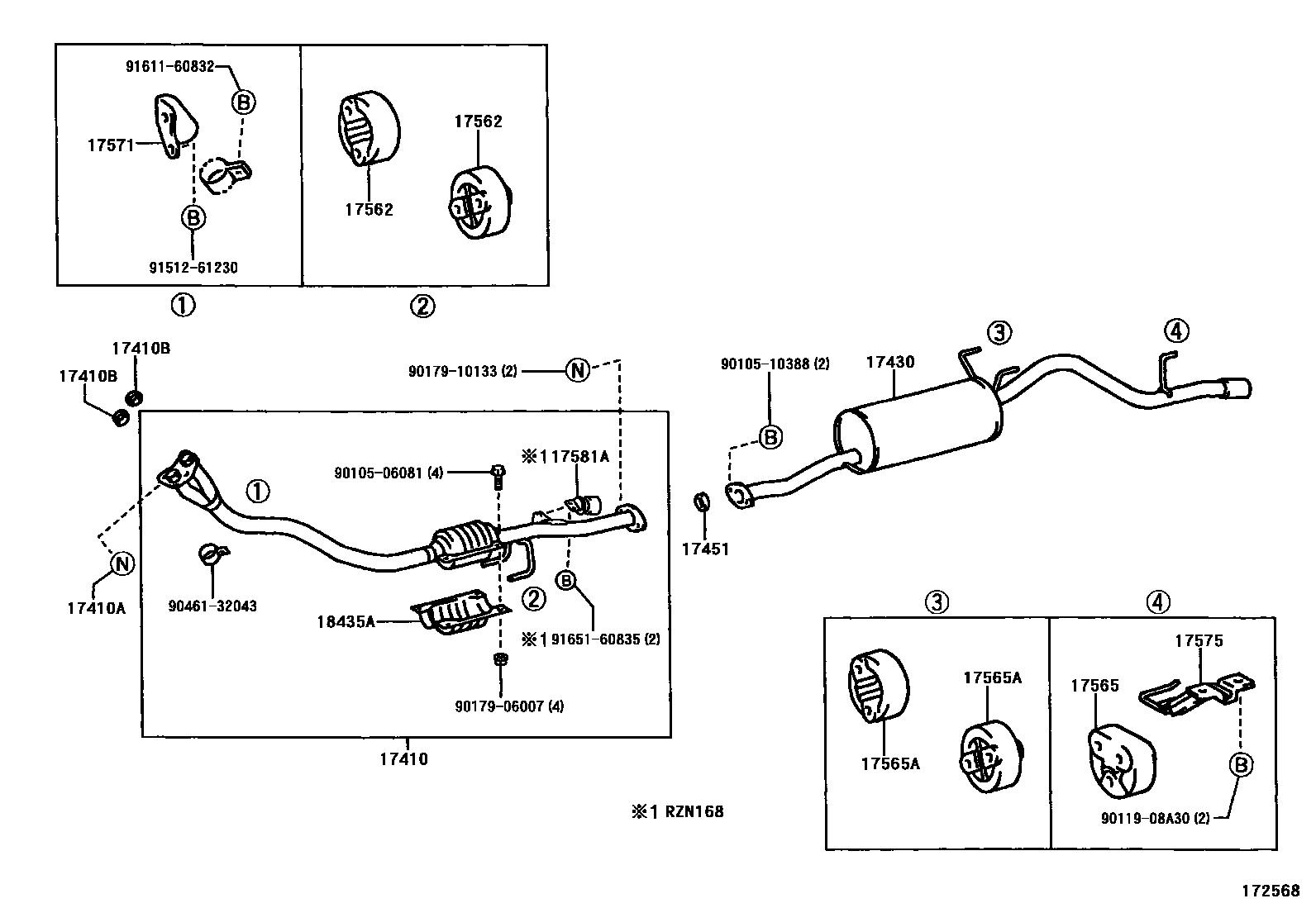

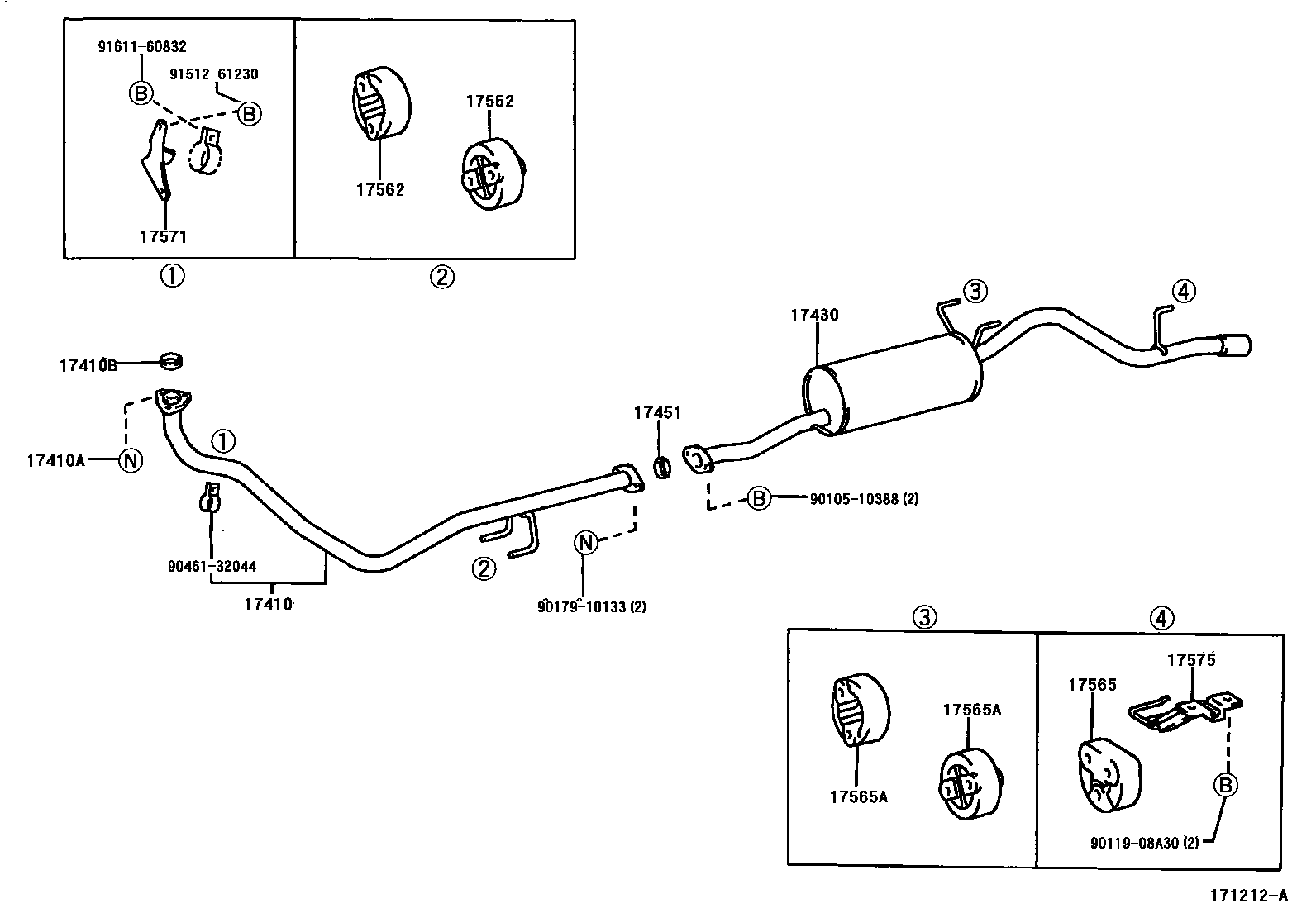

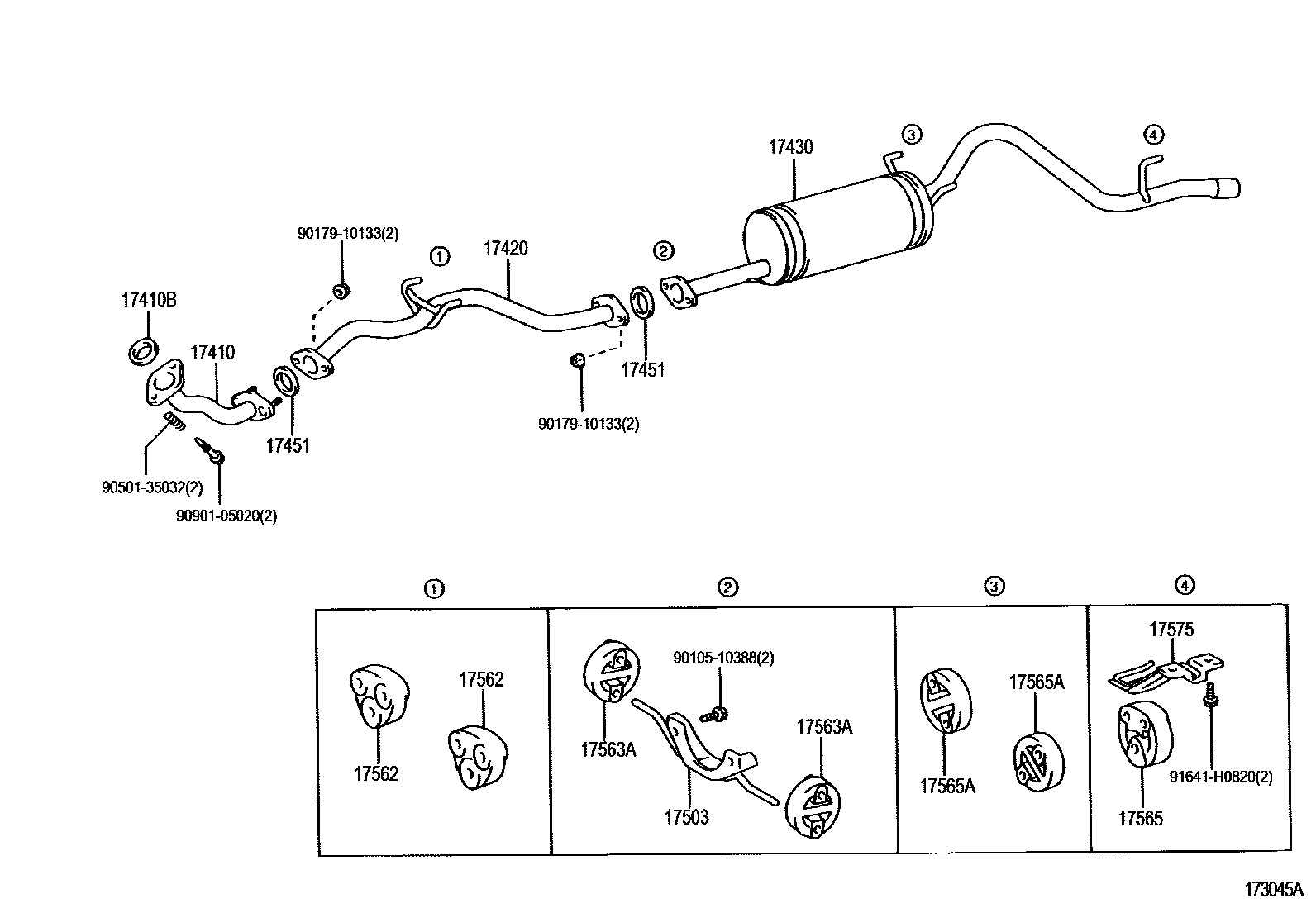

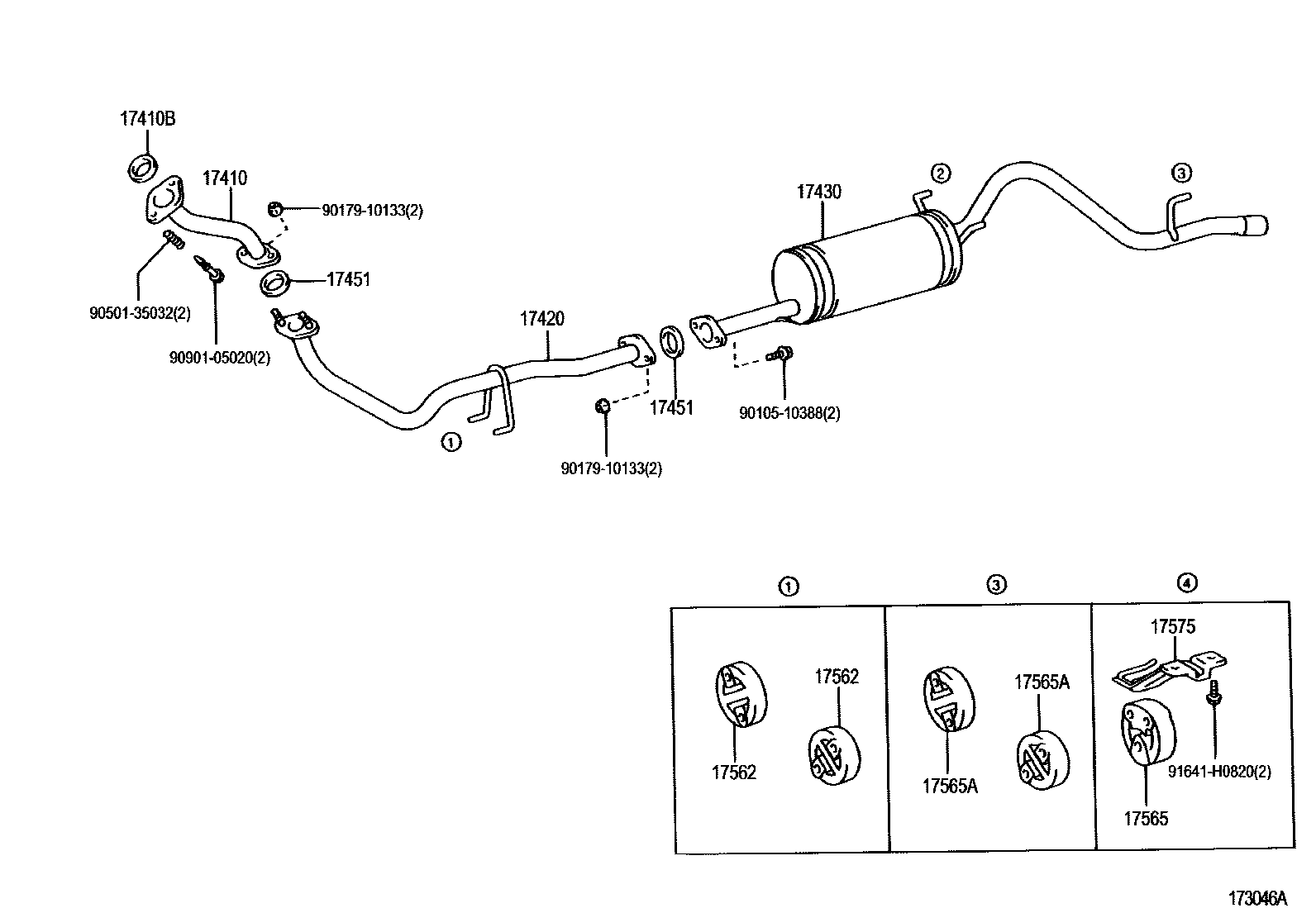

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 5 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17401-30070 · 17401-30080 · 17401-54200 · 17401-54230 · 17401-54231 · 17401-54240 · 17401-54241 · 17401-75240 · 17401-75241 · 17401-75250 · 17401-75251 · 17410-75300 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 17451-67020 · 90917-06061 · 90917-06066 |
| 17420 | Central exhaust pipe assembly | 17403-30010 · 17403-30020 · 17403-30030 |
| 17430 | Exhaust tailpipe assembly | 17405-30010 · 17405-30020 · 17405-30030 · 17405-54300 · 17405-54310 · 17405-54390 · 17405-75290 · 17405-75330 |
| 17451 | Exhaust pipe gasket | 90917-06046 |
| 17503 | Three-way catalytic converter rear bracket sub-assembly | 17503-75020 · 17503-75030 |
| 17562 | No. 2 exhaust pipe lifting lug | 17565-64060 · 17565-74290 |
| 17563A | No. 3 exhaust pipe lifting lug | 17565-74290 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-35030 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-74290 |
| 17571 | No. 1 exhaust pipe bracket | 17571-54350 · 17571-54510 · 17571-75130 |
| 17575 | No. 5 exhaust pipe bracket | 17575-75040 |
| 17581A | Exhaust pipe damper | 17581-17010 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-16170 · 18435-20020 |
