Toyota HILUX V-Belt — Figure 1605

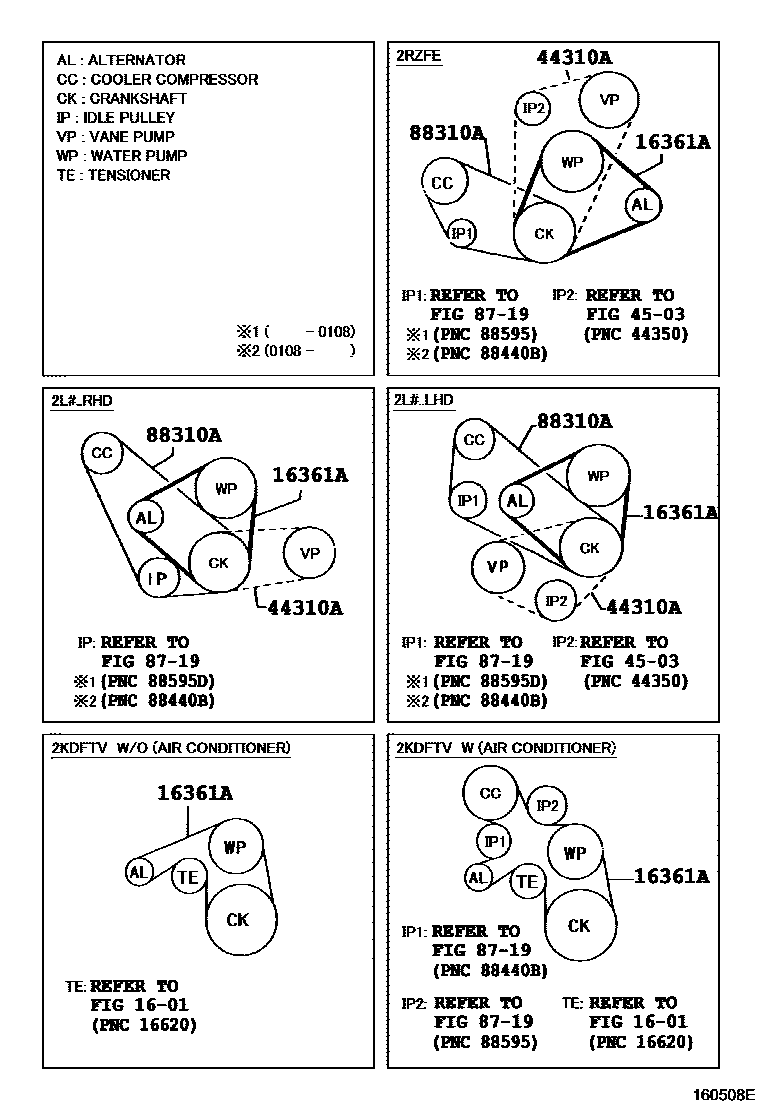

Toyota HILUX EPC diagram 1605, V-Belt, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16361A | V-belts (for fans and generators) | 90916-02211 · 90916-02336 · 90916-02523 · 90916-02524 |
| 44310A | V-belt (for vane pump) | 99332-00825 · 99332-10865 · 99364-91080 |
| 88310A | No. 1 V-belt (cooler compressor to crankshaft pulley) | 99332-11205 · 99364-30940 · 99364-90930 |
