Toyota HILUX Water Pump — Figure 1601

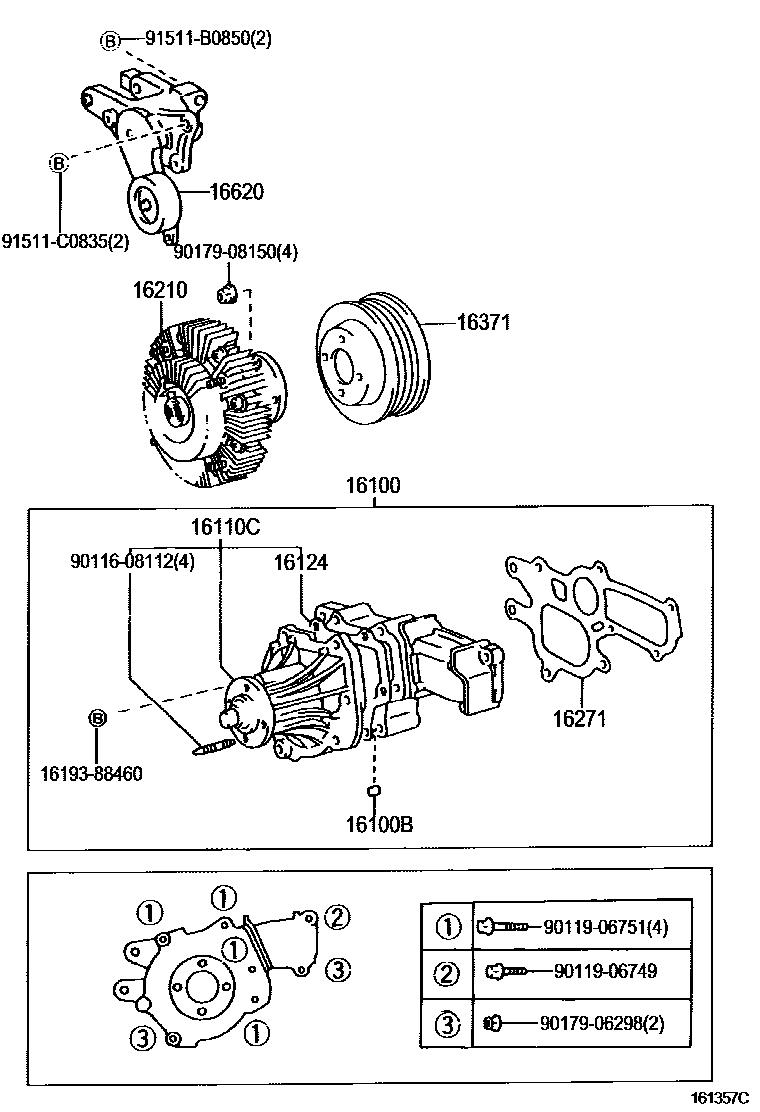

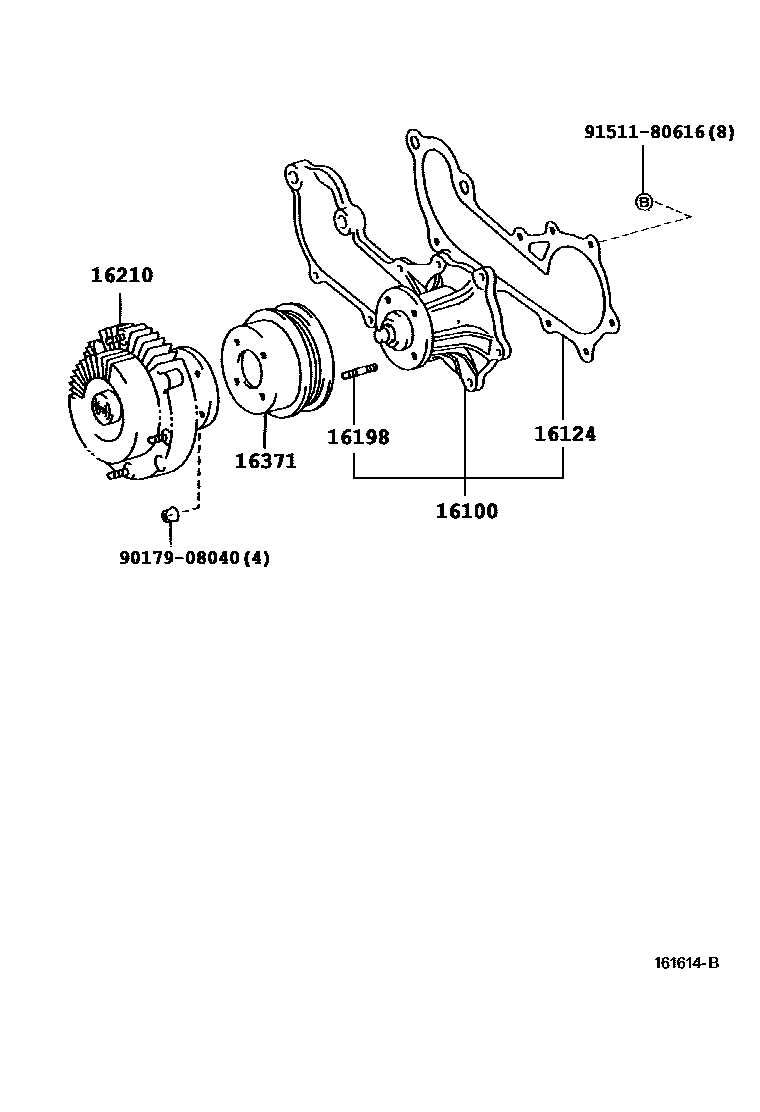

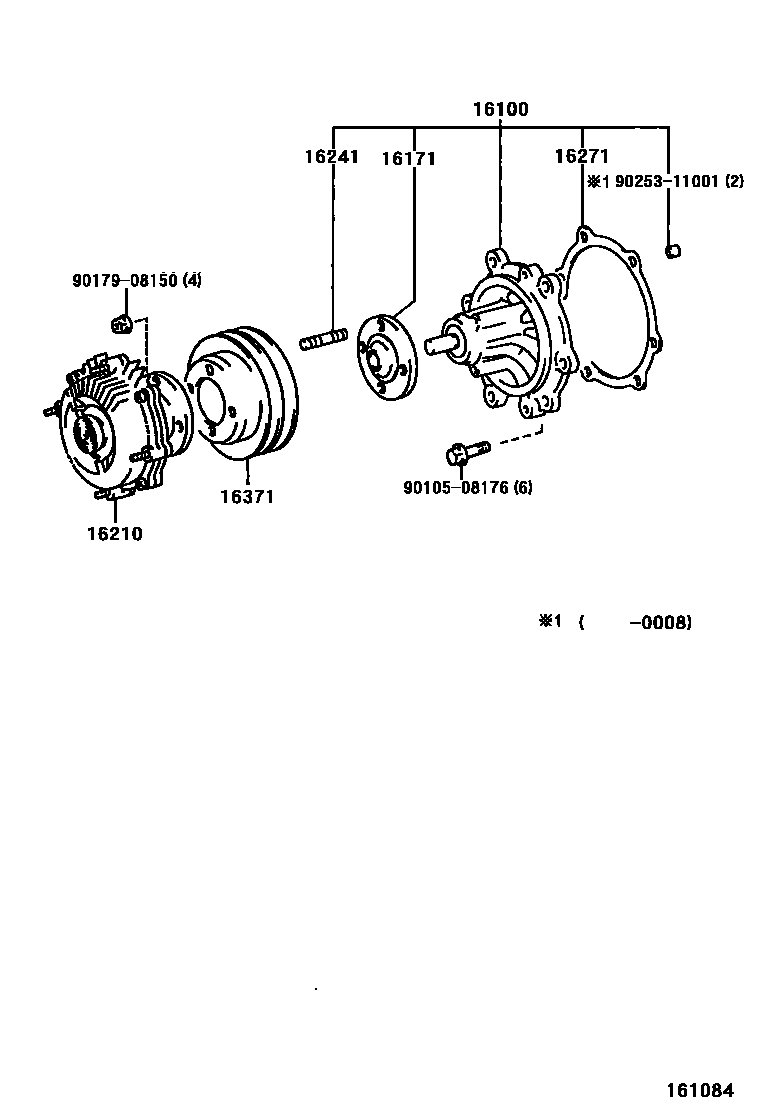

Toyota HILUX EPC diagram 1601, Water Pump, with 3 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-59255 · 16100-59257 · 16100-69356 · 16100-79255 |
| 16100B | Ring pin (for water pump assembly) | 16159-70040 |
| 16110C | Water pump assembly without cover | 16110-69045 |
| 16124 | water pump cover gasket | 16124-67010 · 16124-75030 |
| 16171 | water pump pulley seat | 16171-75020 |
| 16198 | Stud bolts (for water pump pulley seat) | 92122-60818 |
| 16210 | Hydraulic coupler assembly | 16210-30010 · 16210-54210 · 16210-54230 · 16210-75060 |
| 16241 | Stud bolts (for water pump coupling) | 92122-60818 |
| 16271 | water pump gasket | 16271-54020 · 16271-54030 · 16271-67020 |
| 16371 | fan pulley | 16371-30020 · 16371-54030 · 16371-75030 |
| 16620 | Poly V-belt tensioner assembly | 16620-30020 · 16620-30030 · 16620-30031 |
