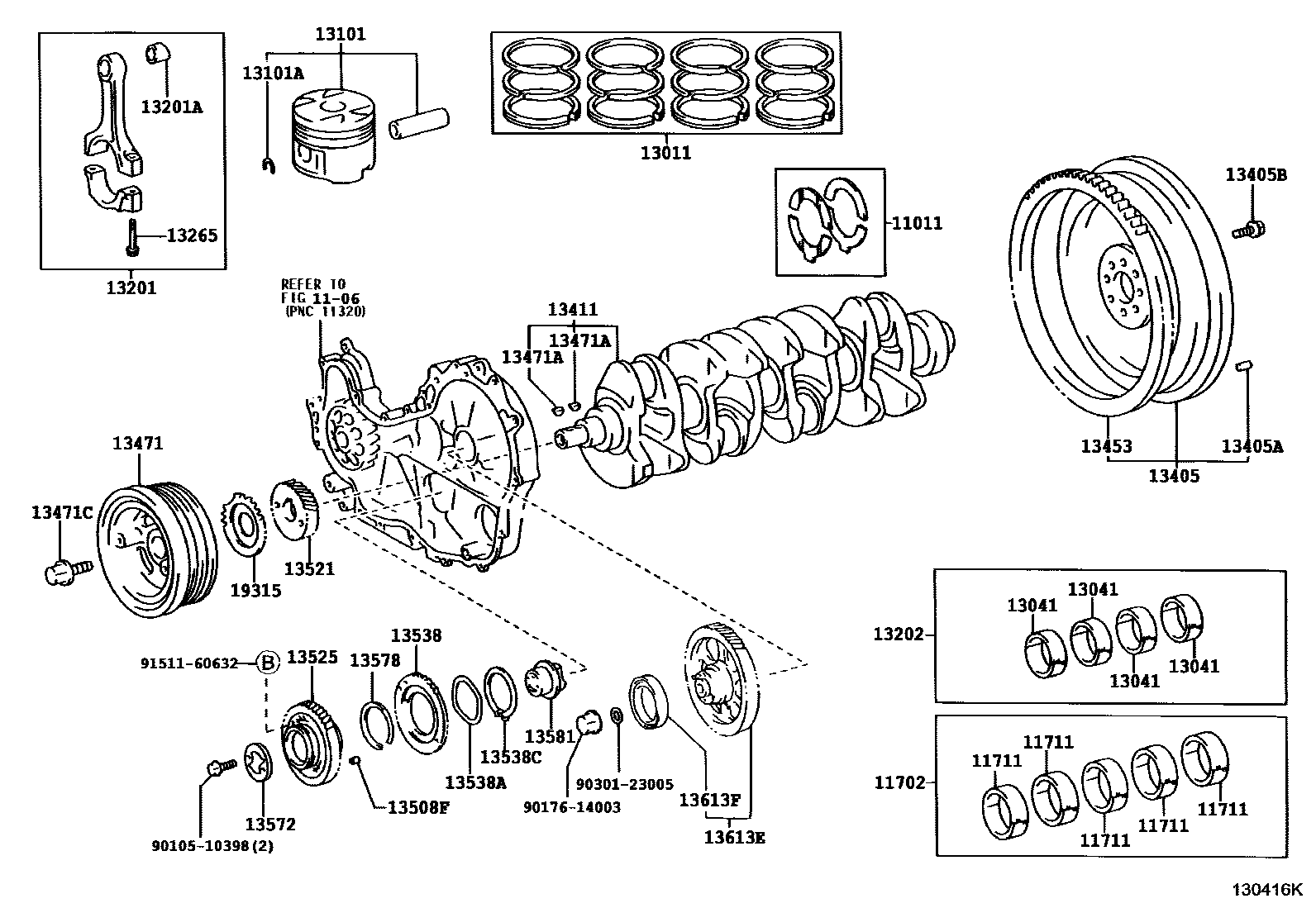

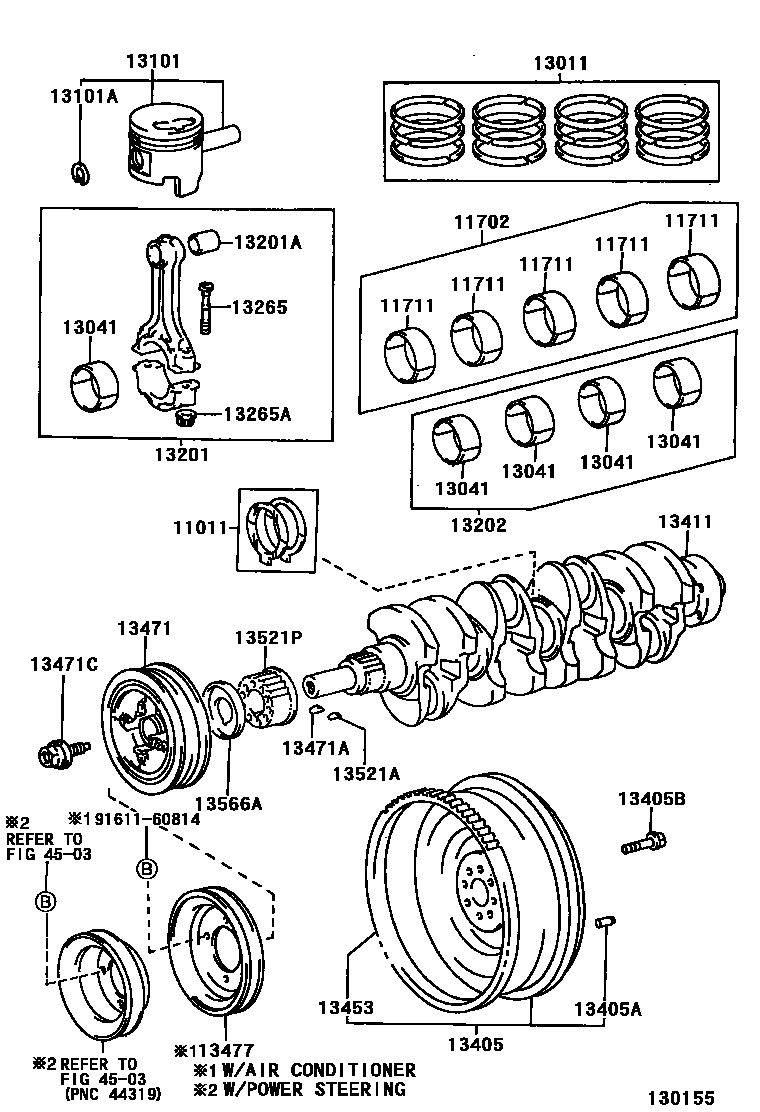

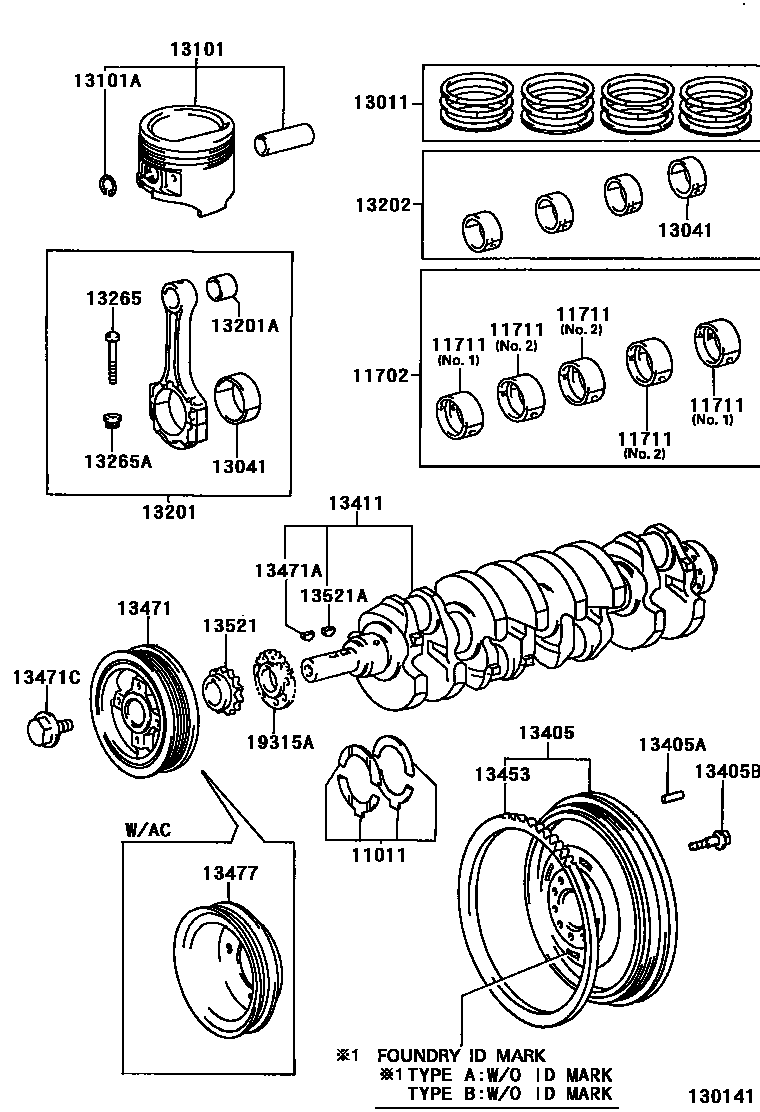

Toyota HILUX Crankshaft & Piston — Figure 1301
Toyota HILUX EPC diagram 1301, Crankshaft & Piston, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11011 | Crankshaft thrust washer assembly | 11011-30010 · 11011-54020 · 11011-67020 · 11011-75010 · 11012-30010 · 11012-54020 · 11012-67020 · 11013-30010 · 11013-54020 · 11013-67020 |
| 11702 | crankshaft bearing assembly | 11704-30020 · 11704-54061 · 11704-67021 · 11704-75020 · 11704-75021 · 11705-30020 · 11705-54061 · 11705-67021 |
| 13011 | Piston ring assembly | 13011-30030 · 13011-30031 · 13011-54100 · 13011-75040 · 13011-75041 · 13013-30030 · 13013-30031 · 13013-54100 · 13013-75040 · 13013-75041 · 13014-54100 · 13015-54100 |
| 13101 | Piston sub-assembly with pin | 13101-75070 · 13101-75071 · 13103-30030 · 13103-30031 · 13103-54070 · 13103-54091 · 13103-54130 · 13103-54140 · 13103-75070 · 13103-75071 · 13104-54070 · 13104-54091 · 13104-54130 · 13104-54140 · 13105-54070 · 13105-54091 · 13105-54130 · 13105-54140 |
| 13101A | Bore snap ring (for piston pin) | 90520-37014 · 90521-28003 · 90521-29003 · 90521-31001 |
| 13201 | Connecting rod sub-assembly | 13201-30030 · 13201-59095 · 13201-59096 · 13201-59105 · 13201-59106 · 13201-79167 |
| 13201A | Bushing (for connecting rod small end) | 90999-73114 · 90999-73115 · 90999-73129 · 90999-73145 |
| 13202 | Connecting rod bearing assembly | 13204-30020 · 13204-54024 · 13204-54041 · 13204-67031 · 13204-75021 · 13205-30020 · 13205-67031 |
| 13265 | Connecting rod bolts | 13265-54020 · 13265-54021 · 13265-67021 · 13265-75030 |
| 13265A | Hexagonal nut (for connecting rod bolts) | 90179-09009 · 90179-10123 |
| 13405 | Flywheel sub-assembly | 13405-30020 · 13405-30030 · 13405-54012 · 13405-54080 · 13405-67030 · 13405-75030 |
| 13405A | Direct sales (for flywheel) | 90250-05121 · 90250-08054 · 90250-10192 |
| 13405B | Flywheel fixing bolt | 90105-10207 · 90105-12109 · 90105-13010 |
| 13411 | crankshaft | 13401-30020 · 13401-54040 · 13401-54050 · 13401-54070 · 13411-75900 |
| 13453 | flywheel ring gear | 13453-05010 · 13453-20010 · 13453-54010 · 13453-67030 |
| 13471 | crankshaft pulley | 13408-30010 · 13408-54090 · 13408-75030 |
| 13471A | Crankshaft key (for crankshaft pulley assembly) | 90280-05005 · 95161-30516 · 95161-30622 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90105-16041 · 90119-18003 · 90901-19028 |
| 13477 | No. 2 crankshaft pulley | 88451-26050 · 88451-35030 |
| 13508F | Direct sales (for idler pulley) | 90250-05027 |
| 13521 | Crankshaft timing gear or sprocket | 13521-67020 · 13521-75010 |
| 13521A | Key (for crankshaft timing gear) | 90280-05005 · 95161-30622 |
| 13521P | crankshaft timing pulley | 13521-54030 |
| 13525 | No. 1 idler pulley | 13508-30010 · 13508-30011 |
| 13538 | No. 2 auxiliary idler pulley | 13538-67900 |
| 13538A | Wave washer | 90206-69001 |
| 13538C | Shaft snap ring | 90520-58002 |
| 13566A | timing belt guide | 13566-54040 |
| 13572 | Idler thrust plate | 13572-67041 |
| 13578 | Idler spring | 13578-67010 |
| 13581 | No. 1 idler shaft | 13581-67041 |
| 13613E | Driving gear | 13603-30020 |
| 13613F | Radial ball bearing | 90363-67001 |
| 19315 | No. 1 crankshaft angle signal plate | 19315-30010 |
| 19315A | crankshaft position sensor rotor | 19315-75010 |
