Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 5 images and 7 PNC and OE references.

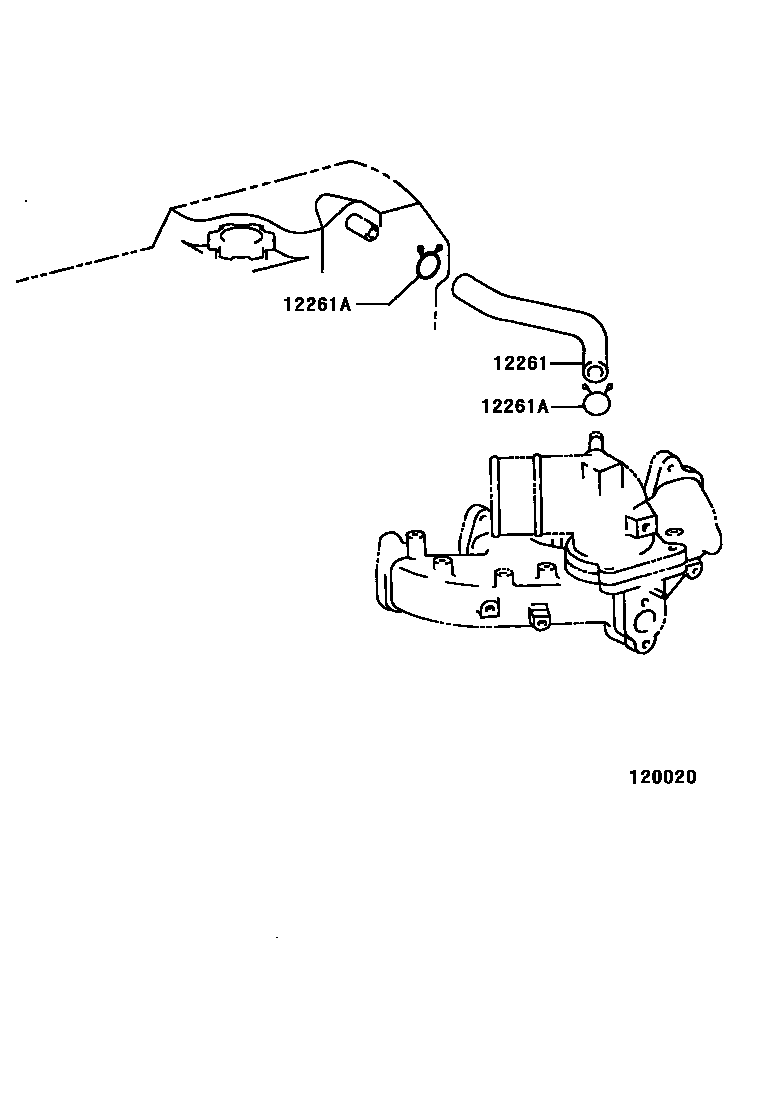

Toyota HILUX Ventilation Hose EPC diagram — 120020
Ventilation Hose — 120020 (199708 – 999999)

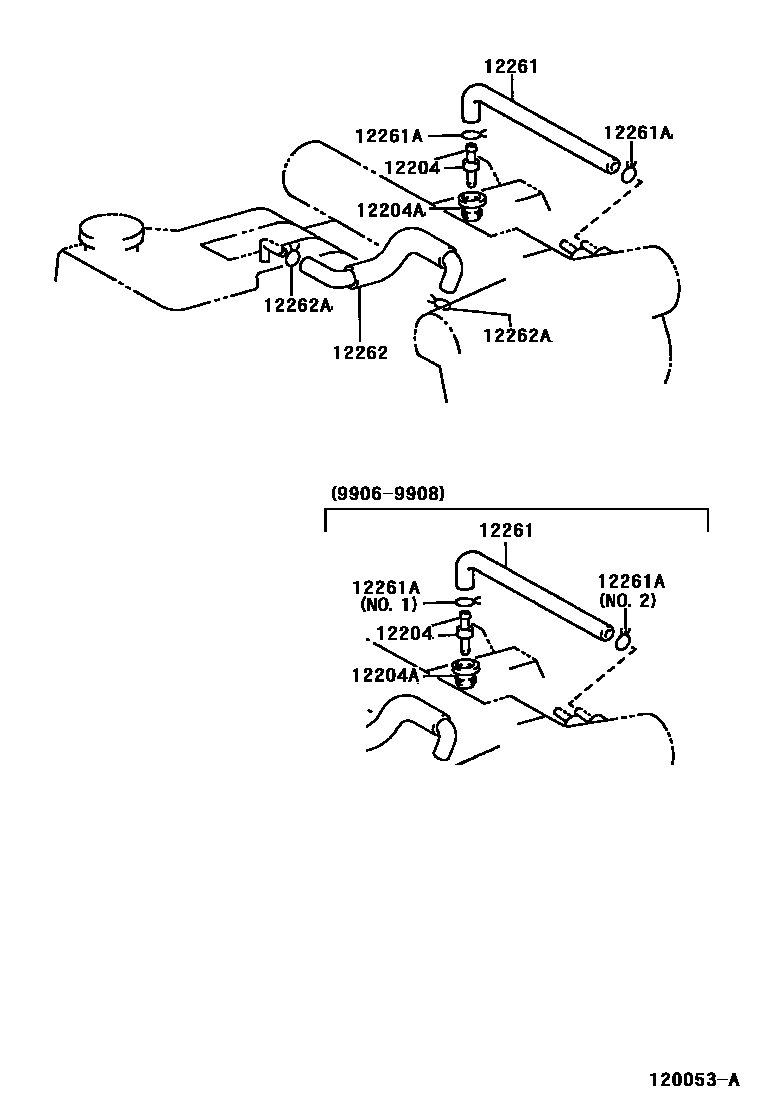

Toyota HILUX Ventilation Hose EPC diagram — 120053A
Ventilation Hose — 120053A (199708 – 999999)

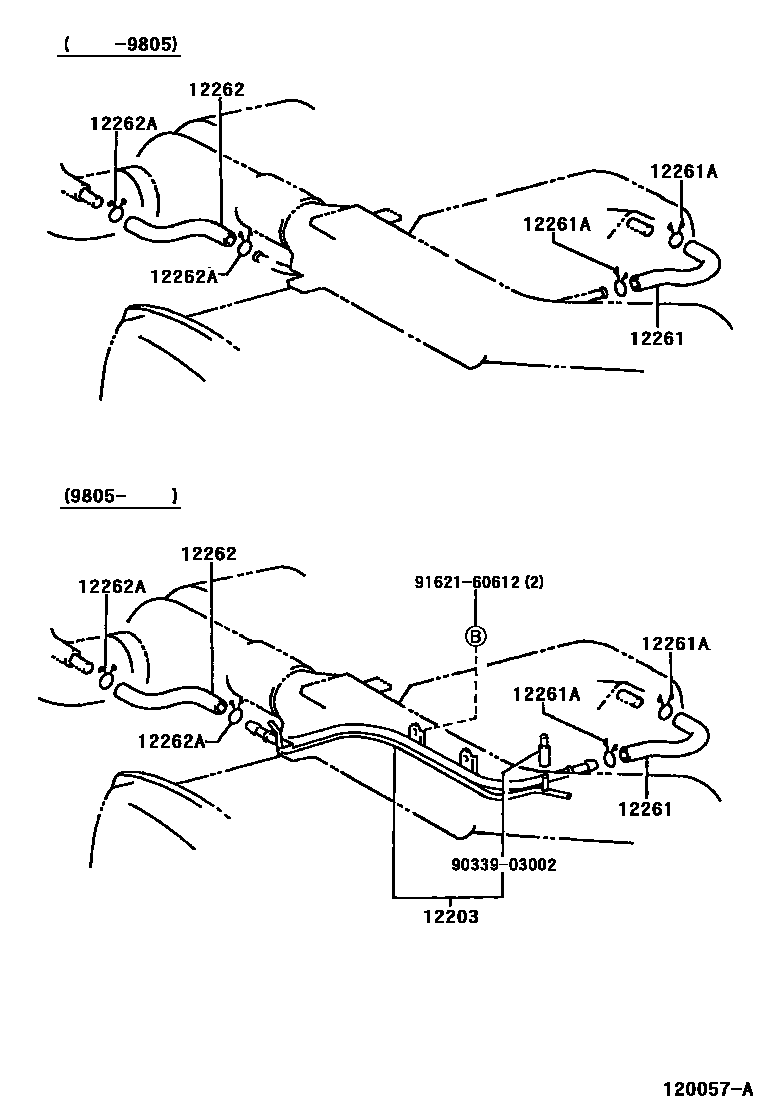

Toyota HILUX Ventilation Hose EPC diagram — 120057A
Ventilation Hose — 120057A (199708 – 999999)

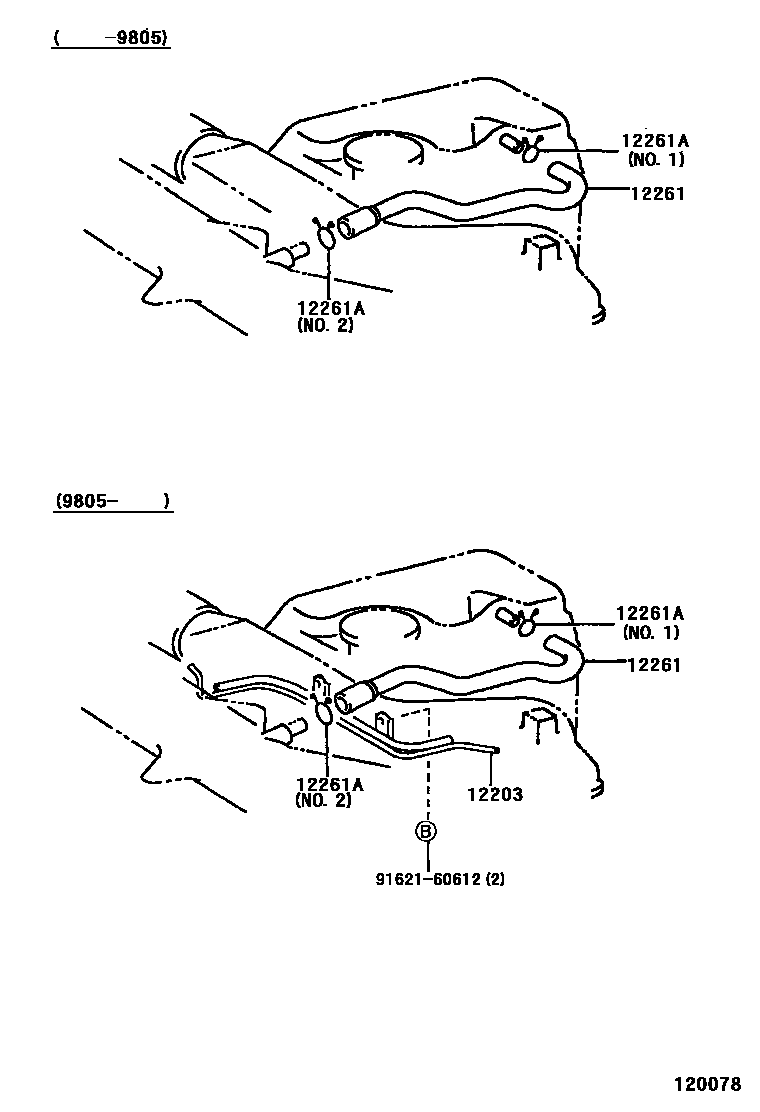

Toyota HILUX Ventilation Hose EPC diagram — 120078
Ventilation Hose — 120078 (199708 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 120206
Ventilation Hose — 120206 (200108 – 999999)

PNC and OE references

PNCPart nameOE numbers
12203Ventilation pipe sub-assembly12203-54020 · 25706-54060
12204Ventilation valve sub-assembly12204-75010
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-05020 · 12261-30010 · 12261-54080 · 12261-54090 · 12261-54120 · 12261-75030 · 12261-75080
12261AClip or clip (for vent hose)90467-14001 · 90467-18003 · 90467-21152 · 90467-22010 · 90467-23002
12262Ventilation hose No. 212262-54050 · 12262-75110
12262AClamp (for vent hose No. 2)90467-14001 · 90467-18003
