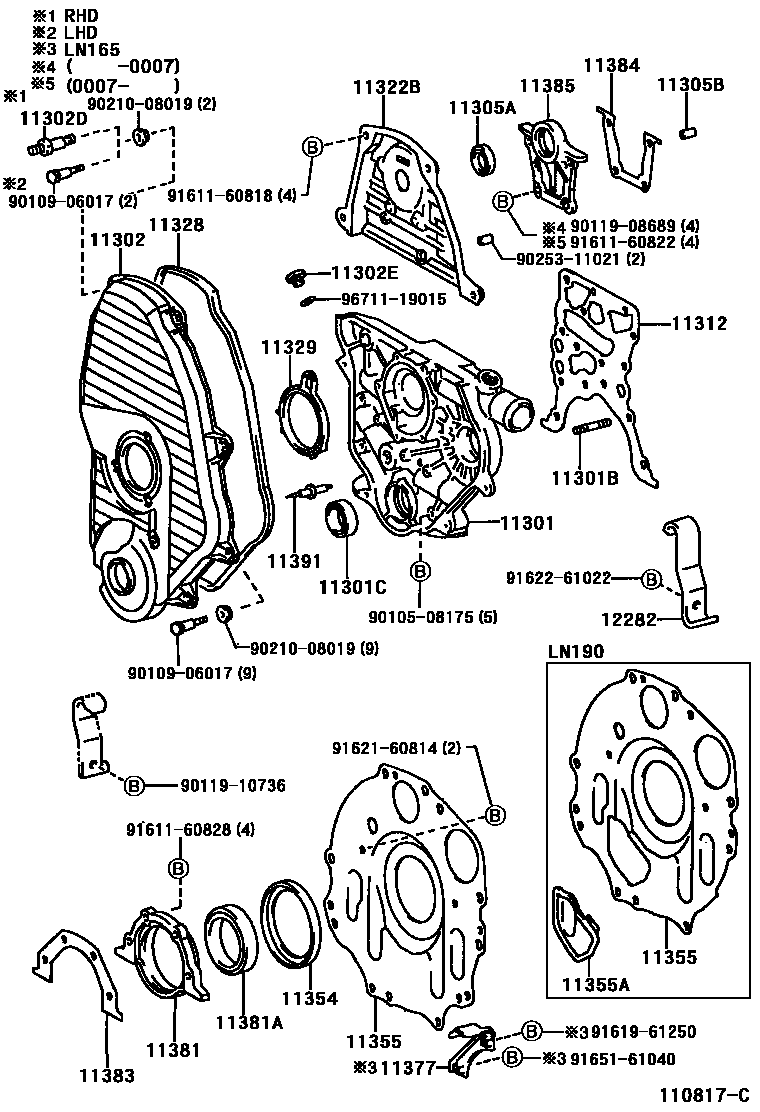

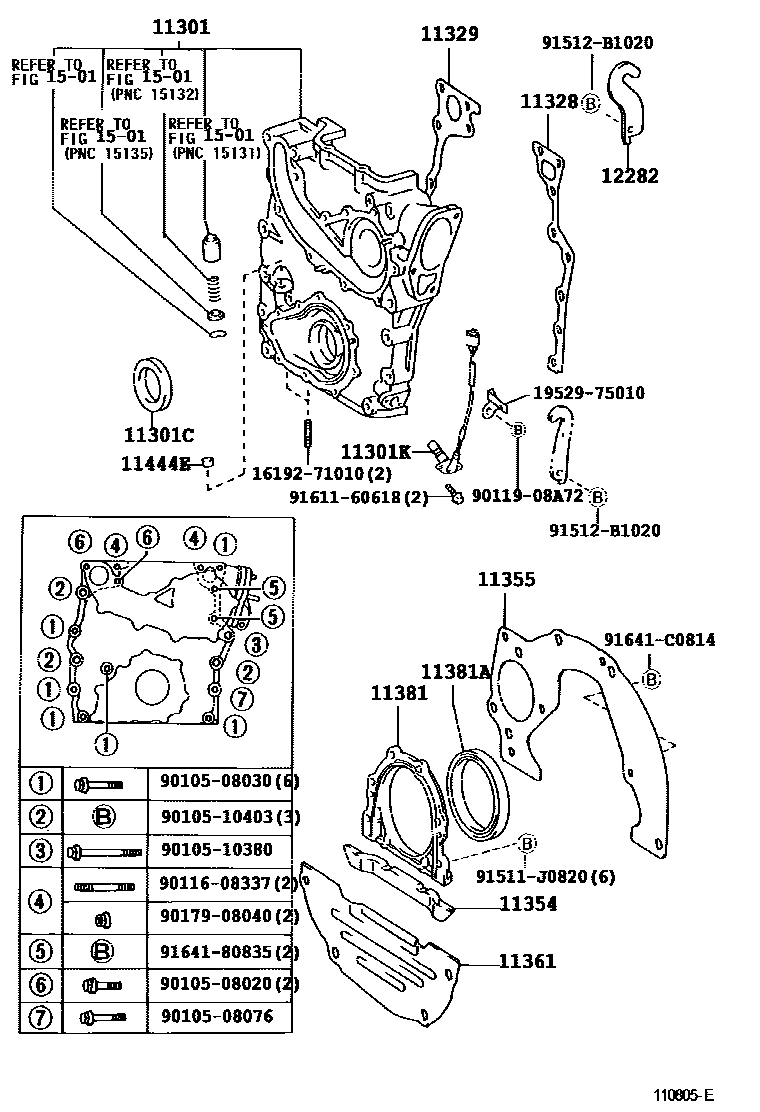

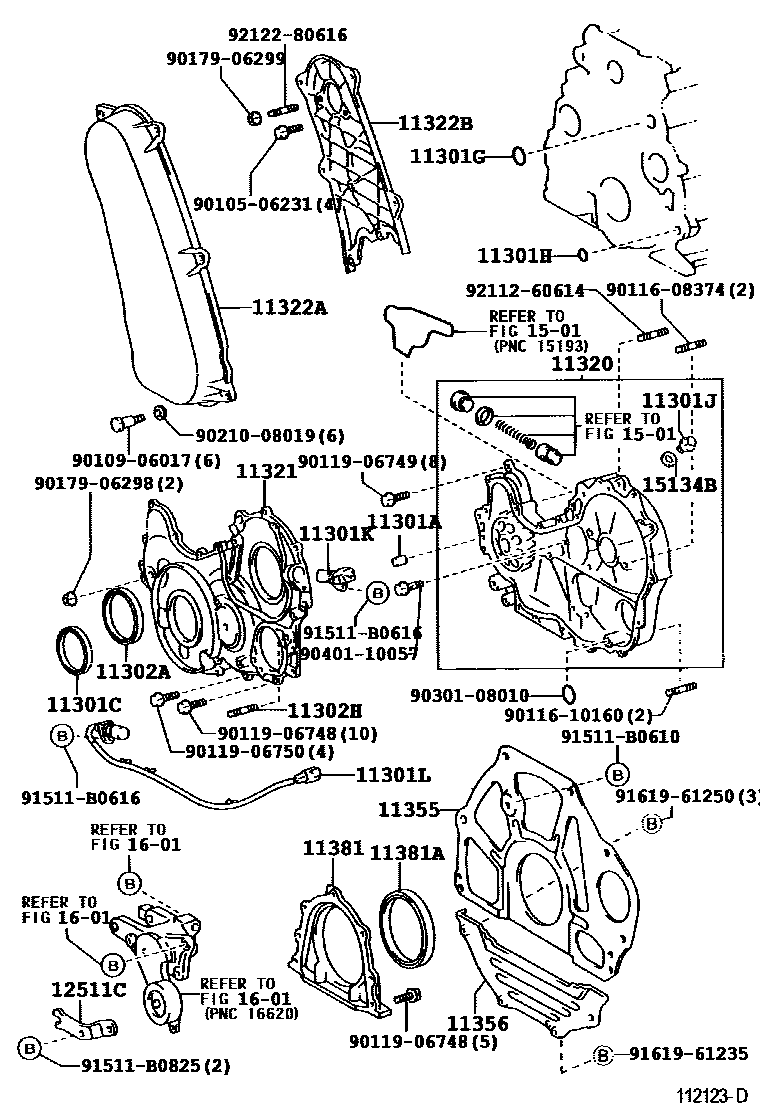

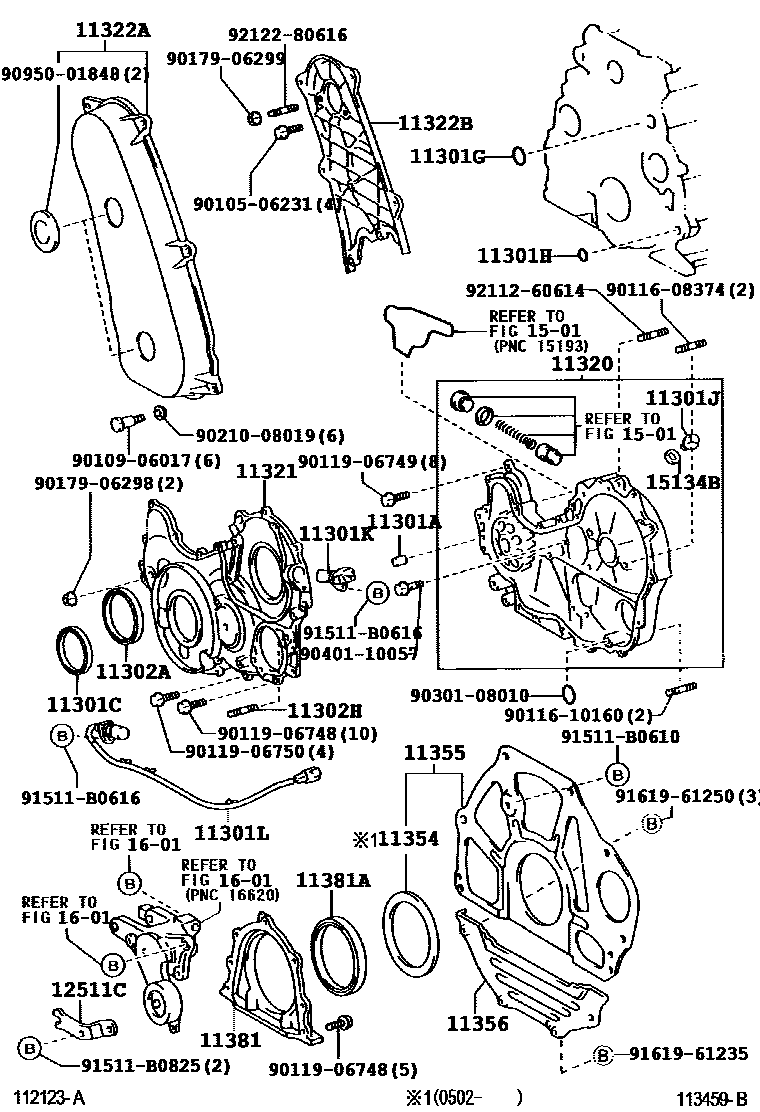

Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106
Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 4 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-75030 · 11311-54052 |
| 11301A | Direct sales (for timing gearbox) | 90250-08120 |
| 11301B | Stud bolts (for timing gearbox) | 92132-60828 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42031 · 90311-48014 · 90311-48020 · 90311-48021 · 90311-50017 |
| 11301G | O-ring (for upper timing gearbox) | 90301-22007 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-09018 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-18015 |
| 11301K | crankshaft position sensor | 90919-05016 · 90919-05052 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 · 90919-05066 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11321-54020 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-65003 |
| 11302D | Studs (for timing gear cover) | 90116-06100 |
| 11302E | Straight screw plug (for timing gear cover) | 90341-18004 |
| 11302H | Studs (for timing gear cover) | 90116-08376 |
| 11305A | Oil seal (for No. 2 oil seal seat ring) | 90311-32019 |
| 11305B | Ring pin (for No. 2 oil seal seat ring) | 90253-11021 |
| 11312 | front panel gasket | 11312-54021 · 11312-54040 |
| 11320 | Timing gearbox assembly | 11320-30021 |
| 11321 | timing gearbox | 11321-30020 |
| 11322A | No. 1 timing belt cover | 11332-30010 · 11332-30011 |
| 11322B | No. 2 timing belt cover | 11322-30010 · 11322-54021 · 11322-54031 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-54021 · 11328-75010 |
| 11329 | Timing gear rear cover gasket | 11329-05010 · 11329-54021 · 11329-75010 |
| 11354 | Flywheel housing dust seal | 11354-30010 · 11354-54010 · 11354-75010 |
| 11355 | rear end plate | 11355-54030 · 11355-54110 · 11355-67010 · 11355-67011 · 11355-75010 |
| 11355A | Hole plug (for rear end plate) | 90950-01686 |
| 11356 | No. 2 rear end plate | 11356-30020 · 11356-67030 |
| 11361 | Flywheel housing bottom cover | 11361-75020 |
| 11377 | Rear end plate reinforcement | 11377-54010 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-54020 · 11381-54030 · 11381-67020 · 11381-75010 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-85008 · 90311-88003 · 90311-88004 · 90311-88005 · 90311-95008 |
| 11383 | Engine rear oil seal seat gasket | 11383-54030 |
| 11384 | No. 2 oil seal seat ring gasket | 11384-54030 |
| 11385 | Camshaft oil seal race | 11382-54020 |
| 11391 | Timing pointer | 11391-54020 |
| 11444E | hole plug | 11444-75020 |
| 12282 | ENGINE HANGER, NO.2 | 12282-54060 · 12282-75020 |
| 12511C | Generator bracket | 12511-30030 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-67010 |
