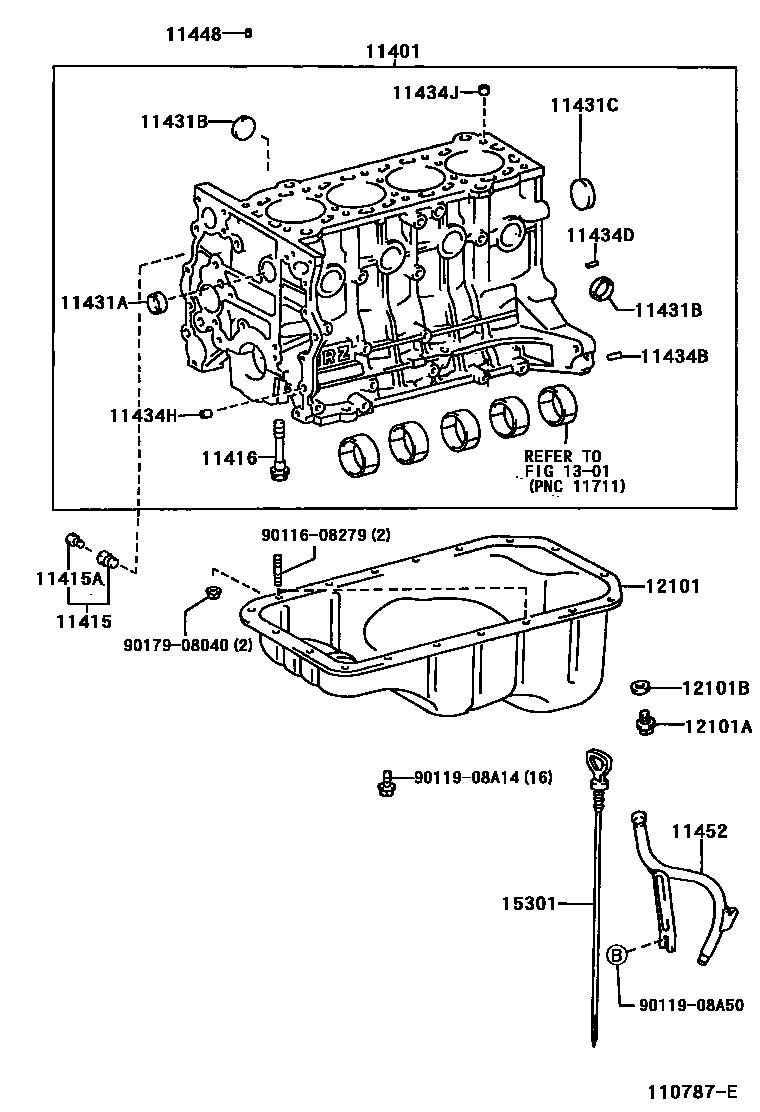

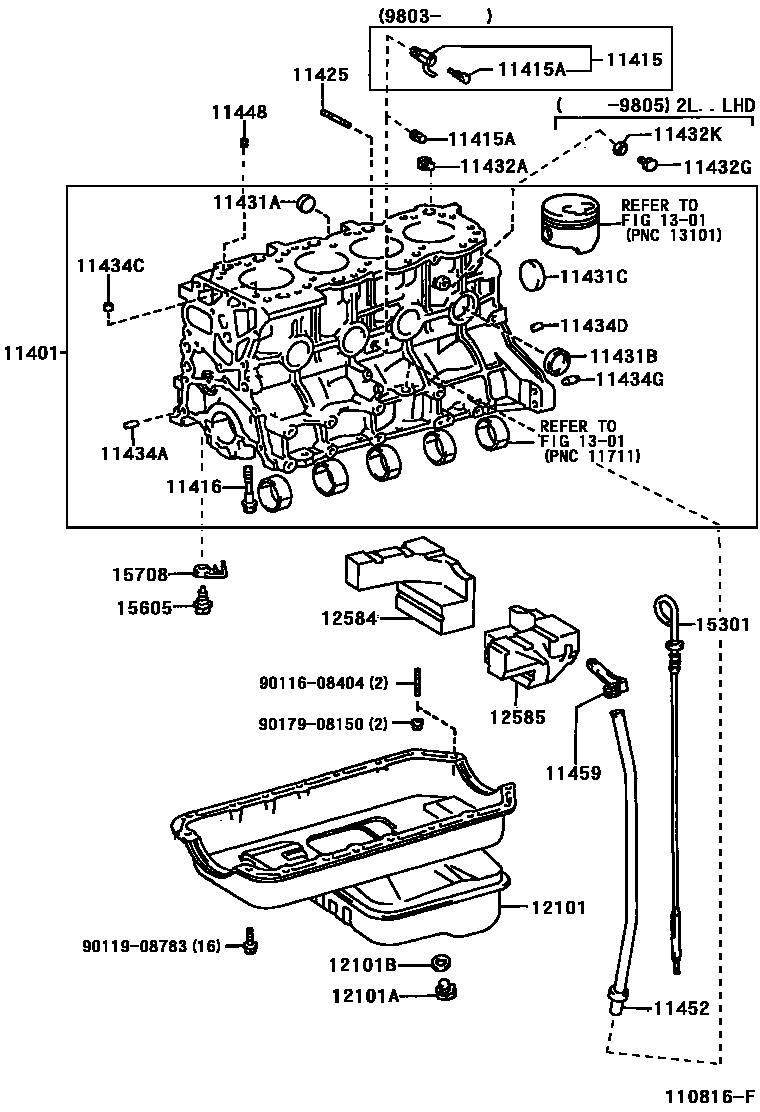

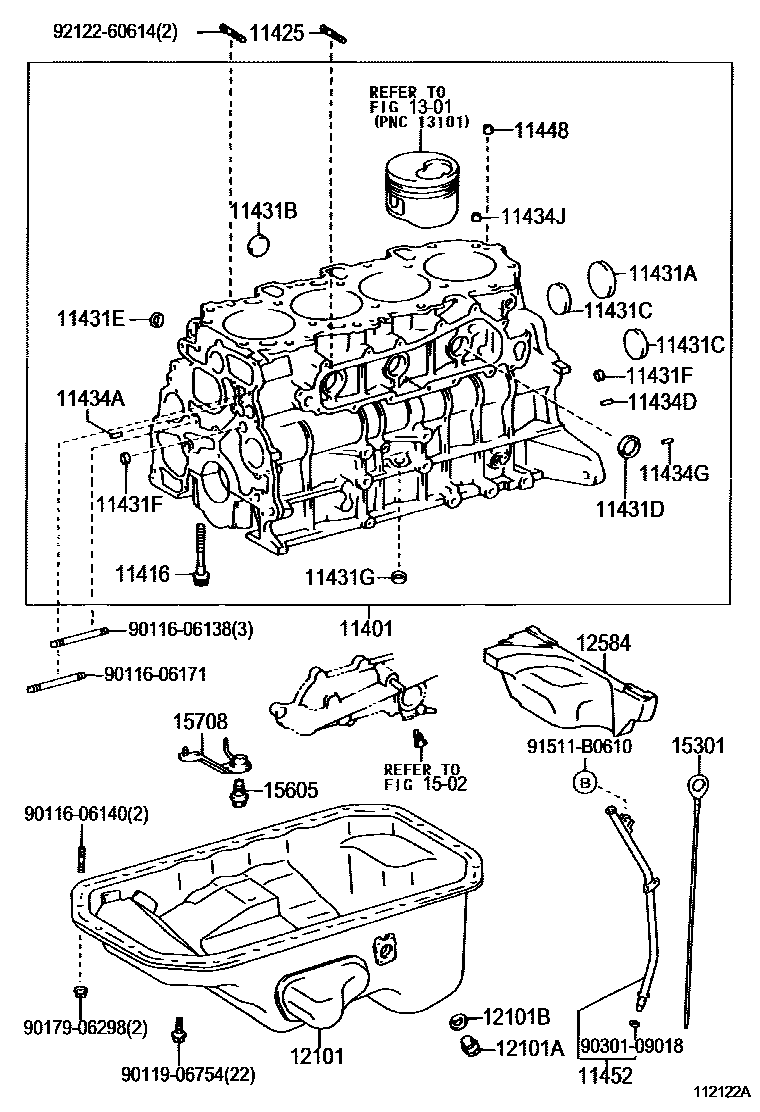

Toyota HILUX Cylinder Block — Figure 1105
Toyota HILUX EPC diagram 1105, Cylinder Block, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11401 | Cylinder block sub-assembly | 11401-39535 · 11401-39675 · 11401-39745 · 11401-59347 · 11401-59357 · 11401-59695 · 11401-59705 · 11401-79725 · 11401-79726 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90345-52001 · 90910-09075 · 90910-09110 · 90910-09118 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90345-53030 · 90910-09087 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02061 · 90910-02092 · 90910-02113 |
| 11425 | Studs (for oil filter) | 90116-06171 · 92112-80825 |
| 11431A | No. 1 sealing plug (for cylinder block) | 96411-42500 · 96411-63000 · 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-43500 · 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-45000 · 96411-64000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-61800 |
| 11431G | sealing plug | 90331-14006 |
| 11432A | No. 1 headed tapered thread plug | 90345-51006 |
| 11432G | No. 5 headed straight thread plug | 90341-12006 |
| 11432K | Headed straight thread plug liner | 90430-12221 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 · 90253-11021 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90253-15005 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06068 · 90253-11021 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-10192 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-11005 |
| 11434J | Ring pin (for cylinder head assembly) | 90253-15016 |
| 11448 | Cylinder block oil orifice | 11448-54020 · 11448-67010 · 90977-02011 |
| 11452 | Engine oil level gauge guide | 11409-30040 · 11409-75020 · 11452-54080 |
| 11459 | Oil level gauge guide bracket | 90929-01204 |
| 12101 | Oil pan sub-assembly | 12101-30050 · 12101-54182 · 12101-54183 · 12101-54184 · 12101-54320 · 12101-67080 · 12101-75090 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 · 90341-12026 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12584 | No. 4 cylinder block vibration isolation pad | 12584-54070 · 12584-54080 · 12584-67020 |
| 12585 | No. 5 cylinder block vibration isolation pad | 12585-54070 · 12585-54080 |
| 15301 | Engine oil level scoring assembly | 15301-30050 · 15301-54070 · 15301-75011 |
| 15605 | Oil check valve sub-assembly | 15605-17030 · 15605-54010 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-30010 · 15708-30011 · 15708-54060 |
