Toyota HILUX Standard Tools — Figure 0901

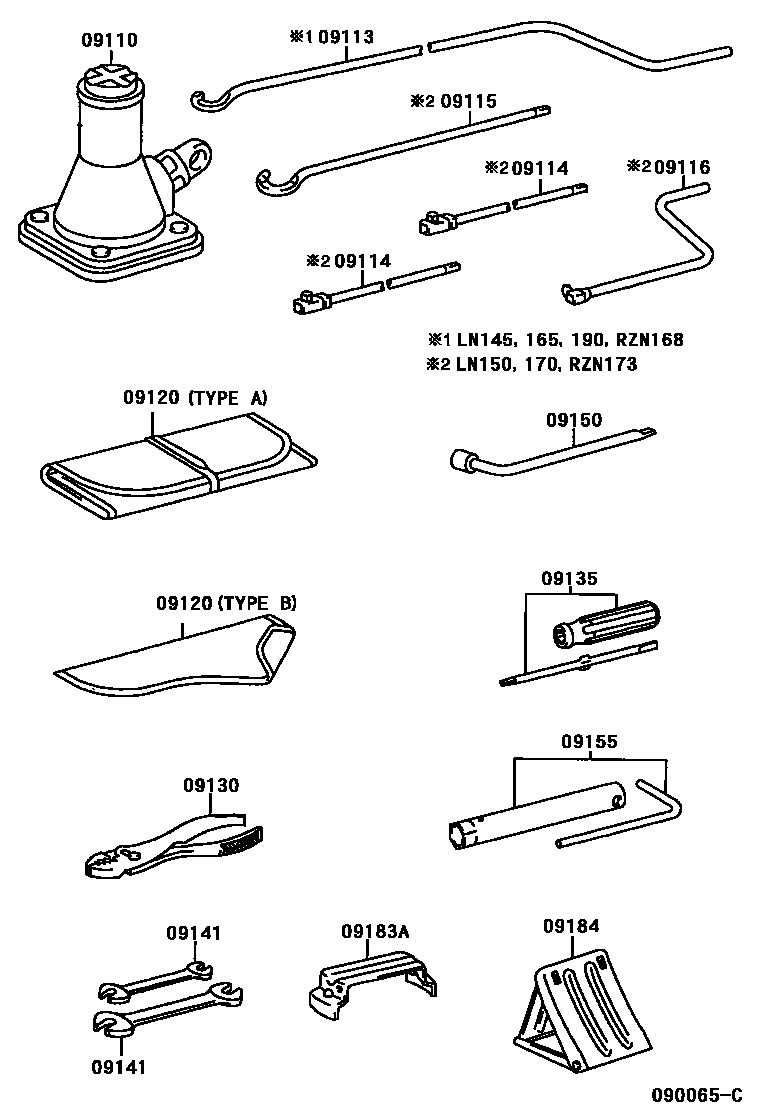

Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-35160 · 09111-35170 |
| 09113 | Jack Handle | 09113-35130 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-60070 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-34010 · 09115-35120 |
| 09116 | Jack Handle Rod | 09116-34010 |
| 09120 | Tool Bag | 09120-12011 · 09120-26021 · 09120-34020 · 09120-35150 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 90080-99005 · 99915-10700 |
| 09141 | Wrench | 90080-99006 · 90080-99007 · 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-35070 |
| 09155 | Spark Plug Wrench | 09155-74010 |
| 09183A | Wheel cover removal and assembly tools | 09183-60010 |
| 09184 | Wheel Chock | 09184-00010 · 09184-60010 |
